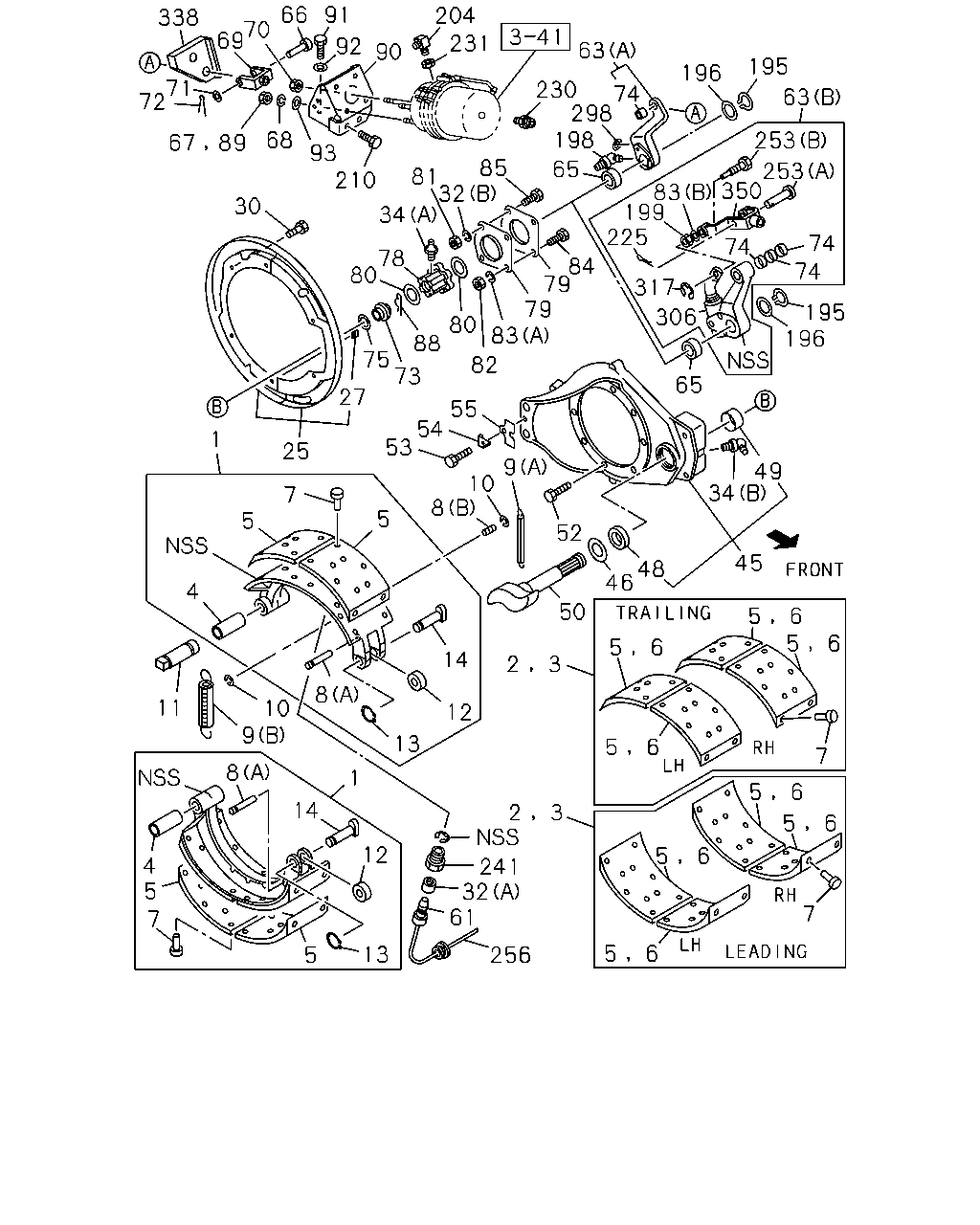

3-05 — REAR WHEEL BRAKE (#7095) — 136 parça

91 66 204 231 338 70 69 92 63 90 195 196 71 72 230 74 298 198 63 68 253 67 89 93 210 85 81 32 65 253 199 225 74 30 34 74 78 80 84 79 79 83 74 317 195 196 306 80 88 75 73 82 65 27 55 54 53 1 25 9 49 34 10 8 7 5 5 52 45 48 46 4 50 5 6 5 6 5 6 14 2 3 8 11 10 9 12 13 5 6 7 8 1 5 6 14 2 3 5 6 6 12 5 4 5 7 241 32 61 7 5 6 13 256 5 83 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47170-204-0	01	1	0012-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-205-0	01	1	0012-	●	●
1	SHOE; BRK,RR LEADING	1-47170-202-0	01	1	0012-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-203-0	01	1	0012-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-393-0	01	1	0012-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-823-0	01	1	0012-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-394-0	01	1	0012-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-824-0	01	1	0012-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0012-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING T=16	1-47125-563-0	04	1	0012-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING WO/INDICATOR HOLE	1-47126-084-0	04	1	0012-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING W/INDICATOR HOLE	1-47126-088-0	04	1	0012-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING T=17	1-47125-564-0	04	1	0012-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING WO/INDICATOR HOLE	1-47126-085-0	04	1	0012-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING W/INDICATOR HOLE	1-47126-089-0	04	1	0012-	●	●
7	RIVET; LINING,RR BRK L=19.5	1-09732-035-0	AR	1	0012-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-09744-074-0	04	1	0012-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0012-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-210-0	02	1	0012-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-277-2	02	1	0012-	●	●
10	RING; SNAP,SPR PIN ID=7	9-09185-407-0	02	1	0012-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0012-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0012-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0012-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0012-	●	●
25	COVER SET; RR BRK DRUM	1-47151-610-1	01	1	0012-	●	●
25	COVER SET; RR BRK DRUM	1-47151-608-1	01	1	0012-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0012-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0012-	●	●
32	WASHER; LK (A)	1-47119-050-0	02	1	0012-	●	●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	04	1	0012-0603	●	●
32	WASHER; LK (B) ID=10.2	0-91510-510-0	04	1	0604-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0012-0512	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0012-0512	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTI SKID BRK SYSTEM<SFL>	1-47137-488-0	01	1	0012-	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTI SKID BRK SYSTEM<SFL>	1-47137-489-0	01	1	0012-	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTI SKID BRK SYSTEM<SFL>	1-47137-128-1	02	1	0012-0203	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-128-1	02	1	0012-0203		●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTI SKID BRK SYSTEM<SFL>	1-47137-128-1	02	1	0204-	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. EURO3 SPECIFICATION(NJX)	1-47137-128-1	02	1	0204-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0012-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0012-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-009-0	02	1	0012-	●	●
50	CAMSHAFT; BRK,RR BRK AUTO ADJUSTER BRAKE<BCU>	1-47141-129-0	01	1	0012-	●	●
50	CAMSHAFT; BRK,RR BRK AUTO ADJUSTER BRAKE<BCU>	1-47141-128-0	01	1	0012-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU>	1-47141-134-0	01	1	0012-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU>	1-47141-133-0	01	1	0012-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0012-	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0012-0512	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0012-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0012-	●	●
61	INDICATOR; WEAR,RR BRK SHOE	1-82480-174-0	02	1	0012-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-098-0	01	1	0012-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-097-0	01	1	0012-	●	●
63	ADJUSTER ASM; SLACK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-078-1	01	1	0012-	●	●
63	ADJUSTER ASM; SLACK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-077-1	01	1	0012-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-014-0	02	1	0012-	●
65	SPACER; SLACK ADJ,BRK EXC. AUTO ADJUSTER BRAKE<BCU>	1-47143-014-0	02	1	0012-		●
65	SPACER; SLACK ADJ,BRK AUTO ADJUSTER BRAKE<BCU>	1-47143-011-0	02	1	0012-		●
66	PIN; JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU>	1-09744-088-0	02	1	0012-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0012-0512	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0012-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
69	JOINT; JAW EXC. AUTO ADJUSTER BRAKE<BCU>	1-09768-060-1	02	1	0012-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0012-0512	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
71	WASHER; PL,JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU> ID=17 OD=32	9-09160-616-0	02	1	0012-	●	●
72	PIN; SPLIT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	9-08114-028-0	02	1	0012-0606	●	●
72	PIN; SPLIT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0012-	●	●
74	BUSHING; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-078-0	06	1	0107-	●	●
74	BUSHING; SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU>	1-09330-041-0	02	1	0012-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0012-	●	●
78	BUSHING; BRKT	1-47146-008-0	02	1	0012-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0012-	●	●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0012-	●	●
81	NUT M10	9-09110-410-0	04	1	0012-0512	●	●
81	NUT M10	0-91110-510-0	04	1	0601-	●	●
82	NUT M16	9-99110-516-0	04	1	0012-0512	●	●
82	NUT M16	0-91110-516-0	04	1	0601-	●	●
83	WASHER; PL AUTO ADJUSTER BRAKE<BCU> (B)	1-48279-033-0	02	1	0107-	●	●
83	WASHER; PL (A) ID=16.2	9-09851-672-2	08	1	0012-	●	●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0012-0512	●	●
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0012-0512	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-	●	●
88	CLIP; BRKT	1-09589-018-0	02	1	0012-	●	●
89	NUT; CHAMBER M20	9-99111-420-0	02	1	0012-0411	●	●
89	NUT; CHAMBER M20	9-99111-420-0	02	1	0412-0512		●
89	NUT; CHAMBER M20	0-91111-520-0	02	1	0601-		●
90	BRACKET; CHAMBER	1-42129-449-0	01	1	0012-	●
90	BRACKET; CHAMBER	1-42129-450-0	01	1	0012-	●
91	BOLT; CHAMBER M8X12 W/LK WASHER	0-50040-812-0	02	1	0012-0411	●	●
91	BOLT; CHAMBER M8X12 W/LK WASHER	0-50040-812-0	02	1	0412-0512		●
91	BOLT; CHAMBER M8X12 W/LK WASHER	0-50540-812-0	02	1	0601-		●
92	WASHER; LK,CHAMBER ID=8.2	9-09150-508-0	02	1	0012-0411	●	●
92	WASHER; LK,CHAMBER ID=8.2	9-09150-508-0	02	1	0412-0603		●
92	WASHER; LK,CHAMBER ID=8.2	0-91510-508-0	02	1	0604-		●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	0012-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	0012-	●	●
196	DISTANCE; CM/SHF	1-47143-004-0	01	1	0012-	●
198	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0012-0512	●	●
198	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
199	NUT AUTO ADJUSTER BRAKE<BCU>	1-48279-034-0	02	1	0107-	●	●
204	CONNECTOR; SPR CHAMBER M16 & PT3/8 ELBOW	1-09650-438-0	04	1	0412-	●
204	CONNECTOR; SPR CHAMBER PT3/8 & M27 ELBOW	1-09650-118-1	02	1	0012-0411	●	●
204	CONNECTOR; SPR CHAMBER PT3/8 & M27 ELBOW	1-09650-118-1	02	1	0412-		●
204	CONNECTOR; SPR CHAMBER M20 & PT3/8 ELBOW	1-09660-686-0	02	1	0012-0411	●	●
204	CONNECTOR; SPR CHAMBER M20 & PT3/8 ELBOW	1-09660-686-0	02	1	0412-		●
210	BOLT; BRKT FIX M16X30 FLANGE	0-28981-630-0	04	1	0012-0509	●
210	BOLT; BRKT FIX M16X30 FLANGE	0-28891-630-0	04	1	0510-	●
210	BOLT; BRKT FIX M16X45 FLANGE	0-28981-645-0	04	1	0012-0012	●
210	BOLT; BRKT FIX M16X50 FLANGE	0-28991-650-0	04	1	0101-0509	●
210	BOLT; BRKT FIX M16X50 FLANGE	0-28891-650-0	04	1	0510-0512	●
210	BOLT; BRKT FIX M16X50 FLANGE	0-28861-650-0	04	1	0601-	●
225	PIN; SPLIT AUTO ADJUSTER BRAKE<BCU>	1-48279-031-0	02	1	0107-	●	●
230	NIPPLE; SPR CHAMBER M20 & PT1/4	9-09902-386-0	02	1	0012-0411	●	●
230	NIPPLE; SPR CHAMBER M20 & PT1/4	9-09902-386-0	02	1	0412-		●
231	NUT; CONNECTOR M27	9-09840-286-0	02	1	0012-0411	●	●
231	NUT; CONNECTOR M27	9-09840-286-0	02	1	0412-		●
241	HOLDER	1-47119-096-0	02	1	0107-	●	●
253	PIN; CLEVIS AUTO ADJUSTER BRAKE<BCU> (A)	1-48279-029-0	02	1	0107-	●	●
253	PIN; CLEVIS AUTO ADJUSTER BRAKE<BCU> (B)	1-48279-030-0	02	1	0107-	●	●
256	COVER; INDICATOR	1-09333-147-0	02	1	0012-	●	●
298	GASKET EXC. AUTO ADJUSTER BRAKE<BCU> ID=23.3	9-09561-223-0	02	1	0107-	●	●
306	BOOT; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-044-0	02	1	0107-	●	●
317	RING; RETAINER AUTO ADJUSTER BRAKE<BCU>	1-48279-032-0	02	1	0107-	●	●
338	PLATE; DISTANCE	1-42129-463-0	01	1	0012-0506	●
338	PLATE; DISTANCE	1-42129-462-0	01	1	0012-0506	●
338	PLATE; DISTANCE	1-42129-505-0	02	1	0507-	●
350	CLEVIS; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-060-0	02	1	0107-	●	●
