◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#70949) — 152 parça

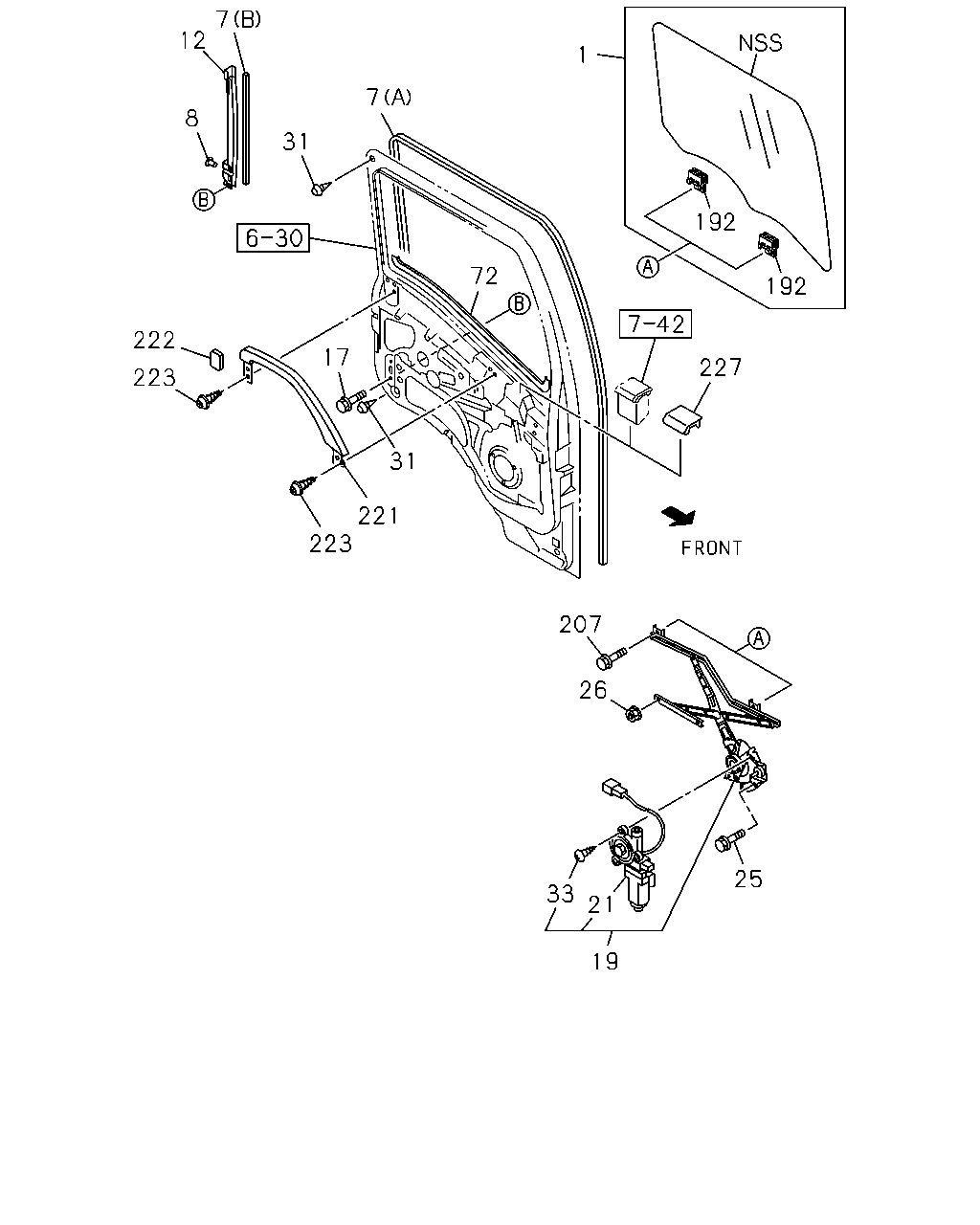

çizim 130746
192 227 1 192 7 31 12 7 72 17 222 223 223 221 31 207 26 25 19 21 33 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1011-1102 ●
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1103-1204 ● ●
1 GLASS; FRT DOOR 8-98211-765-0 01 1 1205- ● ●
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1011-1102 ●
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1103-1204 ● ●
1 GLASS; FRT DOOR 8-98211-764-0 01 1 1205- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1011-1102 ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1103- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 1011-1102 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 1103-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 1011-1102 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 1103-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1011-1102 ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1103- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1011-1102 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1103- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1011-1102 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1103- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1011-1102 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1103- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1011-1102 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1103- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1011-1102 ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1103- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1011-1102 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1103- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1011-1102 ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1103- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1011-1102 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1011-1102 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1103-1306 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1103-1306 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 06 1 1307- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1011-1102 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1103- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1011-1102 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1103- ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1011-1102 ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1011-1102 ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1103-1204 ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1103-1204 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205-1306 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205-1306 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1307- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1011-1102 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1103- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1011-1102 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1103- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1011-1102 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1103- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1011-1102 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1103- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1011-1102 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1103- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1011-1102 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1103-1108 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1011-1102 ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1103-1306 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1307-1312 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1307-1312 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1401- ● ●

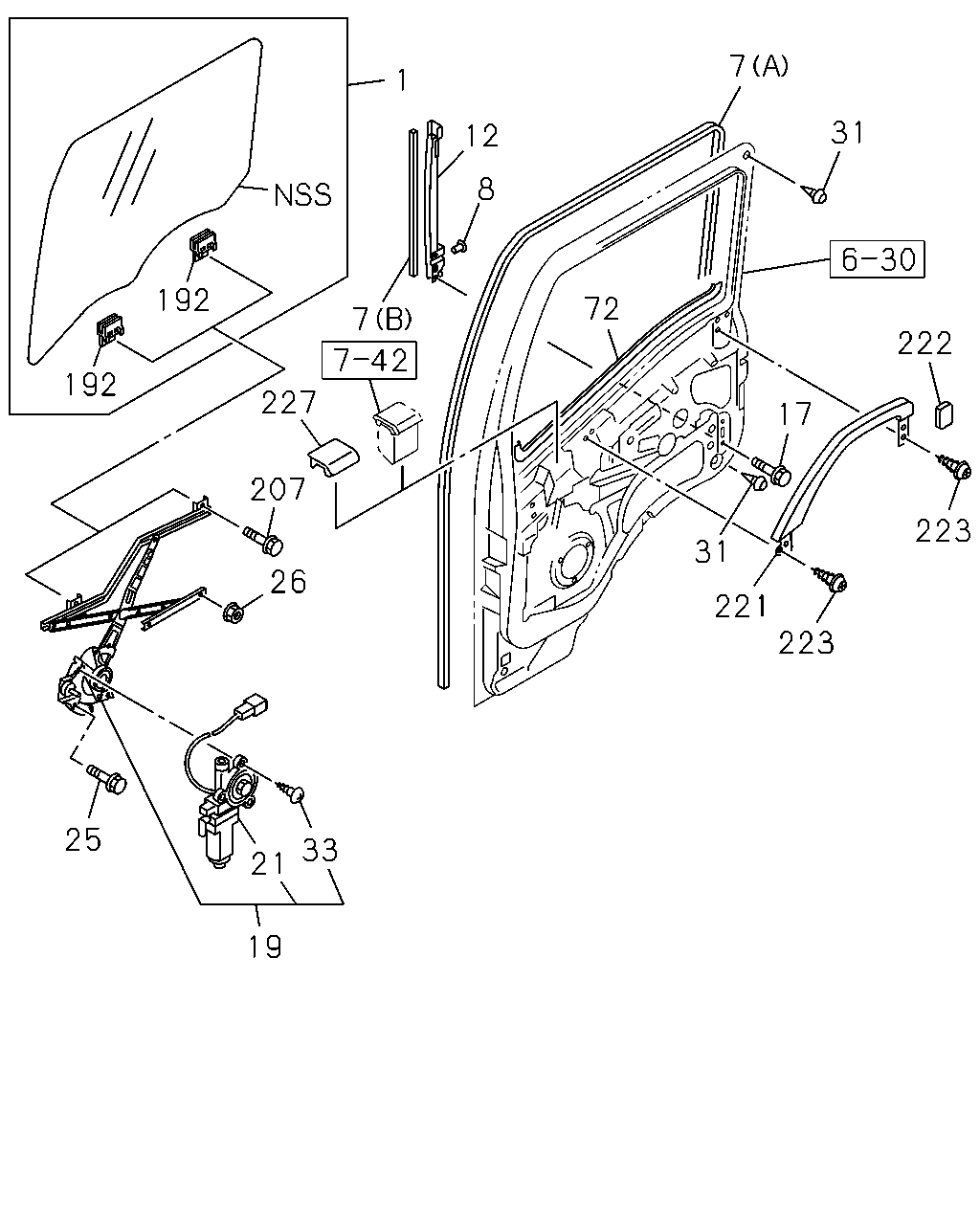

çizim 130809
192 192 1 12 8 7 227 207 26 25 19 21 33 221 31 17 72 7 31 222 223 223
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1011-1102 ●
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1103-1204 ● ●
1 GLASS; FRT DOOR 8-98211-765-0 01 1 1205- ● ●
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1011-1102 ●
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1103-1204 ● ●
1 GLASS; FRT DOOR 8-98211-764-0 01 1 1205- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1011-1102 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1103-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1011-1102 ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1103- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 1011-1102 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 1103-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 1011-1102 ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 1103-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1011-1102 ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1103- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1011-1102 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1103- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1011-1102 ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1103- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1011-1102 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1103- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1011-1102 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1103- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1011-1102 ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1103- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1011-1102 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1103- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1011-1102 ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1103- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1011-1102 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1011-1102 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1103-1306 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 1103-1306 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 06 1 1307- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1011-1102 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1103- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1011-1102 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1103- ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1011-1102 ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1011-1102 ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1103-1204 ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 1103-1204 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205-1306 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205-1306 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1307- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1011-1102 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1103- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1011-1102 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1103- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1011-1102 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1103- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1011-1102 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1103- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1011-1102 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1103- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1011-1102 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1103-1108 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1011-1102 ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1103-1306 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1307-1312 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1307-1312 ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
