◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#70944) — 4 parça

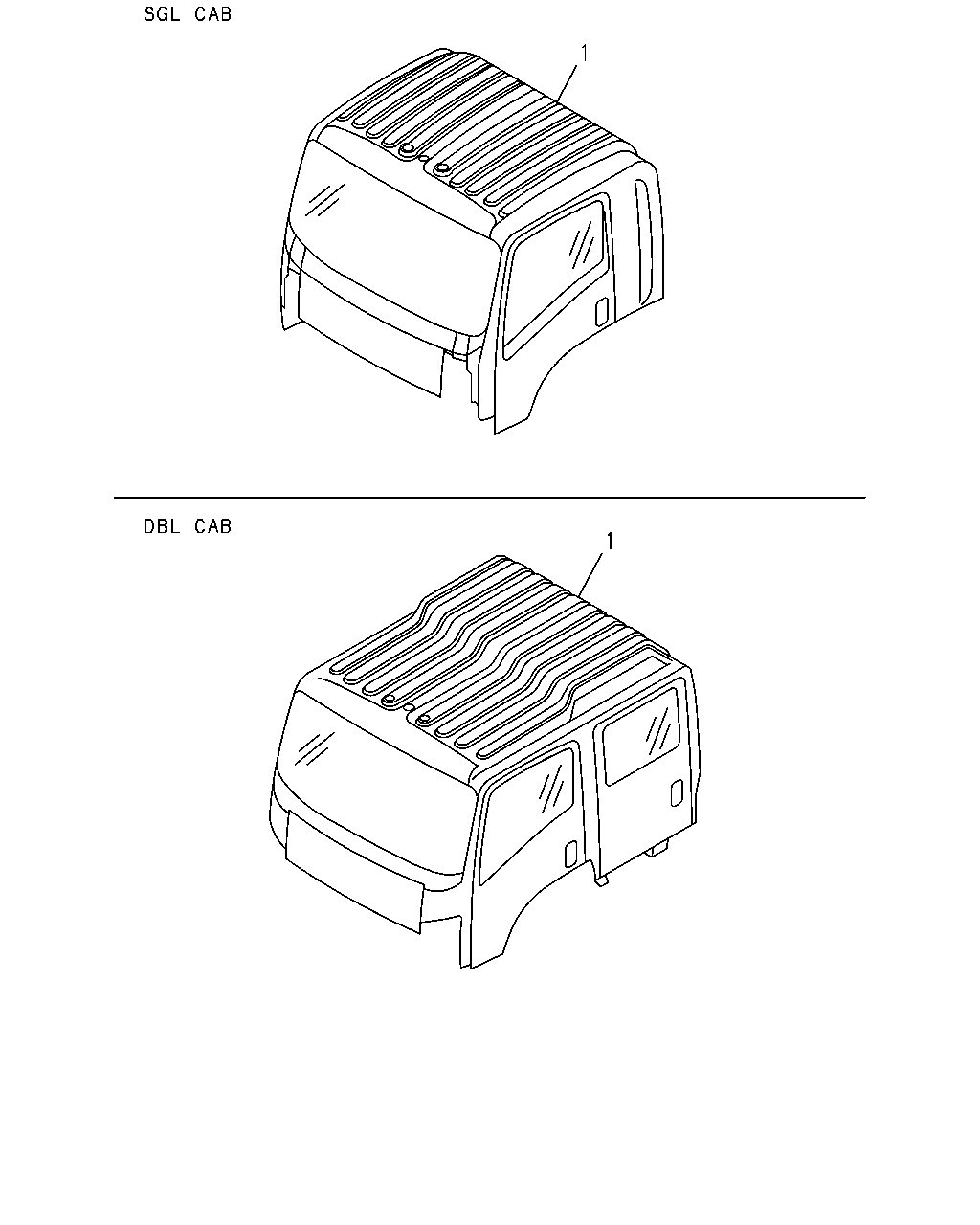

çizim 189154
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61088-763-0 01 1 1011-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61088-766-0 01 1 1103-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MANUAL TRANSMISSION<X9C> EXC. COUNTRY NEW ZEALAND<CX6>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-200-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MANUAL TRANSMISSION<X9C> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61860-202-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
