◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#70942) — 69 parça

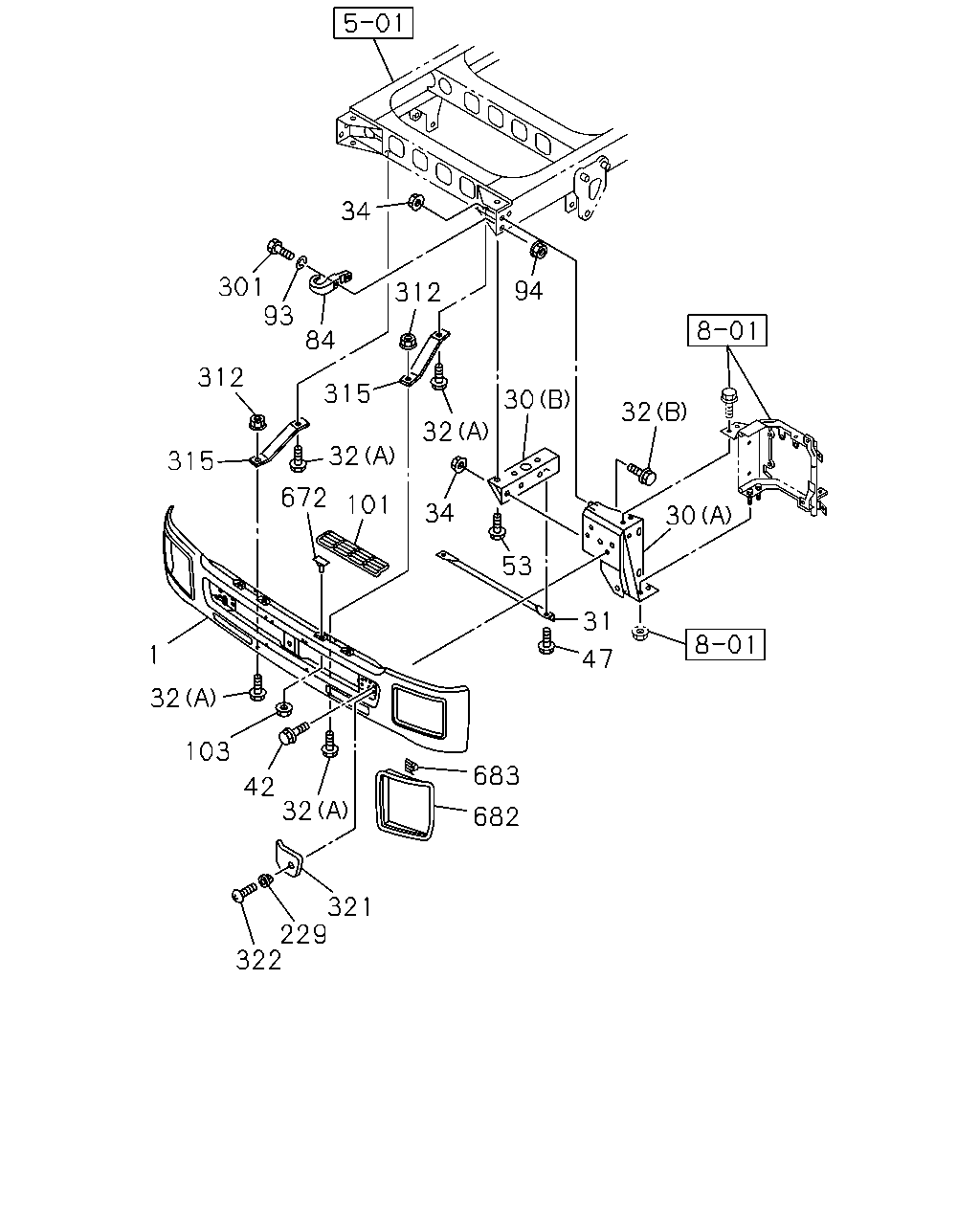

çizim 125774
34 301 312 315 1 32 103 42 32 321 229 322 93 672 84 315 32 101 683 682 312 94 32 34 30 53 31 47 32 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-271-2 01 1 1011-1102 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-271-2 01 1 1103-1301 ● ●
1 BUMPER ASM; FRT
WHITE 		8-97425-890-0 01 1 1302-1405 ● ●
1 BUMPER ASM; FRT
WHITE 		8-97465-336-0 01 1 1406- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-908-1 01 1 1011-1102 ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-908-1 01 1 1103-1405 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98283-918-0 01 1 1406- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98089-965-0 01 1 1011-1102 ●
30 BRACKET; FRT BUMPER
(B) 		8-98089-965-0 01 1 1103- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-907-1 01 1 1011-1102 ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-907-1 01 1 1103-1405 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98283-917-0 01 1 1406- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98089-964-0 01 1 1011-1102 ●
30 BRACKET; FRT BUMPER
(B) 		8-98089-964-0 01 1 1103- ● ●
31 SUPPORT; FRT BUMPER,LWR 8-97622-026-0 01 1 1011-1102 ●
31 SUPPORT; FRT BUMPER,LWR 8-97622-026-0 01 1 1103- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1011-1102 ●
32 BOLT; BRKT,BUMPER
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1103- ● ●
32 BOLT; BRKT,BUMPER
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1011-1102 ●
32 BOLT; BRKT,BUMPER
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1103- ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 10 1 1011-1102 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 10 1 1103- ● ●
34 NUT; BRKT,BUMPER
M14 FLANGE 		0-91180-214-0 04 1 1011-1102 ●
34 NUT; BRKT,BUMPER
M14 FLANGE 		0-91180-214-0 04 1 1103- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1011-1102 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1103- ● ●
47 BOLT; SUPPORT TO BODY
M14X40 FLANGE 		0-28651-440-0 02 1 1011-1102 ●
47 BOLT; SUPPORT TO BODY
M14X40 FLANGE 		0-28651-440-0 02 1 1103- ● ●
53 BOLT; BRKT TO FRAME
M10X40 FLANGE 		0-28651-040-0 02 1 1011-1102 ●
53 BOLT; BRKT TO FRAME
M10X40 FLANGE 		0-28651-040-0 02 1 1103- ● ●
53 BOLT; BRKT TO FRAME
M14X45 FLANGE 		0-28851-445-0 04 1 1011-1102 ●
53 BOLT; BRKT TO FRAME
M14X45 FLANGE 		0-28851-445-0 04 1 1103- ● ●
84 HOOK 1-57181-003-5 01 1 1011-1102 ●
84 HOOK 1-57181-003-5 01 1 1103- ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 1011-1102 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 1103- ● ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 1011-1102 ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 1103- ● ●
101 STEP; BUMPER 8-97611-541-0 01 1 1011-1102 ●
101 STEP; BUMPER 8-97611-541-0 01 1 1103- ● ●
101 STEP; BUMPER 8-97611-540-0 01 1 1011-1102 ●
101 STEP; BUMPER 8-97611-540-0 01 1 1103- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1011-1102 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1103- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1011-1102 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1103- ● ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 02 1 1011-1102 ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 02 1 1103- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1011-1102 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1103- ● ●
315 STAY; BUMPER 8-97623-661-0 02 1 1307-1308 ●
315 STAY; BUMPER 8-97623-660-0 02 1 1011-1102 ●
315 STAY; BUMPER 8-97623-660-0 02 1 1103-1306 ● ●
315 STAY; BUMPER 8-97623-660-0 02 1 1307-1308 ●
315 STAY; BUMPER 8-97623-660-0 02 1 1309- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 1011-1102 ●
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 1103- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 1011-1102 ●
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 1103- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1011-1102 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1103- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1011-1102 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1103- ● ●
682 BEZEL; BUMPER 8-97611-533-1 01 1 1011-1102 ●
682 BEZEL; BUMPER 8-97611-533-1 01 1 1103- ● ●
682 BEZEL; BUMPER 8-97611-532-1 01 1 1011-1102 ●
682 BEZEL; BUMPER 8-97611-532-1 01 1 1103- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1011-1102 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1103- ● ●
