3-01 — FRONT WHEEL BRAKE (#7094) — 75 parça

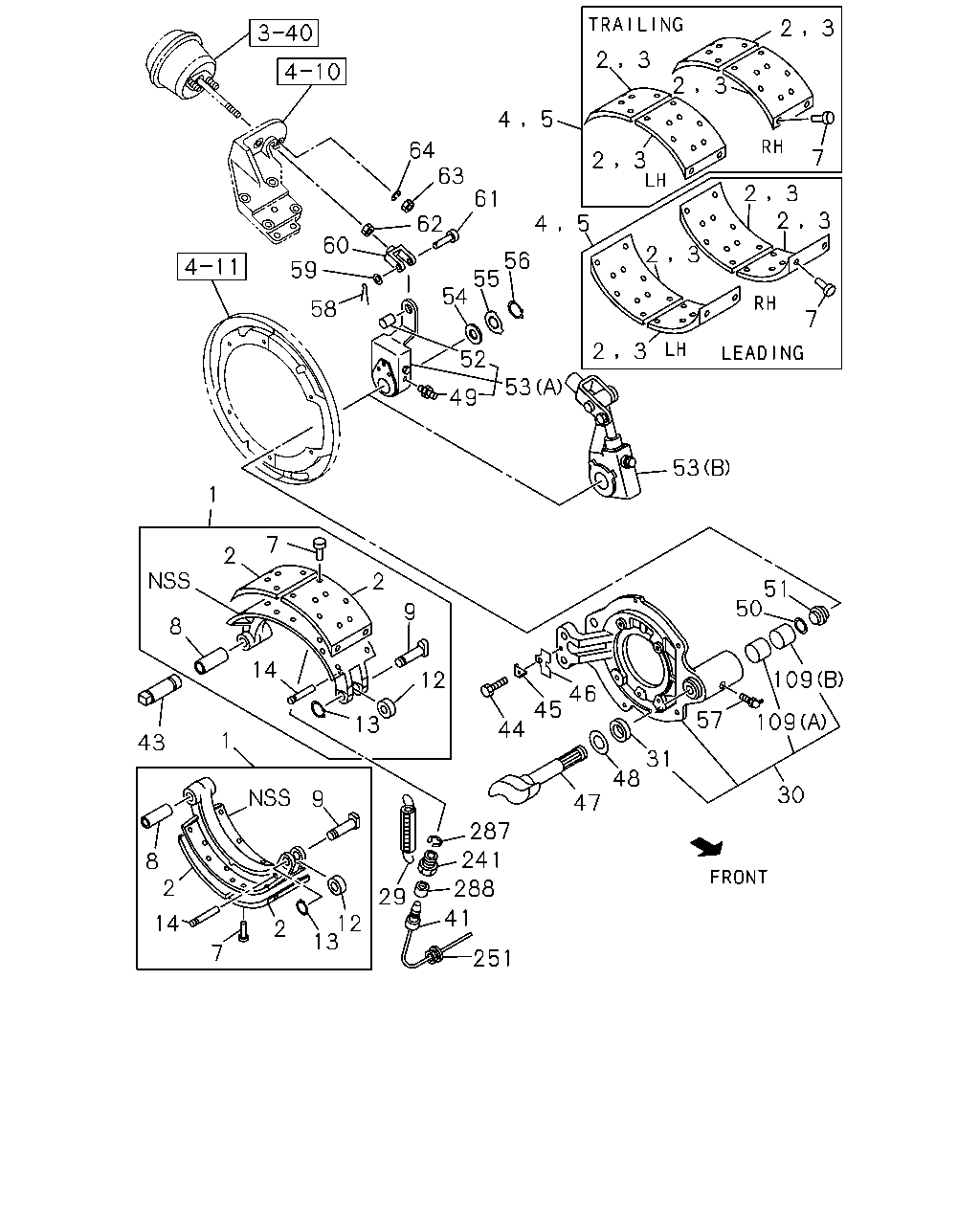

çizim 5843
2 3 3 2 3 2 5 4 64 63 7 2 3 2 3 2 61 62 3 5 4 60 59 3 2 56 55 54 58 7 52 2 3 53 49 53 1 7 2 2 51 50 9 8 4 109 12 46 45 44 13 57 109 1 43 31 48 30 9 47 287 241 8 2 288 29 41 12 13 14 2 7 251
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING 		1-47170-198-0 01 1 0012- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-200-0 01 1 0012- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-199-0 01 1 0012- ● ●
1 SHOE; BRK,FRT
LEADING 		1-47170-201-0 01 1 0012- ● ●
2 LINING; FRT BRK SHOE,STANDARD
LEADING WO/INDICATOR HOLE 		1-47126-080-0 04 1 0012- ● ●
2 LINING; FRT BRK SHOE,STANDARD
TRAILING 		1-47126-082-0 04 1 0012- ● ●
2 LINING; FRT BRK SHOE,STANDARD
LEADING W/INDICATOR HOLE 		1-47126-086-0 04 1 0012- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING WO/INDICATOR HOLE 		1-47126-081-0 04 1 0012- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
TRAILING 		1-47126-083-0 04 1 0012- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING W/INDICATOR HOLE 		1-47126-087-0 04 1 0012- ● ●
4 LINING SET; FRT BRK,STANDARD
LEADING 		1-88310-819-0 01 1 0012- ● ●
4 LINING SET; FRT BRK,STANDARD
TRAILING 		1-88310-821-0 01 1 0012- ● ●
5 LINING SET; FRT BRK,OVER SIZE
LEADING 		1-88310-820-0 01 1 0012- ● ●
5 LINING SET; FRT BRK,OVER SIZE
TRAILING 		1-88310-822-0 01 1 0012- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 AR 1 0012- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 0012- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 04 1 0012- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 04 1 0012- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0012- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 0012- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 0012- ● ●
30 BRACKET; ANCHOR,FRT
ANTI SKID BRK SYSTEM<SFL> 		1-47137-503-0 01 1 0012- ●
30 BRACKET; ANCHOR,FRT
ANTI SKID BRK SYSTEM<SFL> 		1-47137-502-0 01 1 0012- ●
30 BRACKET; ANCHOR,FRT
EXC. ANTI SKID BRK SYSTEM<SFL> 		1-47137-481-0 01 1 0012- ●
30 BRACKET; ANCHOR,FRT 1-47137-481-0 01 1 0012- ●
30 BRACKET; ANCHOR,FRT
EXC. ANTI SKID BRK SYSTEM<SFL> 		1-47137-480-0 01 1 0012- ●
30 BRACKET; ANCHOR,FRT 1-47137-480-0 01 1 0012- ●
31 SEAL; OIL,CM/SHF 1-09625-228-0 02 1 0012- ● ●
41 INDICATOR 1-82480-173-0 02 1 0012- ●
41 INDICATOR 1-82480-188-0 02 1 0012- ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 0012- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 0012-0512 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0601- ● ●
45 WASHER; LK 1-47133-011-0 02 1 0012- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 0012- ● ●
47 CAMSHAFT; FRT BRK 1-47141-051-0 01 1 0012- ● ●
47 CAMSHAFT; FRT BRK 1-47141-052-0 01 1 0012- ● ●
48 RING; SPACER,CM/SHF 1-47143-005-0 02 1 0012- ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0512 ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0012-0512 ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
50 RING; FELT,CM/SHF 1-09620-009-0 02 1 0012- ● ●
51 COLLAR; RING,CM/SHF
AUTO ADJUSTER BRAKE<BCU> 		1-47143-013-0 02 1 0012- ● ●
51 COLLAR; RING,CM/SHF
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-47143-016-0 02 1 0012- ● ●
52 BUSHING; SLACK ADJ
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-09330-041-0 02 1 0012- ● ●
53 ADJUSTER ASM; SLACK
AUTO ADJUSTER BRAKE<BCU> (B) 		1-48270-071-0 01 1 0012- ● ●
53 ADJUSTER ASM; SLACK
AUTO ADJUSTER BRAKE<BCU> (B) 		1-48270-072-0 01 1 0012- ● ●
53 ADJUSTER ASM; SLACK
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-48270-044-0 01 1 0012- ● ●
53 ADJUSTER ASM; SLACK
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-48270-043-0 01 1 0012- ● ●
54 SPACER; CM/SHF 1-47143-004-0 04 1 0012-0103 ● ●
54 SPACER; CM/SHF
AUTO ADJUSTER BRAKE<BCU> 		1-47143-004-0 04 1 0104- ● ●
54 SPACER; CM/SHF
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-47143-004-0 02 1 0104- ● ●
55 PLATE; STOPPER,CM/SHF 1-47149-086-0 02 1 0012- ●
55 PLATE; STOPPER,CM/SHF 1-47149-055-0 02 1 0012- ●
56 CLIP; ANCHOR PIN 9-09180-038-0 02 1 0012- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0012-0512 ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
58 PIN; SPLIT,JAW JOINT
EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28 		9-08114-028-0 02 1 0102-0606 ● ●
58 PIN; SPLIT,JAW JOINT
EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28 		0-81124-028-0 02 1 0607- ● ●
59 WASHER; PL,JAW JOINT
EXC. AUTO ADJUSTER BRAKE<BCU> ID=17 OD=32 		9-09160-616-0 02 1 0102- ● ●
60 JOINT; JAW,POWER CHAMBER
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-09768-060-1 02 1 0102- ● ●
61 PIN; JAW JOINT,POWER CHAMBER
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-09744-088-0 02 1 0102- ● ●
62 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0012-0512 ● ●
62 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601- ● ●
63 NUT; POWER CHAMBER
M16 		9-99110-416-0 04 1 0012-0512 ● ●
63 NUT; POWER CHAMBER
M16 		0-91110-516-0 04 1 0601- ● ●
64 WASHER; LK,POWER CHAMBER
ID=16.2 		9-09150-516-0 04 1 0012-0603 ● ●
64 WASHER; LK,POWER CHAMBER
ID=16.2 		0-91510-516-0 04 1 0604- ● ●
109 BUSHING; CM/SHF,FRT BRK
(A) 		1-47146-003-1 02 1 0012- ● ●
109 BUSHING; CM/SHF,FRT BRK
(B) 		1-47146-019-0 02 1 0012- ● ●
241 HOLDER 1-47119-096-0 02 1 0107- ● ●
251 COVER; INDICATOR 1-09333-147-0 02 1 0012- ● ●
287 RING; SNAP
ID=7 		9-09185-407-0 02 1 0012- ● ●
288 WASHER; WAVE 1-47119-050-0 02 1 0012- ● ●
