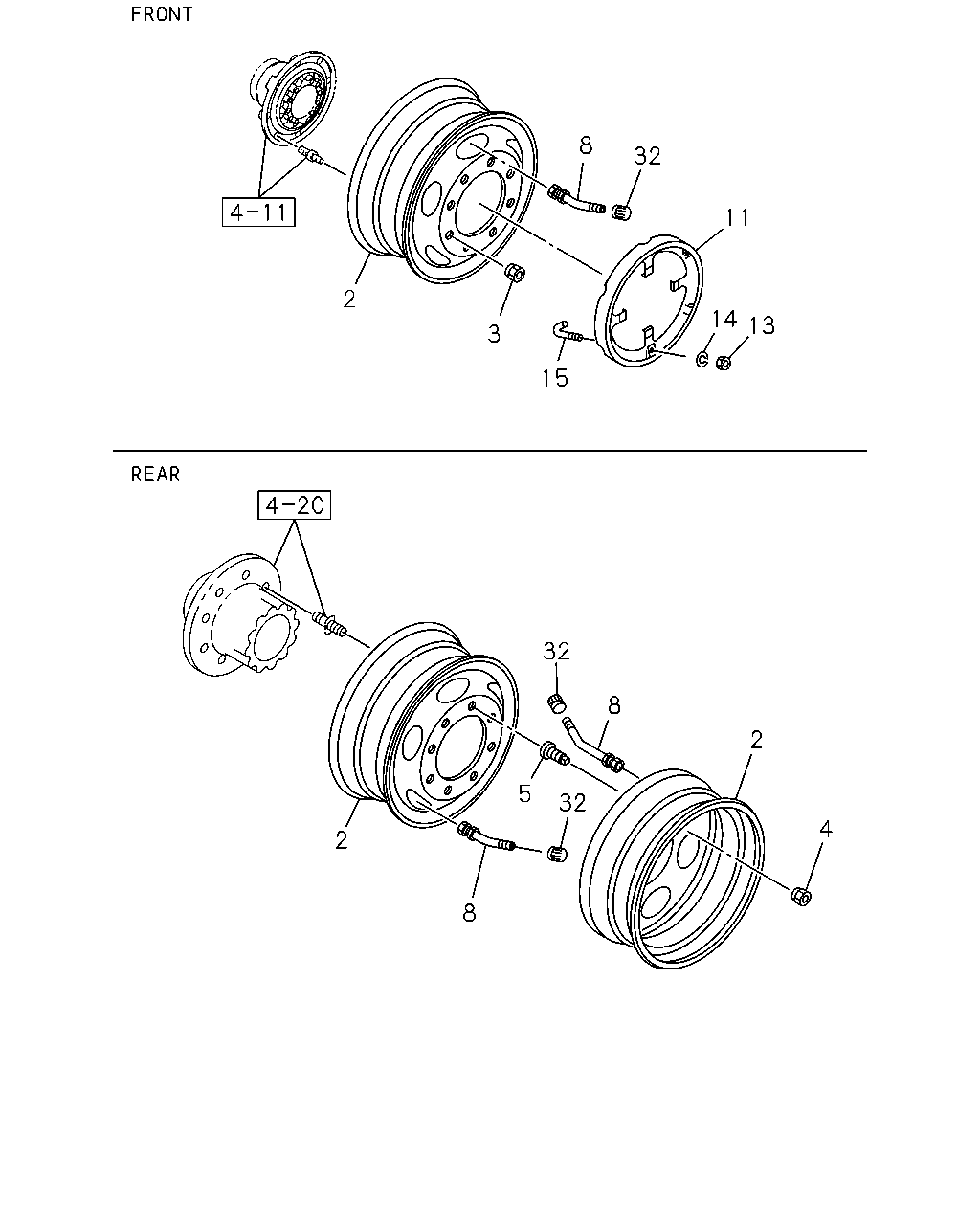

4-80 — ROAD WHEEL (#70934) — 42 parça

2 8 32 3 15 11 14 13 32 2 8 5 32 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE	1-42350-407-1	01	1	1110-1306	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE	1-42350-407-1	01	1	1307-	●
2	WHEEL; DISC EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT	1-42350-407-1	02	1	1110-1306	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> FRONT	1-42350-407-1	02	1	1307-	●
2	WHEEL; DISC EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR	1-42350-407-1	04	1	1110-1306	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> REAR	1-42350-407-1	04	1	1307-	●
2	WHEEL; DISC FRONT	1-42350-408-0	02	1	1011-1102	●
2	WHEEL; DISC FRONT	1-42350-408-0	02	1	1103-1109	●	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT	1-42350-408-0	02	1	1110-	●
2	WHEEL; DISC FRONT	1-42350-408-0	02	1	1110-		●
2	WHEEL; DISC REAR	1-42350-408-0	04	1	1011-1102	●
2	WHEEL; DISC REAR	1-42350-408-0	04	1	1103-1109	●	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR	1-42350-408-0	04	1	1110-	●
2	WHEEL; DISC REAR	1-42350-408-0	04	1	1110-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42350-408-0	01	1	1011-1102	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42350-408-0	01	1	1103-1109	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE	1-42350-408-0	01	1	1110-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42350-408-0	01	1	1110-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1011-1102	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1103-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1011-1102	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1103-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1011-1102	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	1103-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1011-1102	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	1103-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1011-1102	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1103-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1011-1102	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1103-	●	●
8	VALVE; TIRE REAR	1-42370-020-3	04	1	1307-	●	●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	1011-1102	●
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	1103-1306	●	●
8	VALVE; TIRE FRONT	1-42370-020-3	02	1	1307-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	1011-1102	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	1103-	●	●
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-002-2	02	1	1110-	●
13	NUT; STEP DISC DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1110-	●
14	WASHER; LK,STEP DISC DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1110-	●
15	BOLT; STEP DISC DISC WHEEL STEP<W66> L=60	1-43139-016-0	06	1	1110-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1011-1102	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	07	1	1103-	●	●
