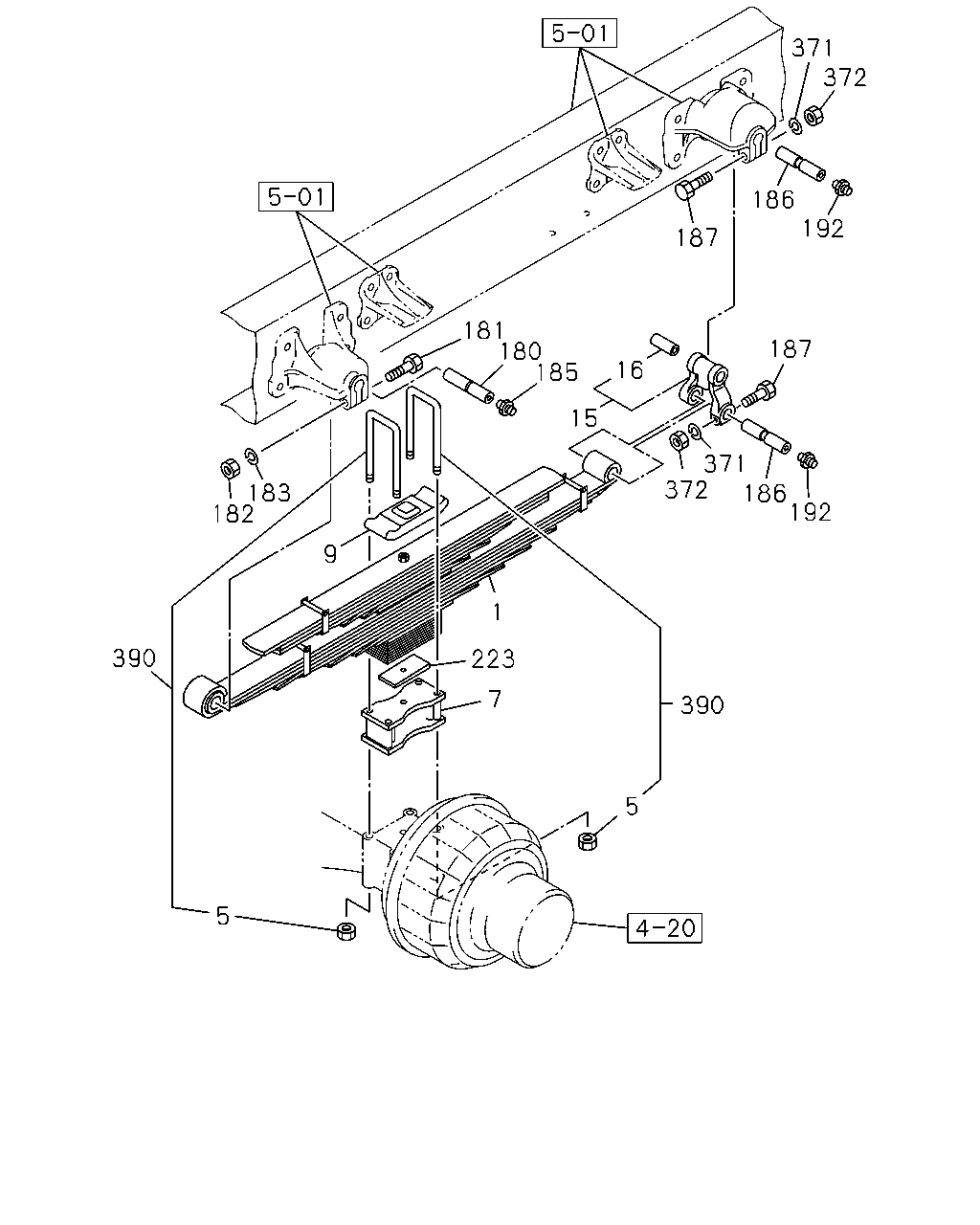

4-60 — REAR SUSPENSION (#70932) — 36 parça

183 182 390 9 5 7 223 5 390 186 372 371 192 15 185 180 181 16 187 186 187 192 372 371 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98050-306-0	02	1	1011-1102	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98050-306-0	02	1	1103-	●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	1011-1102	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	1103-	●	●
7	SEAT; SPR,LWR	1-51385-090-1	02	1	1011-1102	●
7	SEAT; SPR,LWR	1-51385-090-1	02	1	1103-	●	●
9	PAD; U BOLT,RR SPR	1-51372-059-0	02	1	1011-1102	●
9	PAD; U BOLT,RR SPR	1-51372-059-0	02	1	1103-	●	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	1011-1102	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	1103-	●	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	1011-1102	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	1103-	●	●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	1011-1102	●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	1103-	●	●
181	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	02	1	1011-1102	●
181	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	02	1	1103-	●	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	02	1	1011-1102	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	02	1	1103-	●	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	1011-1102	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	1103-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	1011-1102	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	1103-	●	●
186	PIN; SHACKLE,RR SPR DO=25 L=115 PT1/8	1-51361-016-0	04	1	1011-1102	●
186	PIN; SHACKLE,RR SPR DO=25 L=115 PT1/8	1-51361-016-0	04	1	1103-	●	●
187	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	04	1	1011-1102	●
187	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	04	1	1103-	●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	1011-1102	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	1103-	●	●
223	SPACER; U BOLT,RR SPR	8-98063-307-0	02	1	1011-1102	●
223	SPACER; U BOLT,RR SPR	8-98063-307-0	02	1	1103-	●	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	1011-1102	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	1103-	●	●
372	NUT; SHACKLE M12	0-91110-512-0	04	1	1011-1102	●
372	NUT; SHACKLE M12	0-91110-512-0	04	1	1103-	●	●
390	U-BOLT SET; RR SPRING L=540	1-87870-429-0	04	1	1011-1102	●
390	U-BOLT SET; RR SPRING L=540	1-87870-429-0	04	1	1103-	●	●
