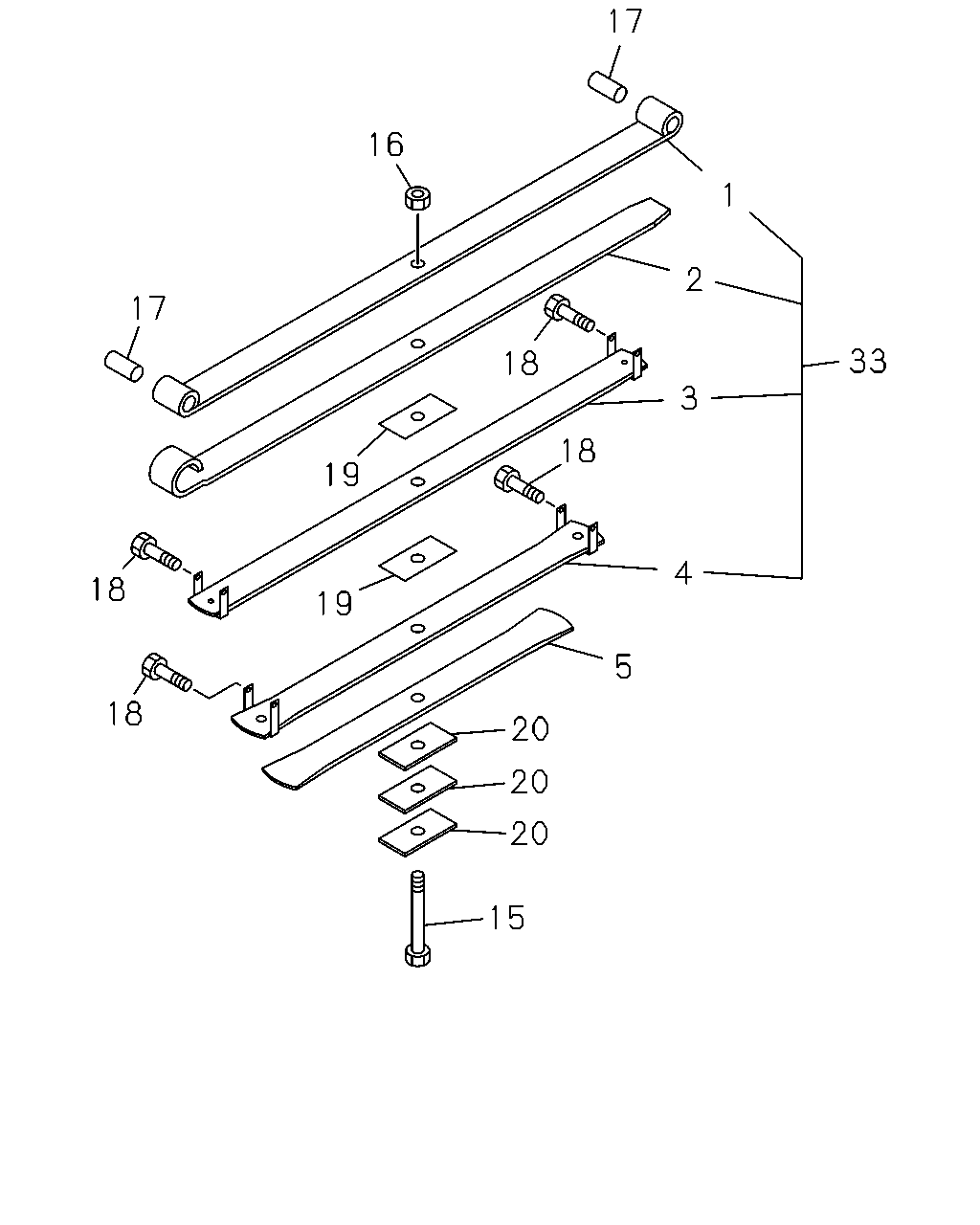

4-55 — FRONT LEAF SPRING (#70931) — 18 parça

15 20 20 20 5 4 3 2 1 17 33 18 18 19 19 18 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98138-339-0	1-51131-473-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98138-338-0	8-98136-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98138-339-0	8-98097-217-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98138-338-0	8-98136-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98138-339-0	8-98097-218-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98138-338-0	8-98136-830-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98138-339-0	8-98097-219-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98138-338-0	8-98136-831-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98138-339-0	1-51135-473-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98138-338-0	8-98136-832-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	8-98082-085-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M12 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	9-99110-512-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X87 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	1-09000-600-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	8-94448-734-0	02	1	-
20	SEAT; LEAF SPR,FRT T=10 ASM PART: A = 8-98138-338-0, B = 8-98138-339-0	1-51177-216-0	03	1	-
33	SPRING ASM; LEAF,FRT MAIN ASM PART: B = 8-98138-339-0	8-98097-398-0	01	1	-
33	SPRING ASM; LEAF,FRT MAIN ASM PART: A = 8-98138-338-0	8-98136-827-0	01	1	-
