◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#70930) — 74 parça

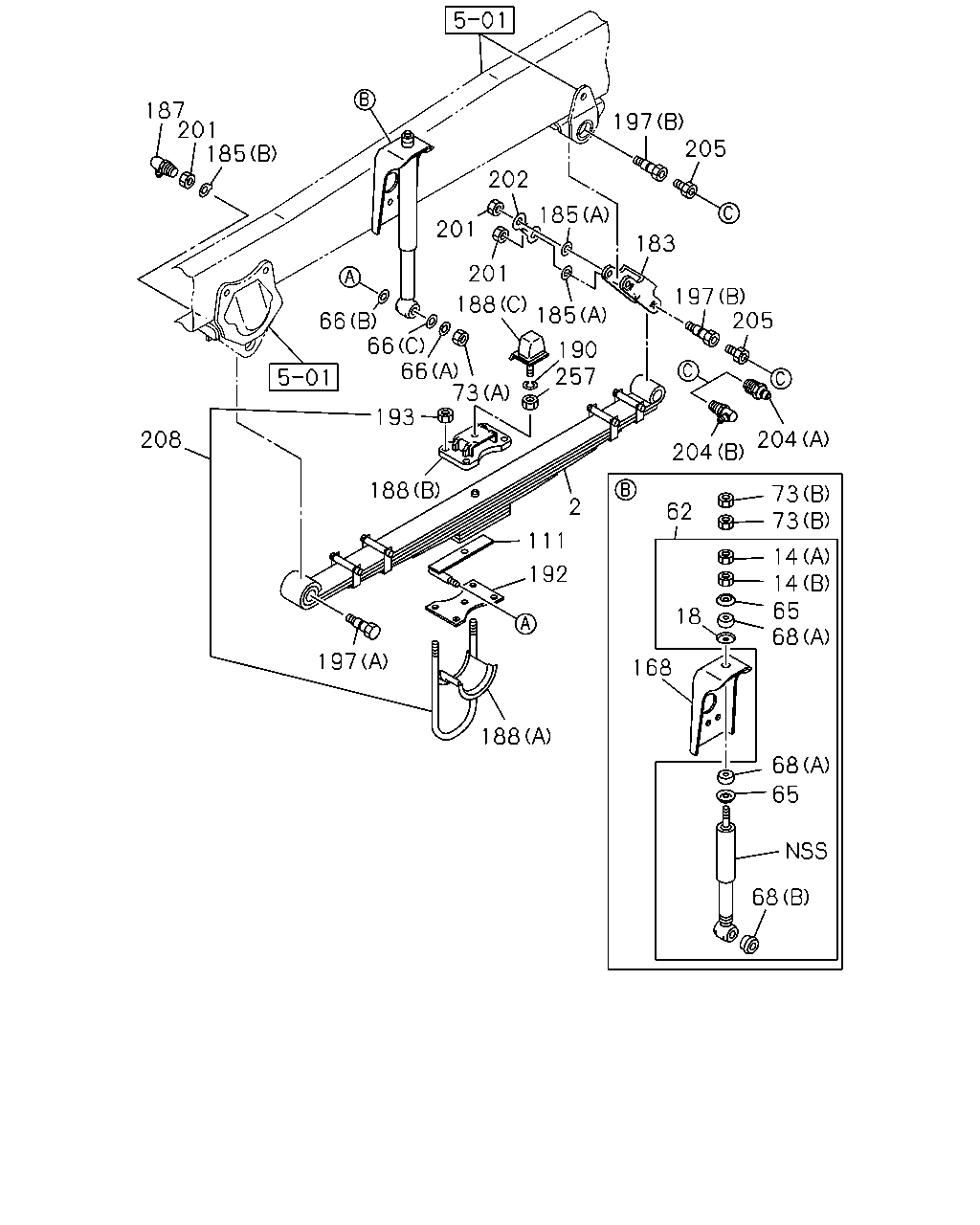

çizim 189153
68 65 168 68 68 18 65 14 14 73 73 62 192 2 111 197 188 204 204 205 197 183 185 190 73 193 66 188 257 201 201 202 197 185 188 208 201 187 66 66 205 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98138-338-0 01 1 1011-1102 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98138-338-0 01 1 1103- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98138-339-0 01 1 1011-1102 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98138-339-0 01 1 1103- ● ●
14 NUT; S/ABS,UPR
(A) M10 		0-91111-510-0 02 1 1011-1102 ●
14 NUT; S/ABS,UPR
(A) M10 		0-91111-510-0 02 1 1103- ● ●
14 NUT; S/ABS,UPR
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
14 NUT; S/ABS,UPR
(B) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 1011-1102 ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 1103- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-851-0 02 1 1011-1102 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-851-0 02 1 1103- ● ●
65 WASHER; S/ABS
ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 1011-1102 ●
65 WASHER; S/ABS
ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 1103- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 1011-1102 ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 1103- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1011-1102 ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1103- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1011-1102 ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1103- ● ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 1011-1102 ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 1103- ● ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 1011-1102 ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 1103- ● ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 1011-1102 ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 1103- ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1011-1102 ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1103- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 1011-1102 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 1103- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 1011-1102 ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 1103- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 1011-1102 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 1103-1306 ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1011-1102 ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1103- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1011-1102 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1103- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1011-1102 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1103- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 1011-1102 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 1103- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 1011-1102 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 1103- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1011-1102 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1103- ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1011-1102 ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1103- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 1011-1102 ●
192 PIECE; DIST 1-51177-218-1 01 1 1103- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 1011-1102 ●
192 PIECE; DIST 1-51177-219-0 01 1 1103- ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1011-1102 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1103- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1011-1102 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1103- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1011-1102 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1103- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1011-1102 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1103- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1011-1102 ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1103- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1011-1102 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1103- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1011-1102 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1103- ● ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 1011-1102 ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 1103- ● ●
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 1011-1102 ●
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 1103- ● ●
