2-53B — TRANSMISSION OIL COOLER SYSTEM (#7093) — 95 parça

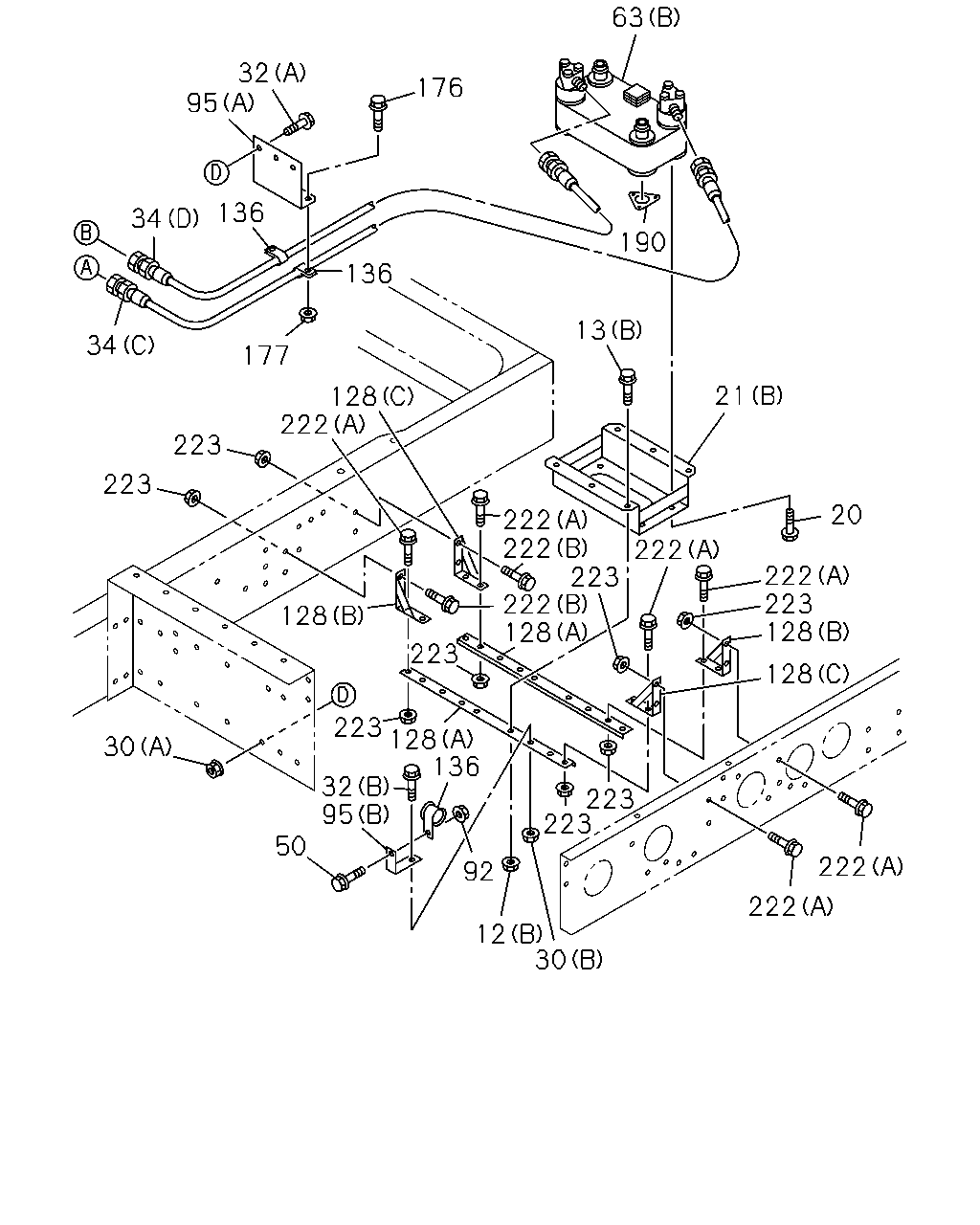

63 32 95 176 136 34 190 136 13 34 177 21 128 222 223 223 20 222 222 223 222 128 222 222 223 128 128 223 128 223 128 136 30 32 95 223 223 50 222 92 222 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C) M8	1-21719-024-0	02	1	0204-
12	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-33529-056-0	06	1	0204-
12	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	06	1	0204-0602
12	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	06	1	0603-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C)	1-21719-077-0	04	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-21719-078-0	04	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (E)	1-33129-003-0	02	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (F)	1-34149-005-0	02	1	0204-
13	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28681-025-0	06	1	0204-0512
13	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
20	BOLT; COOLER TO BRKT EXC. EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	04	1	0204-0512
20	BOLT; COOLER TO BRKT EXC. EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28151-016-0	04	1	0601-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C)	1-21719-037-0	01	1	0204-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-21719-076-0	01	1	0204-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (E)	1-21719-079-0	02	1	0204-
21	BRACKET; COOLER EXC. EURO3 SPECIFICATION(NJX) (B)	1-47479-135-0	01	1	0204-
30	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91150-108-0	03	1	0204-0602
30	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91180-108-0	03	1	0603-
30	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	01	1	0204-0602
30	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	01	1	0603-
32	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	03	1	0204-0512
32	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
32	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0204-0512
32	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE EXC. EURO3 SPECIFICATION(NJX) (C)	1-09365-182-0	01	1	0204-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE EXC. EURO3 SPECIFICATION(NJX) (D)	1-09365-183-0	01	1	0204-
50	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512
50	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-
63	COOLER; OIL EXC. EURO3 SPECIFICATION(NJX) (B)	1-21700-365-0	01	1	0204-
92	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602
92	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-
95	BRACKET; CLIP EXC. EURO3 SPECIFICATION(NJX) (A)	1-47479-138-0	01	1	0204-
95	BRACKET; CLIP EXC. EURO3 SPECIFICATION(NJX) (B)	1-47479-139-0	01	1	0204-
128	BRACKET; COOLER EXC. EURO3 SPECIFICATION(NJX) (A)	1-47479-136-0	02	1	0204-
128	BRACKET; COOLER EXC. EURO3 SPECIFICATION(NJX) (B)	1-47479-137-0	02	1	0204-
128	BRACKET; COOLER EXC. EURO3 SPECIFICATION(NJX) (C)	1-47479-140-0	02	1	0204-
136	CLIP; FLEX HOSE EXC. EURO3 SPECIFICATION(NJX) ID=45.5	8-94232-636-0	03	1	0204-
176	BOLT; HOSE CLIP EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512
176	BOLT; HOSE CLIP EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-
177	NUT; HOSE CLIP EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0204-0602
177	NUT; HOSE CLIP EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-
190	GASKET; COVER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-21719-041-0	02	1	0204-
222	BOLT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) (A) M10X25 FLANGE	0-28681-025-0	12	1	0204-0512
222	BOLT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) (A) M10X25 FLANGE	0-28651-025-0	12	1	0601-
222	BOLT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) (B) M10X30 FLANGE	0-28681-030-0	04	1	0204-0512
222	BOLT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-
223	NUT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) M10 FLANGE	0-91150-110-0	14	1	0204-0602
223	NUT; BRKT,COOLER EXC. EURO3 SPECIFICATION(NJX) M10 FLANGE	0-91180-110-0	14	1	0603-

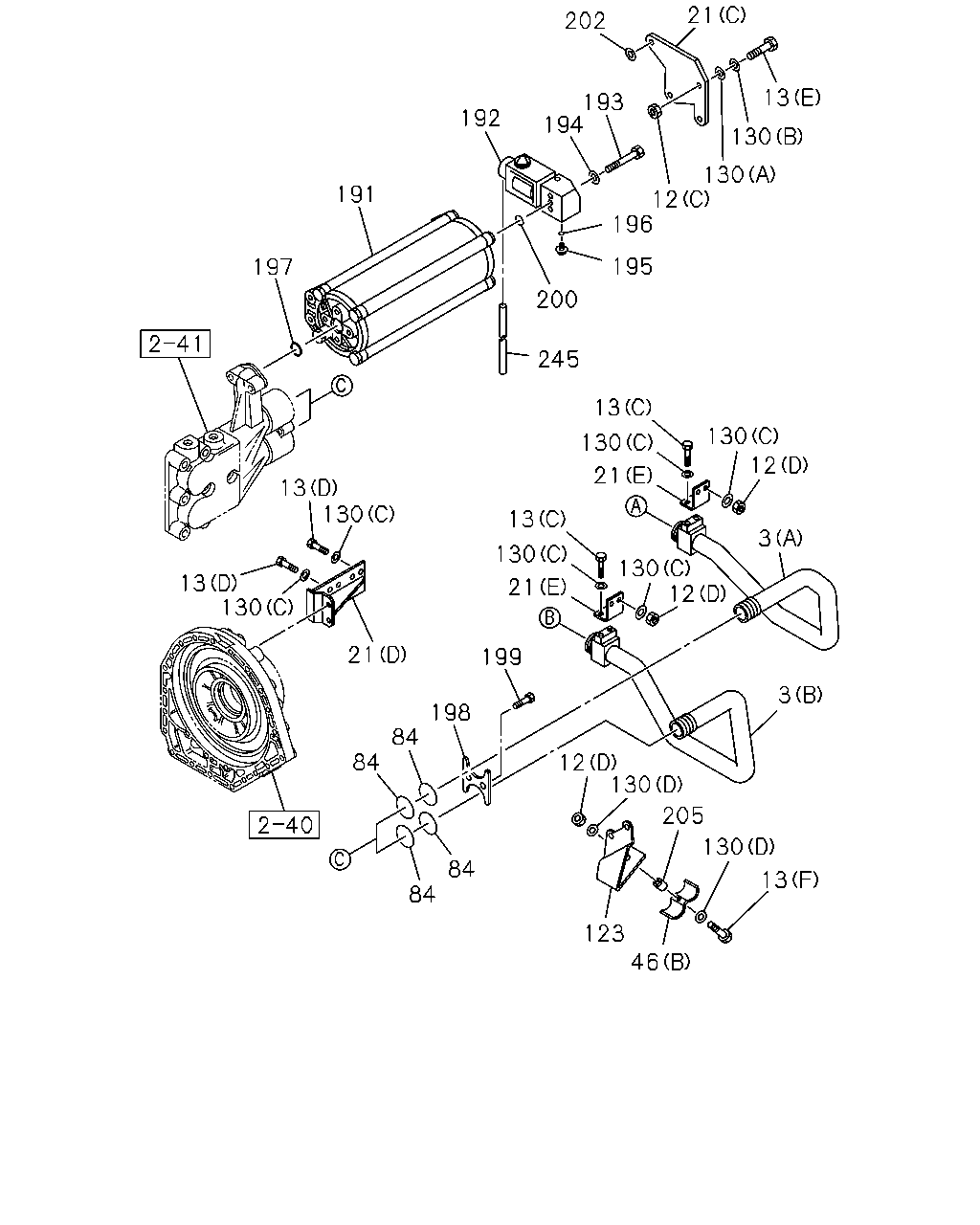

21 202 13 193 194 192 130 130 12 196 191 195 197 200 245 13 130 130 12 21 13 130 13 3 130 130 12 13 130 21 21 199 3 198 84 12 130 84 205 130 84 13 84 123 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PIPE; OIL,A/T TO OIL COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A)	1-21719-074-0	01	1	0204-
3	PIPE; OIL,A/T TO OIL COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (B)	1-21719-075-0	01	1	0204-
12	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C) M8	1-21719-024-0	02	1	0204-
12	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-33529-056-0	06	1	0204-
12	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	06	1	0204-0602
12	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	06	1	0603-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C)	1-21719-077-0	04	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-21719-078-0	04	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (E)	1-33129-003-0	02	1	0204-
13	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (F)	1-34149-005-0	02	1	0204-
13	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28681-025-0	06	1	0204-0512
13	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C)	1-21719-037-0	01	1	0204-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-21719-076-0	01	1	0204-
21	BRACKET; COOLER BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (E)	1-21719-079-0	02	1	0204-
21	BRACKET; COOLER EXC. EURO3 SPECIFICATION(NJX) (B)	1-47479-135-0	01	1	0204-
46	BRACKET; OIL PIPE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (B)	1-34129-106-0	02	1	0204-
84	GASKET; OIL PIPE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-09623-609-0	04	1	0204-
123	BRACKET; OIL PIPE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-34125-008-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (D)	1-09469-010-0	04	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=1.20	1-21719-018-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=1.00	1-21719-019-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=0.80	1-21719-020-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=0.60	1-21719-021-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=0.40	1-21719-022-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) T=0.20	1-21719-023-0	01	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (B)	1-33549-159-0	02	1	0204-
130	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (C)	1-34119-082-0	12	1	0204-
191	ACCUMULATOR; OIL BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-34129-117-0	01	1	0204-
192	VALVE; SOLENOID BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-34531-045-0	01	1	0204-
193	BOLT; VALVE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) M8X60	1-09089-010-0	02	1	0204-
194	WASHER; VALVE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-33549-159-0	02	1	0204-
195	PLUG; VALVE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-34129-104-0	01	1	0204-
196	GASKET; PLUG BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-33549-129-0	01	1	0204-
197	GASKET; ACCUMULATOR BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-09623-607-0	01	1	0204-
198	PLATE; PIPE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-21719-035-0	01	1	0204-
199	BOLT; PLATE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-34129-105-0	02	1	0204-
200	GASKET; VALVE BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-09623-608-0	01	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=2.50	1-21719-011-0	02	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=2.00	1-21719-012-0	02	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=1.50	1-21719-013-0	02	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=0.50	1-21719-014-0	02	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=0.30	1-21719-015-0	02	1	0204-
202	SHIM; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) T=0.20	1-21719-016-0	02	1	0204-
205	COLLAR; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX)	1-21719-060-0	02	1	0204-
245	TUBE; NYLON BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0204-0212
245	TUBE; NYLON BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0204-
