Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#70926) — 288 parça

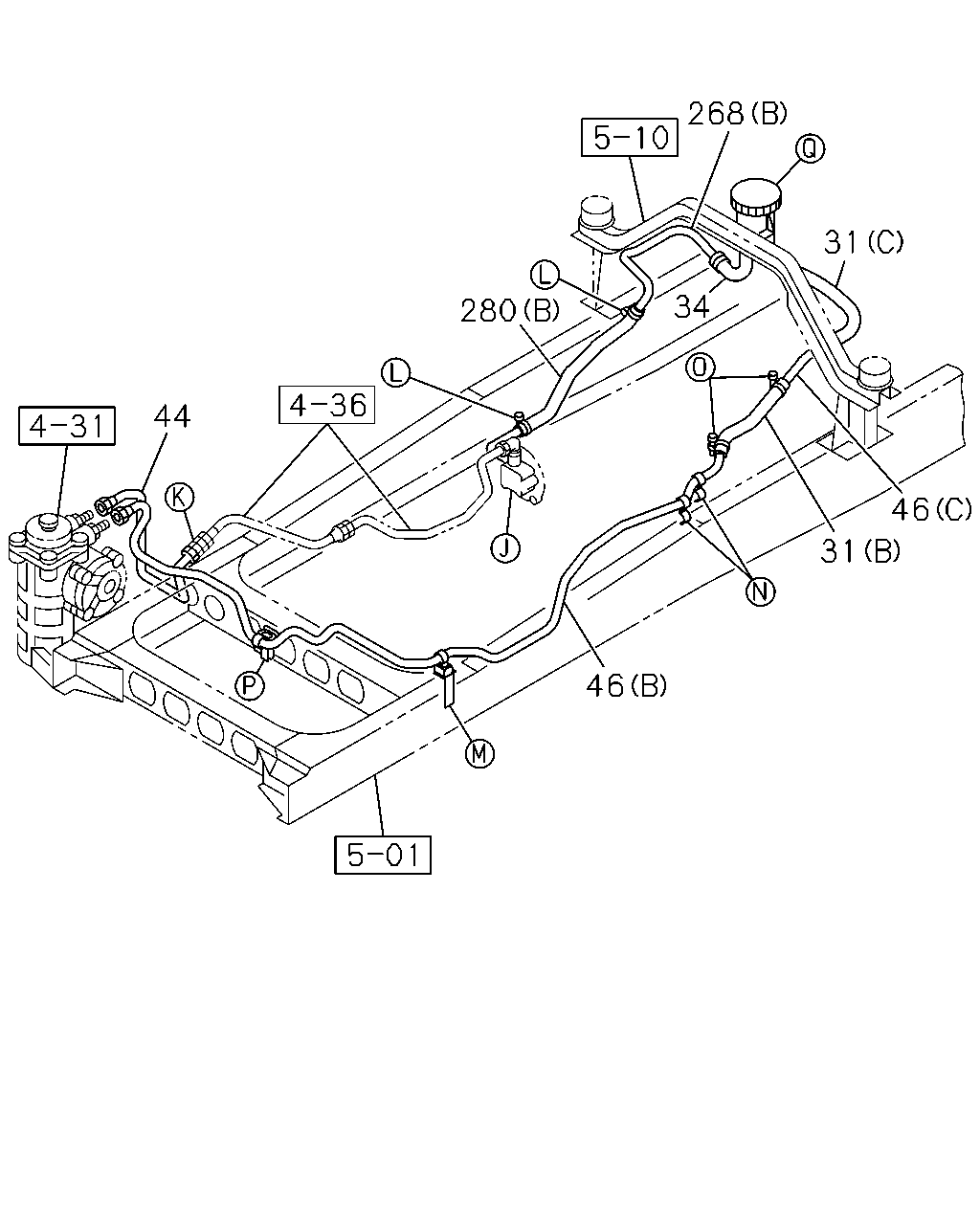

46 31 46 31 268 280 34 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (B)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (C)	0-09864-300-1	01	1	1103-1306	●
31	HOSE; P/S OIL TANK,INL L=400	0-09814-400-0	01	1	1307-	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	1011-		●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-1102		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98233-937-0	01	1	1307-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98241-848-0	01	1	1307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2460	8-98175-715-0	01	1	1103-1306	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2464	8-98233-938-0	01	1	1307-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2945	8-98178-278-0	01	1	1011-1306		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2949	8-98233-939-0	01	1	1307-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1011-		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	1011-		●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1011-		●

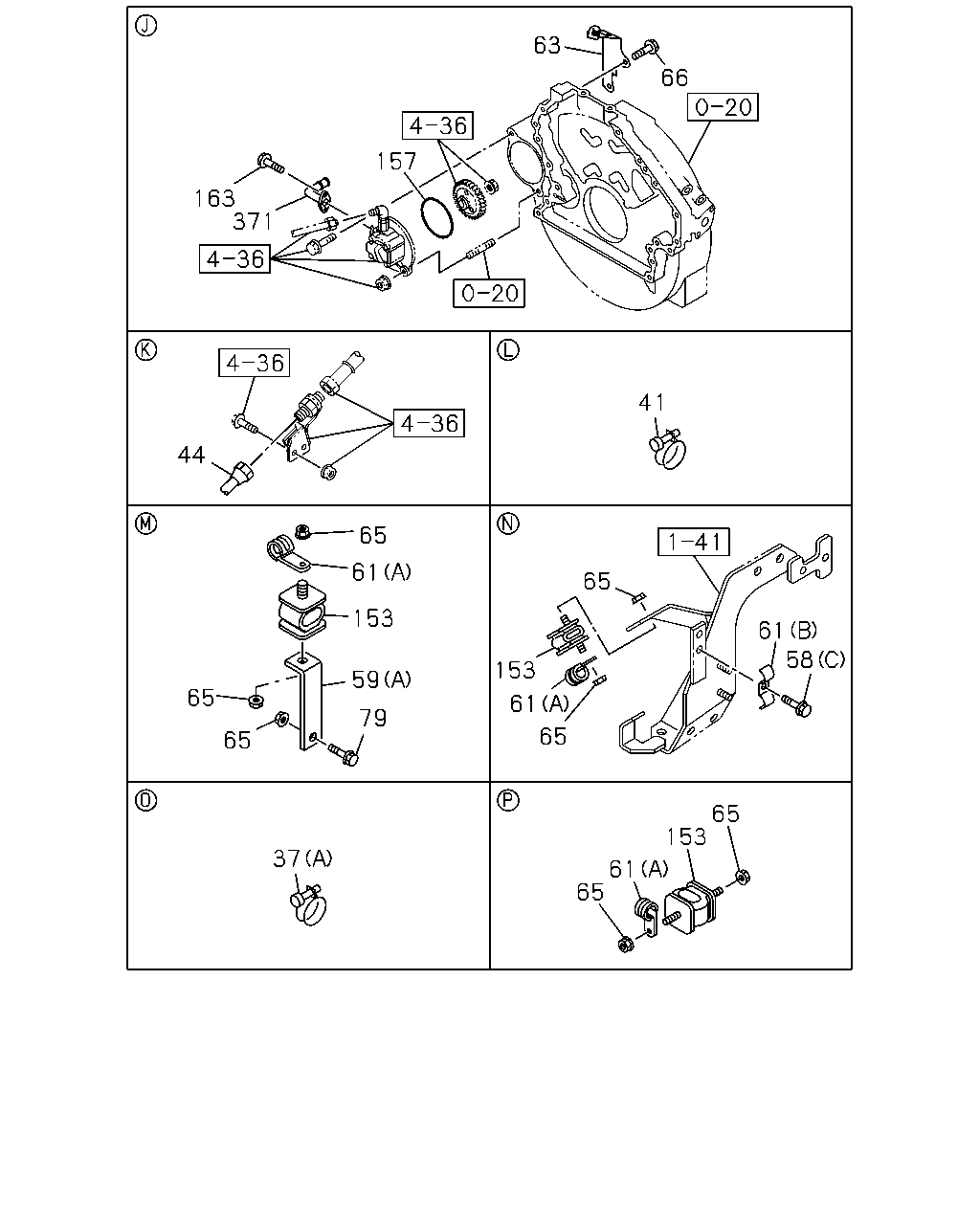

41 61 58 65 153 61 65 65 61 153 65 61 153 59 79 65 65 44 163 157 63 66 37 65 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-1102		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1103-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1011-1102		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1103-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98233-937-0	01	1	1307-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98241-848-0	01	1	1307-	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1011-1102		●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (D)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-1102		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1103-	●	●
59	BRACKET; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98083-329-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98064-809-1	01	1	1011-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-1102		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1011-		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-954-0	01	1	1011-1102		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-954-0	01	1	1103-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1011-		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1011-1102		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1011-1102		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1103-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1011-1102		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1103-	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1011-1102		●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1011-1102		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1103-	●	●

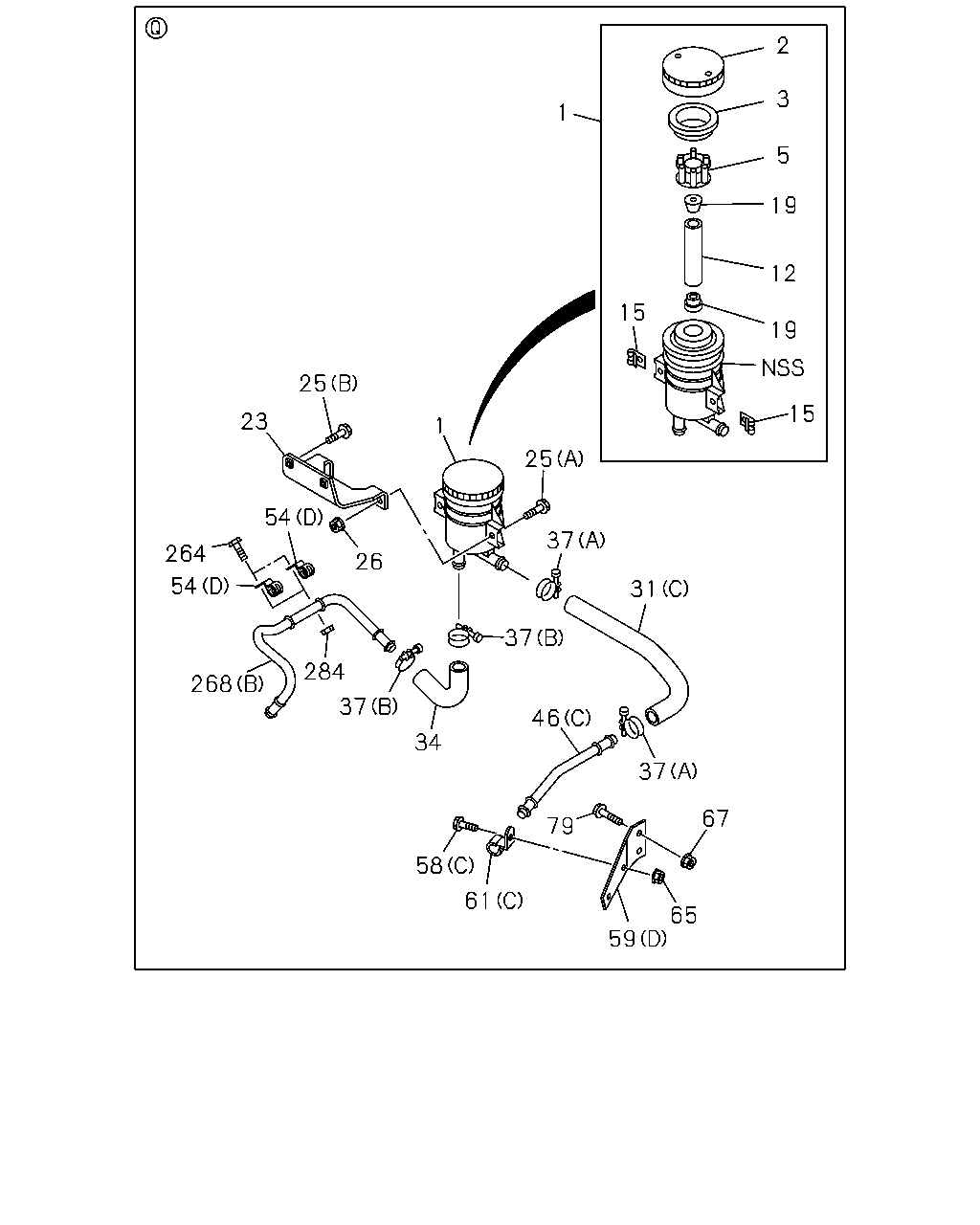

1 2 3 5 19 12 19 15 15 1 25 37 31 37 67 46 37 79 65 59 61 34 58 37 284 26 25 23 54 264 54 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1011-1102		●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1103-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1011-1102		●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1103-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1011-1102		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1103-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1011-1102		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1103-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1011-1102		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1103-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1011-1102		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1103-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1011-1102		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1103-	●	●
23	BRACKET; OIL TANK,P/S	8-98060-024-0	01	1	1103-	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-1102		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (C)	0-09864-300-1	01	1	1103-1306	●
31	HOSE; P/S OIL TANK,INL L=400	0-09814-400-0	01	1	1307-	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	1011-		●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-1102		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-1102		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1103-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2460	8-98175-715-0	01	1	1103-1306	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2464	8-98233-938-0	01	1	1307-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2945	8-98178-278-0	01	1	1011-1306		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2949	8-98233-939-0	01	1	1307-		●
54	CLIP; OIL PIPE (D) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	1011-1306		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	1307-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	02	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1011-1102		●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (D)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-1102		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1103-	●	●
59	BRACKET; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98083-329-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98064-809-1	01	1	1011-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-1102		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1011-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1011-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1011-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1103-	●	●

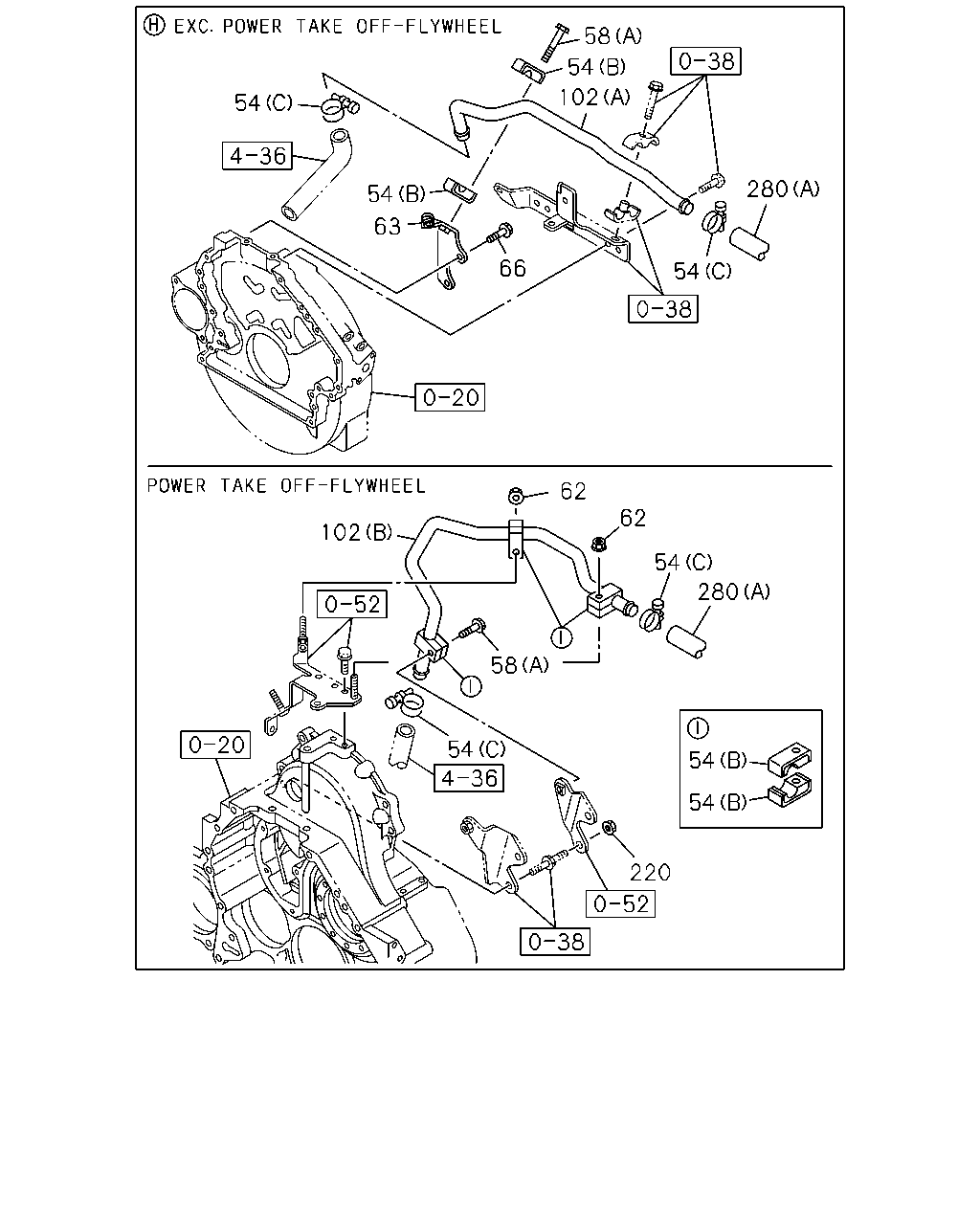

58 54 280 102 54 54 54 66 63 62 54 62 280 102 58 54 54 54 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (D) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	1011-1306		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	1307-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	02	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1011-1102		●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
62	NUT; CLIP FIX POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	1011-		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-954-0	01	1	1011-1102		●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-954-0	01	1	1103-	●	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1011-1102		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	1011-		●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	1011-1102		●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	1103-	●	●
220	NUT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	1011-		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	1011-		●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1011-		●

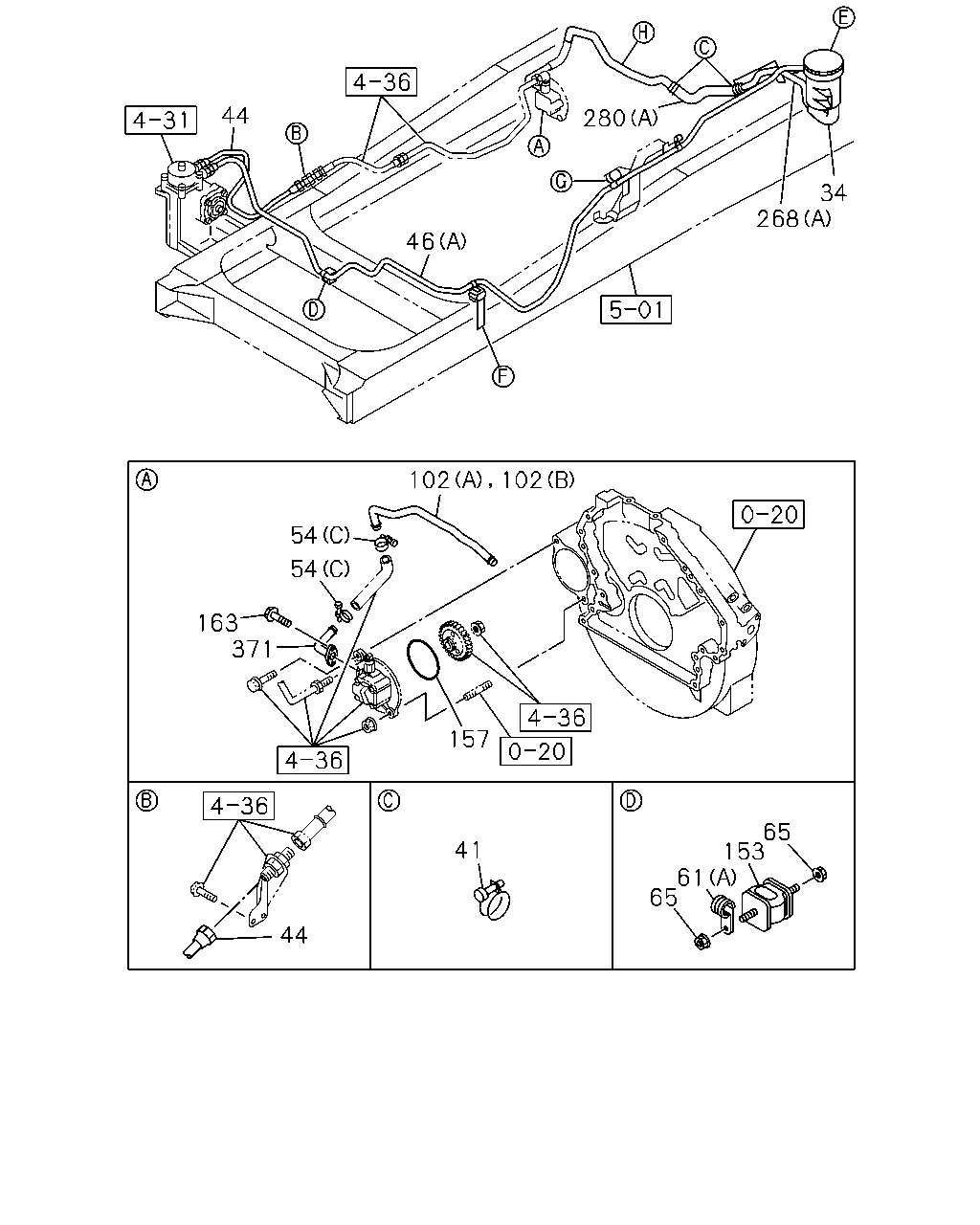

44 46 280 34 268 102 102 157 371 163 54 54 41 44 65 61 153 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-1102		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1011-1102		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1103-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98233-937-0	01	1	1307-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1011-1102		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	1103-1306	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98241-848-0	01	1	1307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2460	8-98175-715-0	01	1	1103-1306	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2464	8-98233-938-0	01	1	1307-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2945	8-98178-278-0	01	1	1011-1306		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2949	8-98233-939-0	01	1	1307-		●
54	CLIP; OIL PIPE (D) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	1011-1306		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	1307-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	02	1	1011-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-1102		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1011-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1011-		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	1011-		●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	1011-1102		●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	1103-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1011-1102		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1103-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1011-1102		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1103-	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1011-1102		●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1011-		●
280	HOSE; P/S OIL PUMP,INL (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-021-0	01	1	1011-		●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98053-039-1	01	1	1011-		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1011-1102		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1103-	●	●

58 61 67 79 59 59 65 1 2 3 5 19 12 19 15 26 37 34 37 268 25 1 37 31 37 284 264 54 54 284 54 58 61 65 61 153 65 79 59 153 61 65 67 65 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1011-1102		●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1103-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1011-1102		●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1103-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1011-1102		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1103-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1011-1102		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1103-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1011-1102		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1103-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1011-1102		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1103-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1011-1102		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1103-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-1102		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (C)	0-09864-300-1	01	1	1103-1306	●
31	HOSE; P/S OIL TANK,INL L=400	0-09814-400-0	01	1	1307-	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-019-0	01	1	1011-		●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	0-09814-080-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-1102		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-1102		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1103-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2460	8-98175-715-0	01	1	1103-1306	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2464	8-98233-938-0	01	1	1307-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2945	8-98178-278-0	01	1	1011-1306		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2949	8-98233-939-0	01	1	1307-		●
54	CLIP; OIL PIPE (D) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=28	0-95235-856-0	01	1	1011-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=19 L=39 H=21	1-09700-972-1	01	1	1011-1306		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	1307-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	1011-		●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	02	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1011-1102		●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	1011-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (D)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-1102		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1103-	●	●
59	BRACKET; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98083-329-0	01	1	1011-		●
59	BRACKET; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98064-809-1	01	1	1011-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-1102		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	04	1	1011-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1011-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1011-1102		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1103-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98080-023-2	01	1	1011-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98165-444-0	01	1	1011-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
