Sayfa 2-53A - Isuzu EPC

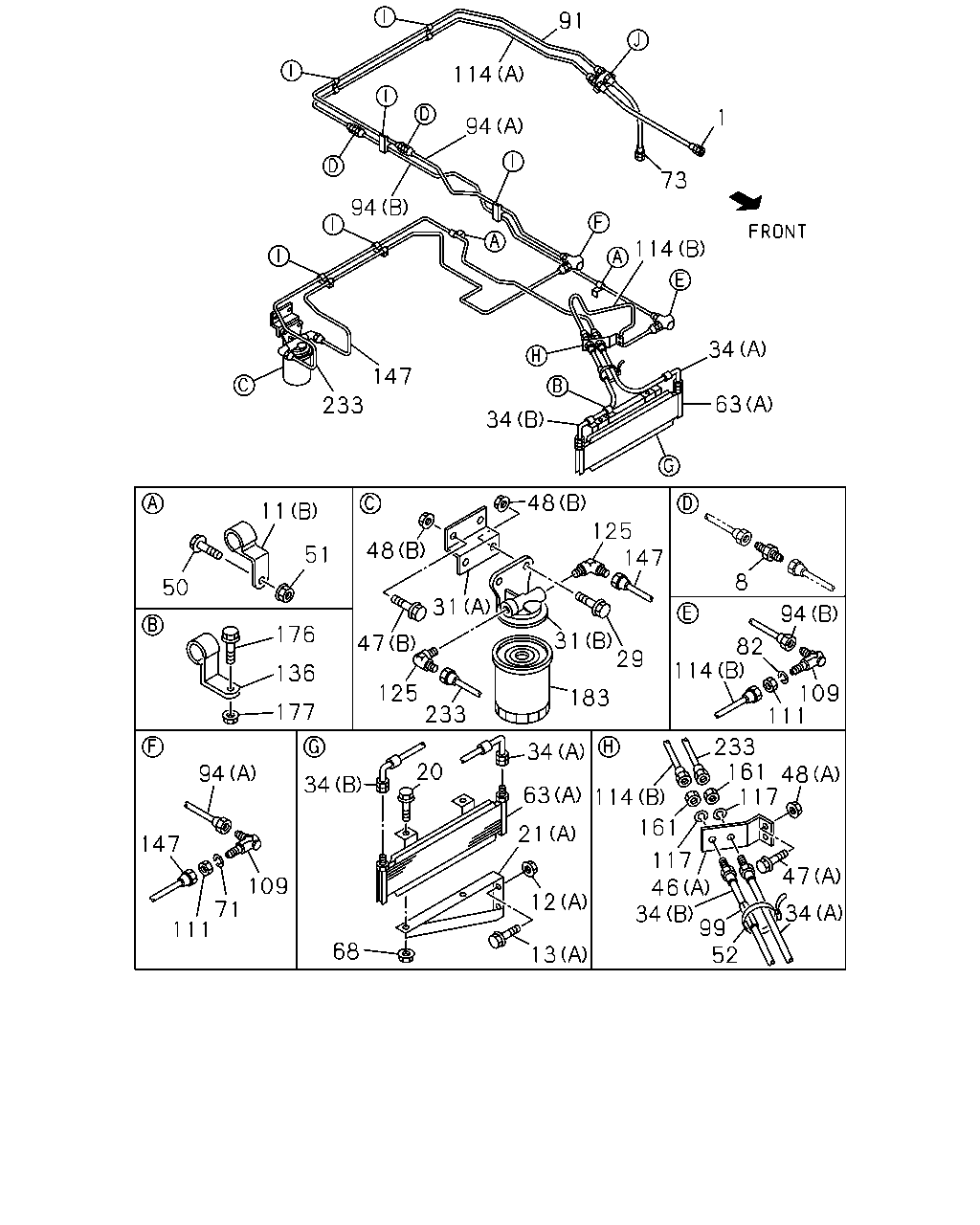

2-53A — TRANSMISSION OIL COOLER SYSTEM (#7092) — 267 parça

1 73 91 114 94 94 147 233 34 114 34 63 11 51 50 176 136 177 94 147 109 71 111 34 68 13 12 21 63 34 20 114 161 117 46 34 99 52 34 47 48 117 161 233 114 111 109 82 94 8 48 48 125 147 29 31 183 233 125 47 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0204-0210	●
1	HOSE; ATF 6SD1 TC-S(83L) L=385	1-09364-873-0	01	1	0211-		●
1	HOSE; ATF 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0211-	●
8	UNION 6WA1 TC-C(55L) M16 L=42	9-09233-010-1	02	1	0204-0210	●
8	UNION 6SD1 TC-S(83L) M16 L=42	9-09233-010-1	02	1	0211-0607		●
8	UNION 6WA1 TC-C(55L) M16 L=42	9-09233-010-1	02	1	0211-0607	●
8	UNION 6SD1 TC-S(83L) M16 L=42	0-92123-010-0	02	1	0608-		●
8	UNION 6WA1 TC-C(55L) M16 L=42	0-92123-010-0	02	1	0608-	●
11	CLIP; PIPE 6SD1 TC-S(83L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0211-		●
11	CLIP; PIPE 6SD1 TC-S(83L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0211-		●
11	CLIP; PIPE 6SD1 TC-S(83L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0211-0707		●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0211-0707	●
11	CLIP; PIPE 6SD1 TC-S(83L) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-		●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●
11	CLIP; PIPE 6WA1 TC-C(55L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	0204-	●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0204-0210	●
11	CLIP; PIPE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	04	1	0211-0707		●
11	CLIP; PIPE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-		●
12	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	02	1	0204-0210	●
12	NUT; BRKT 6SD1 TC-S(83L) (A) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
12	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
12	NUT; BRKT 6SD1 TC-S(83L) (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●
12	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●
13	BOLT; BRKT 6WA1 TC-C(55L) (A) M10X30 FLANGE	0-28681-030-0	02	1	0204-0210	●
13	BOLT; BRKT 6SD1 TC-S(83L) (A) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
13	BOLT; BRKT 6WA1 TC-C(55L) (A) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●
13	BOLT; BRKT 6SD1 TC-S(83L) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
13	BOLT; BRKT 6WA1 TC-C(55L) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
20	BOLT; COOLER TO BRKT 6WA1 TC-C(55L) M10X25 FLANGE	0-28681-025-0	02	1	0204-0210	●
20	BOLT; COOLER TO BRKT 6SD1 TC-S(83L) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512		●
20	BOLT; COOLER TO BRKT 6WA1 TC-C(55L) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
20	BOLT; COOLER TO BRKT 6SD1 TC-S(83L) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
20	BOLT; COOLER TO BRKT 6WA1 TC-C(55L) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
21	BRACKET; COOLER 6WA1 TC-C(55L) (A)	1-53497-640-0	01	1	0204-0210	●
21	BRACKET; COOLER 6SD1 TC-S(83L) (A)	1-53497-640-0	01	1	0211-0706		●
21	BRACKET; COOLER 6WA1 TC-C(55L) (A)	1-53497-640-0	01	1	0211-0706	●
21	BRACKET; COOLER 6SD1 TC-S(83L) (A)	8-98090-657-1	01	1	0707-		●
21	BRACKET; COOLER 6WA1 TC-C(55L) (A)	8-98090-657-1	01	1	0707-	●
29	BOLT; FILTER TO BRKT 6WA1 TC-C(55L) M10X35 FLANGE	0-28681-035-0	02	1	0204-0210	●
29	BOLT; FILTER TO BRKT 6SD1 TC-S(83L) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512		●
29	BOLT; FILTER TO BRKT 6WA1 TC-C(55L) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●
29	BOLT; FILTER TO BRKT 6SD1 TC-S(83L) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
29	BOLT; FILTER TO BRKT 6WA1 TC-C(55L) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
31	BRACKET; OIL FILTER 6WA1 TC-C(55L) (A)	1-32569-081-0	01	1	0204-0210	●
31	BRACKET; OIL FILTER 6SD1 TC-S(83L) (A)	1-32569-081-0	01	1	0211-		●
31	BRACKET; OIL FILTER 6WA1 TC-C(55L) (A)	1-32569-081-0	01	1	0211-	●
31	BRACKET; OIL FILTER 6WA1 TC-C(55L) (B)	1-33119-222-0	01	1	0204-0210	●
31	BRACKET; OIL FILTER 6SD1 TC-S(83L) (B)	1-33119-222-0	01	1	0211-		●
31	BRACKET; OIL FILTER 6WA1 TC-C(55L) (B)	1-33119-222-0	01	1	0211-	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6WA1 TC-C(55L) (A) L=420	1-09364-991-0	01	1	0204-0210	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6SD1 TC-S(83L) (A) L=420	1-09364-991-0	01	1	0211-		●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6WA1 TC-C(55L) (A) L=420	1-09364-991-0	01	1	0211-	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6WA1 TC-C(55L) (B)	1-09365-083-0	01	1	0204-0210	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6SD1 TC-S(83L) (B)	1-09365-083-0	01	1	0211-		●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE 6WA1 TC-C(55L) (B)	1-09365-083-0	01	1	0211-	●
46	BRACKET; OIL PIPE 6WA1 TC-C(55L) (A)	1-47478-516-1	01	1	0204-0210	●
46	BRACKET; OIL PIPE 6SD1 TC-S(83L) (A)	1-47478-516-1	01	1	0211-		●
46	BRACKET; OIL PIPE 6WA1 TC-C(55L) (A)	1-47478-516-1	01	1	0211-	●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210	●
47	BOLT; BRKT TO FRAME 6SD1 TC-S(83L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
47	BOLT; BRKT TO FRAME 6SD1 TC-S(83L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	02	1	0204-0210	●
47	BOLT; BRKT TO FRAME 6SD1 TC-S(83L) (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512		●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
47	BOLT; BRKT TO FRAME 6SD1 TC-S(83L) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
47	BOLT; BRKT TO FRAME 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91150-108-0	04	1	0204-0210	●
48	NUT; BRKT 6SD1 TC-S(83L) (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
48	NUT; BRKT 6SD1 TC-S(83L) (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	04	1	0204-0210	●
48	NUT; BRKT 6SD1 TC-S(83L) (B) M10 FLANGE	0-91150-210-0	04	1	0211-0602		●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
48	NUT; BRKT 6SD1 TC-S(83L) (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28080-840-0	02	1	0204-0210	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28080-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28080-840-0	02	1	0211-0512	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28080-845-0	01	1	0204-0512	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210	●
50	BOLT; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28680-840-0	03	1	0204-0512	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
51	NUT; CLIP TO BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0204-0210	●
51	NUT; CLIP TO BRKT 6SD1 TC-S(83L) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
51	NUT; CLIP TO BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
51	NUT; CLIP TO BRKT 6SD1 TC-S(83L) M8 FLANGE	0-91180-108-0	01	1	0603-		●
51	NUT; CLIP TO BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
52	CLIP; FLEX HOSE,A/T 6WA1 TC-C(55L) L=140	5-09707-031-1	01	1	0204-0210	●
52	CLIP; FLEX HOSE,A/T 6SD1 TC-S(83L) L=140	5-09707-031-1	01	1	0211-		●
52	CLIP; FLEX HOSE,A/T 6WA1 TC-C(55L) L=140	5-09707-031-1	01	1	0211-	●
63	COOLER; OIL 6WA1 TC-C(55L) (A)	1-21700-290-0	01	1	0204-0210	●
63	COOLER; OIL 6SD1 TC-S(83L) (A)	1-21700-290-0	01	1	0211-0609		●
63	COOLER; OIL 6WA1 TC-C(55L) (A)	1-21700-290-0	01	1	0211-0609	●
63	COOLER; OIL 6SD1 TC-S(83L) (A)	1-21700-394-0	01	1	0610-		●
63	COOLER; OIL 6WA1 TC-C(55L) (A)	1-21700-394-0	01	1	0610-	●
68	NUT; COOLER 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	02	1	0204-0210	●
68	NUT; COOLER 6SD1 TC-S(83L) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
68	NUT; COOLER 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
68	NUT; COOLER 6SD1 TC-S(83L) M10 FLANGE	0-91180-210-0	02	1	0603-		●
68	NUT; COOLER 6WA1 TC-C(55L) M10 FLANGE	0-91180-210-0	02	1	0603-	●
71	WASHER; CLIP 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0204-0210	●
71	WASHER; CLIP 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	01	1	0211-0603		●
71	WASHER; CLIP 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0211-0603	●
71	WASHER; CLIP 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	01	1	0604-		●
71	WASHER; CLIP 6WA1 TC-C(55L) ID=16.2	0-91510-516-0	01	1	0604-	●
73	HOSE; FLEX,TRANS 6SD1 TC-S(83L) L=320	1-09364-838-0	01	1	0211-		●
73	HOSE; FLEX,TRANS 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0204-	●
82	WASHER; LK,UNION 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0204-0210	●
82	WASHER; LK,UNION 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	01	1	0211-0603		●
82	WASHER; LK,UNION 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0211-0603	●
82	WASHER; LK,UNION 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	01	1	0604-		●
82	WASHER; LK,UNION 6WA1 TC-C(55L) ID=16.2	0-91510-516-0	01	1	0604-	●
91	PIPE; OIL,FLEX HOSE TO UNION 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> L=1659	1-49166-270-0	01	1	0211-		●
91	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-C(55L) SERVICED BY L=1550	1-47428-879-0	01	1	0204-	●
94	PIPE; OIL,UNION TO UNION 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (A) L=1257 SERVICED BY L=1300	1-47428-877-0	01	1	0211-		●
94	PIPE; OIL,UNION TO UNION 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (B) L=1393 SERVICED BY L=1400	1-47428-878-0	01	1	0211-		●
94	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (B) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0204-	●
94	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (A) L=792 SERVICED BY L=800	1-47428-872-0	01	1	0204-	●
99	SLEEVE; RUBBER,FLEX HOSE 6WA1 TC-C(55L) ID=17 OD=21 L=40	1-09337-012-0	01	1	0204-0210	●
99	SLEEVE; RUBBER,FLEX HOSE 6SD1 TC-S(83L) ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-		●
99	SLEEVE; RUBBER,FLEX HOSE 6WA1 TC-C(55L) ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-	●
109	UNION 6WA1 TC-C(55L) M16 ELBOW	9-09235-210-1	02	1	0204-0210	●
109	UNION 6SD1 TC-S(83L) M16 ELBOW	9-09235-210-1	02	1	0211-0607		●
109	UNION 6WA1 TC-C(55L) M16 ELBOW	9-09235-210-1	02	1	0211-0607	●
109	UNION 6SD1 TC-S(83L) M16 ELBOW	0-92135-210-0	02	1	0608-		●
109	UNION 6WA1 TC-C(55L) M16 ELBOW	0-92135-210-0	02	1	0608-	●
111	NUT; UNION 6SD1 TC-S(83L) M16	9-99111-516-0	02	1	0211-0512		●
111	NUT; UNION 6SD1 TC-S(83L) M16	0-91111-516-0	02	1	0601-		●
111	NUT; UNION 6WA1 TC-C(55L) M16	0-91111-516-0	02	1	0601-	●
111	NUT; UNION 6WA1 TC-C(55L) M16	9-99111-416-0	02	1	0204-0512	●
114	PIPE; OIL,UNION TO FLEX HOSE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (A) L=1401	1-49166-277-0	01	1	0211-		●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (A) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0204-	●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (B) L=561	1-49164-403-0	01	1	0204-0210	●
114	PIPE; OIL,UNION TO FLEX HOSE 6SD1 TC-S(83L) (B) L=561	1-49164-403-0	01	1	0211-		●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (B) L=561	1-49164-403-0	01	1	0211-	●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	03	1	0204-0210	●
117	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	03	1	0211-0603		●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	03	1	0211-0603	●
117	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	03	1	0604-		●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	0-91510-516-0	03	1	0604-	●
125	CONNECTOR; OIL FILTER 6WA1 TC-C(55L) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0204-0210	●
125	CONNECTOR; OIL FILTER 6SD1 TC-S(83L) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0211-0607		●
125	CONNECTOR; OIL FILTER 6WA1 TC-C(55L) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0211-0607	●
125	CONNECTOR; OIL FILTER 6SD1 TC-S(83L) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-		●
125	CONNECTOR; OIL FILTER 6WA1 TC-C(55L) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
136	CLIP; FLEX HOSE 6SD1 TC-S(83L) ID=18 L=38 H=23	1-09701-147-0	01	1	0906-		●
136	CLIP; FLEX HOSE 6WA1 TC-C(55L) ID=18 L=38 H=23	1-09701-147-0	01	1	0906-	●
147	PIPE; OIL,UNION TO FILTER 6SD1 TC-S(83L) L=1683	1-49166-274-0	01	1	0211-		●
147	PIPE; OIL,UNION TO FILTER 6WA1 TC-C(55L)	1-49165-949-0	01	1	0204-	●
161	NUT; FLEX HOSE 6SD1 TC-S(83L) M16	9-99111-516-0	02	1	0211-0512		●
161	NUT; FLEX HOSE 6SD1 TC-S(83L) M16	0-91111-516-0	02	1	0601-		●
161	NUT; FLEX HOSE 6WA1 TC-C(55L) M16	0-91111-516-0	02	1	0601-	●
161	NUT; FLEX HOSE 6WA1 TC-C(55L) M16	9-99111-416-0	02	1	0204-0512	●
176	BOLT; HOSE CLIP 6SD1 TC-S(83L) M8X20 FLANGE	0-28650-820-0	01	1	0906-		●
176	BOLT; HOSE CLIP 6WA1 TC-C(55L) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
177	NUT; HOSE CLIP 6SD1 TC-S(83L) M8 FLANGE	0-91180-108-0	01	1	0906-		●
177	NUT; HOSE CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0906-	●
183	CARTRIDGE; OIL FILTER 6WA1 TC-C(55L)	8-94459-700-1	01	1	0204-0210	●
183	CARTRIDGE; OIL FILTER 6SD1 TC-S(83L)	8-94459-700-1	01	1	0211-		●
183	CARTRIDGE; OIL FILTER 6WA1 TC-C(55L)	8-94459-700-1	01	1	0211-	●
233	PIPE; OIL,FILTER TO HOSE 6WA1 TC-C(55L) L=1548	1-49165-950-0	01	1	0204-0210	●
233	PIPE; OIL,FILTER TO HOSE 6SD1 TC-S(83L) L=1548	1-49165-950-0	01	1	0211-		●
233	PIPE; OIL,FILTER TO HOSE 6WA1 TC-C(55L) L=1548	1-49165-950-0	01	1	0211-	●

50 11 24 95 92 19 179 1 73 48 48 117 116 114 91 19 179 77 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0204-0210	●
1	HOSE; ATF 6SD1 TC-S(83L) L=385	1-09364-873-0	01	1	0211-		●
1	HOSE; ATF 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0211-	●
11	CLIP; PIPE 6SD1 TC-S(83L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0211-		●
11	CLIP; PIPE 6SD1 TC-S(83L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0211-		●
11	CLIP; PIPE 6SD1 TC-S(83L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0211-0707		●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0211-0707	●
11	CLIP; PIPE 6SD1 TC-S(83L) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-		●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●
11	CLIP; PIPE 6WA1 TC-C(55L) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	0204-	●
11	CLIP; PIPE 6WA1 TC-C(55L) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0204-0210	●
11	CLIP; PIPE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	04	1	0211-0707		●
11	CLIP; PIPE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-		●
19	BRACKET; FLEX HOSE 6SD1 TC-S(83L) (B)	1-47479-298-0	01	1	0211-		●
19	BRACKET; FLEX HOSE 6WA1 TC-C(55L) (A)	1-47479-089-0	01	1	0204-	●
24	CLIP; OIL PIPE 6SD1 TC-S(83L) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0211-		●
24	CLIP; OIL PIPE 6WA1 TC-C(55L) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0204-	●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91150-108-0	04	1	0204-0210	●
48	NUT; BRKT 6SD1 TC-S(83L) (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
48	NUT; BRKT 6SD1 TC-S(83L) (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
48	NUT; BRKT 6WA1 TC-C(55L) (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	04	1	0204-0210	●
48	NUT; BRKT 6SD1 TC-S(83L) (B) M10 FLANGE	0-91150-210-0	04	1	0211-0602		●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
48	NUT; BRKT 6SD1 TC-S(83L) (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●
48	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28080-840-0	02	1	0204-0210	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28080-840-0	02	1	0211-0512		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28080-840-0	02	1	0211-0512	●
50	BOLT; CLIP 6SD1 TC-S(83L) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28080-845-0	01	1	0204-0512	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210	●
50	BOLT; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
50	BOLT; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28680-840-0	03	1	0204-0512	●
50	BOLT; CLIP 6WA1 TC-C(55L) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
73	HOSE; FLEX,TRANS 6SD1 TC-S(83L) L=320	1-09364-838-0	01	1	0211-		●
73	HOSE; FLEX,TRANS 6WA1 TC-C(55L) L=385	1-09364-873-0	01	1	0204-	●
76	NUT; FLEX HOSE 6SD1 TC-S(83L) M16	9-99111-516-0	01	1	0211-0512		●
76	NUT; FLEX HOSE 6SD1 TC-S(83L) M16	0-91111-516-0	01	1	0601-		●
76	NUT; FLEX HOSE 6WA1 TC-C(55L) M16	0-91111-516-0	01	1	0601-	●
76	NUT; FLEX HOSE 6WA1 TC-C(55L) M16	9-99111-416-0	01	1	0204-0512	●
77	WASHER; LK 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0204-0210	●
77	WASHER; LK 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	01	1	0211-0603		●
77	WASHER; LK 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	01	1	0211-0603	●
77	WASHER; LK 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	01	1	0604-		●
77	WASHER; LK 6WA1 TC-C(55L) ID=16.2	0-91510-516-0	01	1	0604-	●
91	PIPE; OIL,FLEX HOSE TO UNION 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> L=1659	1-49166-270-0	01	1	0211-		●
91	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-C(55L) SERVICED BY L=1550	1-47428-879-0	01	1	0204-	●
92	NUT; CLIP 6SD1 TC-S(83L) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
92	NUT; CLIP 6SD1 TC-S(83L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
92	NUT; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
92	NUT; CLIP 6SD1 TC-S(83L) M8 FLANGE	0-91180-108-0	04	1	0603-		●
92	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0204-0602	●
92	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-	●
95	BRACKET; CLIP 6SD1 TC-S(83L) (C)	1-47475-427-1	04	1	0211-		●
95	BRACKET; CLIP 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (C)	1-47475-427-1	02	1	0211-		●
95	BRACKET; CLIP 6WA1 TC-C(55L) (C)	1-47475-427-1	06	1	0204-	●
114	PIPE; OIL,UNION TO FLEX HOSE 6SD1 TC-S(83L) TRANSMISSION OIL COOLER<C2C> (A) L=1401	1-49166-277-0	01	1	0211-		●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (A) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0204-	●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (B) L=561	1-49164-403-0	01	1	0204-0210	●
114	PIPE; OIL,UNION TO FLEX HOSE 6SD1 TC-S(83L) (B) L=561	1-49164-403-0	01	1	0211-		●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-C(55L) (B) L=561	1-49164-403-0	01	1	0211-	●
116	NUT; BRKT,FLEX HOSE 6SD1 TC-S(83L) M16	9-99111-516-0	01	1	0211-0512		●
116	NUT; BRKT,FLEX HOSE 6SD1 TC-S(83L) M16	0-91111-516-0	01	1	0601-		●
116	NUT; BRKT,FLEX HOSE 6WA1 TC-C(55L) M16	0-91111-516-0	01	1	0601-	●
116	NUT; BRKT,FLEX HOSE 6WA1 TC-C(55L) M16	9-99111-416-0	01	1	0204-0512	●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	03	1	0204-0210	●
117	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	03	1	0211-0603		●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	9-09150-516-0	03	1	0211-0603	●
117	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	03	1	0604-		●
117	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=16.2	0-91510-516-0	03	1	0604-	●
179	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	02	1	0204-0210	●
179	BOLT; BRKT 6SD1 TC-S(83L) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●
179	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
179	BOLT; BRKT 6SD1 TC-S(83L) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
179	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
