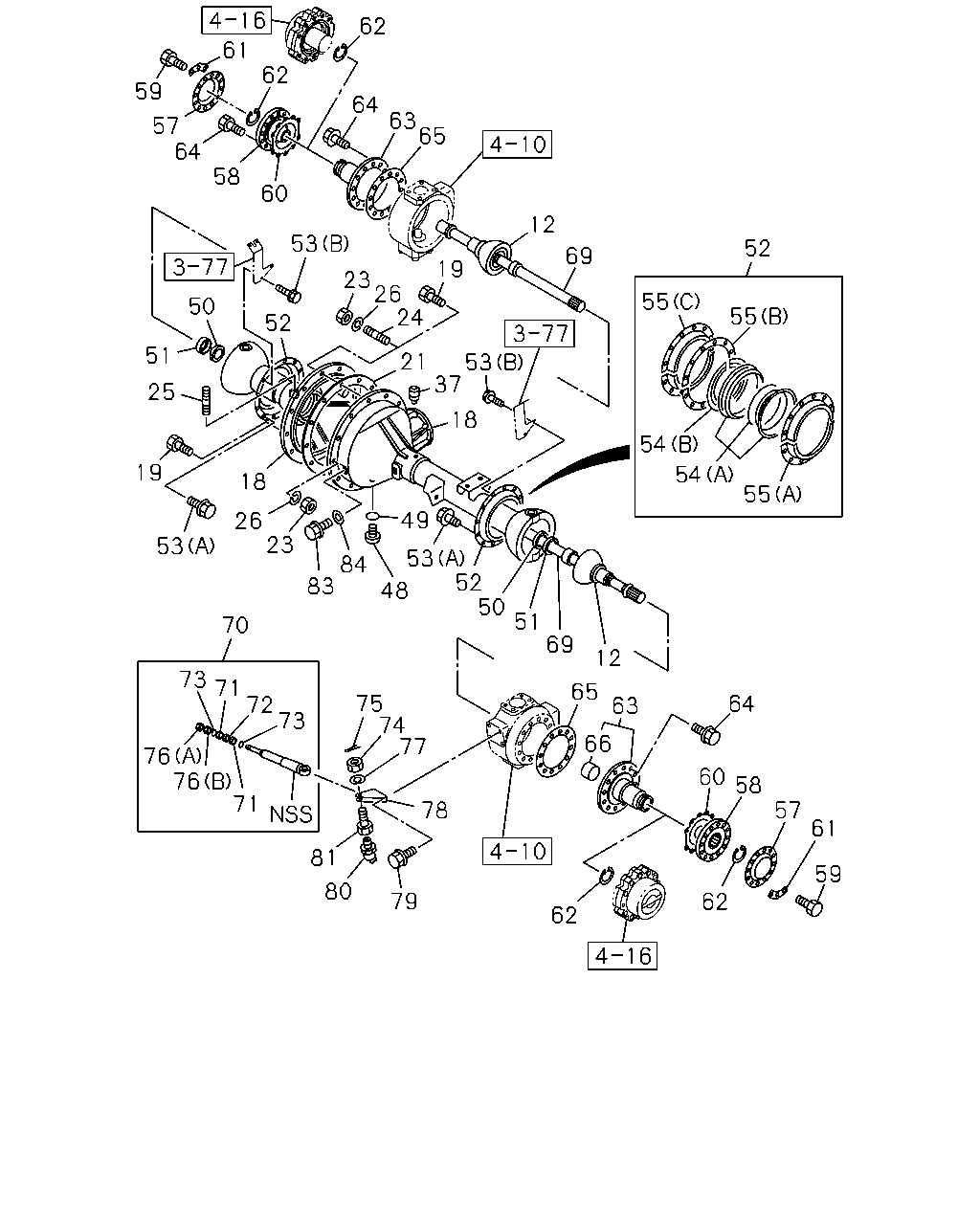

4-12 — FRONT DRIVE SHAFT (#70918) — 108 parça

59 57 64 69 51 50 52 53 84 83 23 26 53 19 25 51 50 53 19 12 52 54 54 55 55 55 69 53 37 21 24 26 23 60 58 64 57 59 65 63 64 62 62 61 49 65 63 66 60 58 61 62 78 79 80 81 77 74 75 73 72 71 73 70 76 76 71 62 12 48 18 18 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	1011-1102	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	1103-	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	1011-1102	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	1103-	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	1011-1102	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	1103-	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	1011-1102	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	1103-	●	●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	1011-1102	●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	1103-	●	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	1011-1102	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	1103-	●	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	1011-1102	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	1103-	●	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	1011-1102	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	1103-	●	●
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1011-1102	●
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1103-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	1011-1102	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	1103-	●	●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	1011-1102	●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	1103-	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-1102	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1103-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-1102	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1103-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1011-1102	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1103-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1011-1102	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1103-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1011-1102	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1103-	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1011-1102	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1103-1306	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	16	1	1307-	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1011-1102	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1103-1306	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	08	1	1307-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1011-1102	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1103-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1011-1102	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1103-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1011-1102	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1103-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1011-1102	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1103-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1011-1102	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1103-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	1011-1102	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	1103-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	1011-1102	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	1103-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	1011-1102	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	1103-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	1011-1102	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	1103-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	1011-1102	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	1103-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1011-1102	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1103-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1011-1102	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1103-	●	●
64	BOLT; SPINDLE M12X70 FLANGE	0-28061-270-0	04	1	1307-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1011-1102	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1103-	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1011-1102	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1103-1306	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	12	1	1307-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1011-1102	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1103-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1011-1102	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1103-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-061-0	01	1	1011-1102	●
69	SHAFT; AXLE,FRT INNER	1-43311-061-0	01	1	1103-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-062-0	01	1	1011-1102	●
69	SHAFT; AXLE,FRT INNER	1-43311-062-0	01	1	1103-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	1011-1102	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	1103-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	1011-1102	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	1103-	●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	1011-1102	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	1103-	●	●
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	1011-1102	●
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	1103-	●	●
74	NUT; S/ABS M12	0-91116-512-0	01	1	1011-1102	●
74	NUT; S/ABS M12	0-91116-512-0	01	1	1103-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1011-1102	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1103-	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	1011-1102	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	1103-	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	1011-1102	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	1103-	●	●
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	1011-1102	●
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	1103-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1011-1102	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1103-	●	●
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	1011-1102	●
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	1103-	●	●
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	1011-1102	●
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	1103-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1011-1102	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1103-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1011-1102	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1103-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1011-1102	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1103-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1011-1102	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
