◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#70917) — 52 parça

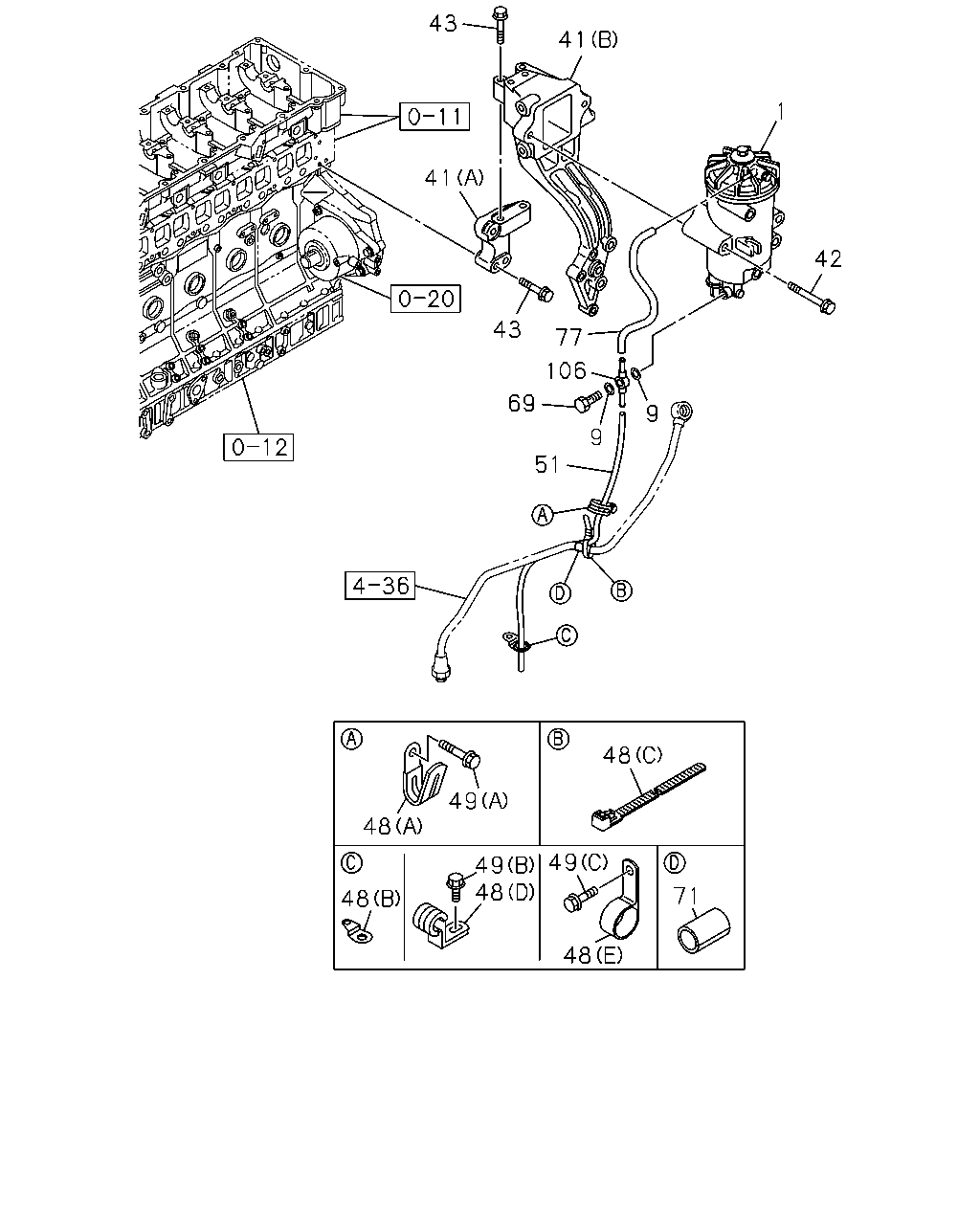

çizim 63503
48 71 49 48 49 48 48 48 49 9 9 51 69 106 42 1 77 43 41 41 43
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98150-456-0 01 1 1009-1103
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1104-1402
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403-
9 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 1009-
41 BRACKET; FUEL FILTER
(A) 		8-97603-935-1 01 1 1009-
41 BRACKET; FUEL FILTER
(B) 		8-97619-260-0 01 1 1009-
42 BOLT; FUEL FILTER
M12X100 FLANGE 		0-28151-200-0 02 1 1009-
43 BOLT; BRKT
M10X45 FLANGE 		0-28151-045-0 07 1 1009-
48 CLIP; VINYL PIPE
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) 		9-11229-070-0 01 1 1306-
48 CLIP; VINYL PIPE
(C) L=250 		5-09707-030-1 01 1 1009-1205
48 CLIP; VINYL PIPE
(C) L=250 		8-98216-430-0 01 1 1206-
48 CLIP; VINYL PIPE
(A) ID=21 L=47.5 		8-94178-108-0 01 1 1009-
48 CLIP; VINYL PIPE
ENGINE REAR PTO(SV1) (D) ID=11 H=20 L=25 		1-09700-848-0 01 1 1009-1302
48 CLIP; VINYL PIPE
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (D) ID=11 H=20 L=25 		1-09700-848-0 01 1 1303-
48 CLIP; VINYL PIPE
EXC. ENGINE REAR PTO(SV1) (B) 		9-11229-070-0 01 1 1009-1201
48 CLIP; VINYL PIPE
EXC. ENGINE REAR PTO(SV1) (E) ID=11 L=20 		0-95235-035-0 02 1 1202-1302
48 CLIP; VINYL PIPE
A/T ALLISON 4430(Y5V) (E) ID=11 L=20 		0-95235-035-0 02 1 1303-1305
48 CLIP; VINYL PIPE
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (E) ID=11 L=20 		0-95235-035-0 02 1 1303-1305
48 CLIP; VINYL PIPE
A/T ALLISON 4430(Y5V) (E) ID=11 L=20 		0-95235-035-0 02 1 1306-
49 BOLT; CLIP
EXC. ENGINE REAR PTO(SV1) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1202-1302
49 BOLT; CLIP
A/T ALLISON 4430(Y5V) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1303-1305
49 BOLT; CLIP
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1303-1305
49 BOLT; CLIP
A/T ALLISON 4430(Y5V) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1306-
49 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1009-
49 BOLT; CLIP
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1009-1302
49 BOLT; CLIP
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1303-
51 PIPE; VINYL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) L=600 SERVICED BY L=10000 		9-09914-909-0 01 1 1306-
51 PIPE; VINYL
ENGINE REAR PTO(SV1) L=650 SERVICED BY L=10000 		9-09914-909-0 01 1 1009-1302
51 PIPE; VINYL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) L=650 SERVICED BY L=10000 		9-09914-909-0 01 1 1303-
51 PIPE; VINYL
EXC. ENGINE REAR PTO(SV1) L=600 SERVICED BY L=10000 		9-09914-909-0 01 1 1009-1201
51 PIPE; VINYL
EXC. ENGINE REAR PTO(SV1) L=700 SERVICED BY L=10000 		9-09914-909-0 01 1 1202-1302
51 PIPE; VINYL
A/T ALLISON 4430(Y5V) L=700 SERVICED BY L=10000 		9-09914-909-0 01 1 1303-1305
51 PIPE; VINYL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) L=700 SERVICED BY L=10000 		9-09914-909-0 01 1 1303-1305
51 PIPE; VINYL
A/T ALLISON 4430(Y5V) L=700 SERVICED BY L=10000 		9-09914-909-0 01 1 1306-
69 BOLT; EYE,FUEL FILTER
M10X21 FLANGE 		8-97372-239-0 01 1 1009-
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1009-
77 HOSE; FUEL FILTER 8-98118-453-0 01 1 1009-
106 PIPE; FUEL 8-98081-827-0 01 1 1009-
çizim 63618
1 22 24 21 23 26 14 61 144 32 146 2 24 26
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98150-456-0 01 1 1009-1103
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1104-1402
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403-
2 ELEMENT KIT; FUEL FILTER 8-98116-662-0 01 1 1009-
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 8-98116-657-0 01 1 1009-
21 COVER; UPR,FUEL FILTER 8-98116-653-0 01 1 1009-
22 BOLT; CENTER TUBE,COVER 8-98117-014-0 01 1 1009-
23 PLUG; COVER 8-98116-652-0 01 1 1009-
24 GASKET; CENTER TUBE BOLT 8-98116-655-0 01 1 1009-
26 GASKET; COVER TO BODY 8-98116-661-0 01 1 1009-
32 BOLT; DRAIN,FUEL FILTER 8-98116-652-0 01 1 1009-
61 SEAT; SPR ELEMENT 8-98116-658-0 01 1 1009-
144 PLUG; BODY 8-98153-286-0 01 1 1009-
146 PLUG KIT; BODY 8-98195-093-0 01 1 1104-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
