◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#70904) — 166 parça

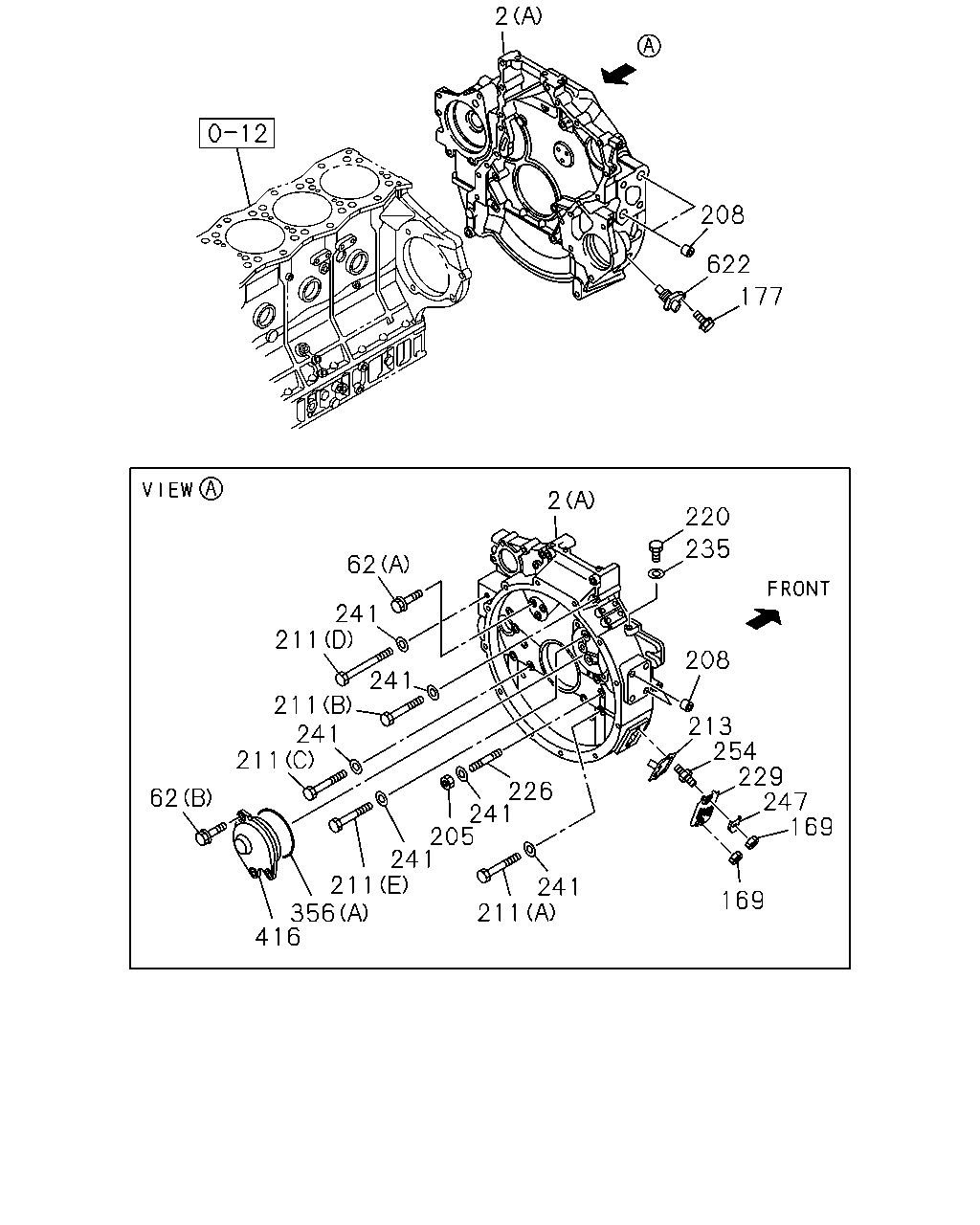

çizim 38343
2 208 622 177 235 2 220 208 213 254 229 247 169 169 226 241 205 241 211 241 211 356 416 62 211 211 62 241 241 241 211
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		8-98079-893-1 01 1 1009-1112
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		8-98204-965-0 01 1 1201-1302
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (B) 		8-98204-965-1 01 1 1303-
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-891-1 01 1 1009-1302
2 HOUSING; FLYWHEEL
A/T ALLISON 4430(Y5V) (A) 		8-98079-891-1 01 1 1303-1305
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-891-1 01 1 1303-1305
2 HOUSING; FLYWHEEL
A/T ALLISON 4430(Y5V) (A) 		8-98221-370-0 01 1 1306-
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) 		8-98221-370-0 01 1 1306-
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1009-
62 BOLT; COVER
ENGINE REAR PTO(SV1) (C) M10X20 FLANGE 		0-28761-020-0 07 1 1009-1302
62 BOLT; COVER
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (C) M10X20 FLANGE 		0-28761-020-0 07 1 1303-
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1009-1302
62 BOLT; COVER
A/T ALLISON 4430(Y5V) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
62 BOLT; COVER
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
169 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1009-
177 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 01 1 1009-
205 NUT; HSG
EXC. ENGINE REAR PTO(SV1) M12 		0-91110-512-0 01 1 1009-1302
205 NUT; HSG
A/T ALLISON 4430(Y5V) M12 		0-91110-512-0 01 1 1303-
205 NUT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) M12 		0-91110-512-0 01 1 1303-
208 DOWEL; ENG FOOT
OD=26 L=12 		1-11229-016-0 04 1 1009-
211 BOLT; HSG
(E) M12X25 		0-23801-225-0 02 1 1009-
211 BOLT; HSG
(D) M12X160 		8-97388-159-0 01 1 1009-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 02 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 02 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M12X130 		1-09020-040-0 09 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (F) M12X130 		1-09020-040-0 09 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X185 		8-94393-483-0 02 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (G) M12X185 		8-94393-483-0 02 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 03 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 03 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 09 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (A) M12X60 		0-16856-260-0 09 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 09 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M12X90 		0-16856-290-0 01 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (B) M12X90 		0-16856-290-0 01 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) M12X90 		0-16856-290-0 01 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 05 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (C) M12X75 		9-01666-275-0 05 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 05 1 1303-
213 POINTER; FLYWHEEL HSG 1-11327-045-1 01 1 1009-
220 PLUG; GEAR CHECK HOLE
M16X12 		0-92002-416-0 01 1 1009-
226 STUD; HSG
EXC. ENGINE REAR PTO(SV1) M12X60 L=78 		0-44011-260-0 01 1 1009-1302
226 STUD; HSG
A/T ALLISON 4430(Y5V) M12X60 L=78 		0-44011-260-0 01 1 1303-
226 STUD; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) M12X60 L=78 		0-44011-260-0 01 1 1303-
229 COVER; TIMING CHECK HOLE 1-11349-131-0 01 1 1009-
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 		9-09571-416-0 01 1 1009-
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 19 1 1009-
247 WASHER; LK,POINTER,FLYWHEEL HSG 1-11349-127-0 01 1 1009-
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 1009-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=95.6 		1-09623-422-0 01 1 1009-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=139.6 		1-09623-464-0 01 1 1009-1302
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). A/T ALLISON 4430(Y5V) (A) ID=139.6 		1-09623-464-0 01 1 1303-1408
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) ID=139.6 		1-09623-464-0 01 1 1303-1408
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). A/T ALLISON 4430(Y5V) (A) ID=137 		8-98280-698-0 01 1 1409-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) ID=137 		8-98280-698-0 01 1 1409-
416 COVER; IDLE GEAR
EXC. ENGINE REAR PTO(SV1) 		8-97603-341-0 01 1 1009-1302
416 COVER; IDLE GEAR
A/T ALLISON 4430(Y5V) 		8-97603-341-0 01 1 1303-
416 COVER; IDLE GEAR
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) 		8-97603-341-0 01 1 1303-
622 SENSOR; ENG SPD & TDC 8-94390-279-0 01 1 1009-

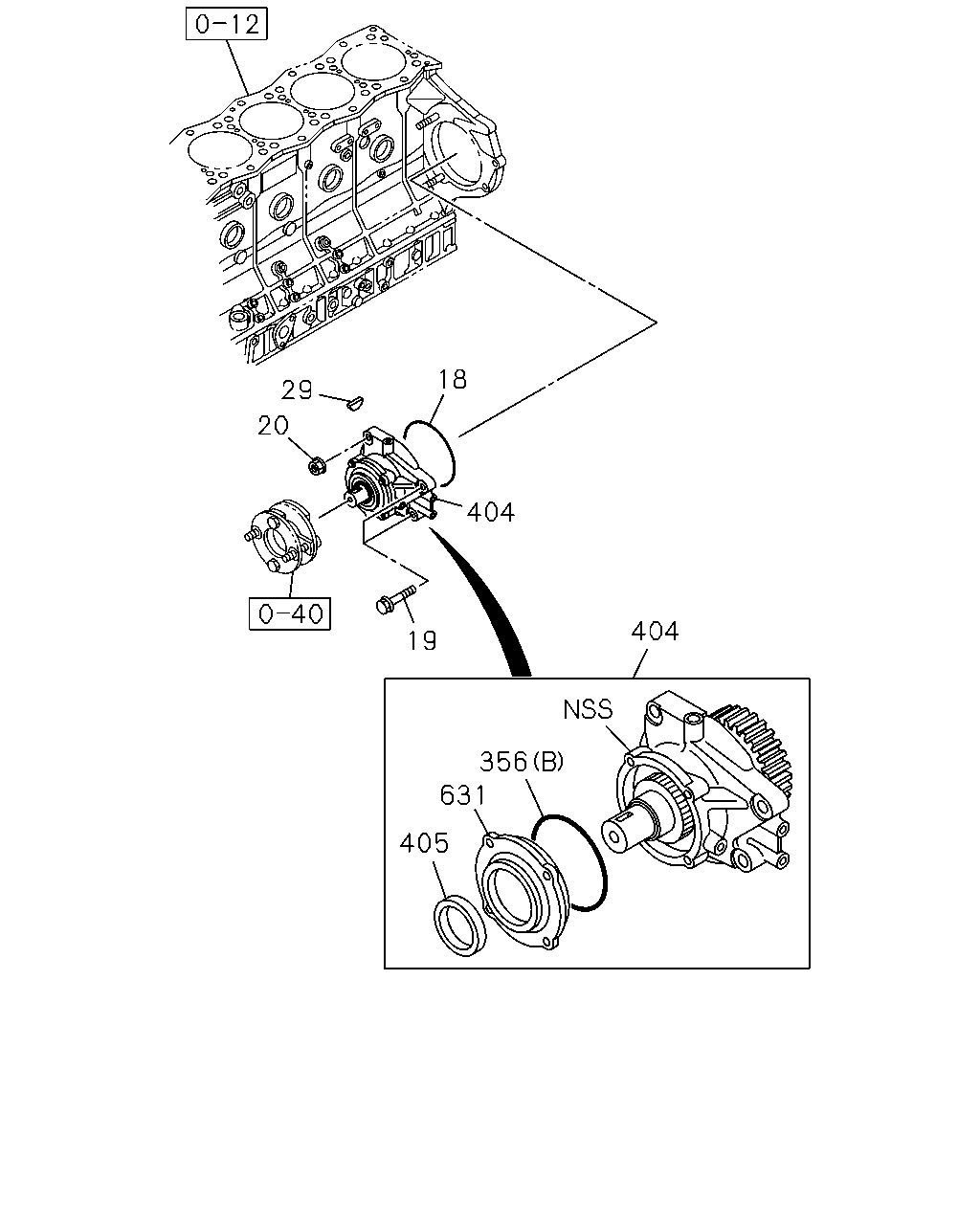

çizim 38465
29 20 18 404 19 404 356 631 405
BalonParca AdiParca NoAdetTipApplied Date
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6 		1-09623-449-0 01 1 1009-
19 BOLT; BRG CASE
M12X40 FLANGE 		0-28151-240-0 02 1 1009-
20 NUT; BRG CASE
M12 FLANGE 		0-91180-112-0 02 1 1009-
29 KEY; COUPLING 9-08055-622-0 01 1 1009-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=95.6 		1-09623-422-0 01 1 1009-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=139.6 		1-09623-464-0 01 1 1009-1302
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). A/T ALLISON 4430(Y5V) (A) ID=139.6 		1-09623-464-0 01 1 1303-1408
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) ID=139.6 		1-09623-464-0 01 1 1303-1408
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). A/T ALLISON 4430(Y5V) (A) ID=137 		8-98280-698-0 01 1 1409-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) ID=137 		8-98280-698-0 01 1 1409-
404 CASE ASM; BRG,INJ PUMP 8-98127-504-8 01 1 1009-1305
404 CASE ASM; BRG,INJ PUMP 8-98239-287-0 01 1 1306-
405 SEAL; OIL,BRG CASE 8-98156-970-0 01 1 1009-1305
405 SEAL; OIL,BRG CASE 8-98238-366-0 01 1 1306-
631 COVER; BEARING 8-98127-511-2 01 1 1009-

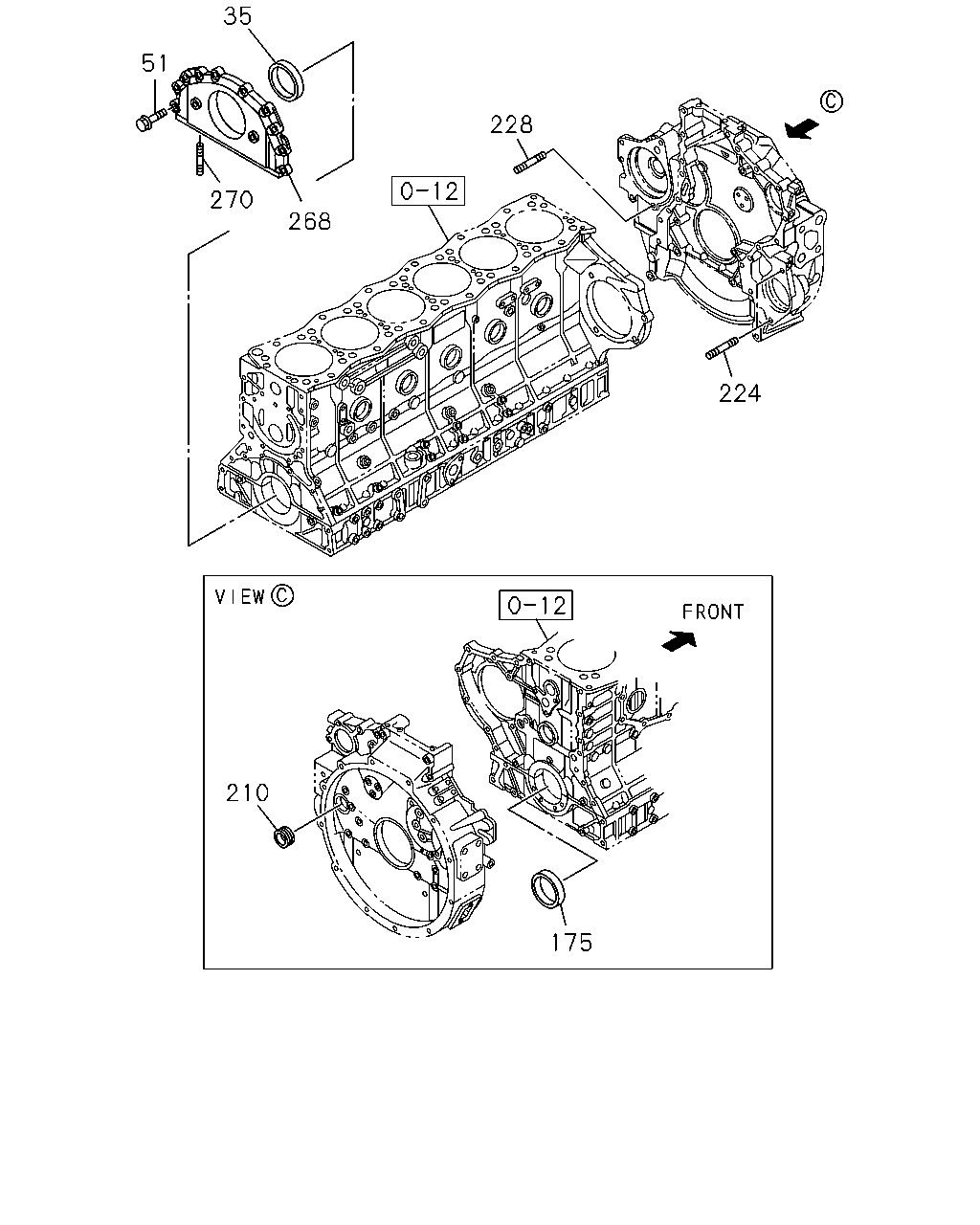

çizim 38533
224 228 35 51 268 270 175 210
BalonParca AdiParca NoAdetTipApplied Date
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153 		1-09625-540-3 01 1 1009-
51 BOLT; GEAR CASE COVER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X60 FLANGE 		0-28151-060-0 11 1 1009-1302
51 BOLT; GEAR CASE COVER
M10X60 FLANGE 		0-28151-060-0 11 1 1303-
51 BOLT; GEAR CASE COVER
HEATER & DEFROSTER(C41) M10X60 FLANGE 		0-28151-060-0 12 1 1009-1302
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150 		1-09625-541-2 01 1 1009-
210 GROMMET; HSG
EXC. ENGINE REAR PTO(SV1) 		9-09575-799-0 01 1 1009-1302
210 GROMMET; HSG
A/T ALLISON 4430(Y5V) 		9-09575-799-0 01 1 1303-
210 GROMMET; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) 		9-09575-799-0 01 1 1303-
224 STUD; STARTER
M14X40 L=61 		0-44011-440-0 02 1 1009-
228 STUD; AIR CMPR
M12X40 L=58 		9-94411-240-0 01 1 1009-
268 COVER; FRT 8-98141-609-0 01 1 1009-1211
268 COVER; FRT 8-98224-092-0 01 1 1212-
270 STUD; FRT COVER
M8X35 L=46 		9-09630-034-1 06 1 1009-1211
270 STUD; FRT COVER
M8X35 L=49 		8-98225-099-0 06 1 1212-

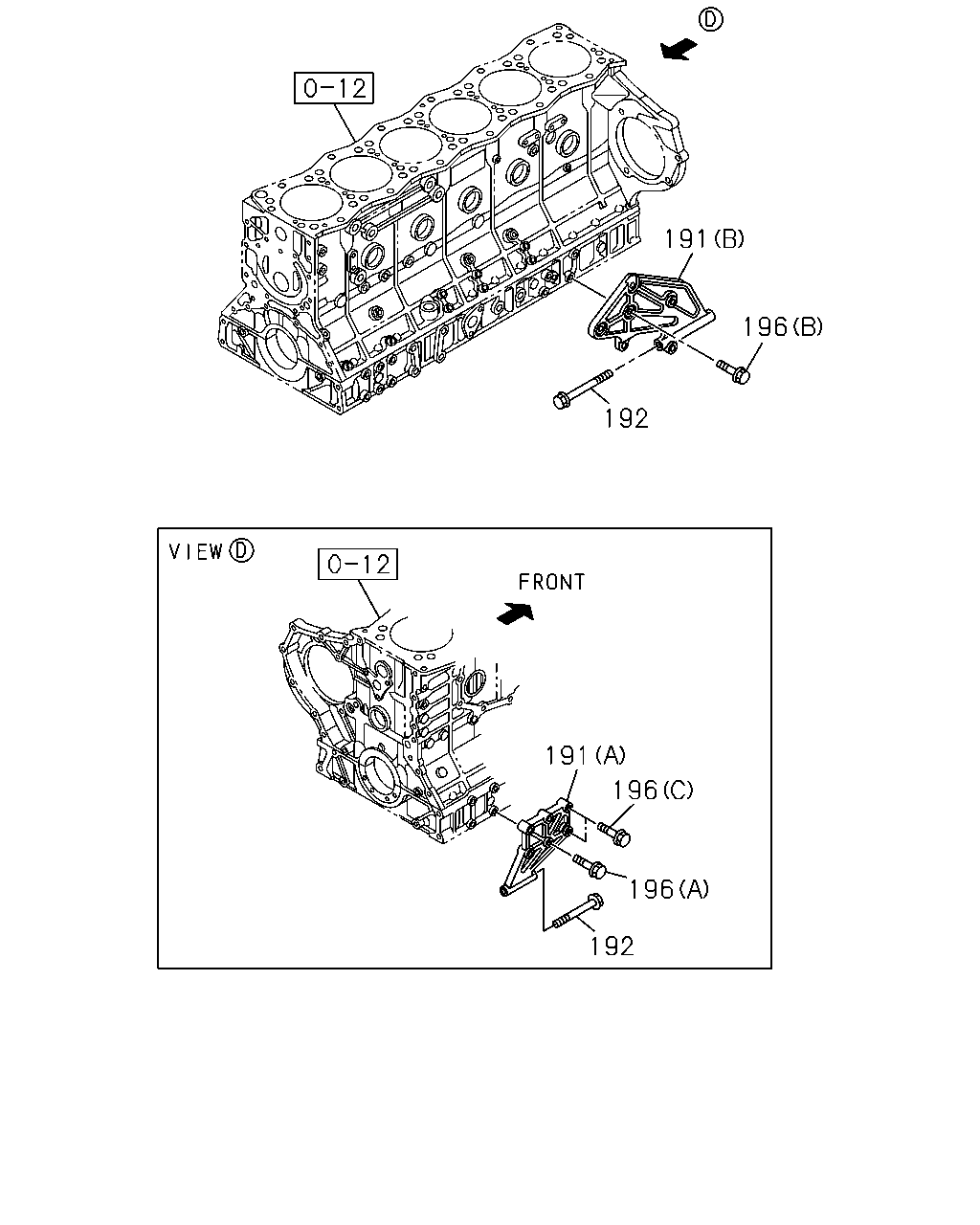

çizim 189949
191 196 192 191 196 196 192
BalonParca AdiParca NoAdetTipApplied Date
191 STAY; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) (A) 		8-97606-941-1 01 1 1202-1302
191 STAY; FLYWHEEL HSG
A/T ALLISON 4430(Y5V) (A) 		8-97606-941-1 01 1 1303-1305
191 STAY; FLYWHEEL HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) 		8-97606-941-1 01 1 1303-1305
191 STAY; FLYWHEEL HSG
A/T ALLISON 4430(Y5V) (A) 		8-97606-941-1 01 1 1306-
191 STAY; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) (B) 		8-97606-942-2 01 1 1202-1302
191 STAY; FLYWHEEL HSG
A/T ALLISON 4430(Y5V) (B) 		8-97606-942-2 01 1 1303-1305
191 STAY; FLYWHEEL HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) 		8-97606-942-2 01 1 1303-1305
191 STAY; FLYWHEEL HSG
A/T ALLISON 4430(Y5V) (B) 		8-97606-942-2 01 1 1306-
192 BOLT; STAY TO HSG
EXC. ENGINE REAR PTO(SV1) M14X150 FLANGE 		0-28956-415-0 02 1 1202-1302
192 BOLT; STAY TO HSG
A/T ALLISON 4430(Y5V) M14X150 FLANGE 		0-28956-415-0 02 1 1303-1305
192 BOLT; STAY TO HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) M14X150 FLANGE 		0-28956-415-0 02 1 1303-1305
192 BOLT; STAY TO HSG
A/T ALLISON 4430(Y5V) M14X150 FLANGE 		0-28956-415-0 02 1 1306-
196 BOLT; STAY TO C/BL
EXC. ENGINE REAR PTO(SV1) (A) M10X70 FLANGE 		0-28151-070-0 04 1 1202-1302
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (A) M10X70 FLANGE 		0-28151-070-0 04 1 1303-1305
196 BOLT; STAY TO C/BL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) M10X70 FLANGE 		0-28151-070-0 04 1 1303-1305
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (A) M10X70 FLANGE 		0-28151-070-0 04 1 1306-
196 BOLT; STAY TO C/BL
EXC. ENGINE REAR PTO(SV1) (B) M10X30 FLANGE 		0-28751-030-0 03 1 1202-1302
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (B) M10X30 FLANGE 		0-28751-030-0 03 1 1303-1305
196 BOLT; STAY TO C/BL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) M10X30 FLANGE 		0-28751-030-0 03 1 1303-1305
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (B) M10X30 FLANGE 		0-28751-030-0 03 1 1306-
196 BOLT; STAY TO C/BL
EXC. ENGINE REAR PTO(SV1) (C) M10X40 FLANGE 		0-28751-040-0 02 1 1202-1302
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (C) M10X40 FLANGE 		0-28751-040-0 02 1 1303-1305
196 BOLT; STAY TO C/BL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (C) M10X40 FLANGE 		0-28751-040-0 02 1 1303-1305
196 BOLT; STAY TO C/BL
A/T ALLISON 4430(Y5V) (C) M10X40 FLANGE 		0-28751-040-0 02 1 1306-

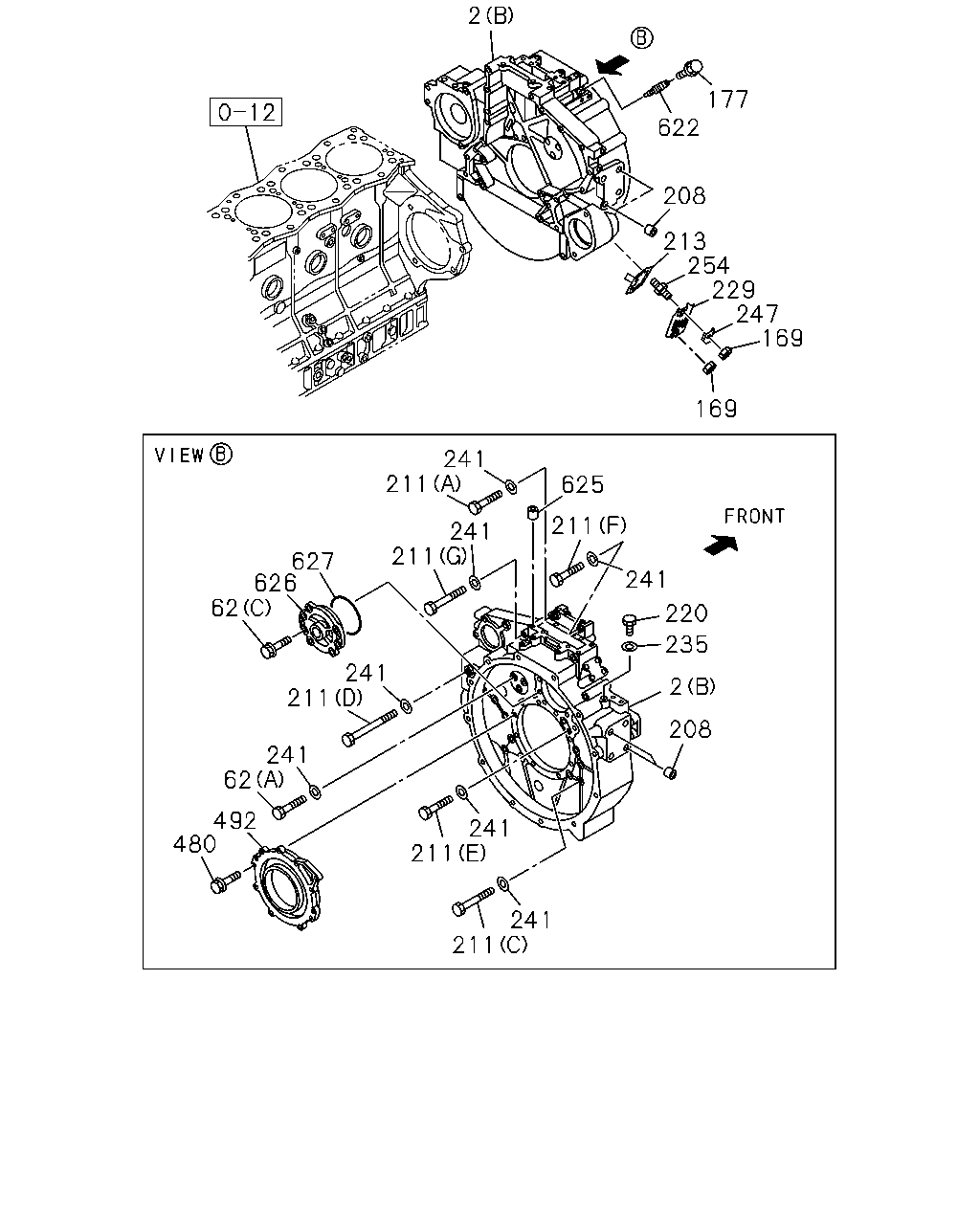

çizim 189951
177 622 2 208 169 247 229 254 213 169 220 235 2 208 241 211 241 211 625 241 211 241 211 241 627 211 241 626 62 211 241 62 492 480
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		8-98079-893-1 01 1 1009-1112
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		8-98204-965-0 01 1 1201-1302
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (B) 		8-98204-965-1 01 1 1303-
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-891-1 01 1 1009-1302
2 HOUSING; FLYWHEEL
A/T ALLISON 4430(Y5V) (A) 		8-98079-891-1 01 1 1303-1305
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-891-1 01 1 1303-1305
2 HOUSING; FLYWHEEL
A/T ALLISON 4430(Y5V) (A) 		8-98221-370-0 01 1 1306-
2 HOUSING; FLYWHEEL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) 		8-98221-370-0 01 1 1306-
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1009-
62 BOLT; COVER
ENGINE REAR PTO(SV1) (C) M10X20 FLANGE 		0-28761-020-0 07 1 1009-1302
62 BOLT; COVER
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (C) M10X20 FLANGE 		0-28761-020-0 07 1 1303-
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1009-1302
62 BOLT; COVER
A/T ALLISON 4430(Y5V) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
62 BOLT; COVER
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
169 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1009-
177 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 01 1 1009-
208 DOWEL; ENG FOOT
OD=26 L=12 		1-11229-016-0 04 1 1009-
211 BOLT; HSG
(E) M12X25 		0-23801-225-0 02 1 1009-
211 BOLT; HSG
(D) M12X160 		8-97388-159-0 01 1 1009-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 02 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 02 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M12X130 		1-09020-040-0 09 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (F) M12X130 		1-09020-040-0 09 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X185 		8-94393-483-0 02 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (G) M12X185 		8-94393-483-0 02 1 1303-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 03 1 1009-1302
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 03 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 09 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (A) M12X60 		0-16856-260-0 09 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) M12X60 		0-16856-260-0 09 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M12X90 		0-16856-290-0 01 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (B) M12X90 		0-16856-290-0 01 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (B) M12X90 		0-16856-290-0 01 1 1303-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 05 1 1009-1302
211 BOLT; HSG
A/T ALLISON 4430(Y5V) (C) M12X75 		9-01666-275-0 05 1 1303-
211 BOLT; HSG
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (C) M12X75 		9-01666-275-0 05 1 1303-
213 POINTER; FLYWHEEL HSG 1-11327-045-1 01 1 1009-
220 PLUG; GEAR CHECK HOLE
M16X12 		0-92002-416-0 01 1 1009-
229 COVER; TIMING CHECK HOLE 1-11349-131-0 01 1 1009-
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 		9-09571-416-0 01 1 1009-
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 19 1 1009-
247 WASHER; LK,POINTER,FLYWHEEL HSG 1-11349-127-0 01 1 1009-
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 1009-
480 BOLT; COVER
ENGINE REAR PTO(SV1) M8X20 FLANGE 		0-28650-820-0 10 1 1009-1302
480 BOLT; COVER
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) M8X20 FLANGE 		0-28650-820-0 10 1 1303-
492 COVER; OIL SEAL
ENGINE REAR PTO(SV1) 		8-97604-876-0 01 1 1009-1302
492 COVER; OIL SEAL
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) 		8-97604-876-0 01 1 1303-
622 SENSOR; ENG SPD & TDC 8-94390-279-0 01 1 1009-
625 DOWEL; PTO
ENGINE REAR PTO(SV1) OD=14 L=10 		9-11319-065-3 02 1 1009-1302
625 DOWEL; PTO
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) OD=14 L=10 		9-11319-065-3 02 1 1303-
626 COVER; PTO
ENGINE REAR PTO(SV1) 		8-97604-875-2 01 1 1009-1302
626 COVER; PTO
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) 		8-97604-875-2 01 1 1303-
627 GASKET; COVER,PTO
ENGINE REAR PTO(SV1) ID=104 		8-94149-322-0 01 1 1009-1302
627 GASKET; COVER,PTO
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) ID=104 		8-94149-322-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
