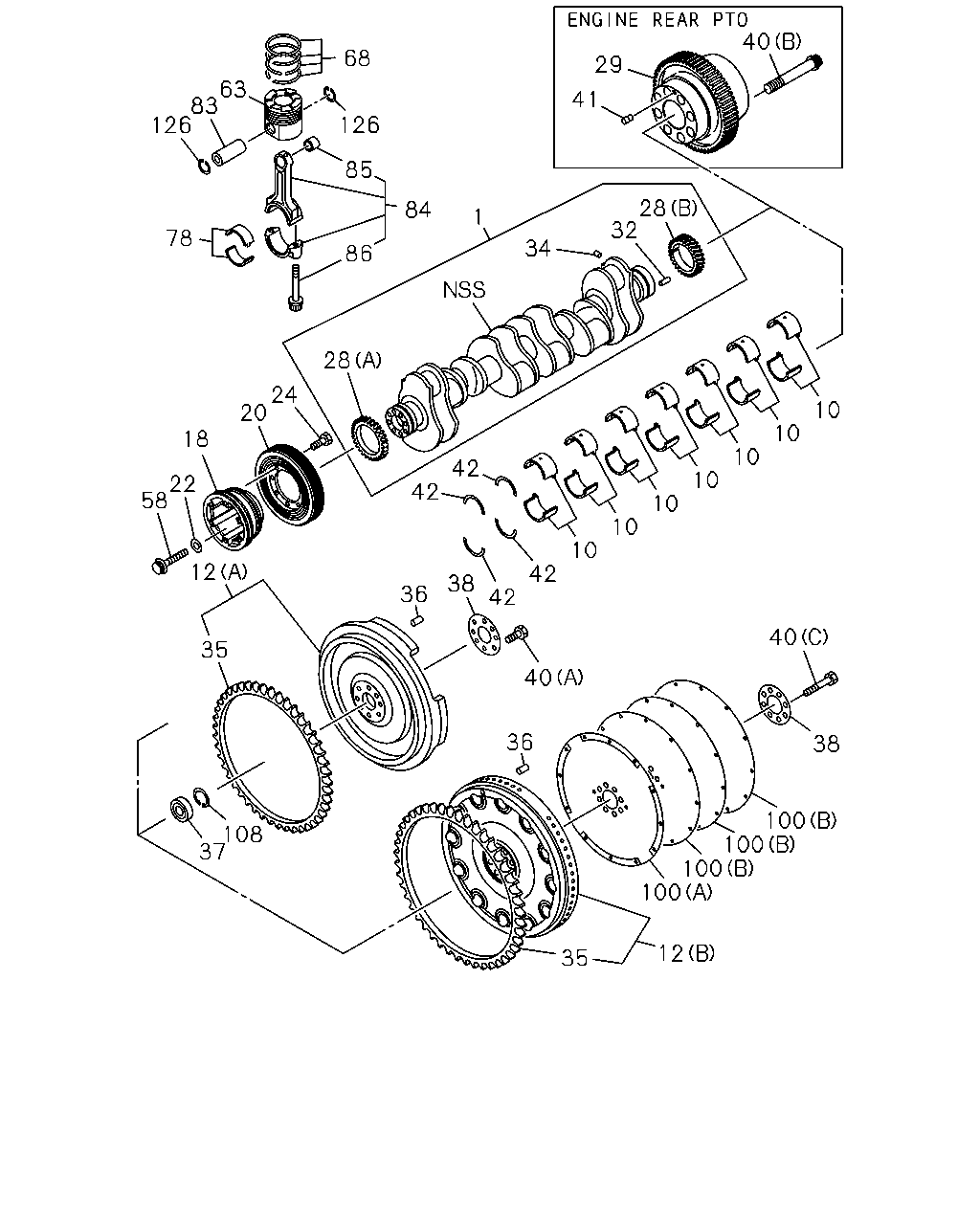

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#70903) — 50 parça

40 29 41 28 32 34 1 84 126 68 85 86 28 24 20 18 22 58 12 35 108 37 36 42 42 10 10 10 10 10 10 10 42 42 38 36 40 40 38 100 100 100 100 12 35 63 83 126 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-046-5	01	1	1009-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97609-768-0	07	1	1009-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97609-769-0	07	1	1009-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97609-770-0	07	1	1009-
12	FLYWHEEL A/T ALLISON 4430(Y5V) (B)	8-98191-968-2	01	1	1303-
12	FLYWHEEL CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97625-495-1	01	1	1009-
12	FLYWHEEL 17INCH CLUTCH(RF3) (A)	1-12330-553-0	01	1	1009-
18	PULLEY; CR/SHF 1-GROOVE	8-97603-953-0	01	1	1009-
20	DAMPER; CR/SHF	1-12375-195-0	01	1	1009-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1009-
24	BOLT; DAMPER M12X25 FLANGE	0-28161-225-0	08	1	1009-
28	GEAR; CR/SHF (A) Z=59	8-97607-583-1	01	1	1009-
28	GEAR; CR/SHF (B) Z=46	8-98002-332-1	01	1	1009-
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=67	8-97603-913-0	01	1	1009-1302
29	GEAR; CR/SHF,PTO 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) Z=67	8-97603-913-0	01	1	1303-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	1009-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1009-
35	GEAR; RING Z=139	1-12333-013-1	01	1	1009-
36	PIN; FLYWHEEL A/T ALLISON 4430(Y5V) OD=6 L=12	9-08150-612-0	02	1	1303-
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	1009-1302
36	PIN; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=10 L=22	9-08151-022-0	02	1	1303-
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	1009-1302
37	BEARING; PILOT,TOP GEAR SHAFT 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-09800-257-0	01	1	1303-
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-158-0	01	1	1204-1302
37	BEARING; PILOT,TOP GEAR SHAFT 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) BEST VALUE PARTS	1-87610-158-0	01	1	1303-
38	WASHER; FLYWHEEL A/T ALLISON 4430(Y5V) ID=58 OD=124	8-98192-267-0	01	1	1303-
38	WASHER; FLYWHEEL ID=64 OD=123.5	1-12336-006-0	01	1	1009-1302
38	WASHER; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=64 OD=123.5	1-12336-006-0	01	1	1303-
40	BOLT; FLYWHEEL A/T ALLISON 4430(Y5V) (C) M16X95	1-09070-147-1	08	1	1303-
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) (B) M16X179	8-97605-238-1	08	1	1009-1302
40	BOLT; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) (B) M16X179	8-97605-238-1	08	1	1303-
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A) M16X62	1-09070-146-1	08	1	1009-1302
40	BOLT; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. ENGINE REAR PTO(SV1) (A) M16X62	1-09070-146-1	08	1	1303-
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO(SV1) OD=8 L=16	9-08150-816-0	01	1	1009-1302
41	PIN; GEAR,CR/SHF PTO 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) OD=8 L=16	9-08150-816-0	01	1	1303-
42	WASHER; THRUST,CR/SHF	8-98106-007-0	04	1	1009-
58	BOLT; CR/SHF PULLEY M16X70 FLANGE	0-28861-670-0	04	1	1009-
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-98151-363-0	06	1	1009-
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-98151-364-0	06	1	1009-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98056-464-1	06	1	1009-
78	METAL; CONNROD	8-97605-484-0	06	1	1009-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97603-263-0	06	1	1009-
84	ROD ASM; CONN	8-98044-950-0	06	1	1009-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-051-0	06	1	1009-
86	BOLT; CONNROD M13X82 FLANGE	1-12235-046-0	12	1	1009-
100	PLATE; FLEX A/T ALLISON 4430(Y5V) (A)	8-98185-796-0	01	1	1303-
100	PLATE; FLEX A/T ALLISON 4430(Y5V) (B)	8-98185-797-0	03	1	1303-
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	1009-1302
108	RING; SNAP,BRG SET 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=67.2	9-09180-163-0	01	1	1303-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=56.2	1-09587-075-1	12	1	1009-
