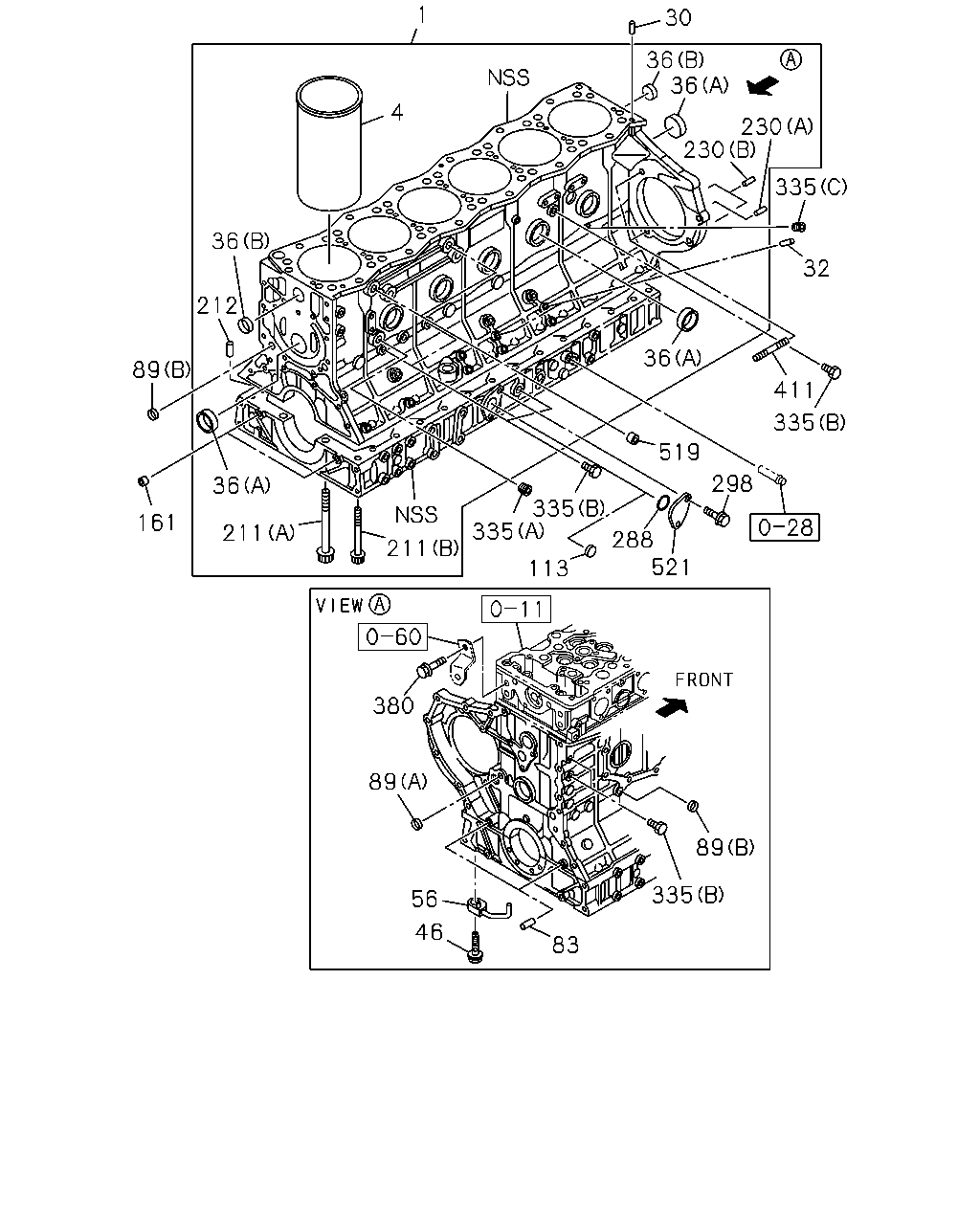

0-12 — CYLINDER BLOCK (#70900) — 41 parça

1 4 36 212 89 161 36 211 211 335 335 519 288 113 521 298 411 335 32 36 30 36 36 230 230 335 380 89 56 46 83 335 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98319-406-0	01	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-98112-230-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-98112-231-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-98112-232-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-98112-233-0	06	1	1009-
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	02	1	1009-
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	1009-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-058-1	07	1	1009-
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-059-1	02	1	1009-
46	BOLT; JOINT,OIL JET,PISTON COOLING M10X21 FLANGE	8-97372-238-0	06	1	1009-
56	JET; OIL,PISTON COOLING	8-98031-273-0	06	1	1009-1405
56	JET; OIL,PISTON COOLING	8-98275-246-0	06	1	1406-
83	PIN; FLYWHEEL HSG OD=10 L=25	9-08151-025-0	02	1	1009-1404
83	PIN; FLYWHEEL HSG OD=10 L=22	9-08151-022-0	02	1	1405-
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	1009-
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	1009-
113	CUP; SEALING OD=32	1-09600-012-2	01	1	1012-
161	DOWEL; FRT COVER	1-13119-004-0	02	1	1009-
211	BOLT; CRANKCASE (A) M15X130 FLANGE	1-09070-159-0	14	1	1009-1212
211	BOLT; CRANKCASE (A) M15X126.5 FLANGE	8-98229-864-0	14	1	1301-
211	BOLT; CRANKCASE (B) M10X95 FLANGE	8-98141-538-0	28	1	1009-
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	1009-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	1009-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08150-510-0	02	1	1009-1011
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	1012-
288	GASKET; COVER ID=38.7	1-09623-299-0	01	1	1009-1011
298	BOLT; COVER M8X20 FLANGE	0-28650-820-0	02	1	1009-1011
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	1009-
335	PLUG; C/BL,SIDE (A) PT3/8	1-09605-056-0	01	1	1009-
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	06	1	1009-
380	BOLT; BRKT,HEAT PROTECTOR ENGINE REAR PTO(SV1) M12X16	0-28151-216-0	01	1	1009-1302
380	BOLT; BRKT,HEAT PROTECTOR 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ENGINE REAR PTO(SV1) M12X16	0-28151-216-0	01	1	1303-
411	STUD; BRG CASE M12X40 L=58	9-94411-240-0	02	1	1009-
519	DOWEL; RAIL BRKT OD=14 L=9	9-19759-019-1	02	1	1009-
521	COVER; OIL FILLER	1-11319-012-0	01	1	1009-1011

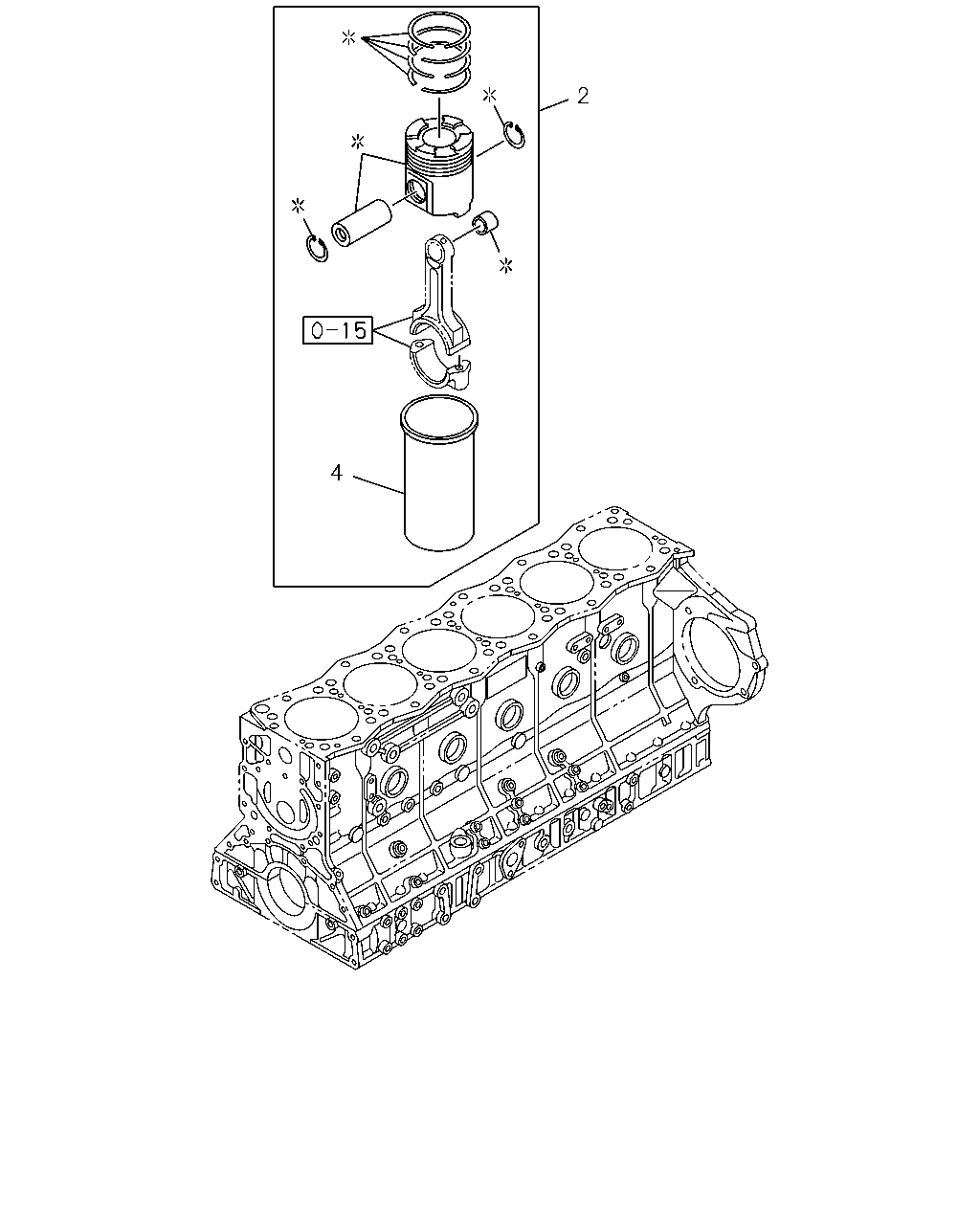

4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-631-1	06	1	1009-
2	LINER SET; ENG CYL GRADE=3X	1-87813-632-1	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-98112-230-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-98112-231-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-98112-232-0	06	1	1009-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-98112-233-0	06	1	1009-
