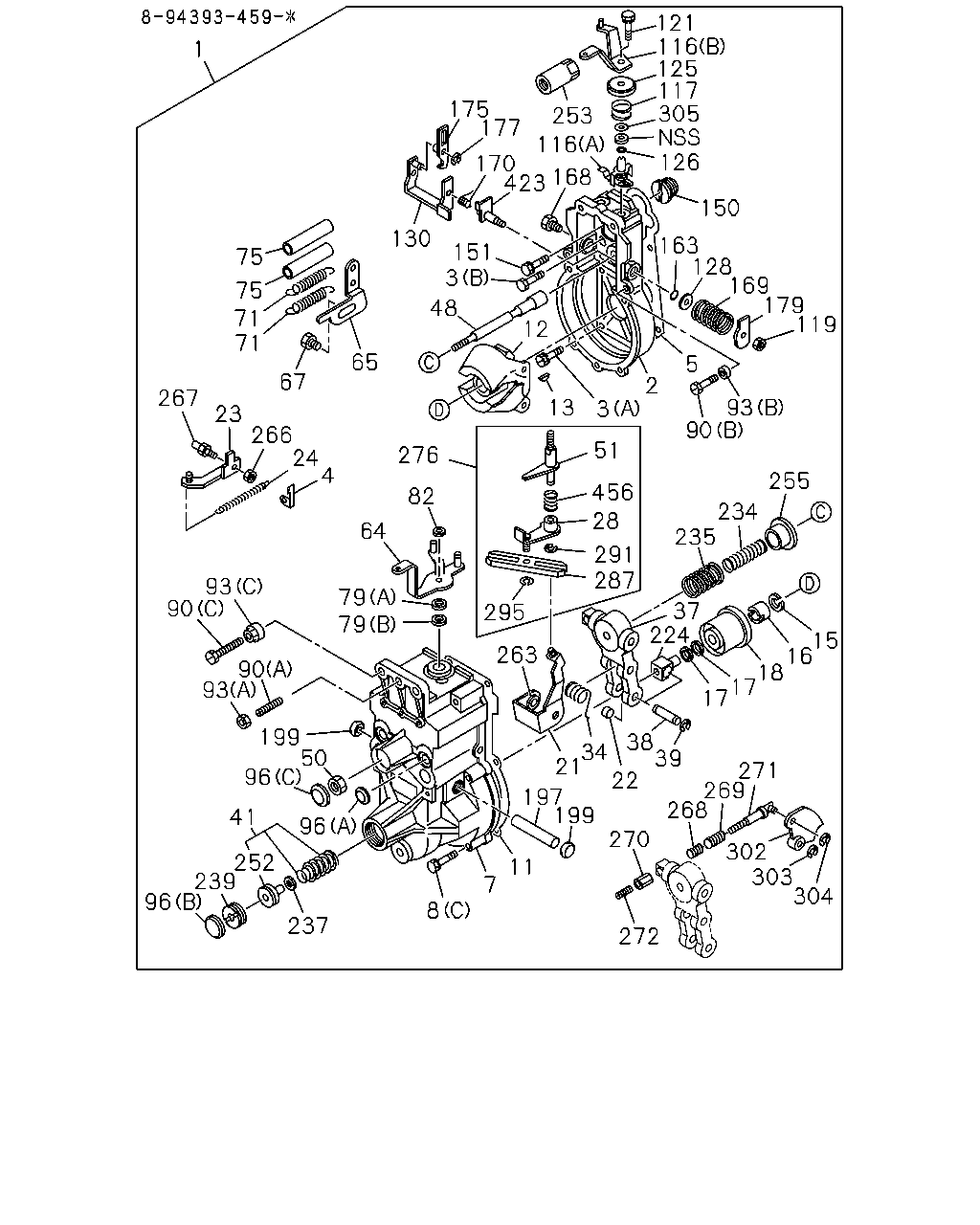

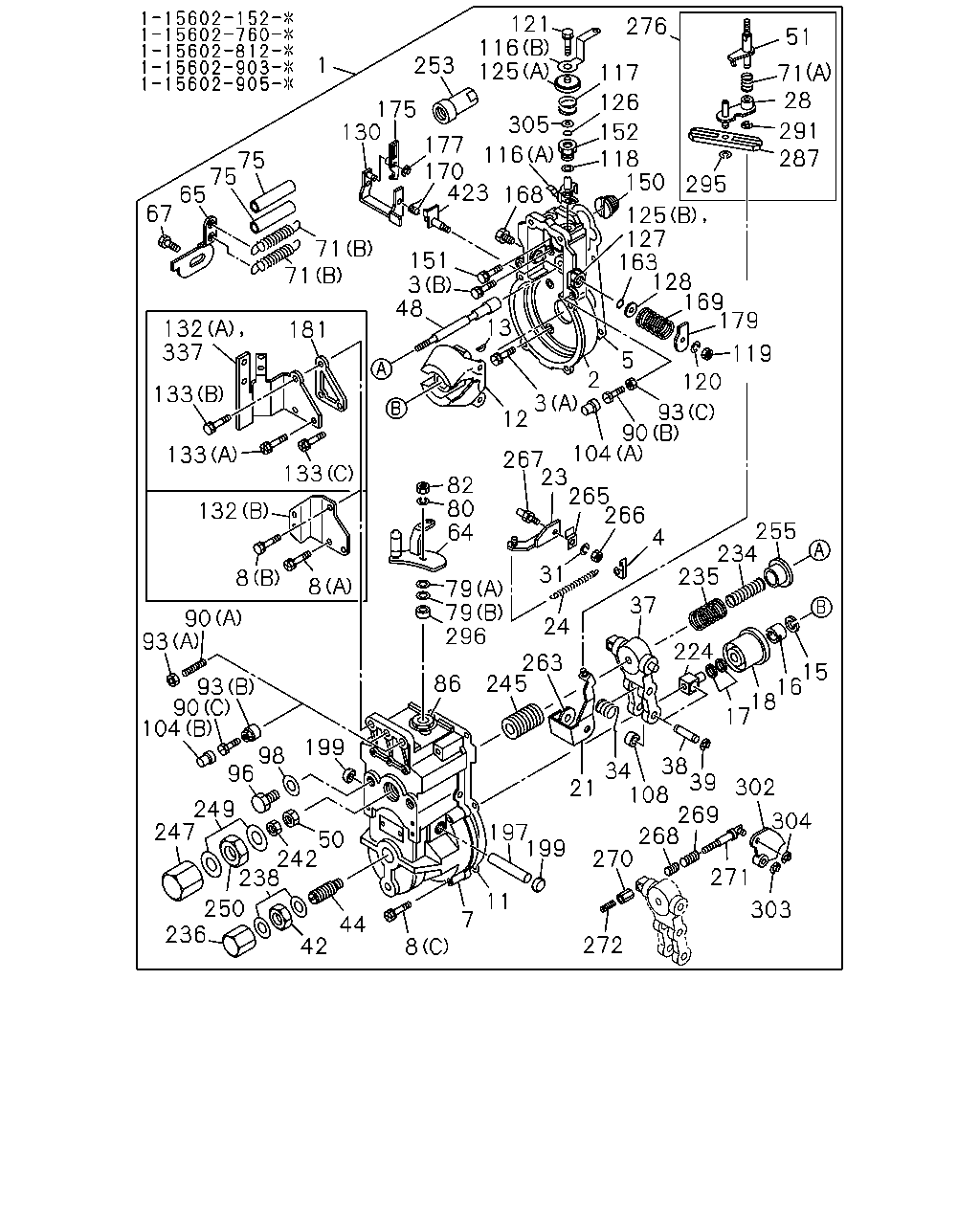

0-81 — GOVERNOR; INJECTION PUMP (#709) — 464 parça

121 116 125 276 51 253 1 117 71 28 126 175 130 305 291 287 152 118 150 177 170 423 116 75 75 65 67 295 168 125 127 163 128 169 179 71 71 151 3 48 13 132 337 181 119 5 2 120 133 3 12 93 90 104 267 23 265 266 4 133 133 82 80 64 132 255 234 235 31 8 8 79 79 296 37 90 93 24 224 263 245 15 16 18 17 93 90 104 86 199 98 96 38 39 34 108 269 268 270 302 21 249 247 304 197 199 50 242 238 271 11 250 236 303 7 44 272 42 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15602-152-2	1-15770-409-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15602-760-1	1-15770-592-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 8-94393-459-2	1-15770-595-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15602-812-0	1-15770-632-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15602-903-0	1-15770-699-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15602-905-0	1-15770-701-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15721-092-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15721-209-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-809-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: F = 8-94393-459-2	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-000-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15721-161-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 8-94393-459-2	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15602-812-0	1-15721-271-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1	1-15719-005-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (B), M8X16 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1	9-01900-816-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-804-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15602-152-2, F = 8-94393-459-2	5-15729-020-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15722-014-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-19619-049-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-220-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: F = 8-94393-459-2	1-15725-291-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-221-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: F = 8-94393-459-2	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-223-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: F = 8-94393-459-2	8-94171-152-0	01	1	-
31	WASHER; LK,CONT RACK,GOV ID=5 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-83539-044-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15723-039-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: F = 8-94393-459-2	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: F = 8-94393-459-2	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-579-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-88410-201-0	02	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-285-0	01	1	-
44	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15723-098-0	01	1	-
44	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	5-15723-158-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	8-94171-146-1	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	8-94172-279-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-059-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: F = 8-94393-459-2	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 1-15602-812-0	1-15729-601-2	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-952-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: F = 8-94393-459-2	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-224-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: F = 8-94393-459-2	1-15725-667-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-678-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: F = 8-94393-459-2	8-94339-966-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15619-039-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: F = 8-94393-459-2	5-15729-046-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-138-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: F = 8-94393-459-2	1-15723-380-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-074-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: F = 8-94393-459-2	8-94433-757-0	02	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-565-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-702-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-703-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-826-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-827-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-828-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94344-427-0	AR	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-83579-492-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-236-0	01	1	-
86	BUSHING; CONT SHAFT,GOV COVER ASM PART: A = 1-15602-152-2	5-15729-192-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-238-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X62 ASM PART: B = 1-15602-760-1, F = 8-94393-459-2	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: C = 1-15602-812-0, E = 1-15602-905-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=62 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-123-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=62 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	5-15729-123-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	9-81325-081-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	9-84410-027-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-050-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: F = 8-94393-459-2	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: F = 8-94393-459-2	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: F = 8-94393-459-2	8-94171-148-0	01	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-022-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: E = 1-15602-905-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: E = 1-15602-905-0	8-97085-022-0	01	1	-
108	COLLAR; SWIVEL LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-371-1	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-217-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-370-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: F = 8-94393-459-2	5-15725-063-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: F = 8-94393-459-2	8-94396-977-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-131-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: F = 8-94393-459-2	1-15723-294-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-181-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-83579-492-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: F = 8-94393-459-2	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81325-210-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: F = 8-94393-459-2	1-15729-853-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81391-906-0	01	1	-
127	BUSHING; CONT SHAFT,GOV HSG ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	9-81325-429-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-294-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-295-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-296-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-297-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-298-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-299-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: F = 8-94393-459-2	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: F = 8-94393-459-2	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: F = 8-94393-459-2	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: F = 8-94393-459-2	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: F = 8-94393-459-2	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: F = 8-94393-459-2	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: F = 8-94393-459-2	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: F = 8-94393-459-2	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: F = 8-94393-459-2	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-216-0	01	1	-
130	LEVER; CONT,GOV ASM PART: C = 1-15602-812-0	1-15725-463-0	01	1	-
130	LEVER; CONT,GOV ASM PART: F = 8-94393-459-2	1-15725-527-0	01	1	-
132	BRACKET; ADJ SCREW,GOV (A) ASM PART: C = 1-15602-812-0	1-15729-717-0	01	1	-
132	BRACKET; ADJ SCREW,GOV (B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1	1-15729-779-0	01	1	-
133	BOLT; BRKT FIX,GOV (A), M6X25 ASM PART: D = 1-15602-903-0, E = 1-15602-905-0	1-15729-242-0	02	1	-
133	BOLT; BRKT FIX,GOV (B), M8X30 W/LK WASHER ASM PART: D = 1-15602-903-0, E = 1-15602-905-0	9-01900-830-0	01	1	-
133	BOLT; BRKT FIX,GOV (C) ASM PART: D = 1-15602-903-0, E = 1-15602-905-0	9-88410-094-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-01900-818-0	01	1	-
152	BUSHING; GOV SHAFT,HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	9-81325-429-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: F = 8-94393-459-2	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81391-906-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: F = 8-94393-459-2	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-029-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-131-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: F = 8-94393-459-2	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: F = 8-94393-459-2	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-369-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15725-514-1	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15725-062-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: F = 8-94393-459-2	8-94171-132-0	01	1	-
181	SPACER; BRKT ASM PART: D = 1-15602-903-0, E = 1-15602-905-0	8-94419-135-1	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-036-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: F = 8-94393-459-2	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15723-257-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15723-265-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15723-300-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15723-256-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15723-311-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	8-94478-849-0	01	1	-
236	CAP; SPRING CAPSULE,IDLE CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-212-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-211-0	02	1	-
242	NUT; LK,GOV SHAFT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-067-0	01	1	-
245	SCREW; GUIDE,GOV SHAFT,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-040-0	01	1	-
247	CAP; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-041-0	01	1	-
249	GASKET; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-021-0	02	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-350-0	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-435-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-031-0	02	1	-
265	PLATE; CONN LINK,CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-375-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-374-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: F = 8-94393-459-2	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: F = 8-94393-459-2	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-182-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-030-0	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: F = 8-94393-459-2	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-382-2	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 1-15602-812-0	1-15725-697-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: F = 8-94393-459-2	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-875-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-767-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 1-15602-760-1	1-15779-092-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15602-812-0, E = 1-15602-905-0	1-15779-128-0	01	1	-
302	PLATE; CAM,GOV ASM PART: F = 8-94393-459-2	1-15779-173-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.951 ASM PART: F = 8-94393-459-2	1-15729-115-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.950 ASM PART: F = 8-94393-459-2	1-15729-116-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-294-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.25 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-295-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-296-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-297-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-298-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.50 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-299-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-564-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-700-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-701-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.70 ASM PART: F = 8-94393-459-2	1-15779-068-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94344-423-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.90 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94362-696-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.50 ASM PART: F = 8-94393-459-2	9-81325-268-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: F = 8-94393-459-2	9-81325-269-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: F = 8-94393-459-2	9-81325-270-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.25 ASM PART: F = 8-94393-459-2	9-81325-271-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: F = 8-94393-459-2	9-81325-272-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.10 ASM PART: F = 8-94393-459-2	9-81325-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=2.00 ASM PART: F = 8-94393-459-2	9-81325-447-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: F = 8-94393-459-2	9-81325-553-0	01	1	-
337	BRACKET; SPACER,GOV ASM PART: D = 1-15602-903-0, E = 1-15602-905-0	1-15729-717-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-500-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: F = 8-94393-459-2	1-15729-820-0	01	1	-

121 116 125 117 305 126 1 175 177 253 116 170 168 423 150 130 163 128 169 179 119 151 3 75 75 71 71 48 12 65 5 67 2 267 93 90 13 3 23 266 24 4 51 276 255 456 82 234 235 28 64 291 287 93 90 79 79 37 224 295 15 16 18 17 17 263 90 93 199 50 96 38 39 34 21 271 269 268 22 197 199 41 96 270 302 303 304 252 239 96 11 7 8 237 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15602-152-2	1-15770-409-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15602-760-1	1-15770-592-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 8-94393-459-2	1-15770-595-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15602-812-0	1-15770-632-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15602-903-0	1-15770-699-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15602-905-0	1-15770-701-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15721-092-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15721-209-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-809-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: F = 8-94393-459-2	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-000-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15721-161-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 8-94393-459-2	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15602-812-0	1-15721-271-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1	1-15719-005-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (B), M8X16 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1	9-01900-816-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-804-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15602-152-2, F = 8-94393-459-2	5-15729-020-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15722-014-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-19619-049-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-220-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: F = 8-94393-459-2	1-15725-291-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: F = 8-94393-459-2	8-94368-298-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-221-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: F = 8-94393-459-2	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-223-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: F = 8-94393-459-2	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15723-039-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: F = 8-94393-459-2	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: F = 8-94393-459-2	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-579-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: F = 8-94393-459-2	8-94325-499-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	8-94171-146-1	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	8-94172-279-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-059-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: F = 8-94393-459-2	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 1-15602-812-0	1-15729-601-2	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-952-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: F = 8-94393-459-2	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-224-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: F = 8-94393-459-2	1-15725-667-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-678-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: F = 8-94393-459-2	8-94339-966-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15619-039-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: F = 8-94393-459-2	5-15729-046-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-138-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: F = 8-94393-459-2	1-15723-380-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-074-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: F = 8-94393-459-2	8-94433-757-0	02	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-565-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-702-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-703-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-826-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-827-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-828-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94344-427-0	AR	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-238-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X62 ASM PART: B = 1-15602-760-1, F = 8-94393-459-2	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: C = 1-15602-812-0, E = 1-15602-905-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=62 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-123-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=62 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	5-15729-123-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	9-81325-081-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	9-84410-027-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0, F = 8-94393-459-2	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-050-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: F = 8-94393-459-2	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: F = 8-94393-459-2	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: F = 8-94393-459-2	8-94171-148-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-217-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-370-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: F = 8-94393-459-2	5-15725-063-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: F = 8-94393-459-2	8-94396-977-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-131-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: F = 8-94393-459-2	1-15723-294-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: F = 8-94393-459-2	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV (A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81325-210-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: F = 8-94393-459-2	1-15729-853-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81391-906-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-294-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-295-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-296-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-297-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-298-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-299-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: F = 8-94393-459-2	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: F = 8-94393-459-2	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: F = 8-94393-459-2	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: F = 8-94393-459-2	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: F = 8-94393-459-2	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: F = 8-94393-459-2	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: F = 8-94393-459-2	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: F = 8-94393-459-2	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: F = 8-94393-459-2	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-216-0	01	1	-
130	LEVER; CONT,GOV ASM PART: C = 1-15602-812-0	1-15725-463-0	01	1	-
130	LEVER; CONT,GOV ASM PART: F = 8-94393-459-2	1-15725-527-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: F = 8-94393-459-2	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	9-81391-906-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: F = 8-94393-459-2	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-029-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-131-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: F = 8-94393-459-2	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: F = 8-94393-459-2	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-369-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15725-514-1	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15725-062-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: F = 8-94393-459-2	8-94171-132-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-036-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: F = 8-94393-459-2	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15723-257-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15723-265-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15723-300-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15723-256-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: F = 8-94393-459-2	1-15723-311-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	8-94478-849-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: F = 8-94393-459-2	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: F = 8-94393-459-2	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: F = 8-94393-459-2	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: F = 8-94393-459-2	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: F = 8-94393-459-2	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: F = 8-94393-459-2	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: F = 8-94393-459-2	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: F = 8-94393-459-2	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: F = 8-94393-459-2	1-15779-003-1	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-435-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-031-0	02	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15729-374-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: F = 8-94393-459-2	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: F = 8-94393-459-2	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-182-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	5-15729-030-0	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: F = 8-94393-459-2	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-382-2	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 1-15602-812-0	1-15725-697-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: F = 8-94393-459-2	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-767-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 1-15602-760-1	1-15779-092-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15602-812-0, E = 1-15602-905-0	1-15779-128-0	01	1	-
302	PLATE; CAM,GOV ASM PART: F = 8-94393-459-2	1-15779-173-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.951 ASM PART: F = 8-94393-459-2	1-15729-115-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.950 ASM PART: F = 8-94393-459-2	1-15729-116-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-294-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.25 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-295-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-296-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.35 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-297-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-298-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.50 ASM PART: B = 1-15602-760-1, C = 1-15602-812-0, E = 1-15602-905-0	1-15729-299-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-564-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-700-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	1-15729-701-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.70 ASM PART: F = 8-94393-459-2	1-15779-068-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94344-423-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.90 ASM PART: A = 1-15602-152-2, D = 1-15602-903-0	8-94362-696-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.50 ASM PART: F = 8-94393-459-2	9-81325-268-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: F = 8-94393-459-2	9-81325-269-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: F = 8-94393-459-2	9-81325-270-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.25 ASM PART: F = 8-94393-459-2	9-81325-271-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: F = 8-94393-459-2	9-81325-272-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.10 ASM PART: F = 8-94393-459-2	9-81325-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=2.00 ASM PART: F = 8-94393-459-2	9-81325-447-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: F = 8-94393-459-2	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15725-500-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: F = 8-94393-459-2	1-15729-820-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: F = 8-94393-459-2	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
