9-01 — TOOLS (#70895) — 76 parça

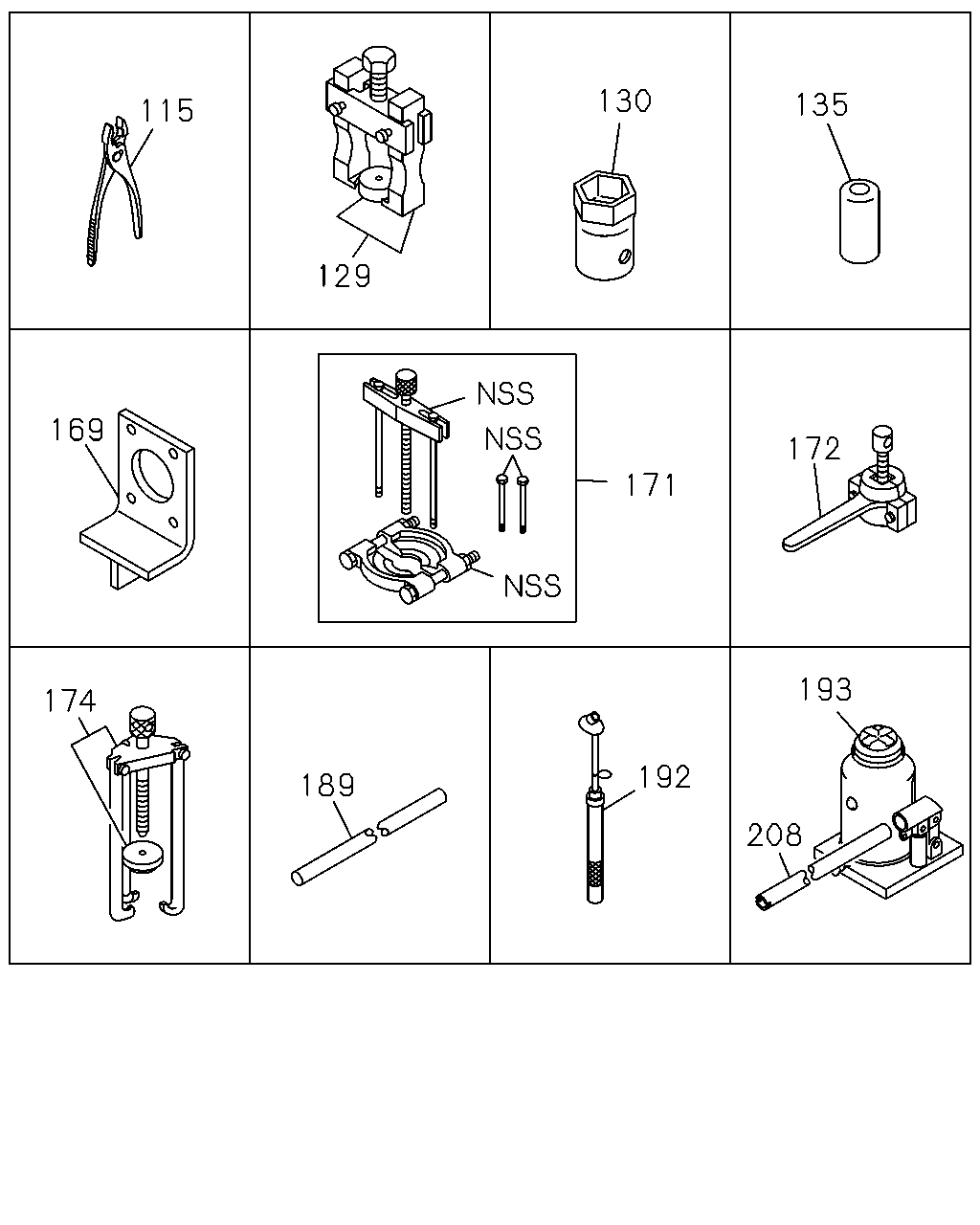

130 135 115 129 169 172 171 193 174 192 189 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	5-85171-002-0	01	1	1009-1410
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1009-
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	1009-
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	1009-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1009-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1009-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1009-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	1009-
189	TUBE; AIR BREATHER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1009-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1009-
193	JACK ASM CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1009-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	1009-1107
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-

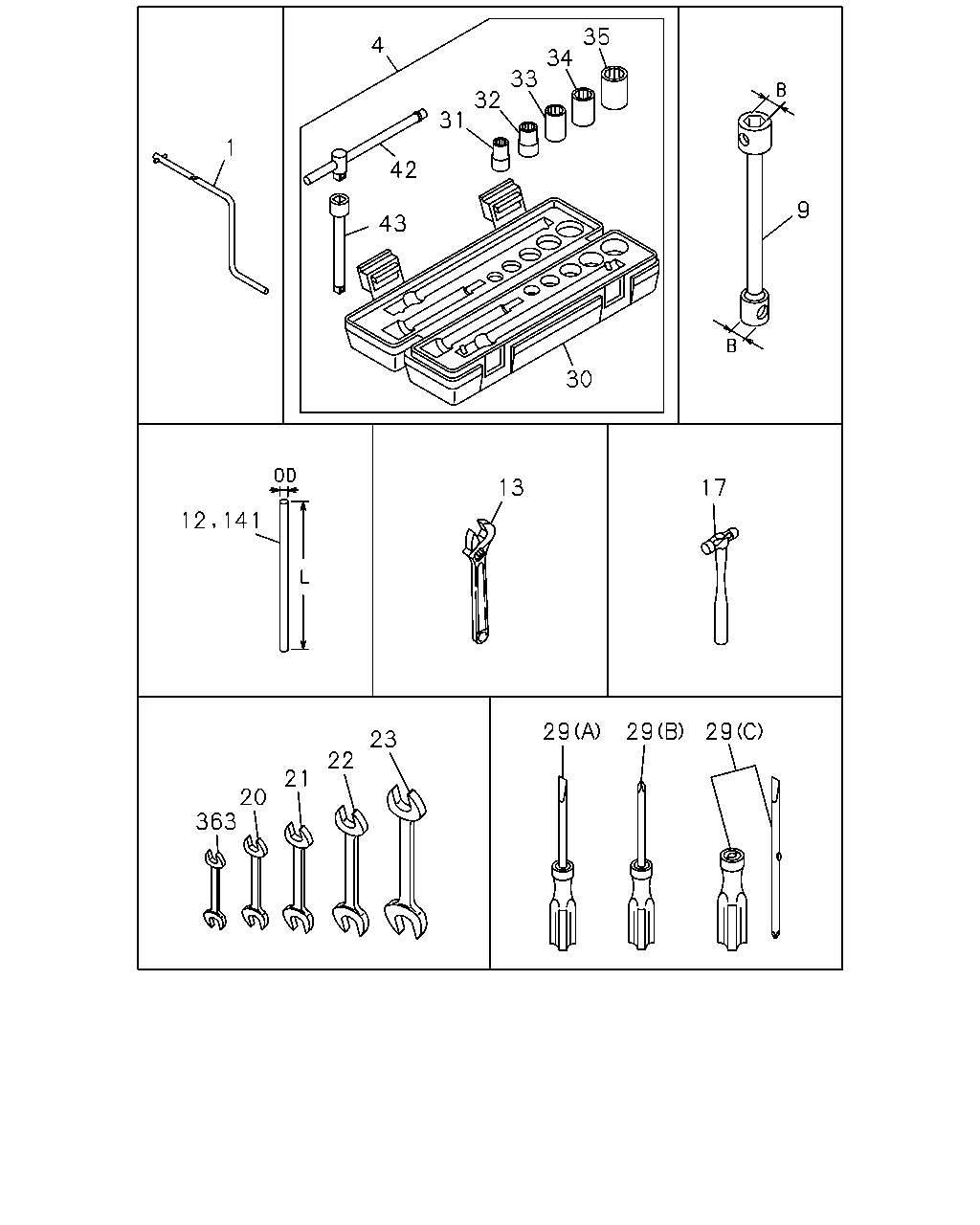

35 34 33 32 4 31 1 42 9 43 30 13 17 29 29 29 23 22 21 20 363 12 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>	9-23110-018-0	01	1	1009-
4	WRENCH KIT; SOCKET CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-491-0	01	1	1009-
9	WRENCH; WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	1009-1601
9	WRENCH; WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=445	8-98316-703-0	01	1	1602-
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1009-1601
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> B=33X30 L=450	8-98316-700-0	01	1	1602-
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1009-1501
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1009-1407
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	9-85121-406-0	01	1	1009-
20	WRENCH; 10X12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1009-
21	WRENCH; 14X17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1009-
22	WRENCH; 19X22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1009-
23	WRENCH; 24X27 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1009-
30	BOX; SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-492-0	01	1	1009-
31	WRENCH; 12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-495-0	01	1	1009-
32	WRENCH; 14 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-496-0	01	1	1009-
33	WRENCH; 17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-497-0	01	1	1009-
34	WRENCH; 19 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-498-0	01	1	1009-
35	WRENCH; 22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-499-0	01	1	1009-
42	HANDLE; SLIDING CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-500-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-501-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	1009-
363	WRENCH; OPEN END 8X10 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1009-

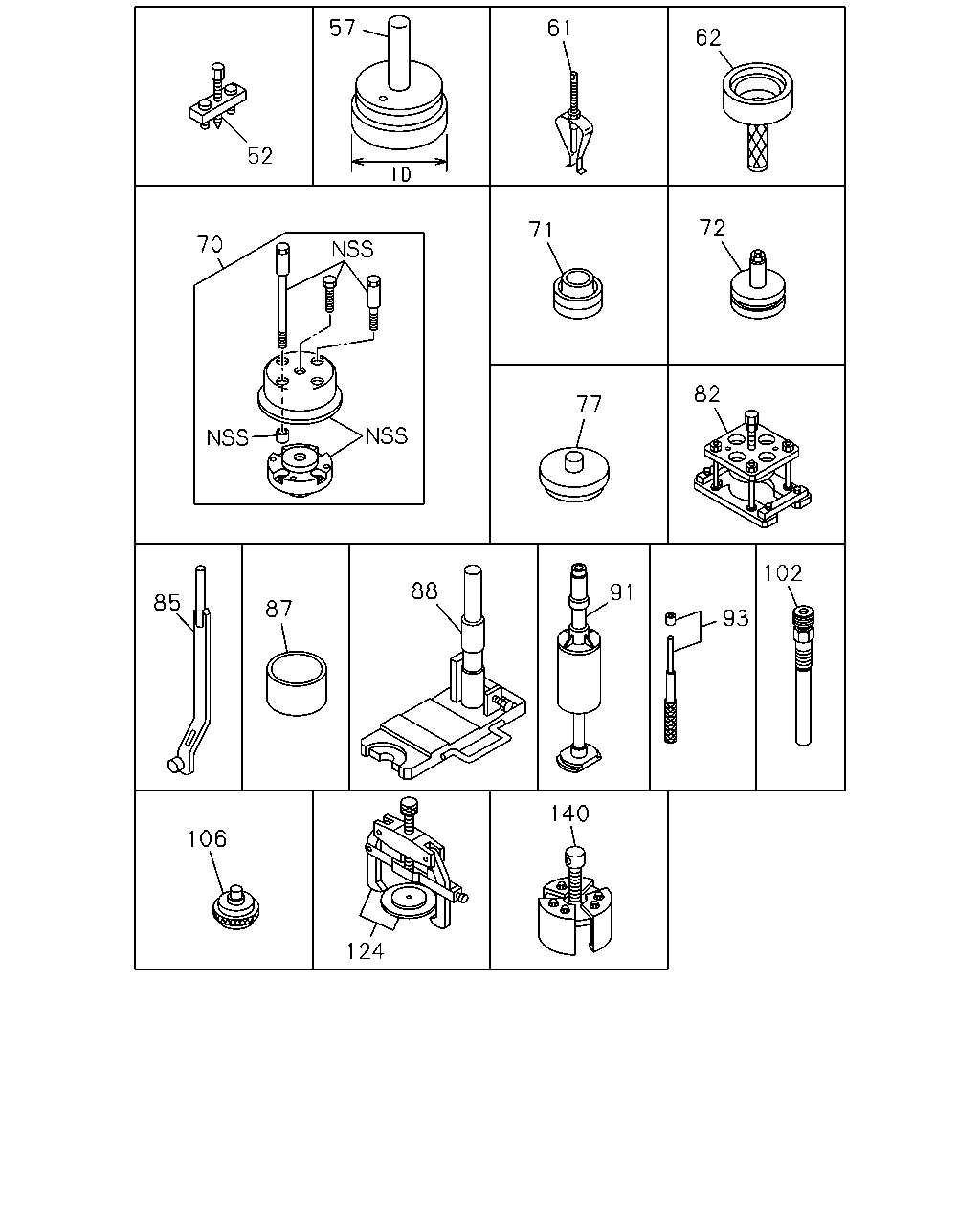

57 61 62 52 72 71 70 82 77 102 88 91 85 87 93 140 106 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1009-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1009-
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1009-
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1009-
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1009-
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	01	1	1109-1302
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	AR	1	1303-
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	1009-1108
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	1009-1108
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1009-
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1009-
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1009-
87	TOOL; PISTON	1-85221-082-0	01	1	1009-
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1009-
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1009-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1009-
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1009-
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1009-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1009-
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1009-

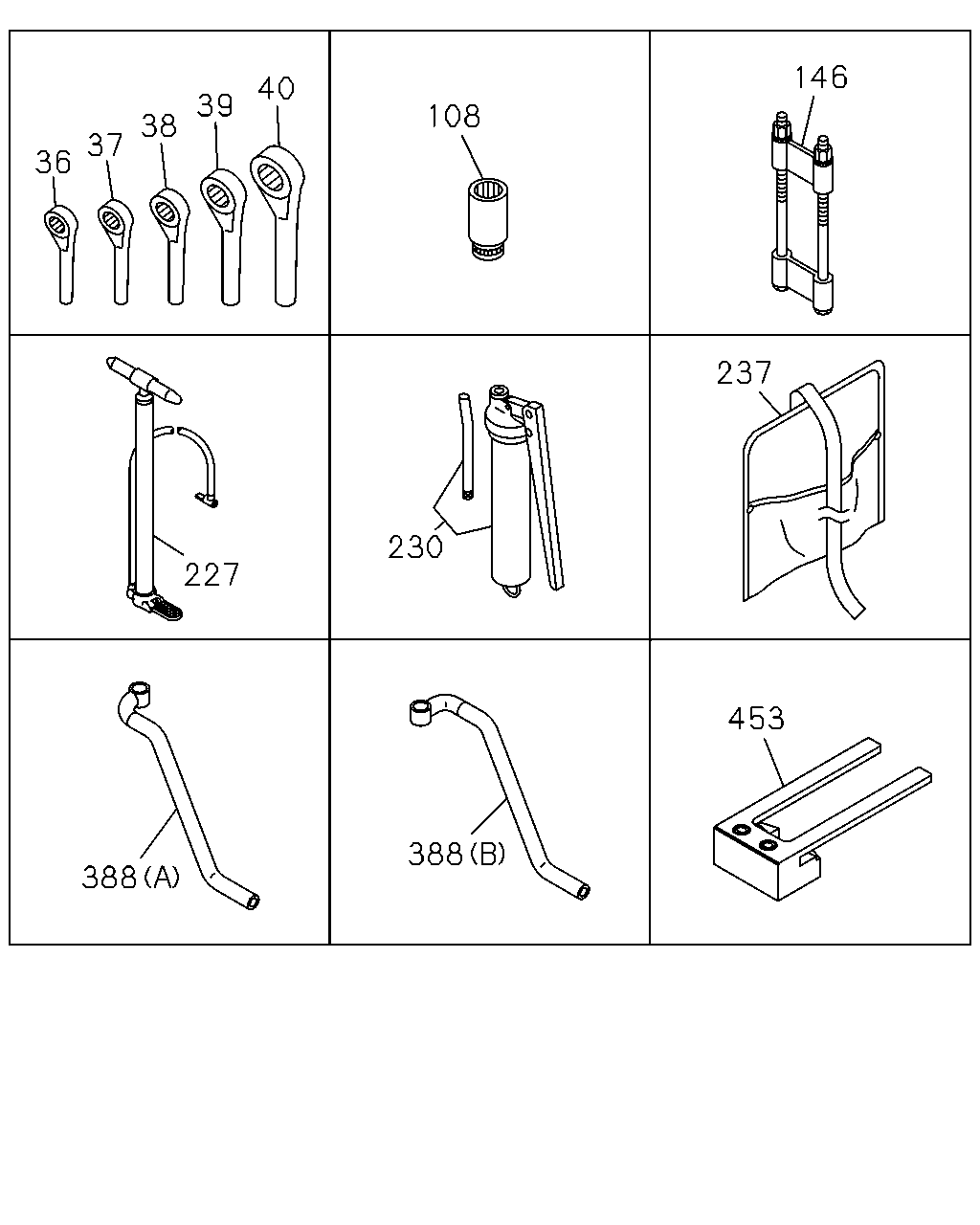

146 40 39 108 38 37 36 237 230 227 453 388 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	1204-
37	WRENCH; 27	9-85111-375-0	01	1	1204-
38	WRENCH; 32	9-85111-358-0	01	1	1204-
39	WRENCH; 36	9-85111-374-0	01	1	1204-
40	WRENCH; 41	9-85111-356-0	01	1	1204-
108	WRENCH; SOCKET	9-85113-132-0	01	1	1204-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1204-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1009-
230	PUMP; GREASE CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85556-007-5	01	1	1009-
237	BAG; TOOL CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-97130-902-1	01	1	1009-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1204-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1204-
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1009-
