◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#7089) — 20 parça

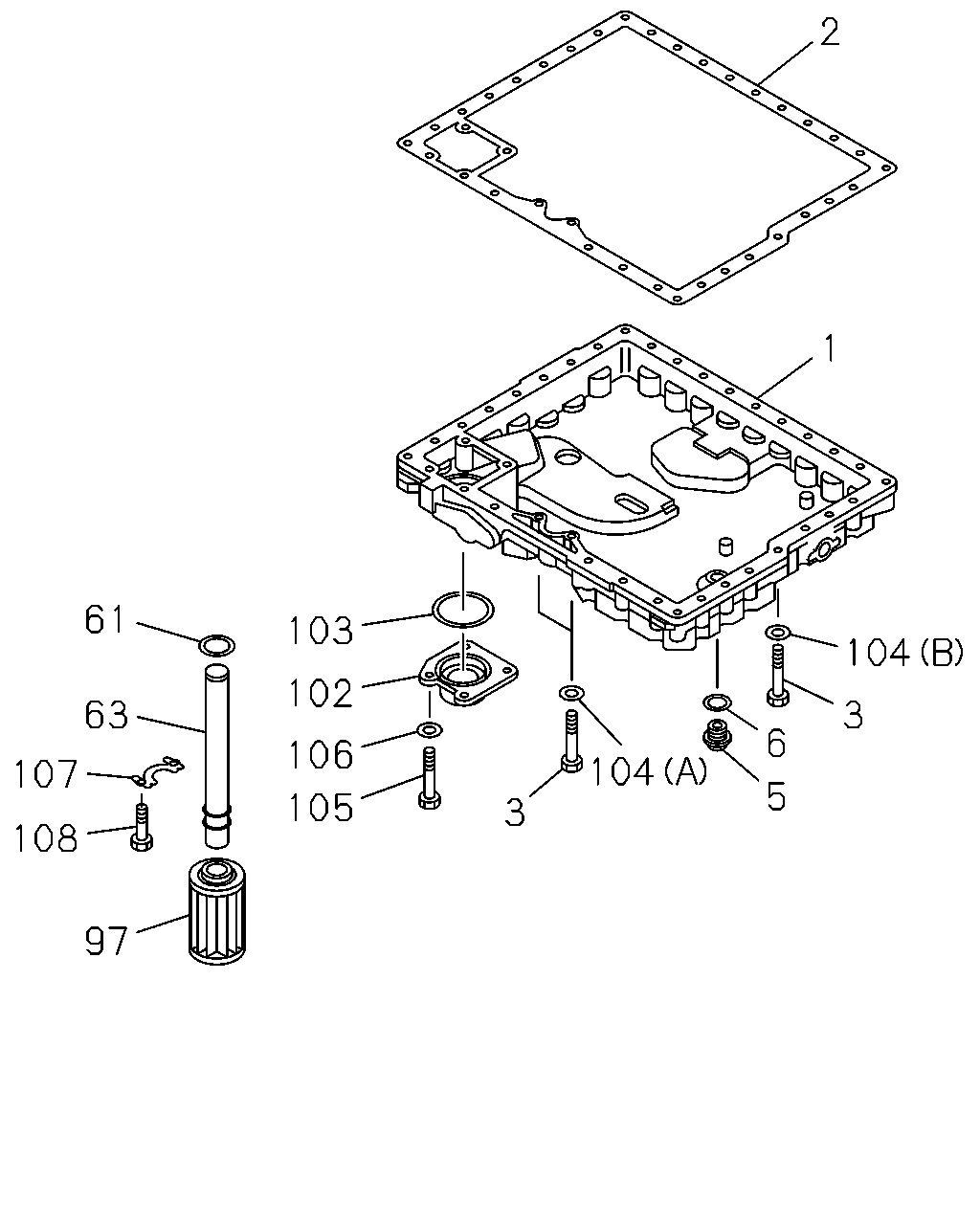

çizim 41588
2 1 61 103 104 102 63 3 6 106 104 107 5 105 3 108 97
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T
EXC. EURO3 SPECIFICATION(NJX) 		1-34131-011-0 01 1 0204-
2 GASKET; OIL PAN,A/T
EXC. EURO3 SPECIFICATION(NJX) 		1-34132-012-0 01 1 0204-
3 BOLT; OIL PAN TO CASE
EXC. EURO3 SPECIFICATION(NJX) M8X60 		1-09089-010-0 27 1 0204-
5 PLUG; OIL PAN
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-032-0 01 1 0204-
6 GASKET; OIL PAN TO PLUG
EXC. EURO3 SPECIFICATION(NJX) ID=22 		1-32568-001-0 01 1 0204-
61 SEAL; OIL FILTER
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-033-0 01 1 0204-
63 PIPE; INT,A/T
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-037-0 01 1 0204-
97 FILTER; OIL
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-035-0 01 1 0204-
102 COVER; OIL PAN
EXC. EURO3 SPECIFICATION(NJX) 		1-34131-014-0 01 1 0204-
103 GASKET; COVER
EXC. EURO3 SPECIFICATION(NJX) 		1-09623-606-0 01 1 0204-
104 WASHER; OIL PAN
EXC. EURO3 SPECIFICATION(NJX) (A) 		1-09630-136-0 02 1 0204-
104 WASHER; OIL PAN
EXC. EURO3 SPECIFICATION(NJX) (B) 		1-33549-159-0 25 1 0204-
105 BOLT; COVER
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-049-0 10 1 0204-
106 WASHER; COVER
EXC. EURO3 SPECIFICATION(NJX) 		1-33549-159-0 10 1 0204-
107 PLATE; PIPE
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-038-0 01 1 0204-
108 BOLT; PLATE
EXC. EURO3 SPECIFICATION(NJX) 		1-34139-050-0 02 1 0204-
çizim 44339
10 101 11 100
BalonParca AdiParca NoAdetTipApplied Date
10 GAUGE; OIL LEVEL
EXC. EURO3 SPECIFICATION(NJX) 		1-34121-123-0 01 1 0204-
11 TUBE; OIL FILLER
EXC. EURO3 SPECIFICATION(NJX) 		1-34129-057-0 01 1 0204-
100 NUT; FILLER TUBE
EXC. EURO3 SPECIFICATION(NJX) 		1-34129-097-0 01 1 0204-
101 TAPE; FILLER TUBE
EXC. EURO3 SPECIFICATION(NJX) 12X300 		1-34129-058-0 01 1 0204-
