◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11316 - FXM(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#70881) — 59 parça

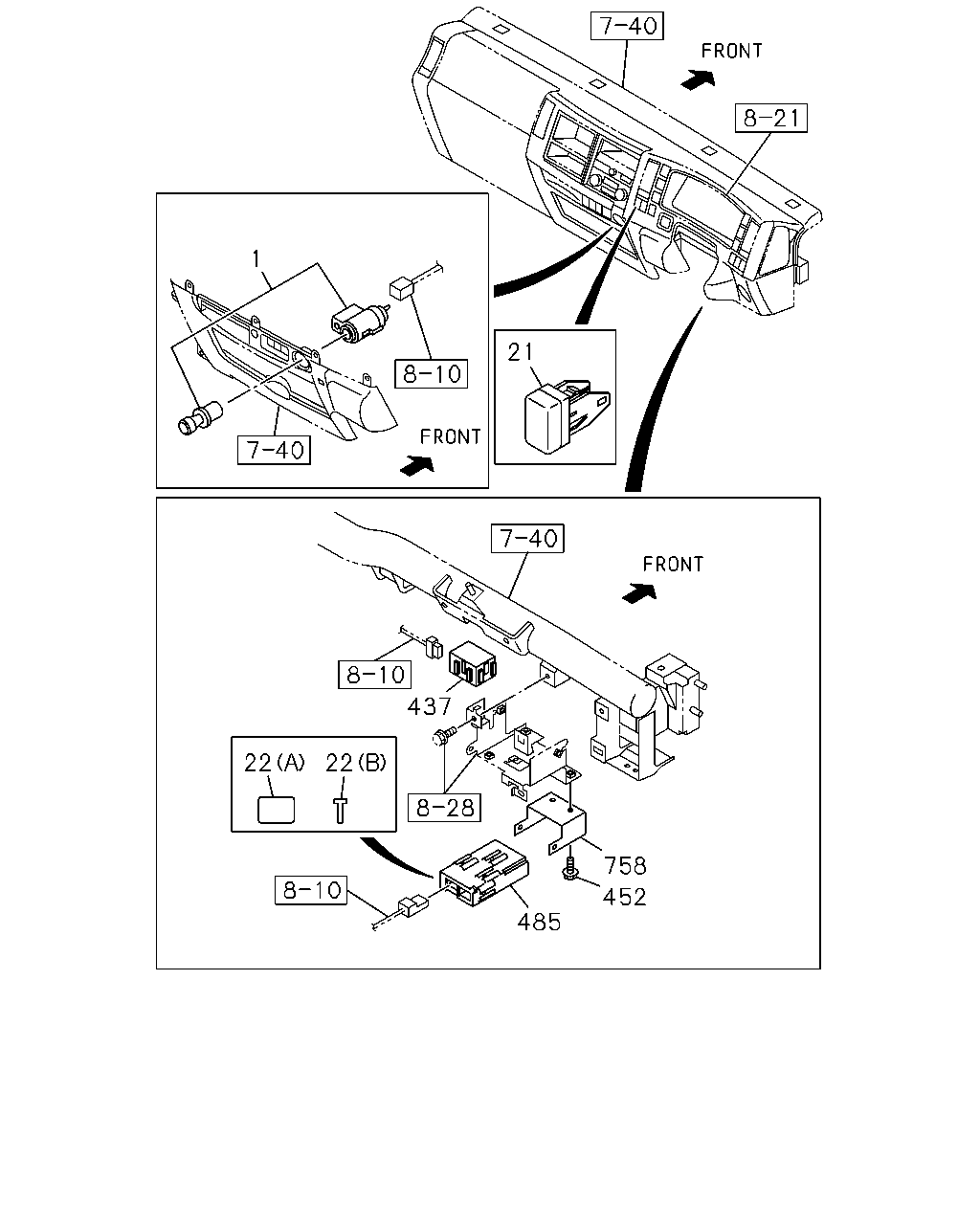

çizim 138167
1 437 22 22 758 452 485 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009-
21 COVER; HOLE 8-98025-954-1 01 1 1009-
22 SEAL; TAPE
(A) 		1-80199-006-0 01 1 1009-1203
22 SEAL; TAPE
(A) 		8-98166-639-0 01 1 1204-
22 SEAL; TAPE
(B) 		8-98083-174-0 01 1 1009-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1009-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1009-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1009-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1009-

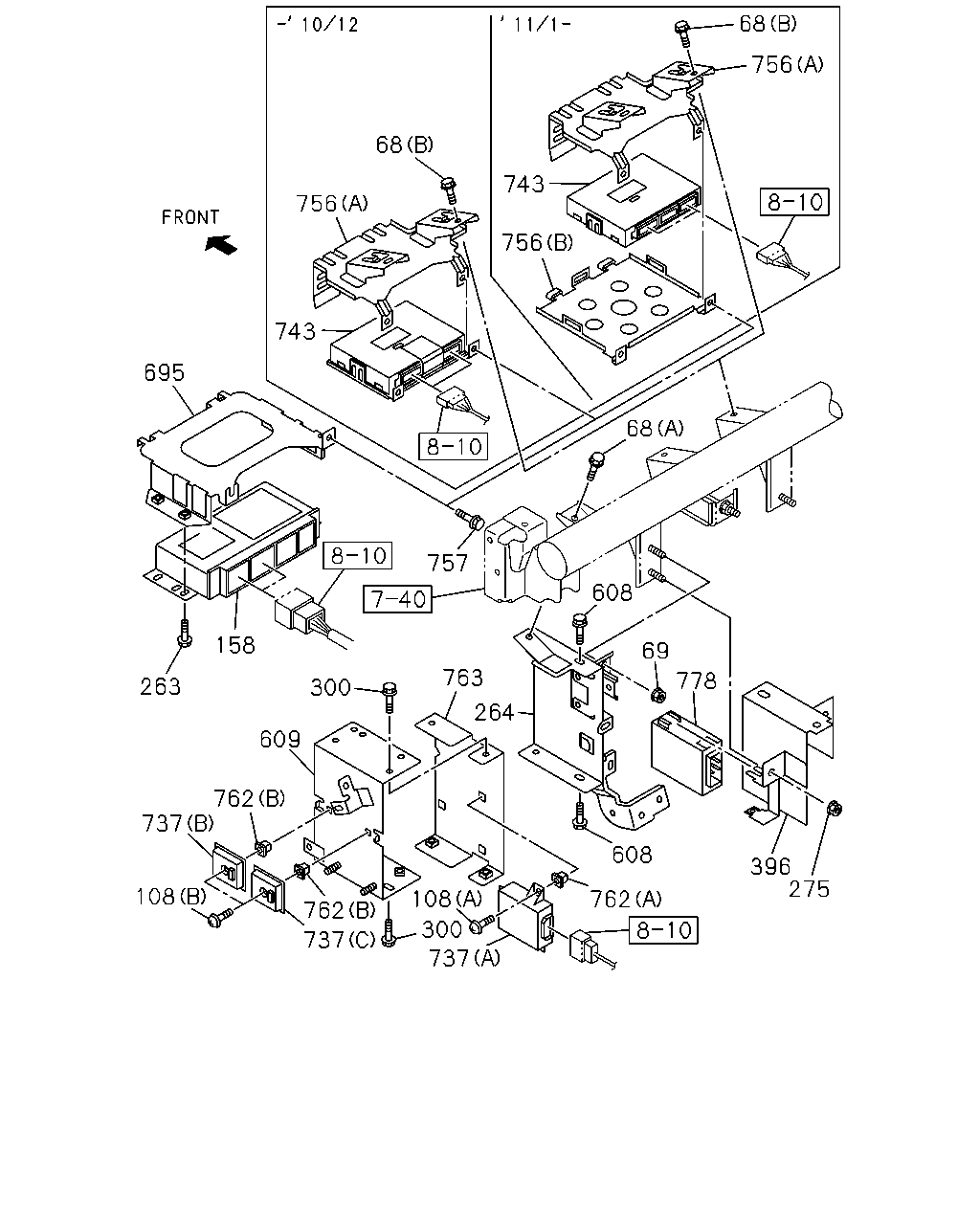

çizim 138233
68 756 68 743 756 756 743 695 68 757 608 158 69 763 778 263 300 264 609 762 737 608 396 275 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1009-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1512-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1009-
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 1009-
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 1009-1201
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202-1203
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1204-1205
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1206-
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1009-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1009-
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 1009-1511
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1512-
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1009-
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 1009-1511
396 BRACKET 8-98084-467-4 01 1 1512-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1009-1203
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1204-1211
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1212-
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1009-1203
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1204-1211
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1212-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 1009-
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1009-1012
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1512-
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1512-
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1009-
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1009-
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 1009-
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 1009-

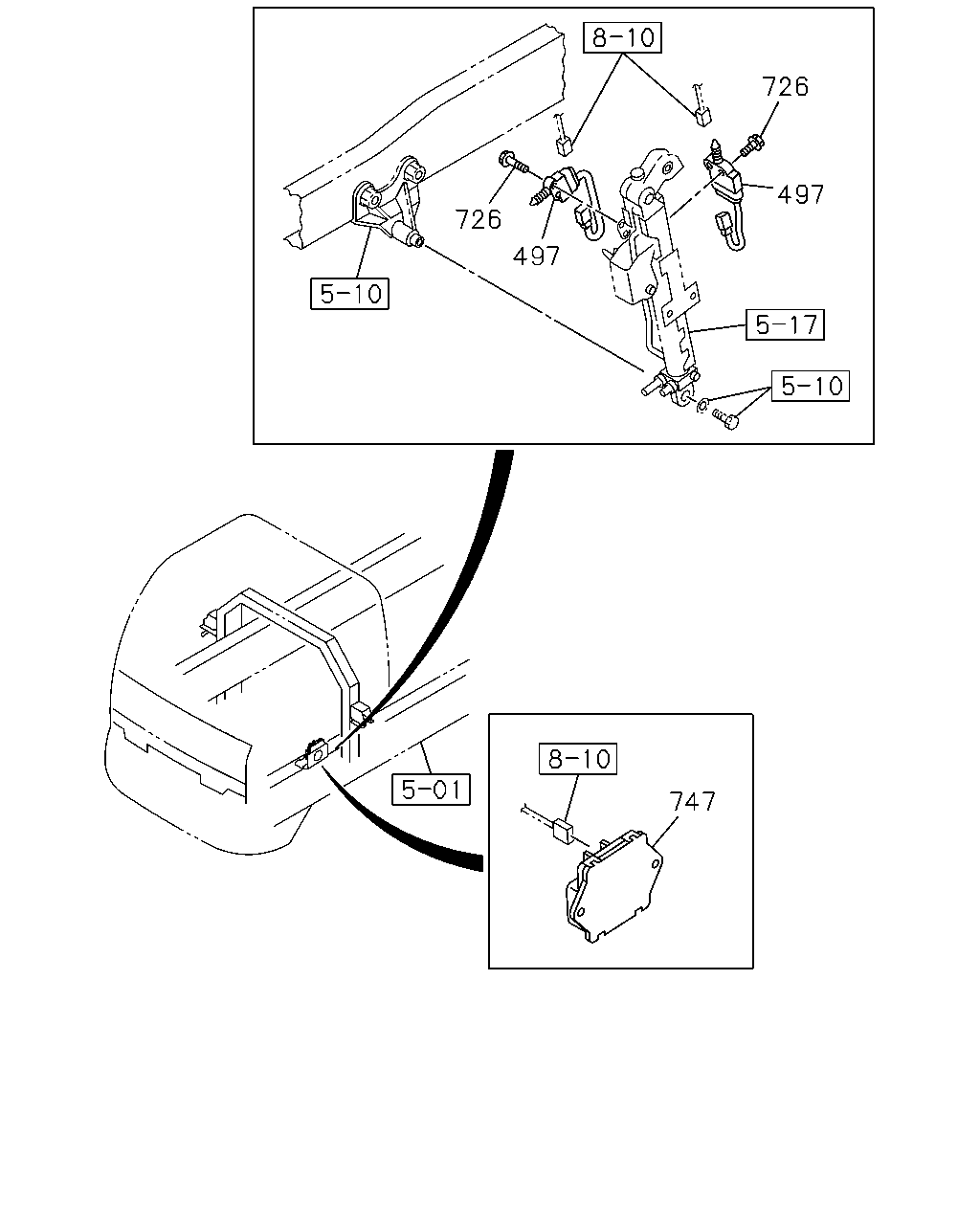

çizim 138369
726 497 726 497 747
BalonParca AdiParca NoAdetTipApplied Date
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009-
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009-

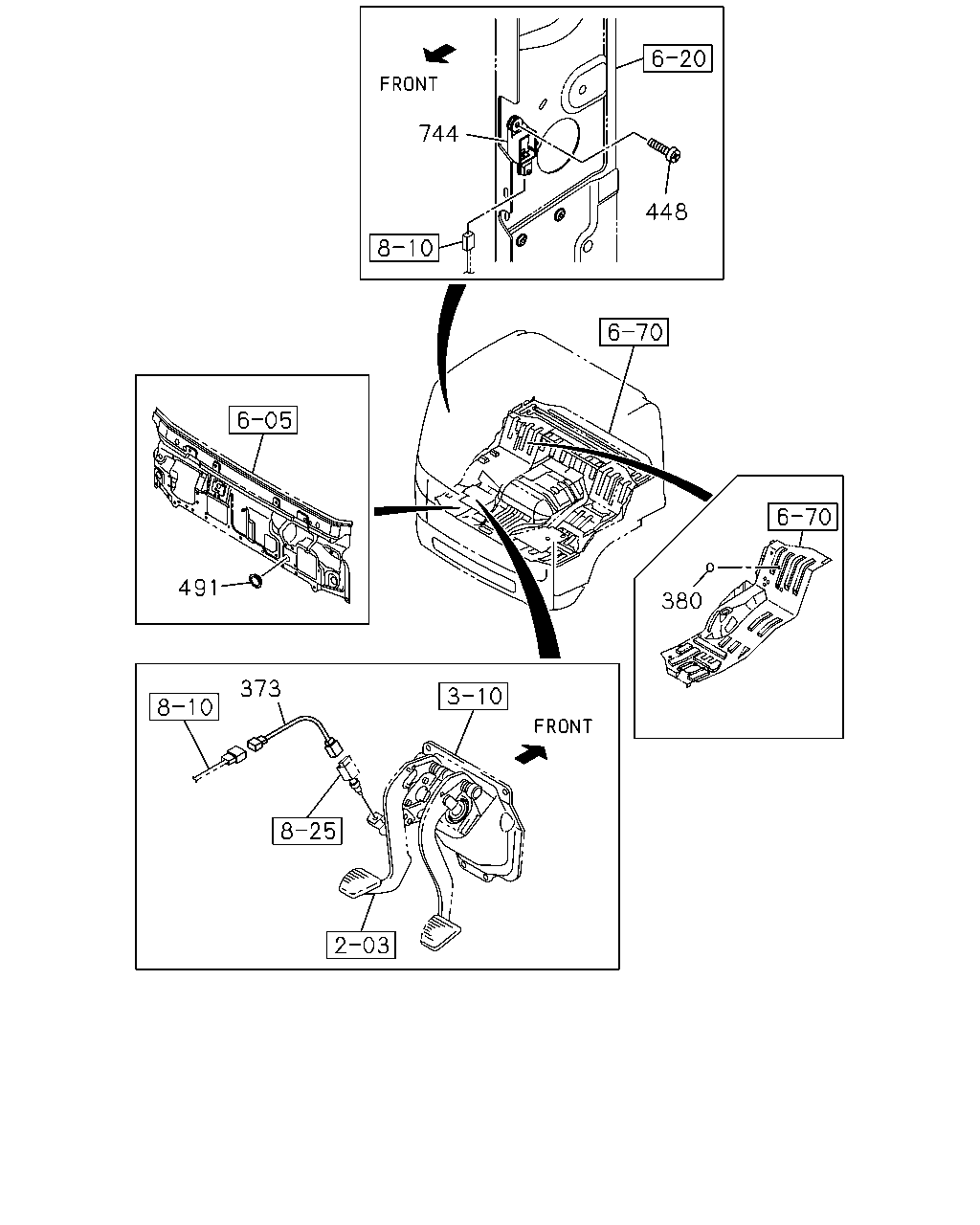

çizim 189740
744 448 491 380 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1009-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1009-
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-
744 SENSOR; AIR BAG 8-97386-841-2 01 1 1009-
