Isuzu WW
▶
BUSES
▶
LV
▶
10818 - LV123/150/423-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

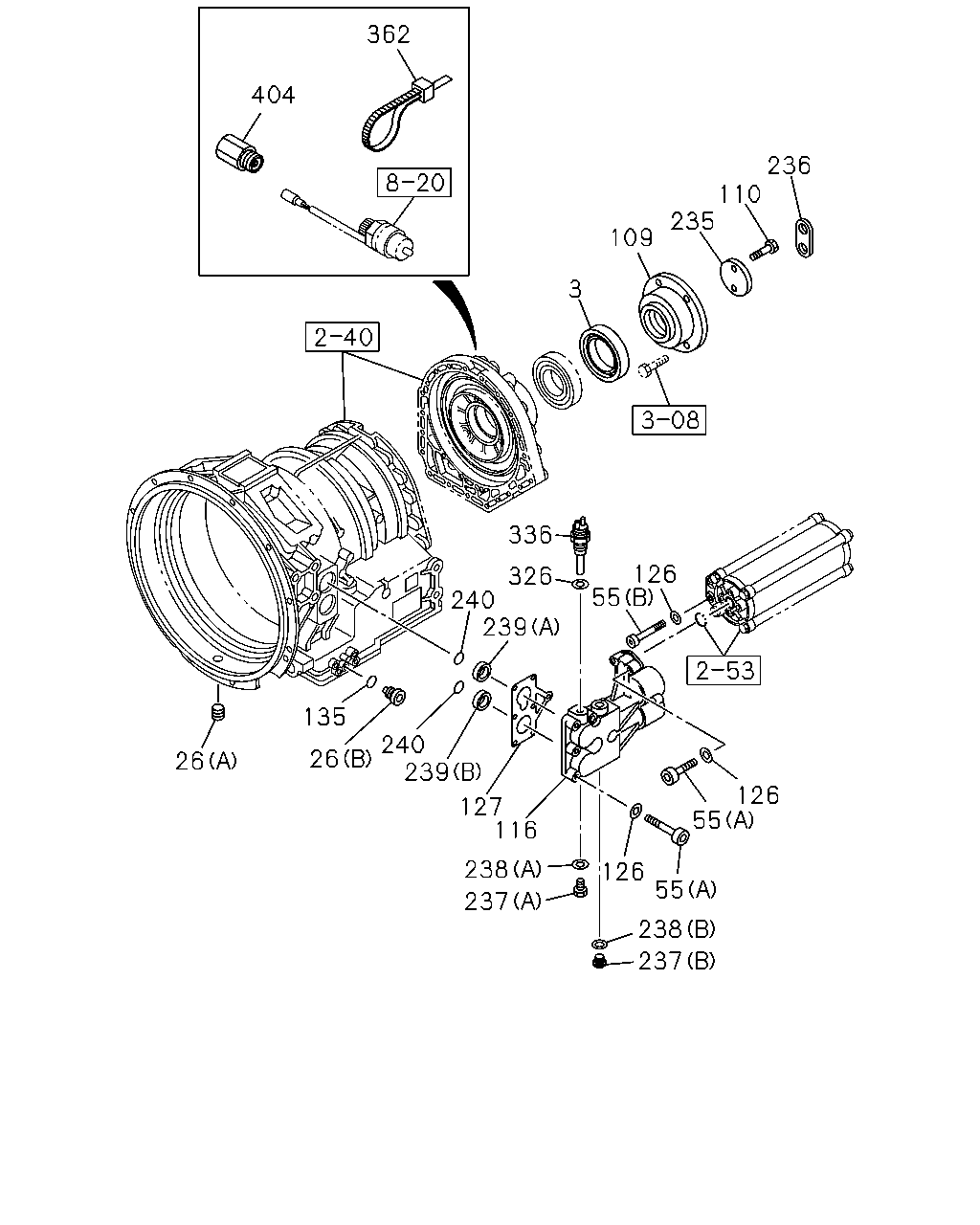

2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#7088) — 24 parça
362
404
236
110
235
109
3
336
126
55
326
240
239
135
240
26
239
26
126
55
127
116
238
126
55
237
238
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
SEAL; OIL,RR COVER,A/T
EXC. EURO3 SPECIFICATION(NJX)
1-09625-594-0
01
1
0204-
26
PLUG; TRANS CASE
EXC. EURO3 SPECIFICATION(NJX) (B)
1-34119-008-0
05
1
0204-
26
PLUG; TRANS CASE
EXC. EURO3 SPECIFICATION(NJX) (A)
1-34119-010-0
01
1
0204-
55
BOLT; COVER
EXC. EURO3 SPECIFICATION(NJX) (B) M8X45
1-09089-012-0
07
1
0204-
55
BOLT; COVER
EXC. EURO3 SPECIFICATION(NJX) (A)
1-34119-057-0
02
1
0204-
109
DRIVER; COUPLING,A/T
EXC. EURO3 SPECIFICATION(NJX)
1-37243-386-0
01
1
0204-
110
BOLT; COUPLING DRIVER,A/T
EXC. EURO3 SPECIFICATION(NJX)
1-36139-003-0
02
1
0204-
116
COVER; TRANS CASE
EXC. EURO3 SPECIFICATION(NJX)
1-34125-005-0
01
1
0204-
126
WASHER; CASE COVER
EXC. EURO3 SPECIFICATION(NJX)
1-33549-159-0
09
1
0204-
127
GASKET; CASE TO COVER
EXC. EURO3 SPECIFICATION(NJX)
1-34129-062-0
01
1
0204-
135
GASKET; PLUG,A/T CASE
EXC. EURO3 SPECIFICATION(NJX)
1-33549-149-0
05
1
0204-
235
WASHER; PL,COUPLING
EXC. EURO3 SPECIFICATION(NJX)
1-34149-020-0
01
1
0204-
236
WASHER; LK,COUPLING
EXC. EURO3 SPECIFICATION(NJX)
1-37249-065-0
01
1
0204-
237
PLUG; COVER
EXC. EURO3 SPECIFICATION(NJX) (A)
1-34119-008-0
01
1
0204-
237
PLUG; COVER
EXC. EURO3 SPECIFICATION(NJX) (B)
1-34129-061-0
01
1
0204-
238
GASKET; PLUG
EXC. EURO3 SPECIFICATION(NJX) (B)
1-33549-137-0
01
1
0204-
238
GASKET; PLUG
EXC. EURO3 SPECIFICATION(NJX) (A)
1-33549-149-0
01
1
0204-
239
INSERT; COVER
EXC. EURO3 SPECIFICATION(NJX) (A)
1-34129-064-0
01
1
0204-
239
INSERT; COVER
EXC. EURO3 SPECIFICATION(NJX) (B)
1-34129-065-0
01
1
0204-
240
GASKET; INSERT
EXC. EURO3 SPECIFICATION(NJX)
1-34129-063-0
02
1
0204-
326
GASKET; TEMP SENSOR
EXC. EURO3 SPECIFICATION(NJX)
1-33549-137-0
01
1
0204-
336
SENSOR; THERMO
EXC. EURO3 SPECIFICATION(NJX)
1-81535-045-0
01
1
0204-
362
CLIP; HARNESS
EXC. EURO3 SPECIFICATION(NJX) L=250
1-09707-126-0
01
1
0204-
404
ADAPTER; SPEEDO SENSOR
EXC. EURO3 SPECIFICATION(NJX)
1-80249-006-0
01
1
0204-
