8-01 — LAMP; FRONT AND FRONT SIDE (#70873) — 112 parça

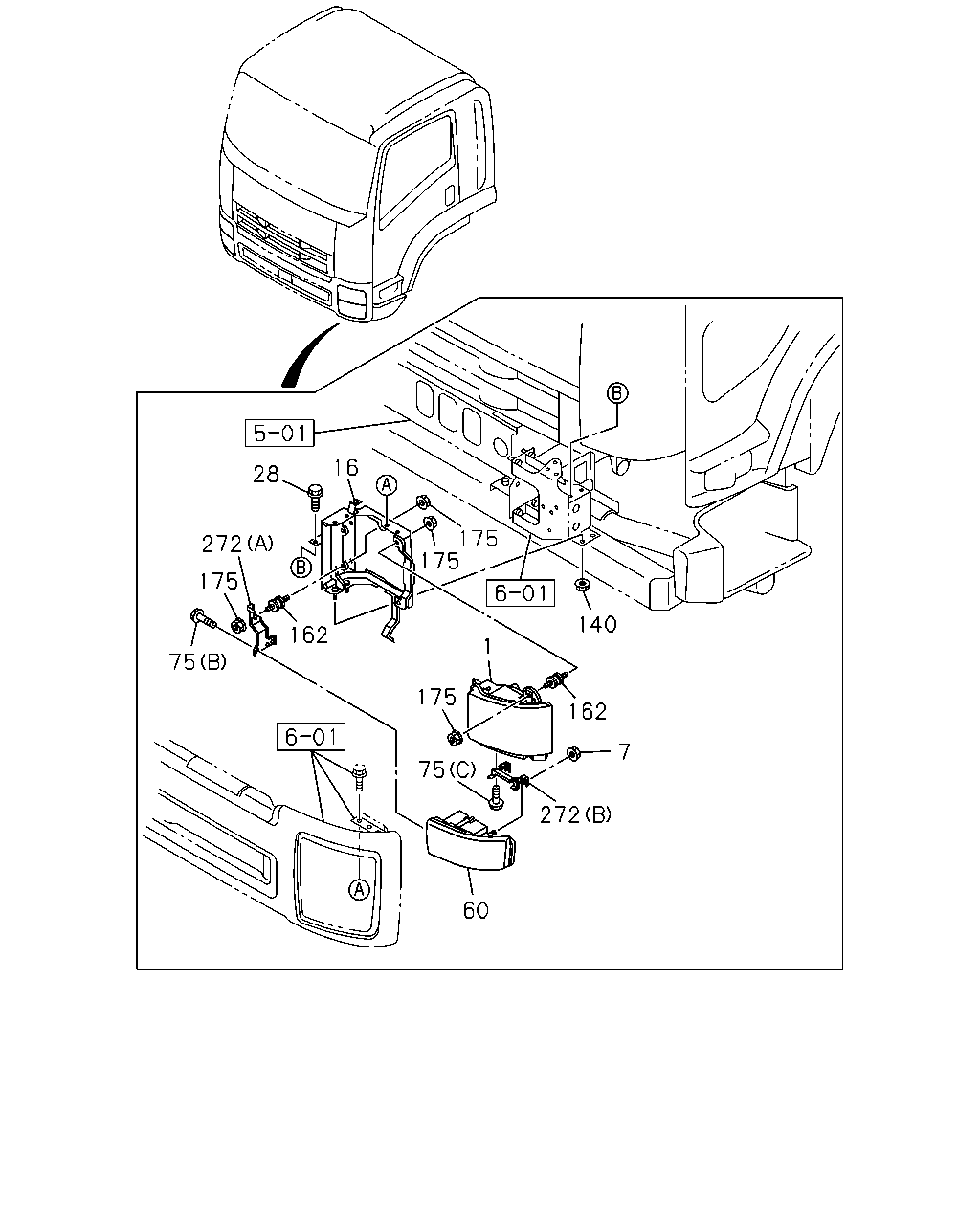

çizim 135702
16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1009-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1009-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1009-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1009-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306-
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1009-
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1009-
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 1009-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1009-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-053-1 01 1 1009-1203
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98159-979-2 01 1 1204-1302
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-626-0 01 1 1303-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-052-1 01 1 1009-1203
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98159-978-2 01 1 1204-1302
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-625-0 01 1 1303-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 1009-1302
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 1009-1302
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303-
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1009-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1009-
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1009-
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1009-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1009-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1009-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1009-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1009-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1009-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1009-

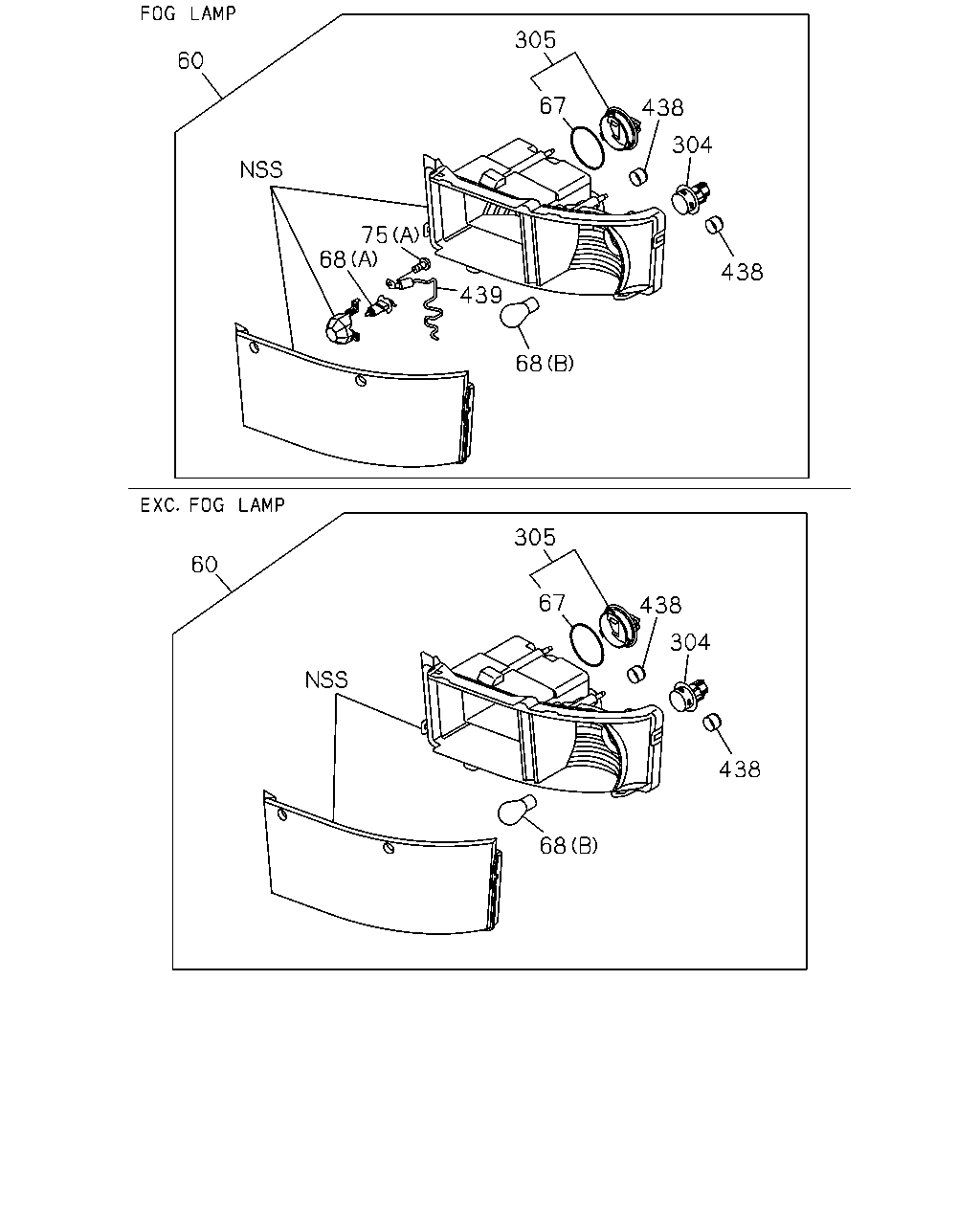

çizim 136323
438 304 438 67 305 68 60 60 305 67 439 75 68 438 438 68 304
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-053-1 01 1 1009-1203
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98159-979-2 01 1 1204-1302
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-626-0 01 1 1303-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-052-1 01 1 1009-1203
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98159-978-2 01 1 1204-1302
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-625-0 01 1 1303-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 1009-1302
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 1009-1302
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303-
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303-
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1009-
68 BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 1009-
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1009-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1009-
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1009-
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1009-
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98074-440-0 02 1 1009-1302
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98240-559-0 02 1 1303-
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98051-392-0 02 1 1009-1302
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1303-
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1009-1302
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303-
439 SPRING SET; COMB LAMP
FOG LAMP<T96> 		8-98075-644-0 02 1 1009-
çizim 136355
1 4 338 339 420 408 20 5 5 457 23 382
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1009-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1009-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1009-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1009-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 1009-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1109-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 1009-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1109-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 1009-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-567-0 01 1 1109-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 1009-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-566-0 01 1 1109-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1009-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1009-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1009-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1009-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1204-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1204-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1009-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1009-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1009-1208
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

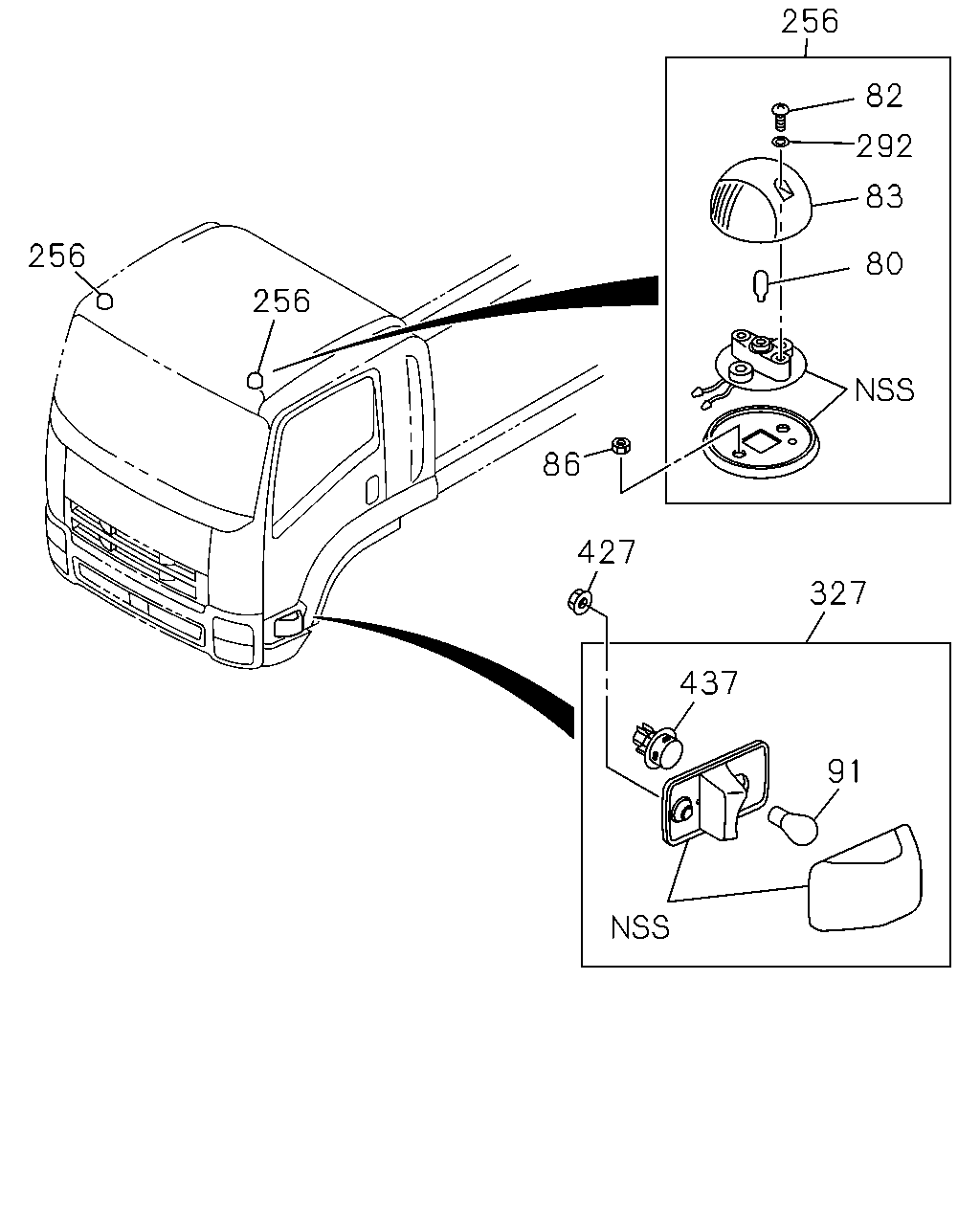

çizim 136479
256 82 292 83 256 80 256 86 427 327 437 91
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1009-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1009-
83 LENS; MARKER LAMP 8-98057-958-0 02 1 1009-
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 1009-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1009-
256 LAMP; MARKER 8-98097-467-3 01 1 1009-
256 LAMP; MARKER 8-98097-466-3 01 1 1009-
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1009-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1009-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1009-
