◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11316 - FXM(AUST)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#70866) — 146 parça

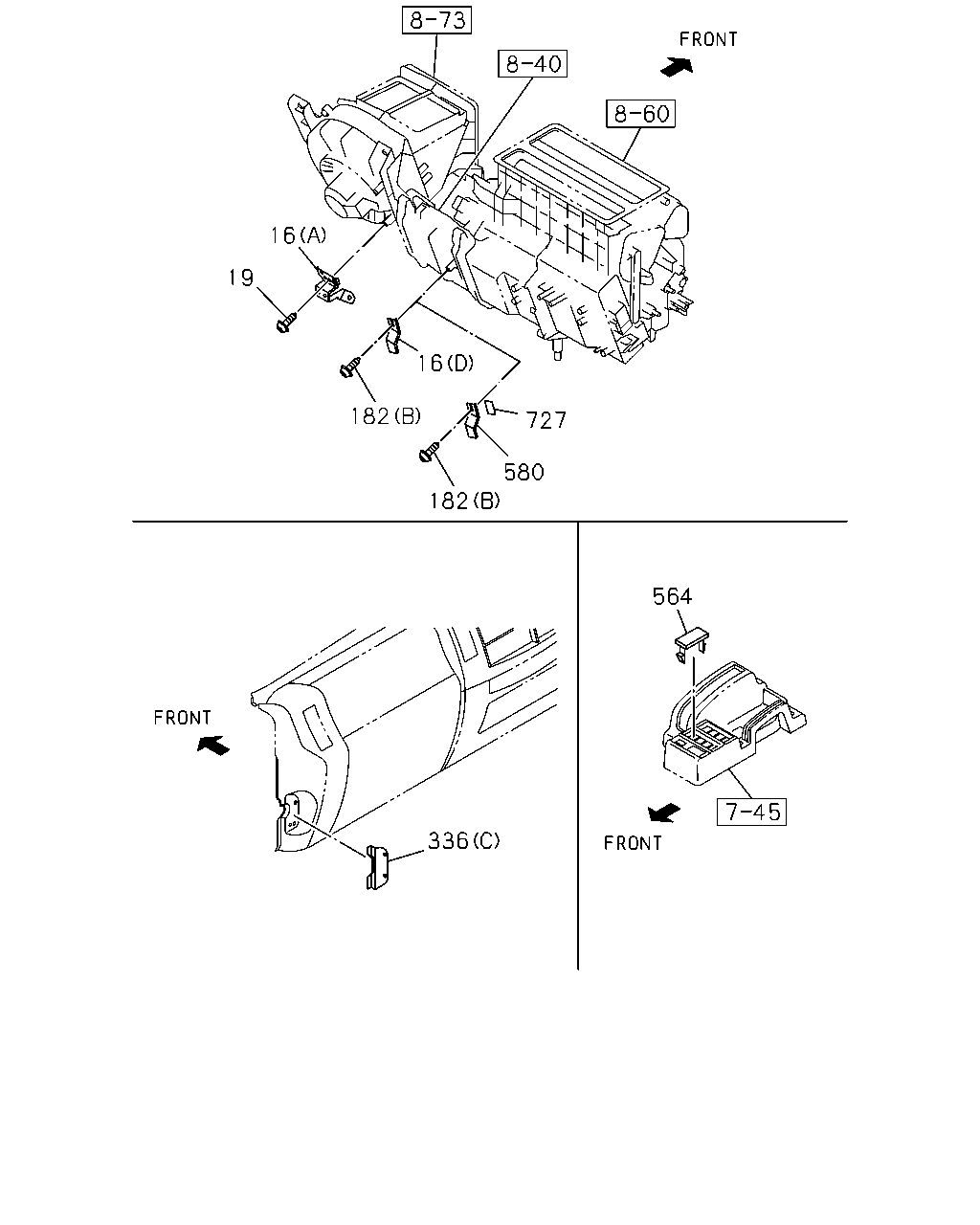

çizim 133125
16 19 16 182 727 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1009-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1009-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1009-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1009-1301
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 1009-1105
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1203
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1301
19 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1009-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1009-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1301
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1009-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1009-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1009-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1009-
564 COVER; SW 8-97043-732-1 02 1 1009-
580 BRACKET; COVER 8-98017-528-1 01 1 1106-1301
580 BRACKET; COVER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1302-
727 SEAL; BRACKET 8-98186-934-0 01 1 1106-1301
727 SEAL; BRACKET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1302-

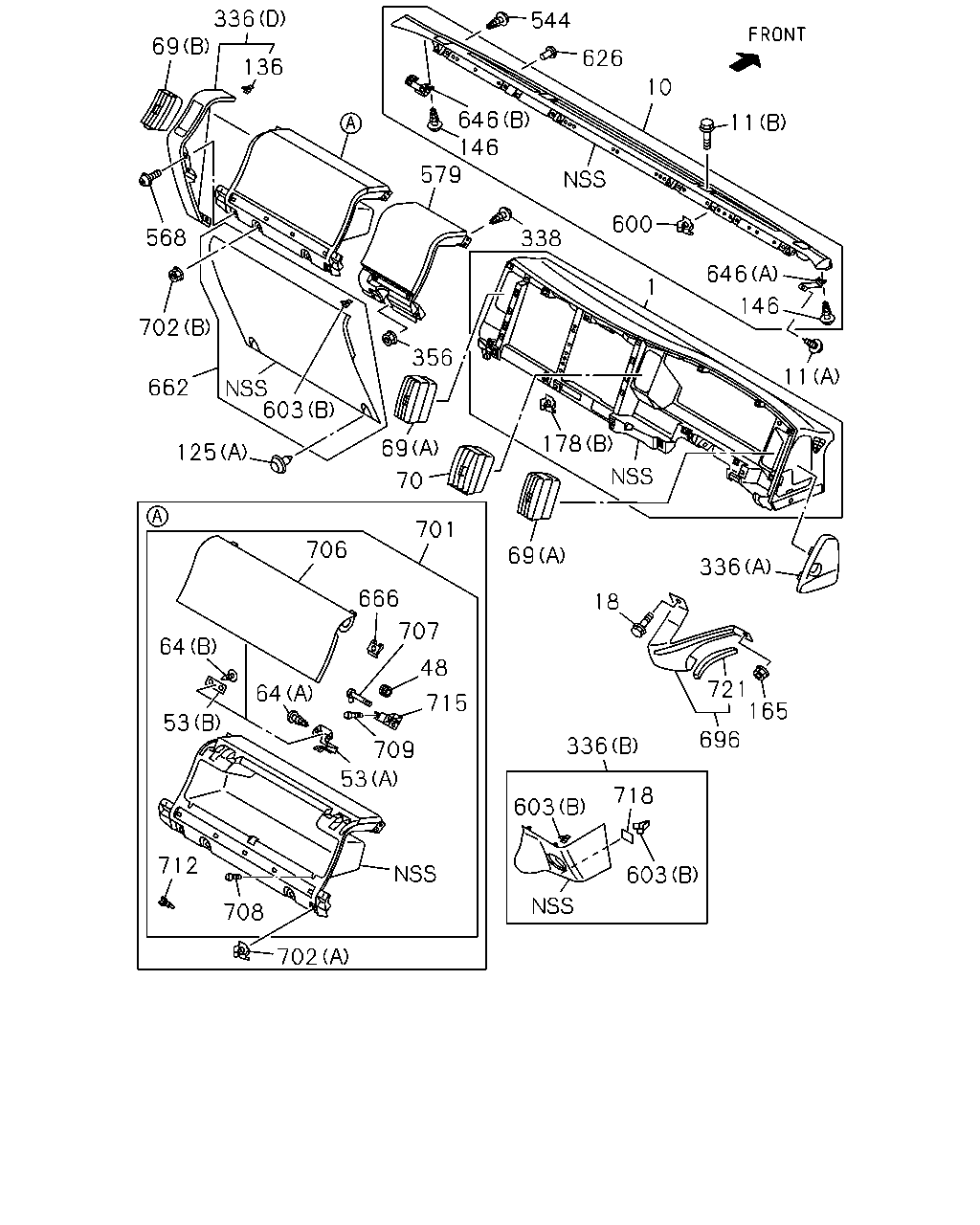

çizim 189843
336 69 136 568 702 662 603 125 69 356 70 178 69 336 18 721 165 696 336 603 718 603 709 715 707 666 706 64 53 64 53 702 708 712 338 1 11 579 646 146 600 646 146 11 10 626 544 701
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1009-
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1009-1009
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1009-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1009-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1009-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1009-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1009-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1009-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1009-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1009-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1009-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1009-
136 CLIP; INST COVER 8-98076-254-0 02 1 1009-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1009-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1009-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1009-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1009-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1009-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1009-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1009-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1009-
600 NUT; PANEL 8-98037-629-0 02 1 1009-1009
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1009-
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1009-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1009-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1009-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1009-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1009-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1009-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1009-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1009-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1009-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1009-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1009-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1009-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1009-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1009-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1009-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1009-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1009-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1009-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1009-

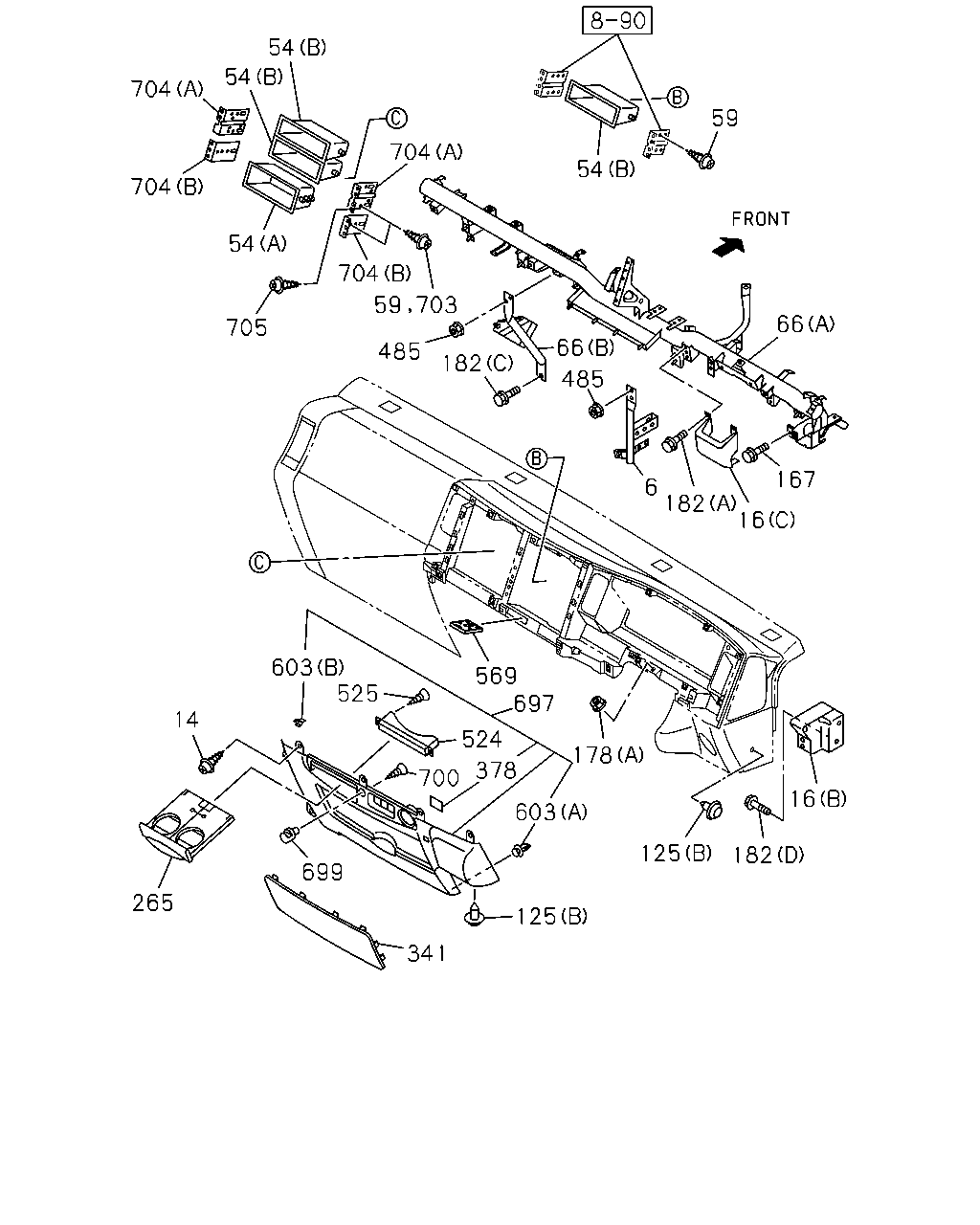

çizim 189844
54 54 704 59 704 54 704 54 704 66 705 66 485 182 485 167 6 182 16 603 525 569 697 14 524 178 378 700 16 603 125 182 699 265 125 341 59 703
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1009-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1009-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1009-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1009-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1009-1301
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 1009-1105
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1009-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1009-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1009-
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-3 01 1 1009-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1009-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1009-
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 1009-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1009-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1009-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1009-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1009-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1009-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1009-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1301
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1009-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1009-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1009-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1009-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-
569 HOLDER; CARD 8-97410-276-1 01 1 1009-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1009-
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1009-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1009-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1009-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1009-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1009-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1009-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1009-
