◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39A - POWER ASSISTOR ▶
2-39A — POWER ASSISTOR (#7086) — 140 parça
çizim 6364
51 45 52 49
BalonParca AdiParca NoAdetTipApplied Date A B C
45 UNION; POWER ASSISTOR HOSE
M12 ELBOW 		9-09225-206-1 01 1 0012-0203 ● ●
45 UNION; POWER ASSISTOR HOSE
M12 ELBOW 		9-09225-206-1 01 1 0204-0607 ● ● ●
45 UNION; POWER ASSISTOR HOSE
M12 ELBOW 		0-92125-206-0 01 1 0608- ● ● ●
49 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0012-0203 ● ●
49 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0204- ● ● ●
51 PIPE ASM; AIR
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 0012-0203 ● ●
51 PIPE ASM; AIR
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 0204- ● ● ●
52 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0012-0203 ● ●
52 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0204-0603 ● ● ●
52 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●

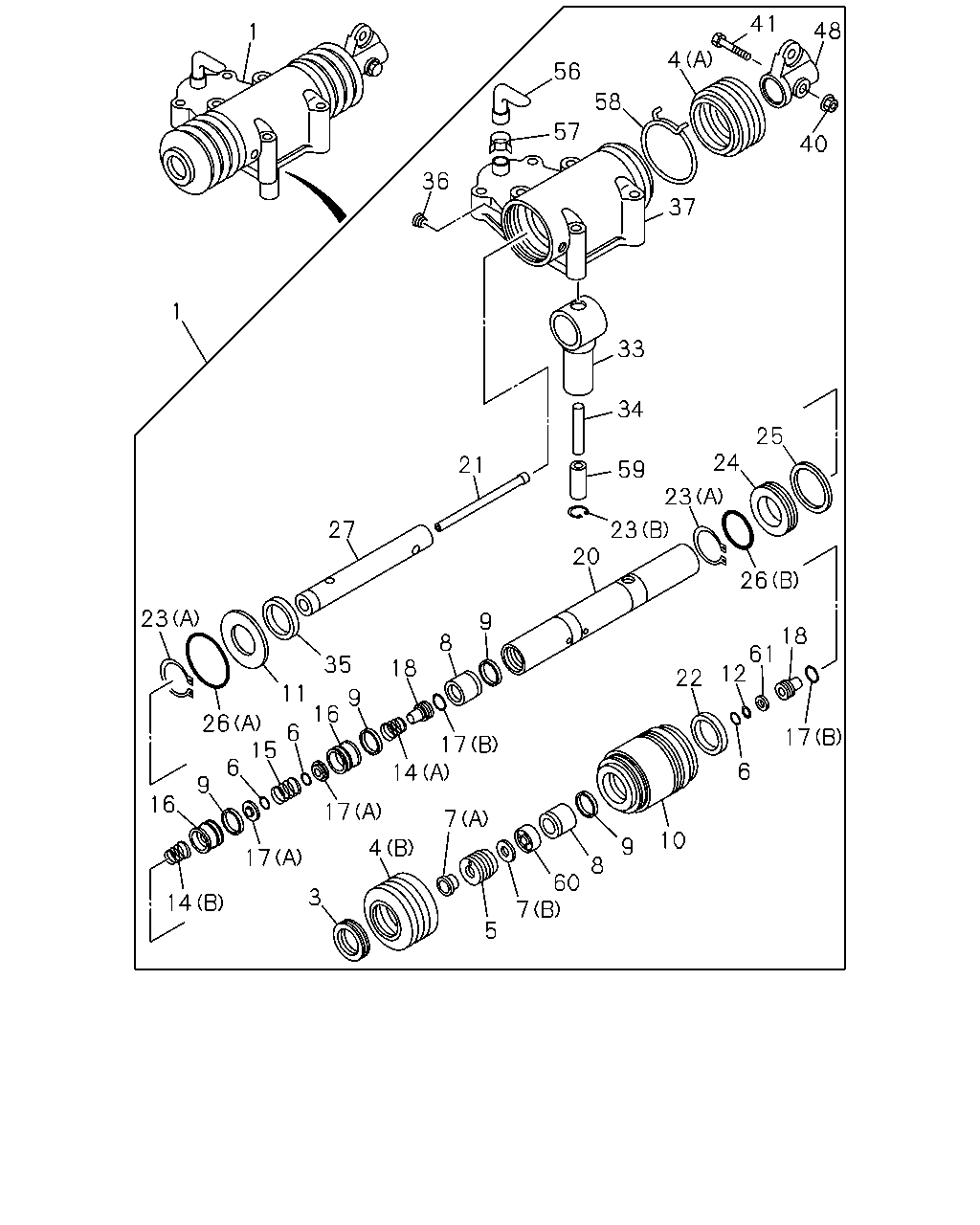

çizim 6517
41 48 1 4 56 58 57 40 36 37 1 33 34 25 24 21 59 23 27 23 20 26 23 9 18 8 61 12 35 18 22 11 9 16 26 15 6 17 17 6 6 14 9 16 17 7 10 9 4 17 8 60 7 3 14 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT 1-33730-274-1 01 1 0012-0203 ● ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-274-1 01 1 0204-0403 ● ● ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-286-0 01 1 0404- ● ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0012-0203 ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0204- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0012-0203 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0204- ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-571-0 01 1 0012-0108 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0109-0203 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0204- ● ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 0012-0203 ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 0204- ● ● ●
6 GASKET 1-33739-013-0 03 1 0012-0203 ● ●
6 GASKET 1-33739-013-0 03 1 0204- ● ● ●
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0012-0203 ● ●
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0204- ● ● ●
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0012-0203 ● ●
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0204- ● ● ●
8 TUBE 1-33739-879-0 02 1 0012-0203 ● ●
8 TUBE 1-33739-879-0 02 1 0204-0403 ● ● ●
8 TUBE 1-33739-560-0 02 1 0404- ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0012-0203 ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0204- ● ● ●
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 0012-0203 ● ●
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 0204- ● ● ●
11 PLATE; CYL 1-33739-108-0 01 1 0012-0203 ● ●
11 PLATE; CYL 1-33739-108-0 01 1 0204- ● ● ●
12 RING; RET 1-33739-016-0 01 1 0012-0203 ● ●
12 RING; RET 1-33739-016-0 01 1 0204- ● ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 0012-0203 ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 0204- ● ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 0012-0203 ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 0204- ● ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 0012-0203 ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 0204- ● ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 0012-0203 ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 0204- ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0012-0203 ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0204- ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0012-0203 ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0204- ● ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0012-0203 ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0204- ● ● ●
20 ROD ASM; W/CAP 1-33739-877-0 01 1 0012-0203 ● ●
20 ROD ASM; W/CAP 1-33739-877-0 01 1 0204-0403 ● ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 0404- ● ● ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 0012-0203 ● ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 0204- ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0012-0203 ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0204- ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0012-0203 ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0204- ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0012-0203 ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0204- ● ● ●
24 PISTON 1-33739-499-0 01 1 0012-0203 ● ●
24 PISTON 1-33739-499-0 01 1 0204- ● ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 0012-0203 ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 0204- ● ● ●
26 GASKET
(A) 		1-33739-122-0 01 1 0012-0203 ● ●
26 GASKET
(A) 		1-33739-122-0 01 1 0204- ● ● ●
26 GASKET
(B) 		1-33739-124-0 01 1 0012-0203 ● ●
26 GASKET
(B) 		1-33739-124-0 01 1 0204- ● ● ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 0012-0203 ● ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 0204- ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0012-0203 ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0204- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0012-0203 ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0204- ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0012-0203 ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0204- ● ● ●
36 SCREW; SET 1-33739-040-0 01 1 0012-0203 ● ●
36 SCREW; SET 1-33739-040-0 01 1 0204- ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 0012-0203 ● ●
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 0204- ● ● ●
40 NUT; LEVER 1-33739-940-0 01 1 0012-0203 ● ●
40 NUT; LEVER 1-33739-940-0 01 1 0204- ● ● ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0012-0203 ● ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0204- ● ● ●
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 0012-0203 ● ●
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 0204- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0012-0203 ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0204- ● ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0012-0203 ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0204- ● ● ●
58 CLAMP; BOOT 1-33739-562-0 01 1 0012-0108 ● ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0012-0108 ● ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0109-0203 ● ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0204- ● ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 0012-0203 ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 0204- ● ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0012-0203 ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0204- ● ● ●

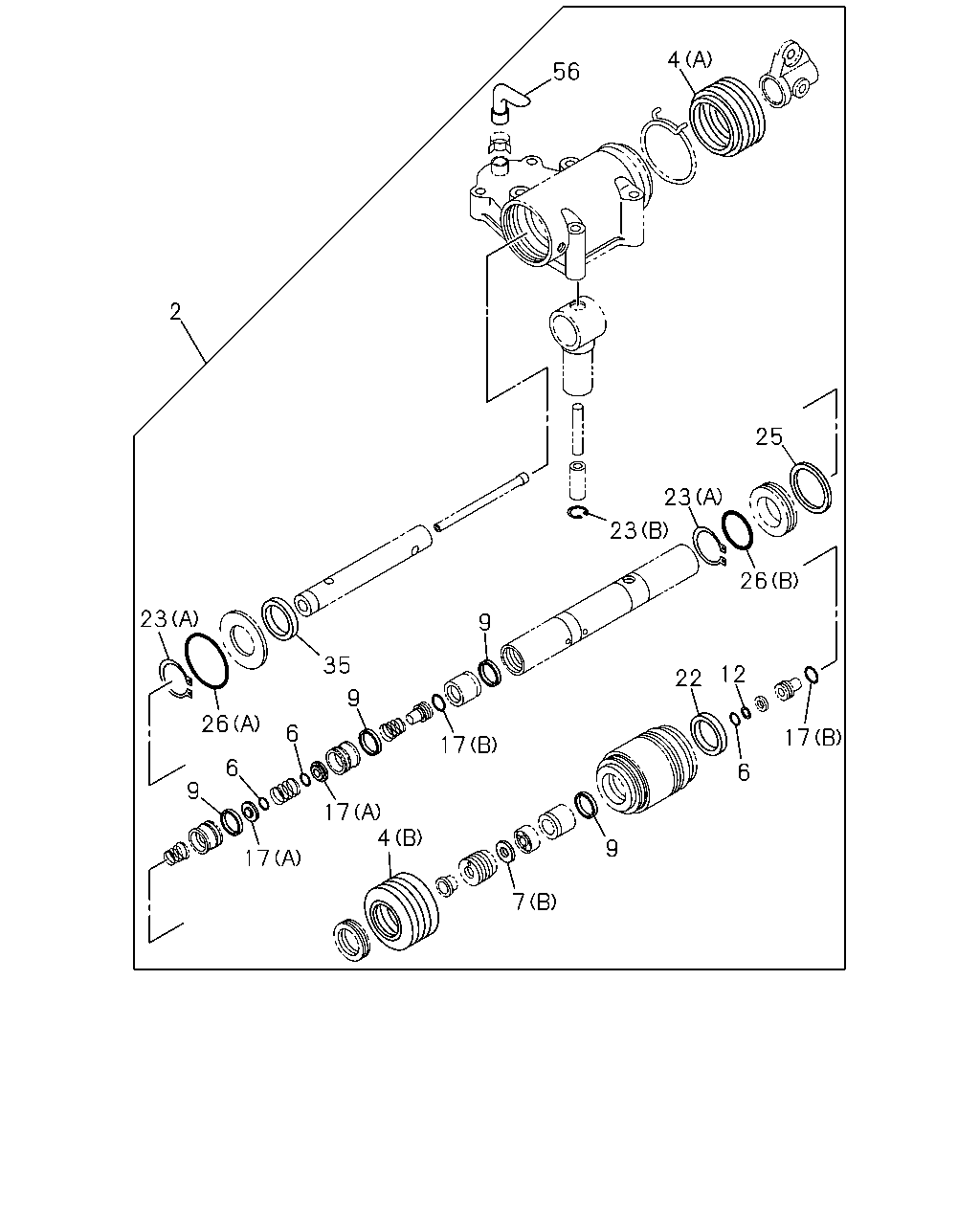

çizim 44163
4 56 2 25 23 23 26 23 9 35 12 22 9 26 6 17 17 6 6 9 17 4 9 17 7
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; POWER SHIFTER 1-33739-608-0 01 1 0012-0108 ● ●
2 REPAIR KIT; POWER SHIFTER 1-33738-107-0 01 1 0109-0203 ● ●
2 REPAIR KIT; POWER SHIFTER 1-33738-107-0 01 1 0204- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0012-0203 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0204- ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-571-0 01 1 0012-0108 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0109-0203 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0204- ● ● ●
6 GASKET 1-33739-013-0 03 1 0012-0203 ● ●
6 GASKET 1-33739-013-0 03 1 0204- ● ● ●
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0012-0203 ● ●
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0204- ● ● ●
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0012-0203 ● ●
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0204- ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0012-0203 ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0204- ● ● ●
12 RING; RET 1-33739-016-0 01 1 0012-0203 ● ●
12 RING; RET 1-33739-016-0 01 1 0204- ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0012-0203 ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0204- ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0012-0203 ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0204- ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0012-0203 ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0204- ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0012-0203 ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0204- ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0012-0203 ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0204- ● ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 0012-0203 ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 0204- ● ● ●
26 GASKET
(A) 		1-33739-122-0 01 1 0012-0203 ● ●
26 GASKET
(A) 		1-33739-122-0 01 1 0204- ● ● ●
26 GASKET
(B) 		1-33739-124-0 01 1 0012-0203 ● ●
26 GASKET
(B) 		1-33739-124-0 01 1 0204- ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0012-0203 ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0204- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0012-0203 ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0204- ● ● ●
