6-47 — MUD GUARD AND INSULATOR (#70851) — 108 parça

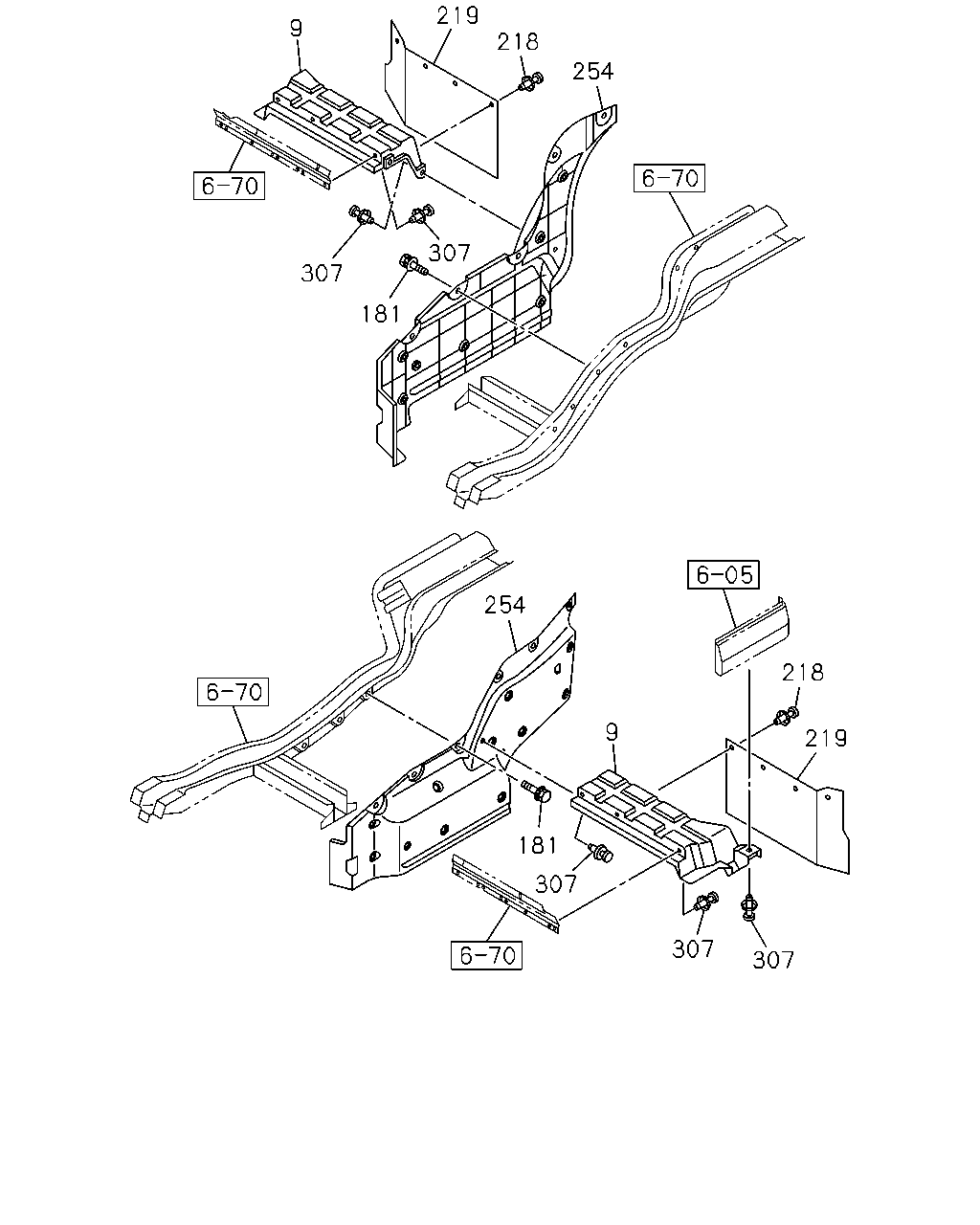

çizim 131372
219 9 218 254 307 307 181 254 218 9 219 181 307 307 307
BalonParca AdiParca NoAdetTipApplied Date
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1009-
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1009-
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1009-
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1009-
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 1009-

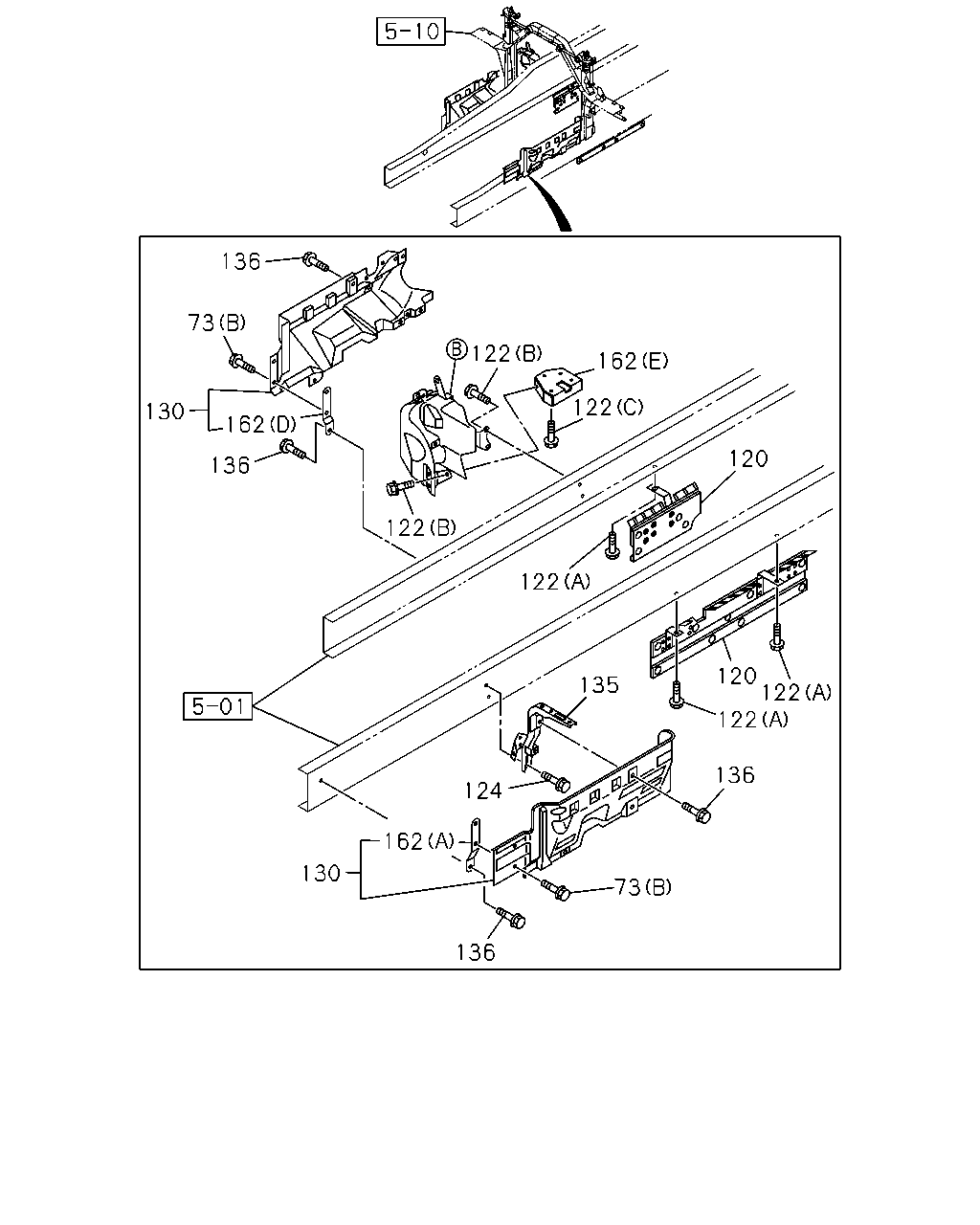

çizim 131406
136 73 122 162 122 130 162 120 136 122 122 120 122 122 135 136 124 162 130 73 136
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-1203
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1204-
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-
120 PANEL; UNDER 1-53194-272-3 01 1 1009-
120 PANEL; UNDER 8-98039-540-0 01 1 1009-
122 BOLT
(C) M10X40 FLANGE 		0-28051-040-0 02 1 1009-1203
122 BOLT
(C) M10X40 FLANGE 		0-28051-040-0 02 1 1204-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1203
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1204-
122 BOLT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1009-
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1203
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1204-
124 BOLT; BRKT
M12X25 FLANGE 		0-28051-225-0 02 1 1009-1203
124 BOLT; BRKT
M12X25 FLANGE 		0-28051-225-0 02 1 1204-
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1009-1203
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1204-
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1009-
135 BRACKET; SIDE PANEL 8-98122-549-1 01 1 1009-
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1009-1203
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1204-
162 BRACKET
(E) 		8-98059-845-1 01 1 1009-1203
162 BRACKET
(E) 		8-98059-845-1 01 1 1204-
162 BRACKET
(A) 		8-98055-601-0 01 1 1009-1203
162 BRACKET
(A) 		8-98055-601-0 01 1 1204-
162 BRACKET
(B) 		8-98055-608-0 01 1 1009-
162 BRACKET
(C) 		8-98055-609-2 01 1 1009-
162 BRACKET
(D) 		8-98092-305-0 01 1 1009-
çizim 131603
122 167 160 163 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date
122 BOLT
(C) M10X40 FLANGE 		0-28051-040-0 02 1 1009-1203
122 BOLT
(C) M10X40 FLANGE 		0-28051-040-0 02 1 1204-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1203
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1204-
122 BOLT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1009-
160 COVER ASM; EXH 8-98090-111-1 01 1 1009-
162 BRACKET
(E) 		8-98059-845-1 01 1 1009-1203
162 BRACKET
(E) 		8-98059-845-1 01 1 1204-
162 BRACKET
(A) 		8-98055-601-0 01 1 1009-1203
162 BRACKET
(A) 		8-98055-601-0 01 1 1204-
162 BRACKET
(B) 		8-98055-608-0 01 1 1009-
162 BRACKET
(C) 		8-98055-609-2 01 1 1009-
162 BRACKET
(D) 		8-98092-305-0 01 1 1009-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1203
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1204-

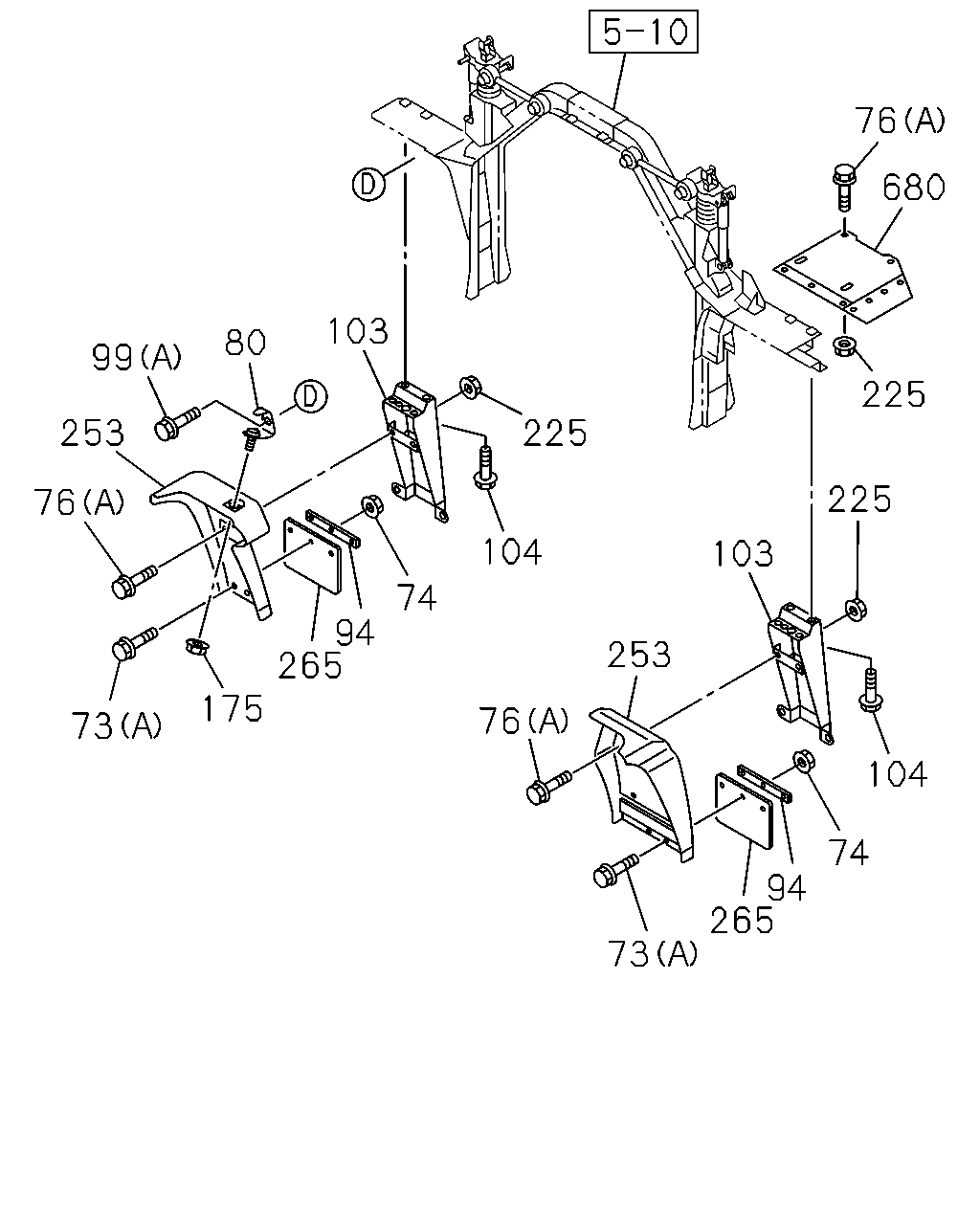

çizim 131681
76 680 103 80 99 225 253 225 225 76 104 103 74 94 265 175 253 76 73 104 74 94 265 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-1203
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1204-
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1009-1203
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1204-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1012-1203
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1204-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1009-1011
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1012-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1009-
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1009-1203
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1204-
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1009-1203
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1204-
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1009-1203
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1204-
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1009-1203
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1204-
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1009-1203
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1204-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1009-1203
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1204-
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-1203
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1204-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1012-1203
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1204-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 12 1 1009-1011
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1012-
253 GUARD; MUD 8-98057-779-1 01 1 1009-1203
253 GUARD; MUD 8-98057-779-1 01 1 1204-
253 GUARD; MUD 8-98057-778-1 01 1 1009-1203
253 GUARD; MUD 8-98057-778-1 01 1 1204-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009-1203
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1204-
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1009-1203
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1204-
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1009-1203
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1204-

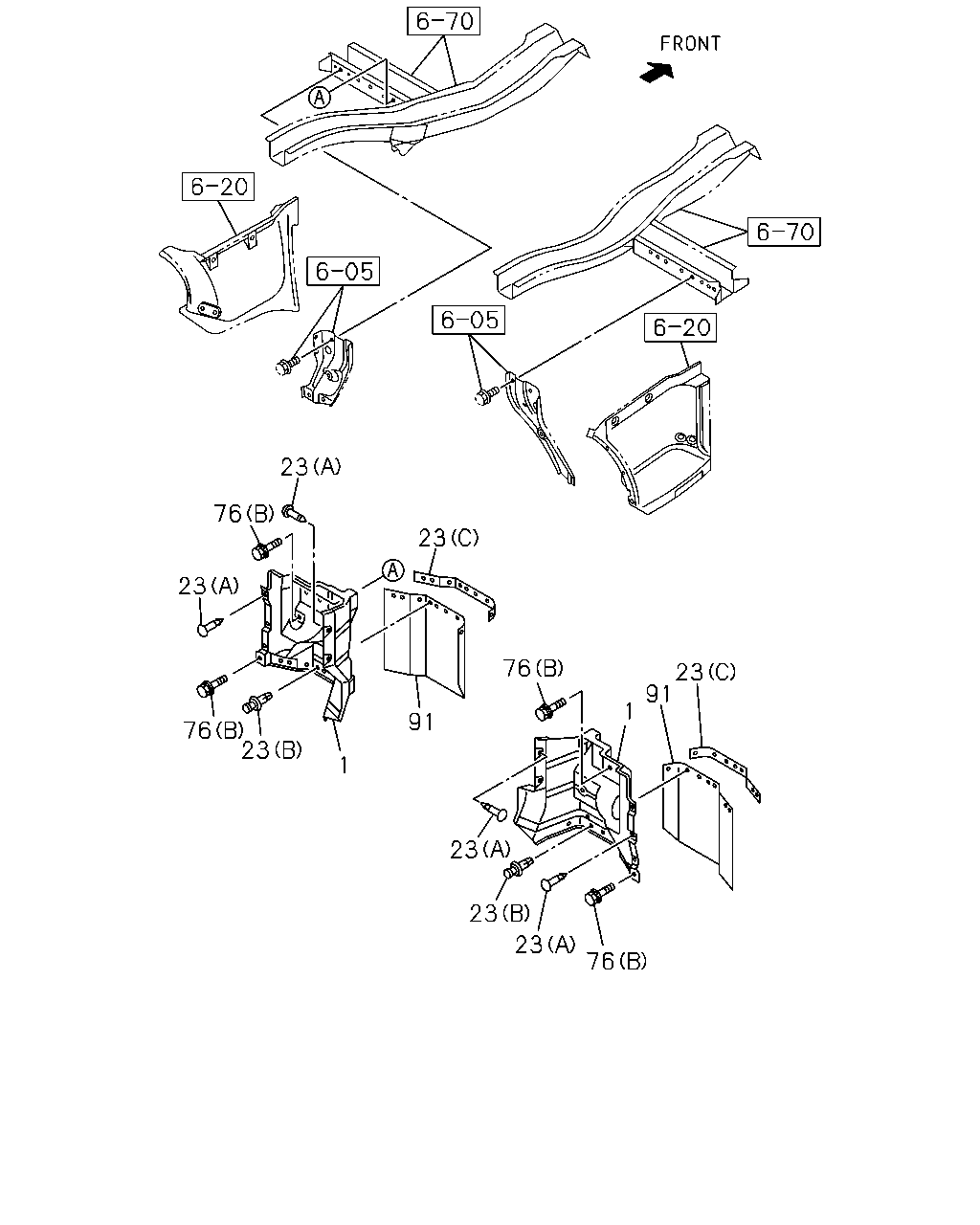

çizim 131716
23 76 23 23 76 23 91 1 91 76 23 1 23 23 23 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 8-97617-152-0 01 1 1009-
1 GUARD; MUD,FRT 8-97617-151-0 01 1 1009-
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1009-
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 1009-
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1009-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1012-1203
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1204-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1009-1011
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1012-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1009-
91 COVER; MUD,FRT 8-97617-155-0 02 1 1009-

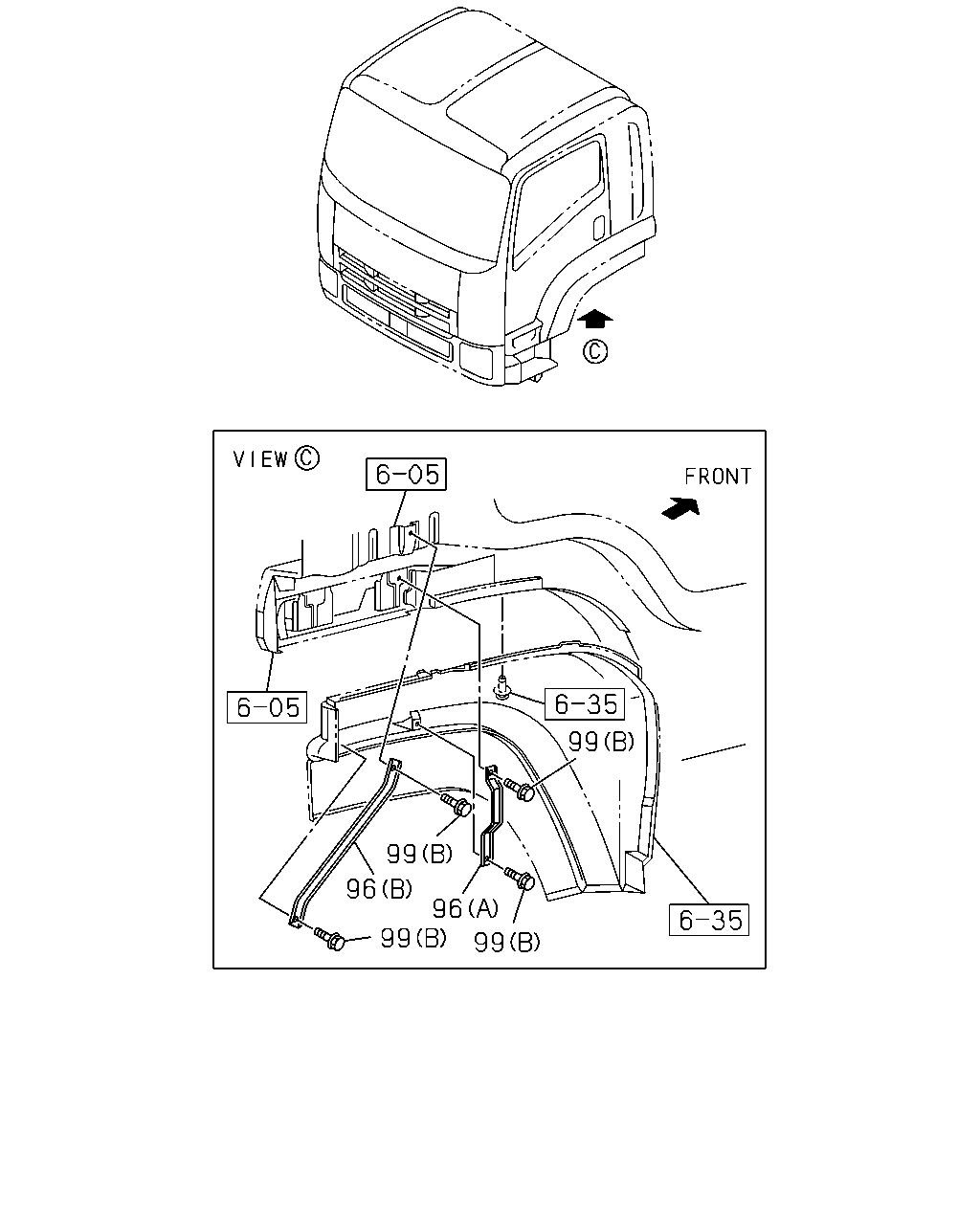

çizim 189834
99 99 96 96 99 99
BalonParca AdiParca NoAdetTipApplied Date
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1009-
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 1009-
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1009-1203
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1204-
