◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#7085) — 57 parça

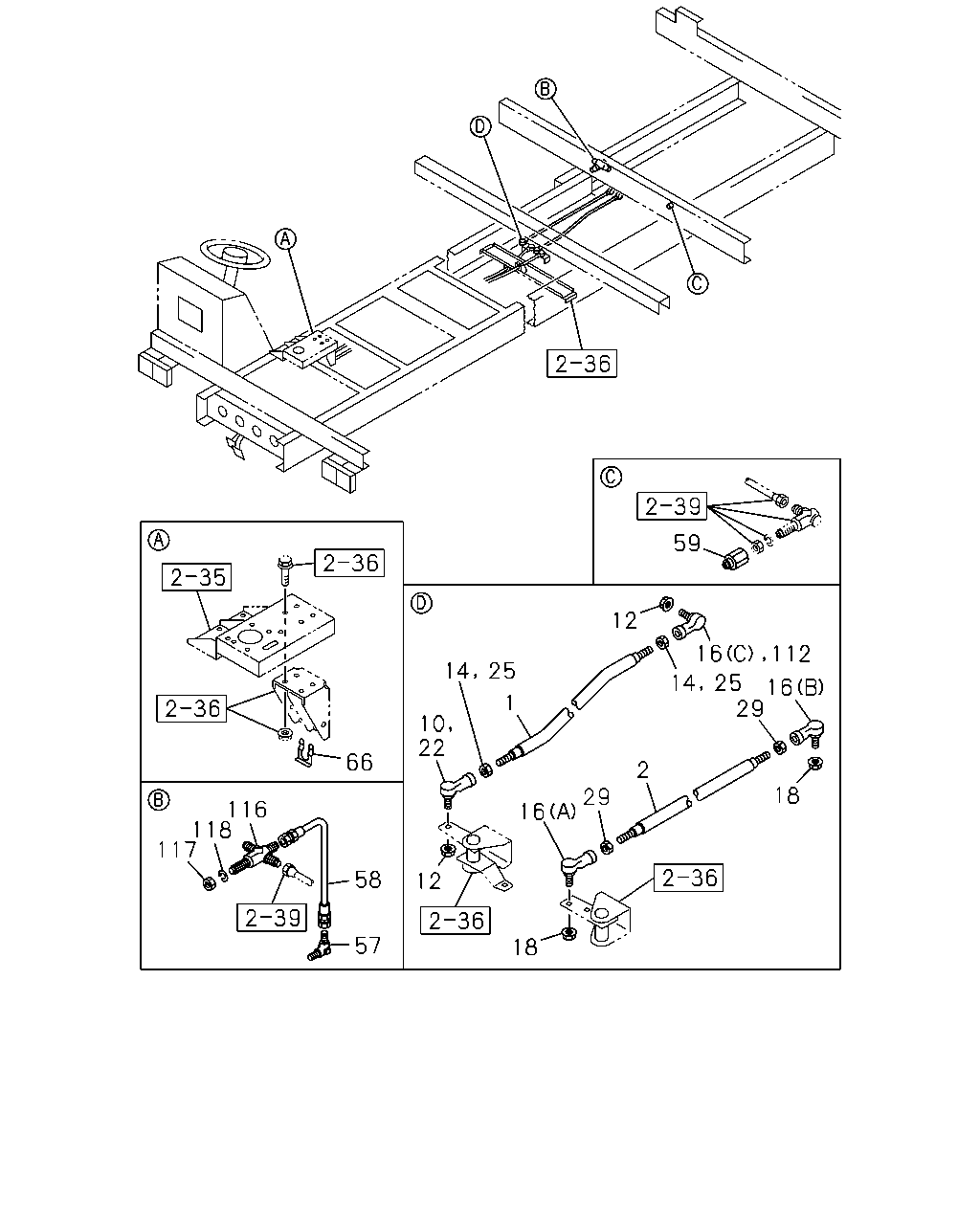

çizim 43567
59 12 16 112 25 14 25 16 29 14 1 10 22 66 2 18 29 116 118 117 16 58 12 57 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ROD; LINK,1ST SHIFT
RR ENG AIR SUSP(LVD5FB) L=788 		1-33652-955-0 01 1 0012-0210 ● ●
1 ROD; LINK,1ST SHIFT
RR ENG AIR SUSP(LVD5FB) L=788 		1-33652-955-0 01 1 0211- ● ●
1 ROD; LINK,1ST SHIFT
6SD1 TC-S(83L) L=788 		1-33652-955-0 01 1 0211- ●
1 ROD; LINK,1ST SHIFT
RR ENG LEAF SUSP(LVR5FB) L=788 		1-33652-963-0 01 1 0012- ● ●
1 ROD; LINK,1ST SHIFT
6WA1 TC-C(55L) L=683 		1-33652-956-0 01 1 0204- ●
2 ROD; LINK,1ST SELECT 1-33652-973-0 01 1 0012-0210 ● ●
2 ROD; LINK,1ST SELECT 1-33652-973-0 01 1 0211- ● ●
2 ROD; LINK,1ST SELECT
6SD1 TC-S(83L) 		1-33652-973-0 01 1 0211- ●
2 ROD; LINK,1ST SELECT
6WA1 TC-C(55L) 		1-33652-974-0 01 1 0204- ●
10 JOINT ASM; BALL,SELECT ROD
6WA1 TC-C(55L) 		1-09760-125-0 01 1 0204- ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0012-0203 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0204- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-C(55L) M12 		9-99111-412-0 02 1 0204-0512 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-C(55L) M12 		0-91111-512-0 02 1 0601- ●
16 JOINT ASM; BALL,CONT ROD
(A) LH THREAD 		1-09760-058-0 01 1 0012-0203 ● ●
16 JOINT ASM; BALL,CONT ROD
(A) LH THREAD 		1-09760-058-0 01 1 0204-1008 ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) LH THREAD 		8-98095-878-0 01 1 1009- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(B) RH THREAD 		1-09760-108-0 01 1 0012-0203 ● ●
16 JOINT ASM; BALL,CONT ROD
(B) RH THREAD 		1-09760-108-0 01 1 0204- ● ● ●
16 JOINT ASM; BALL,CONT ROD
6WA1 TC-C(55L) (C) 		1-33670-413-1 01 1 0204- ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0012-0203 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0204- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-125-0 01 1 0012- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0012-0512 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601- ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
LH THREAD 		1-09400-002-0 01 1 0012-0203 ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
LH THREAD 		1-09400-002-0 01 1 0204- ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD 		9-09111-408-0 01 1 0012-0203 ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD 		9-09111-408-0 01 1 0204-0512 ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD M8 		0-91111-508-0 01 1 0601- ● ● ●
57 NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0012-0203 ● ●
57 NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0204- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
L=240 		1-09363-671-0 01 1 0012-0210 ● ●
58 HOSE; FLEX,POWER ASSISTOR
L=240 		1-09363-671-0 01 1 0211- ● ●
58 HOSE; FLEX,POWER ASSISTOR
6SD1 TC-S(83L) L=240 		1-09363-671-0 01 1 0211- ●
58 HOSE; FLEX,POWER ASSISTOR
6WA1 TC-C(55L) L=310 		1-09363-713-0 01 1 0204- ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012-0203 ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0204- ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0012-0203 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0204- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 0012- ● ●
116 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0012-0210 ● ●
116 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0211-0607 ● ●
116 UNION; AIR PIPE
6SD1 TC-S(83L) M12 		9-09228-306-1 01 1 0211-0607 ●
116 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ● ●
116 UNION; AIR PIPE
6SD1 TC-S(83L) M12 		0-92138-306-0 01 1 0608- ●
116 UNION; AIR PIPE
6WA1 TC-C(55L) M12 3WAY 		9-09228-606-1 01 1 0204-0607 ●
116 UNION; AIR PIPE
6WA1 TC-C(55L) M12 3WAY 		0-92138-606-0 01 1 0608- ●
117 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0012-0210 ● ●
117 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0211-0512 ● ●
117 NUT; UNION,AIR PIPE
6SD1 TC-S(83L) M12 		9-99111-412-0 01 1 0211-0512 ●
117 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0601- ● ●
117 NUT; UNION,AIR PIPE
6SD1 TC-S(83L) M12 		0-91111-512-0 01 1 0601- ●
117 NUT; UNION,AIR PIPE
6WA1 TC-C(55L) M12 		9-09840-280-0 01 1 0204- ●
118 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0012-0203 ● ●
118 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0204-0603 ● ● ●
118 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
