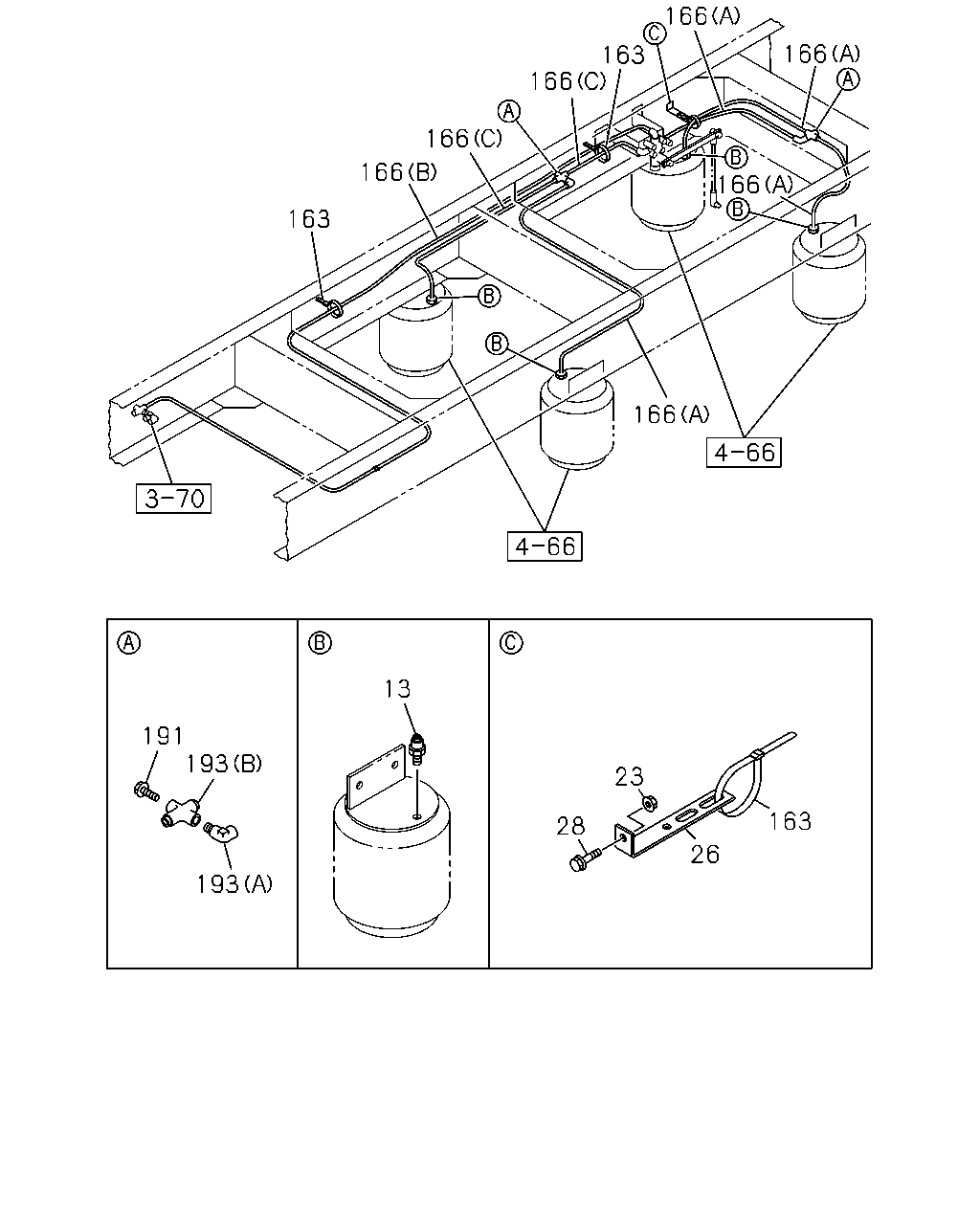

4-71 — AIR SUSPENSION PIPING
(#70831) — 16 parça
166
163
166
166
166
166
166
163
166
13
191
193
23
163
28
26
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
UNION; AIR PIPE
DIN12 & R1/4 STRAIGHT
1-09661-214-0
01
1
1009-
13
UNION; AIR PIPE
DIN12 & R1/4 STRAIGHT
1-09661-214-0
03
1
1009-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1009-
26
BRACKET; CLIP
L=150 H=30
1-47477-629-2
01
1
1009-
28
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1009-
163
CLIP; BAND
L=350
1-09707-183-0
03
1
1009-1112
163
CLIP; BAND
L=350
1-09707-183-0
05
1
1201-
163
CLIP; BAND
L=350
1-09707-183-0
01
1
1009-
163
CLIP; BAND
L=350
1-09707-183-0
01
1
1009-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
166
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
166
TUBE; NYLON
(C) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
1009-
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
1009-
191
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1009-
193
UNION
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
193
UNION
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
1009-
