Sayfa 2-36A - Isuzu EPC

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#7083) — 248 parça

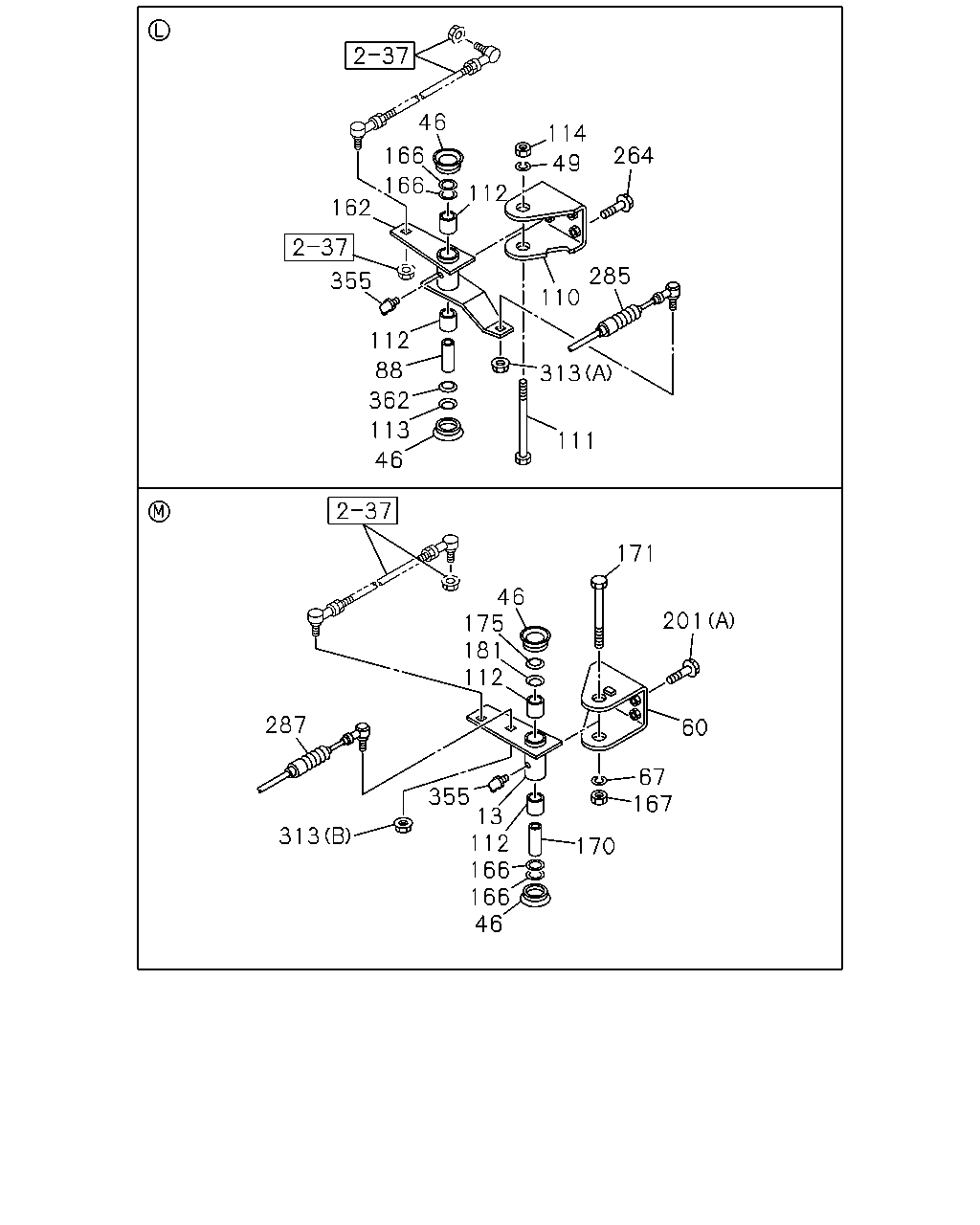

46 114 166 264 49 112 166 162 285 110 355 112 88 313 362 113 111 46 171 46 175 181 112 201 287 60 67 167 355 13 112 166 166 46 313 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	LEVER; RELAY,1ST SELECT INNER	1-33651-787-0	01	1	0012-0203	●	●
13	LEVER; RELAY,1ST SELECT INNER	1-33651-787-0	01	1	0204-	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-113-0	04	1	0012-0203	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-113-0	04	1	0204-	●	●	●
49	WASHER; LK ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
49	WASHER; LK ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
49	WASHER; LK ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
60	BRACKET; RELAY LEVER,SELECT ROD	1-33657-543-0	01	1	0012-0203	●	●
60	BRACKET; RELAY LEVER,SELECT ROD	1-33657-543-0	01	1	0204-	●	●	●
67	WASHER; LK,RELAY LEVER,SELECT ROD ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
67	WASHER; LK,RELAY LEVER,SELECT ROD ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
67	WASHER; LK,RELAY LEVER,SELECT ROD ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
88	COLLAR; RELAY LEVER	1-33659-146-0	01	1	0012-0203	●	●
88	COLLAR; RELAY LEVER	1-33659-146-0	01	1	0204-	●	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-786-0	01	1	0012-0203	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-786-0	01	1	0204-	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-210-0	01	1	0012-0203	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-210-0	01	1	0204-	●	●	●
112	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	04	1	0012-0203	●	●
112	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	04	1	0204-	●	●	●
113	WASHER; RELAY LEVER	1-33659-093-0	01	1	0012-0203	●	●
113	WASHER; RELAY LEVER	1-33659-093-0	01	1	0204-	●	●	●
114	NUT; RELAY LEVER M14	9-99111-514-0	01	1	0012-0203	●	●
114	NUT; RELAY LEVER M14	9-99111-514-0	01	1	0204-0512	●	●	●
114	NUT; RELAY LEVER M14	0-91111-514-0	01	1	0601-	●	●	●
162	LEVER; RELAY	1-33651-788-0	01	1	0012-0203	●	●
162	LEVER; RELAY	1-33651-788-0	01	1	0204-	●	●	●
166	WASHER; NYLON,RELAY LEVER	1-09503-187-0	04	1	0012-0203	●	●
166	WASHER; NYLON,RELAY LEVER	1-09503-187-0	04	1	0204-	●	●	●
167	NUT; RELAY LEVER,SELECT ROD M14	9-99111-514-0	01	1	0012-0203	●	●
167	NUT; RELAY LEVER,SELECT ROD M14	9-99111-514-0	01	1	0204-0512	●	●	●
167	NUT; RELAY LEVER,SELECT ROD M14	0-91111-514-0	01	1	0601-	●	●	●
170	COLLAR; RELAY LEVER,SELECT ROD,1ST	1-33659-146-0	01	1	0012-0203	●	●
170	COLLAR; RELAY LEVER,SELECT ROD,1ST	1-33659-146-0	01	1	0204-	●	●	●
171	SHAFT; RELAY LEVER,SELECT ROD,1ST	1-33619-210-0	01	1	0012-0203	●	●
171	SHAFT; RELAY LEVER,SELECT ROD,1ST	1-33619-210-0	01	1	0204-	●	●	●
175	WASHER; RELAY LEVER,SELECT CONT ROD	1-33659-093-0	01	1	0012-0203	●	●
175	WASHER; RELAY LEVER,SELECT CONT ROD	1-33659-093-0	01	1	0204-	●	●	●
181	SHIM; RELAY LEVER,SELECT ROD	1-33659-092-0	01	1	0012-0203	●	●
181	SHIM; RELAY LEVER,SELECT ROD	1-33659-092-0	01	1	0204-	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0012-0203	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0204-0512	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0012-0203	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0204-0512	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 FLANGE	0-28680-825-0	08	1	0012-0203	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 FLANGE	0-28680-825-0	08	1	0204-0512	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●	●
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-470-1	01	1	0012-	●	●
287	WIRE; SELECT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-469-0	01	1	0012-	●	●
313	NUT; CLIP BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0012-0203	●	●
313	NUT; CLIP BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0204-	●	●	●
313	NUT; CLIP BRKT (B) M8 FLANGE	1-09440-062-1	01	1	0012-0203	●	●
313	NUT; CLIP BRKT (B) M8 FLANGE	1-09440-062-1	01	1	0204-	●	●	●
355	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	0012-0203	●	●
355	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	0204-0512	●	●	●
355	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
362	SHIM	1-33659-092-0	01	1	0012-0203	●	●
362	SHIM	1-33659-092-0	01	1	0204-	●	●	●

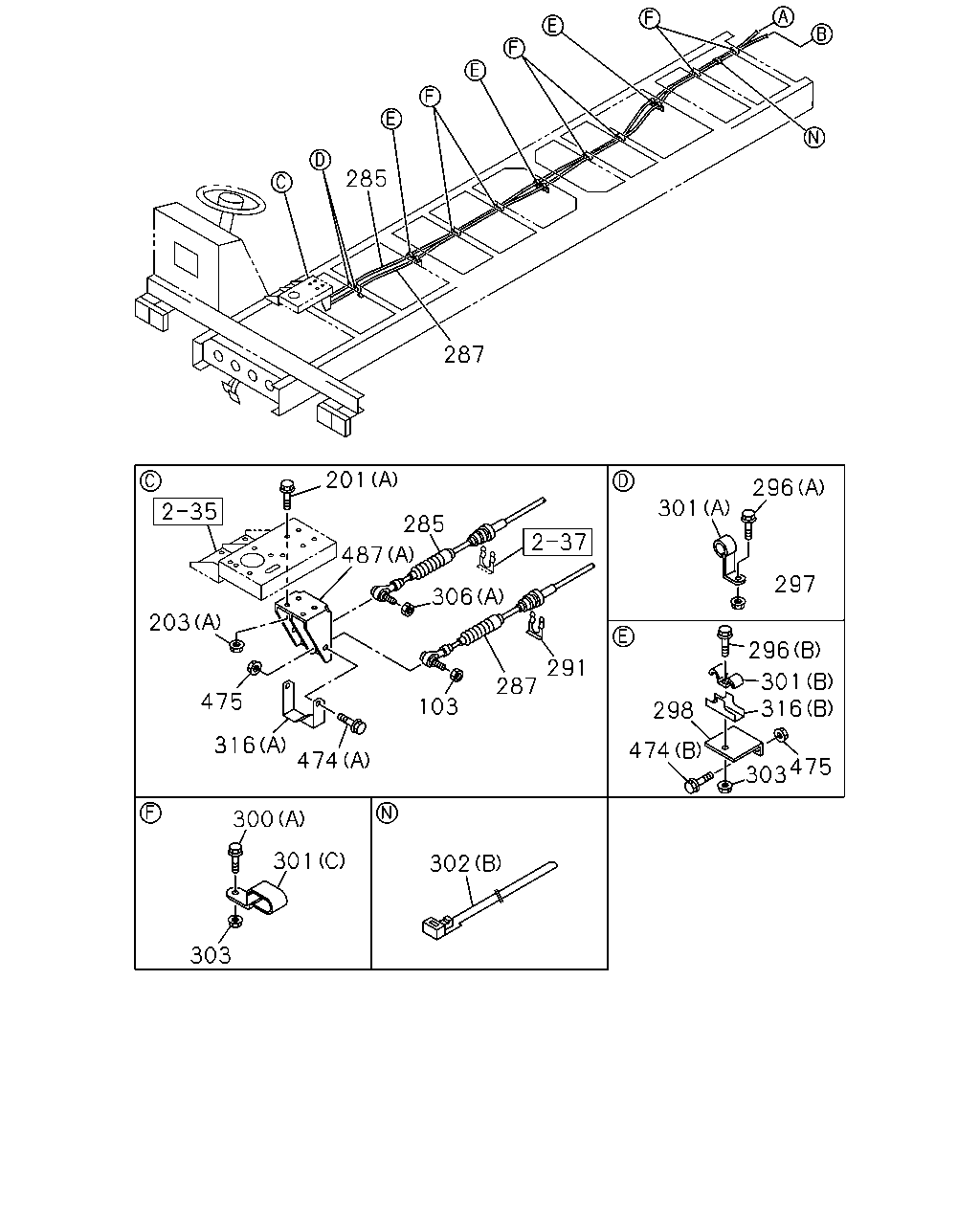

285 287 201 296 301 285 487 297 306 203 296 291 287 301 316 475 103 298 316 474 474 475 303 300 301 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
103	NUT M8 FLANGE	1-09440-062-1	01	1	0012-0203	●	●
103	NUT M8 FLANGE	1-09440-062-1	01	1	0204-	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0012-0203	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0204-0512	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0012-0203	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0204-0512	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	06	1	0012-0203	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
203	NUT; BRKT FIX RR ENG AIR SUSP(LVD5FB) (B) M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
203	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
203	NUT; BRKT FIX RR ENG AIR SUSP(LVD5FB) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	04	1	0012-0203	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	04	1	0204-0602	●	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-470-1	01	1	0012-	●	●
287	WIRE; SELECT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-469-0	01	1	0012-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ID=22.2	1-09701-209-1	01	1	0012-0203	●	●
291	CLIP; SHIFT TO SELECT,FRAME ID=22.2	1-09701-209-1	01	1	0204-	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28680-840-0	06	1	0012-0203	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28680-840-0	06	1	0204-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28650-840-0	06	1	0601-	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28681-020-0	02	1	0012-0203	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28681-020-0	02	1	0204-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
297	NUT; CLIP M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
297	NUT; CLIP M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
297	NUT; CLIP M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
298	BRACKET	1-47478-408-0	06	1	0012-0203	●	●
298	BRACKET	1-47478-408-0	06	1	0204-	●	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0012-0203	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
300	BOLT; CLIP RR ENG AIR SUSP(LVD5FB) (A) M8X20 FLANGE	0-28680-820-0	11	1	0012-0512	●	●
300	BOLT; CLIP RR ENG AIR SUSP(LVD5FB) (A) M8X20 FLANGE	0-28650-820-0	11	1	0601-	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28680-820-0	10	1	0012-0203	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28680-820-0	10	1	0204-0512	●	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28650-820-0	10	1	0601-	●	●
301	CLIP; WIRE (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0012-0203	●	●
301	CLIP; WIRE (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0204-	●	●	●
301	CLIP; WIRE (B) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	06	1	0012-0203	●	●
301	CLIP; WIRE (B) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	06	1	0204-	●	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	11	1	0012-0906	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (C) ID=13 & 13 L=20 H=21.5	8-98033-769-0	11	1	0907-	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0103-0106	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0107-0203	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0204-	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	10	1	0012-0203	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	10	1	0204-0906	●	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	8-98033-769-0	10	1	0907-	●	●
302	CLIP; BAND (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0012-0203	●	●
302	CLIP; BAND (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0204-	●	●	●
302	CLIP; BAND RR ENG LEAF SUSP(LVR5FB) (B) L=140	5-09707-031-1	01	1	0012-0203	●	●
302	CLIP; BAND RR ENG LEAF SUSP(LVR5FB) (B) L=140	5-09707-031-1	01	1	0204-	●	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0012-0203	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●	●
303	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-	●	●	●
303	NUT; CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	11	1	0012-0602	●	●
303	NUT; CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	11	1	0603-	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	10	1	0012-0203	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	10	1	0204-0602	●	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	10	1	0603-	●	●
306	NUT; WIRE BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0012-0203	●	●
306	NUT; WIRE BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0204-	●	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0012-0203	●	●
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0204-	●	●	●
316	BRACKET; CLIP (B)	1-47475-427-1	06	1	0012-0203	●	●
316	BRACKET; CLIP (B)	1-47475-427-1	06	1	0204-	●	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0012-0203	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0204-0512	●	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	12	1	0012-0203	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	12	1	0204-0512	●	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	12	1	0601-	●	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0012-0203	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0204-0512	●	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
475	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0012-0203	●	●
475	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0204-0602	●	●	●
475	NUT; BRKT M8 FLANGE	0-91180-108-0	14	1	0603-	●	●	●
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0012-0203	●	●
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0204-	●	●	●
487	BRACKET; CONT CABLE (B)	1-33657-783-0	01	1	0012-0203	●	●
487	BRACKET; CONT CABLE (B)	1-33657-783-0	01	1	0204-	●	●	●

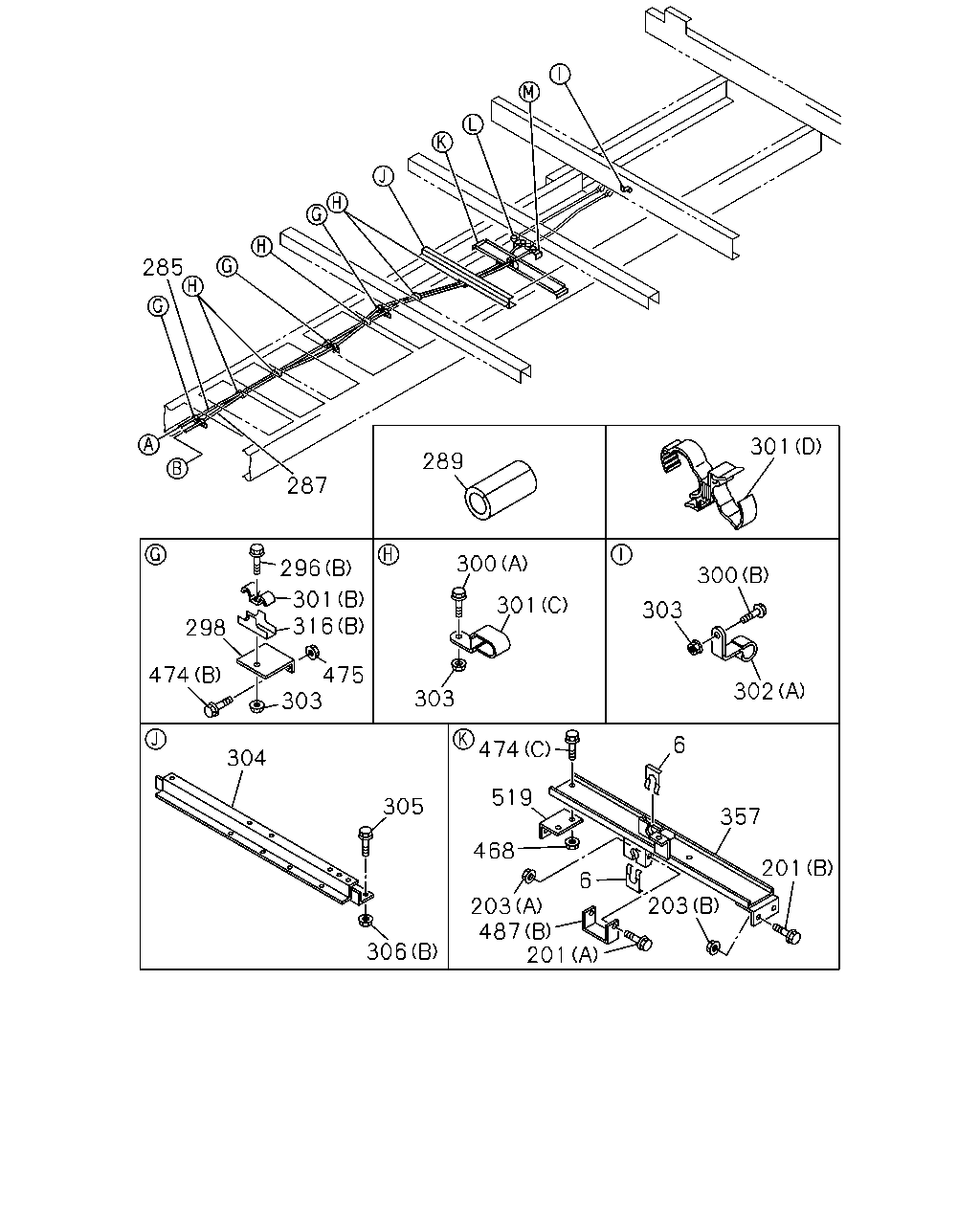

285 301 289 287 300 296 300 301 316 301 303 298 474 475 303 302 303 6 474 304 519 305 357 468 201 6 203 203 487 201 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	0012-0203	●	●
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	0204-	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0012-0203	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	06	1	0204-0512	●	●	●
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0012-0203	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0204-0512	●	●	●
201	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	06	1	0012-0203	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
203	NUT; BRKT FIX RR ENG AIR SUSP(LVD5FB) (B) M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
203	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
203	NUT; BRKT FIX RR ENG AIR SUSP(LVD5FB) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	04	1	0012-0203	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	04	1	0204-0602	●	●	●
203	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-470-1	01	1	0012-	●	●
287	WIRE; SELECT,TRANS CONT WHEEL BASE 6200MM(62W)	1-33671-469-0	01	1	0012-	●	●
289	SLEEVE; RUBBER RR ENG AIR SUSP(LVD5FB) ID=14 OD=18 L=60	1-09337-030-0	01	1	0103-	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28680-840-0	06	1	0012-0203	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28680-840-0	06	1	0204-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (B) M8X40 FLANGE	0-28650-840-0	06	1	0601-	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28681-020-0	02	1	0012-0203	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28681-020-0	02	1	0204-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
298	BRACKET	1-47478-408-0	06	1	0012-0203	●	●
298	BRACKET	1-47478-408-0	06	1	0204-	●	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0012-0203	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
300	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
300	BOLT; CLIP RR ENG AIR SUSP(LVD5FB) (A) M8X20 FLANGE	0-28680-820-0	11	1	0012-0512	●	●
300	BOLT; CLIP RR ENG AIR SUSP(LVD5FB) (A) M8X20 FLANGE	0-28650-820-0	11	1	0601-	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28680-820-0	10	1	0012-0203	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28680-820-0	10	1	0204-0512	●	●	●
300	BOLT; CLIP RR ENG LEAF SUSP(LVR5FB) (A) M8X20 FLANGE	0-28650-820-0	10	1	0601-	●	●
301	CLIP; WIRE (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0012-0203	●	●
301	CLIP; WIRE (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0204-	●	●	●
301	CLIP; WIRE (B) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	06	1	0012-0203	●	●
301	CLIP; WIRE (B) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	06	1	0204-	●	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	11	1	0012-0906	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (C) ID=13 & 13 L=20 H=21.5	8-98033-769-0	11	1	0907-	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0103-0106	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0107-0203	●	●
301	CLIP; WIRE RR ENG AIR SUSP(LVD5FB) (D) ID=6-10 & 10-14	1-09709-201-1	01	1	0204-	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	10	1	0012-0203	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	1-09700-975-0	10	1	0204-0906	●	●	●
301	CLIP; WIRE RR ENG LEAF SUSP(LVR5FB) (C) ID=13 & 13 L=20 H=21.5	8-98033-769-0	10	1	0907-	●	●
302	CLIP; BAND (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0012-0203	●	●
302	CLIP; BAND (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0204-	●	●	●
302	CLIP; BAND RR ENG LEAF SUSP(LVR5FB) (B) L=140	5-09707-031-1	01	1	0012-0203	●	●
302	CLIP; BAND RR ENG LEAF SUSP(LVR5FB) (B) L=140	5-09707-031-1	01	1	0204-	●	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0012-0203	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●	●
303	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-	●	●	●
303	NUT; CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	11	1	0012-0602	●	●
303	NUT; CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	11	1	0603-	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	10	1	0012-0203	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	10	1	0204-0602	●	●	●
303	NUT; CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	10	1	0603-	●	●
304	BRACKET; WIRE,TRANS CONT	1-47478-902-2	01	1	0012-0203	●	●
304	BRACKET; WIRE,TRANS CONT	1-47478-902-2	01	1	0204-	●	●	●
305	BOLT; WIRE BRKT M8X30 FLANGE	0-28680-830-0	04	1	0012-0203	●	●
305	BOLT; WIRE BRKT M8X30 FLANGE	0-28680-830-0	04	1	0204-0512	●	●	●
305	BOLT; WIRE BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
306	NUT; WIRE BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0012-0203	●	●
306	NUT; WIRE BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0204-	●	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
306	NUT; WIRE BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0012-0203	●	●
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0204-	●	●	●
316	BRACKET; CLIP (B)	1-47475-427-1	06	1	0012-0203	●	●
316	BRACKET; CLIP (B)	1-47475-427-1	06	1	0204-	●	●	●
357	BRACKET; RELAY LEVER RR ENG AIR SUSP(LVD5FB)	1-33657-787-1	01	1	0012-0203	●	●
357	BRACKET; RELAY LEVER RR ENG AIR SUSP(LVD5FB)	1-33657-787-1	01	1	0204-	●	●	●
357	BRACKET; RELAY LEVER RR ENG LEAF SUSP(LVR5FB)	1-33657-788-0	01	1	0012-0203	●	●
357	BRACKET; RELAY LEVER RR ENG LEAF SUSP(LVR5FB)	1-33657-788-0	01	1	0204-	●	●	●
468	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
468	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
468	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0012-0203	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0204-0512	●	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	12	1	0012-0203	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	12	1	0204-0512	●	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	12	1	0601-	●	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0012-0203	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0204-0512	●	●	●
474	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
475	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0012-0203	●	●
475	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0204-0602	●	●	●
475	NUT; BRKT M8 FLANGE	0-91180-108-0	14	1	0603-	●	●	●
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0012-0203	●	●
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0204-	●	●	●
487	BRACKET; CONT CABLE (B)	1-33657-783-0	01	1	0012-0203	●	●
487	BRACKET; CONT CABLE (B)	1-33657-783-0	01	1	0204-	●	●	●
519	BRACKET; FRAME	1-33657-782-0	01	1	0012-0203	●	●
519	BRACKET; FRAME	1-33657-782-0	01	1	0204-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
