◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#7082) — 65 parça

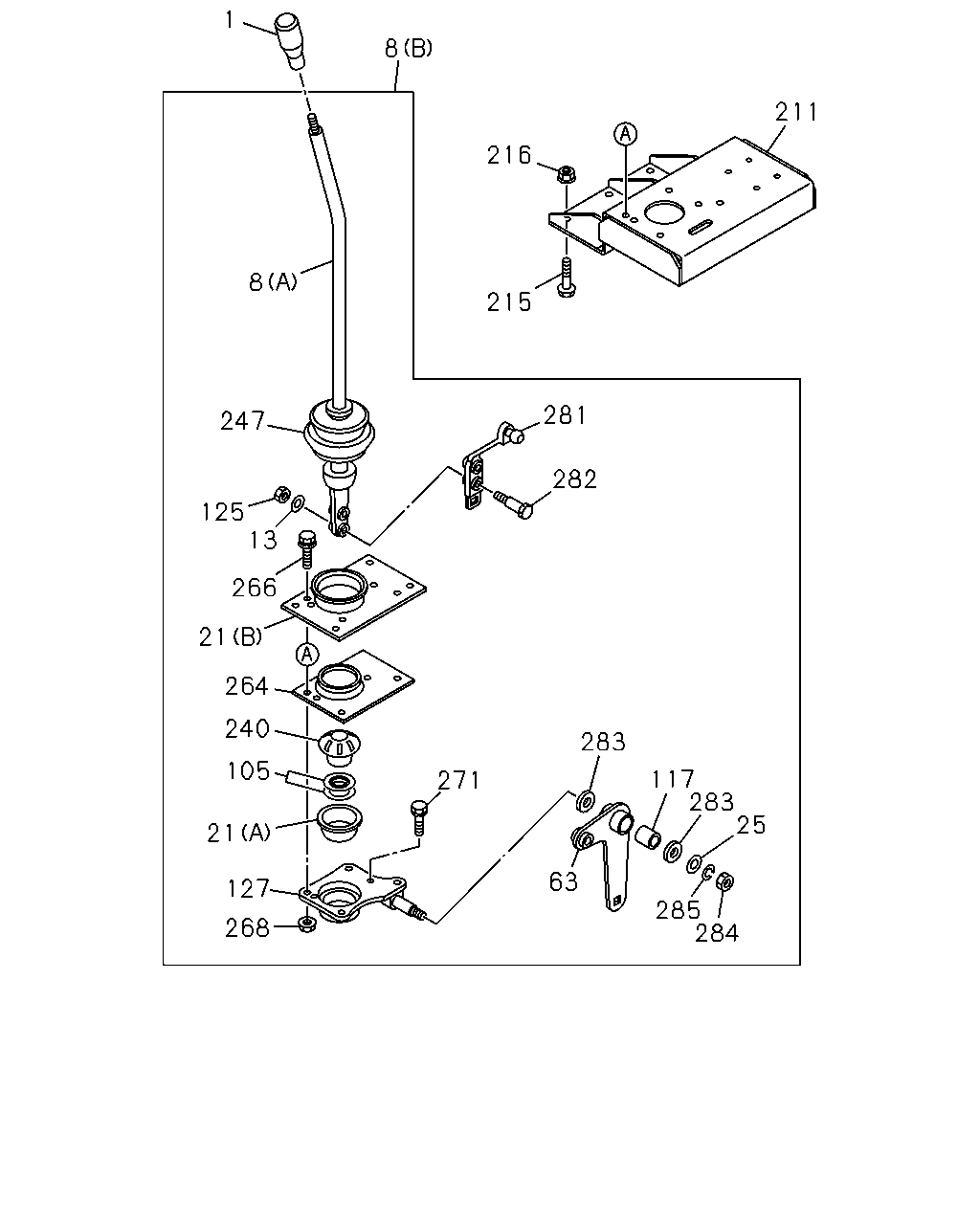

çizim 43196
1 8 211 216 8 215 281 247 282 125 13 266 21 264 240 283 105 117 283 25 271 21 63 127 285 284 268
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER 1-33611-049-0 01 1 0012-0203 ●
1 KNOB; CHANGE LEVER 1-33611-068-1 01 1 0204- ● ●
1 KNOB; CHANGE LEVER 1-33611-045-0 01 1 0012- ●
8 LEVER; CHANGE
(B) 		1-33620-079-1 01 1 0012-0203 ●
8 LEVER; CHANGE
(B) 		1-33620-079-1 01 1 0204-0702 ● ●
8 LEVER; CHANGE
(A) 		1-33613-354-1 01 1 0012-0203 ● ●
8 LEVER; CHANGE
(A) 		1-33613-354-1 01 1 0204- ● ● ●
8 LEVER; CHANGE
(B) 		1-33620-055-1 01 1 0012-0702 ●
8 LEVER; CHANGE
(B) 		1-33620-055-1 01 1 0703- ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=10.5 		9-09164-510-0 02 1 0012-0203 ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=10.5 		9-09164-510-0 02 1 0204- ● ● ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 0012-0203 ● ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 0204- ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 0012-0203 ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 0204- ● ● ●
25 WASHER
ID=10.5 OD=26 		9-09160-710-0 01 1 0012-0203 ● ●
25 WASHER
ID=10.5 OD=26 		9-09160-710-0 01 1 0204- ● ● ●
63 LEVER; RELAY,SELECT 1-33651-760-0 01 1 0012-0203 ● ●
63 LEVER; RELAY,SELECT 1-33651-760-0 01 1 0204- ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 0012-0203 ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 0204- ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 0012-0203 ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 0204- ● ● ●
117 BUSHING; RELAY LEVER 1-09330-004-0 01 1 0012-0203 ● ●
117 BUSHING; RELAY LEVER 1-09330-004-0 01 1 0204- ● ● ●
125 NUT; ARM
M10 		9-09110-510-0 02 1 0012-0203 ● ●
125 NUT; ARM
M10 		9-09110-510-0 02 1 0204-0512 ● ● ●
125 NUT; ARM
M10 		0-91110-510-0 02 1 0601- ● ●
127 SUPPORT; CHANGE LEVER 1-33619-632-0 01 1 0012-0203 ● ●
127 SUPPORT; CHANGE LEVER 1-33619-632-0 01 1 0204- ● ● ●
211 BRACKET; CHANGE LEVER 1-33657-724-0 01 1 0012-0203 ● ●
211 BRACKET; CHANGE LEVER 1-33657-724-0 01 1 0204- ● ● ●
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28681-240-0 03 1 0012-0203 ● ●
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28681-240-0 03 1 0204-0512 ● ● ●
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28651-240-0 03 1 0601- ● ● ●
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91150-212-0 03 1 0012-0203 ● ●
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ● ●
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-108-0 01 1 0012-0203 ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-108-0 01 1 0204- ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 0012-0203 ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 0204- ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 0012-0203 ● ●
264 PLATE; COVER 1-33619-026-0 01 1 0204- ● ● ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28680-840-0 04 1 0012-0203 ● ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28680-840-0 04 1 0204-0512 ● ● ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28650-840-0 04 1 0601- ● ● ●
268 NUT; SEAT SET
M8 FLANGE 		0-91150-108-0 04 1 0012-0203 ● ●
268 NUT; SEAT SET
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ● ● ●
268 NUT; SEAT SET
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		0-50040-612-0 02 1 0012-0203 ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		0-50040-612-0 02 1 0204-0512 ● ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		0-50540-612-0 02 1 0601- ● ●
281 ARM; SELECT,CHANGE LEVER 1-33651-759-1 01 1 0012-0203 ● ●
281 ARM; SELECT,CHANGE LEVER 1-33651-759-1 01 1 0204- ● ● ●
282 BOLT; ARM
M10X50 		0-26801-050-0 02 1 0012-0211 ● ●
282 BOLT; ARM
M10X55 		0-10811-055-0 02 1 0212- ● ●
283 WASHER; LK,ARM
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 0012-0203 ● ●
283 WASHER; LK,ARM
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 0204- ● ● ●
284 NUT; RELAY LEVER
M10 		9-09110-410-0 01 1 0012-0203 ● ●
284 NUT; RELAY LEVER
M10 		9-09110-410-0 01 1 0204-0512 ● ● ●
284 NUT; RELAY LEVER
M10 		0-91110-510-0 01 1 0601- ● ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 0012-0203 ● ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 0204-0603 ● ● ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
