4-25 — REAR FINAL DRIVE (#70816) — 53 parça

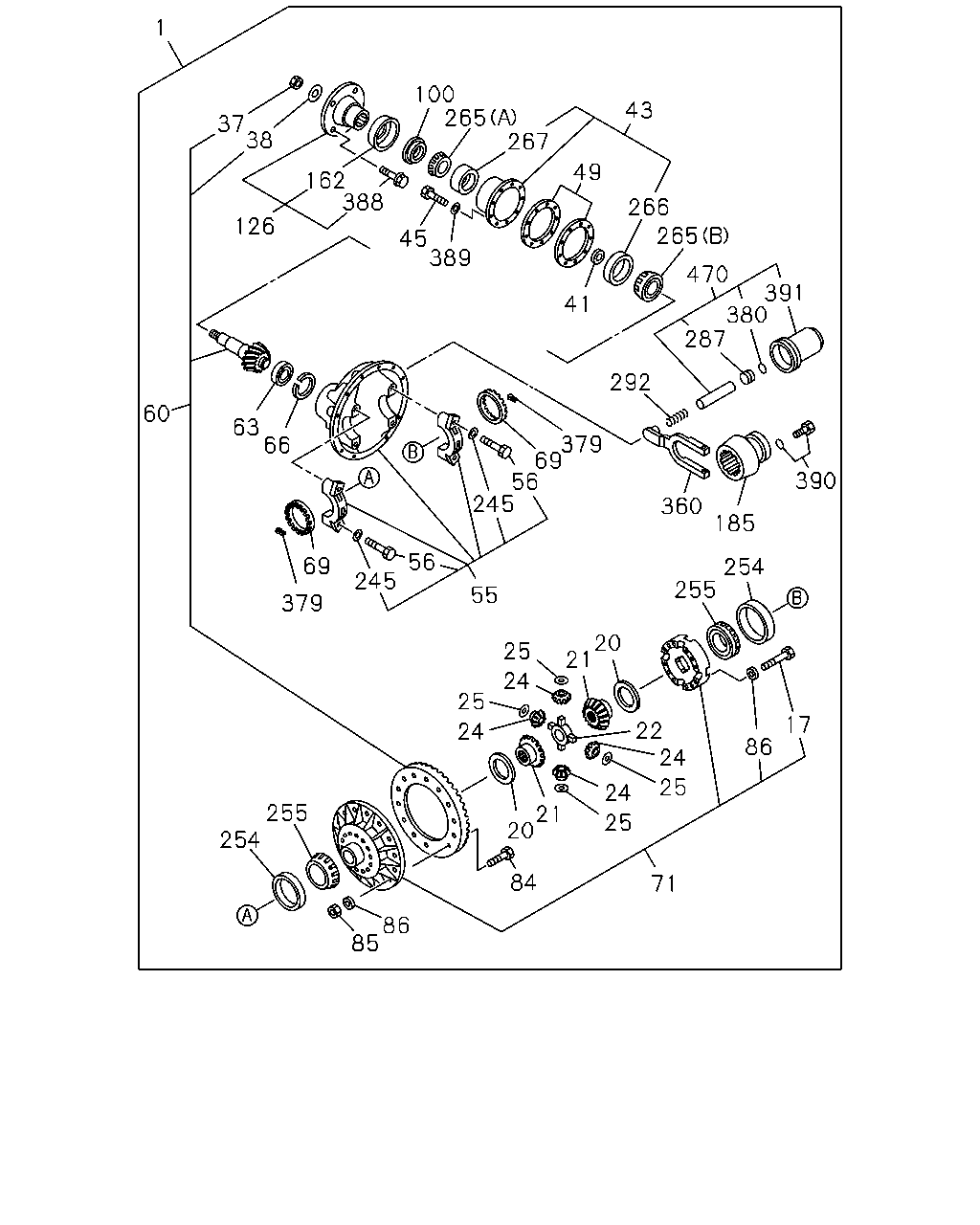

çizim 189812
1 100 265 43 267 37 38 49 162 388 266 126 265 45 389 470 391 380 287 41 292 60 63 66 379 69 56 245 390 360 185 56 69 24 255 245 55 379 20 21 25 24 25 17 22 24 24 86 25 24 255 254 21 20 25 84 71 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
44/9 		1-41003-348-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-742-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-900-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1009- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1009- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 1009- ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1009- ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1009- ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1009- ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1009- ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 1009- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 1009- ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 1009- ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 1009- ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 1009- ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 1009- ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1009- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-662-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-649-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-661-0 01 1 1009- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 1009- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 1009- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 1009- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 1009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 1009- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 1009- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1009- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 1009- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1009- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-364-0 01 1 1009- ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1009- ● ● ●
185 COLLAR; SHIFT FORK 1-41379-004-0 01 1 1009- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1009- ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 1009- ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 1009- ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 1009- ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 1009- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1009- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 1009- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 1009- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 1009- ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1009- ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1009- ● ● ●
360 FORK; SHIFT 1-41371-008-0 01 1 1009- ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 1009- ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 1009- ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1009- ● ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 1009- ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 1009- ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1009- ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1009- ● ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1009- ● ● ●
