◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11316 - FXM(AUST)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#70811) — 143 parça

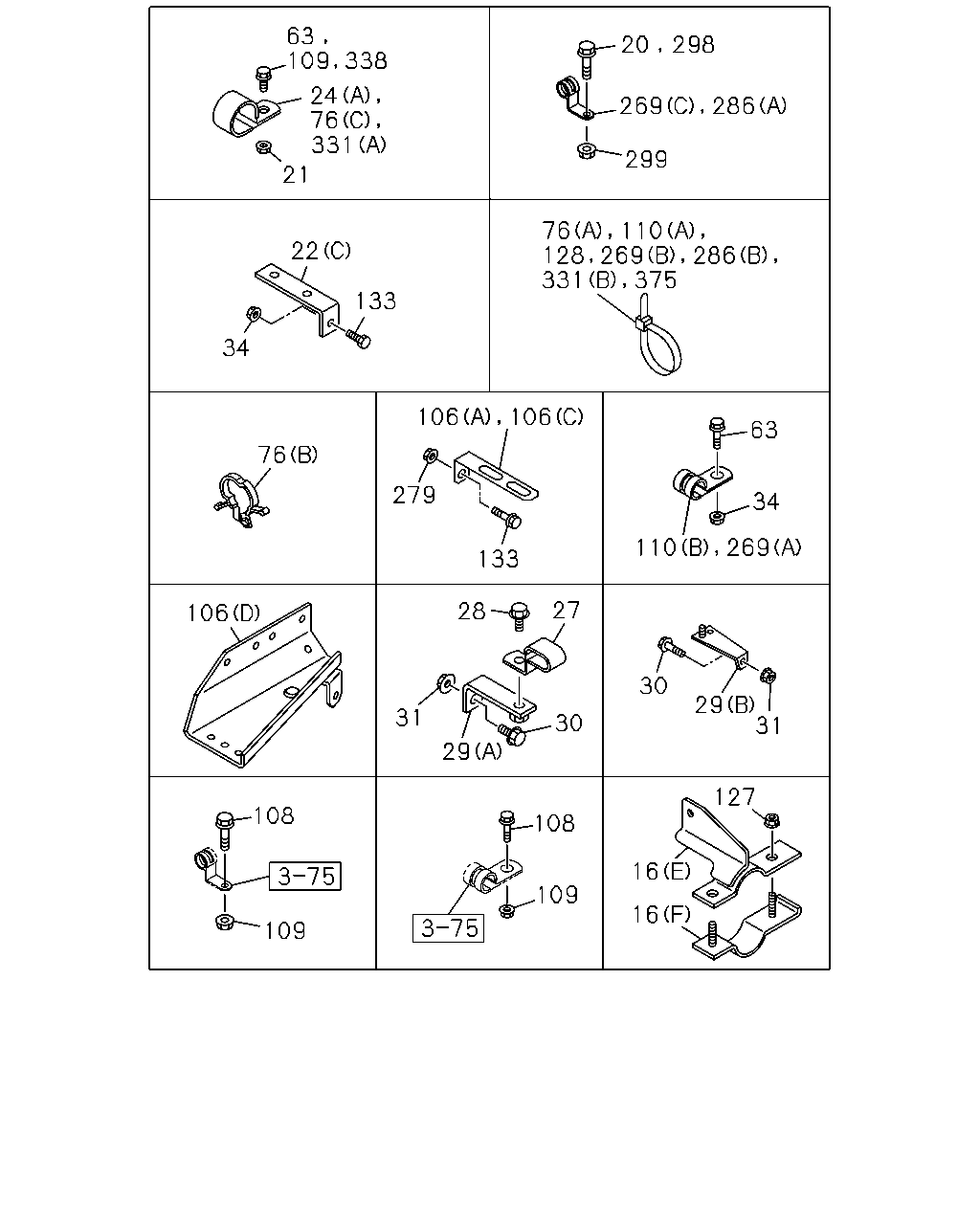

çizim 189805
63 24 76 331 299 21 76 110 22 133 34 106 106 63 76 279 34 133 27 28 106 30 29 31 31 30 29 127 108 108 16 109 16 109 109 338 20 298 269 286 128 269 286 331 375 110 269
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 03 1 1009-
16 BRACKET; PIPE CLIP
(B) 		1-47476-699-2 01 1 1009-
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(E) 		8-98199-761-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(E) 		8-98199-761-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(F) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(F) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(F) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(F) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(E) 		8-98212-968-0 01 1 1212-
16 BRACKET; PIPE CLIP
(E) 		8-98212-968-0 01 1 1212-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1009-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1009-1203
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1009-1203
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1204-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1204-
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1009-
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(C) L=95 		1-82698-557-0 01 1 1009-
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1009-
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X20 FLANGE 		0-28650-820-0 01 1 1009-1203
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		1-47475-927-0 01 1 1009-1010
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) L=68 		1-47475-525-0 01 1 1011-1203
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97609-096-0 01 1 1204-
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE 		0-28650-830-0 01 1 1009-1203
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X25 FLANGE 		0-28650-825-0 01 1 1204-
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1009-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1009-
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1009-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1009-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 1009-
106 BRACKET; TUBE CLIP
(D) 		8-98100-335-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1009-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 1009-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1110
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 1111-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-1110
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 10 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1009-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 1009-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1009-1203
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1204-
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 1009-1203
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 03 1 1204-
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1009-1203
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1204-
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1204-
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 03 1 1009-1203
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 32 1 1009-1203
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 34 1 1204-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009-
286 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009-
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1009-
298 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1009-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1009-
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1009-
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1009-

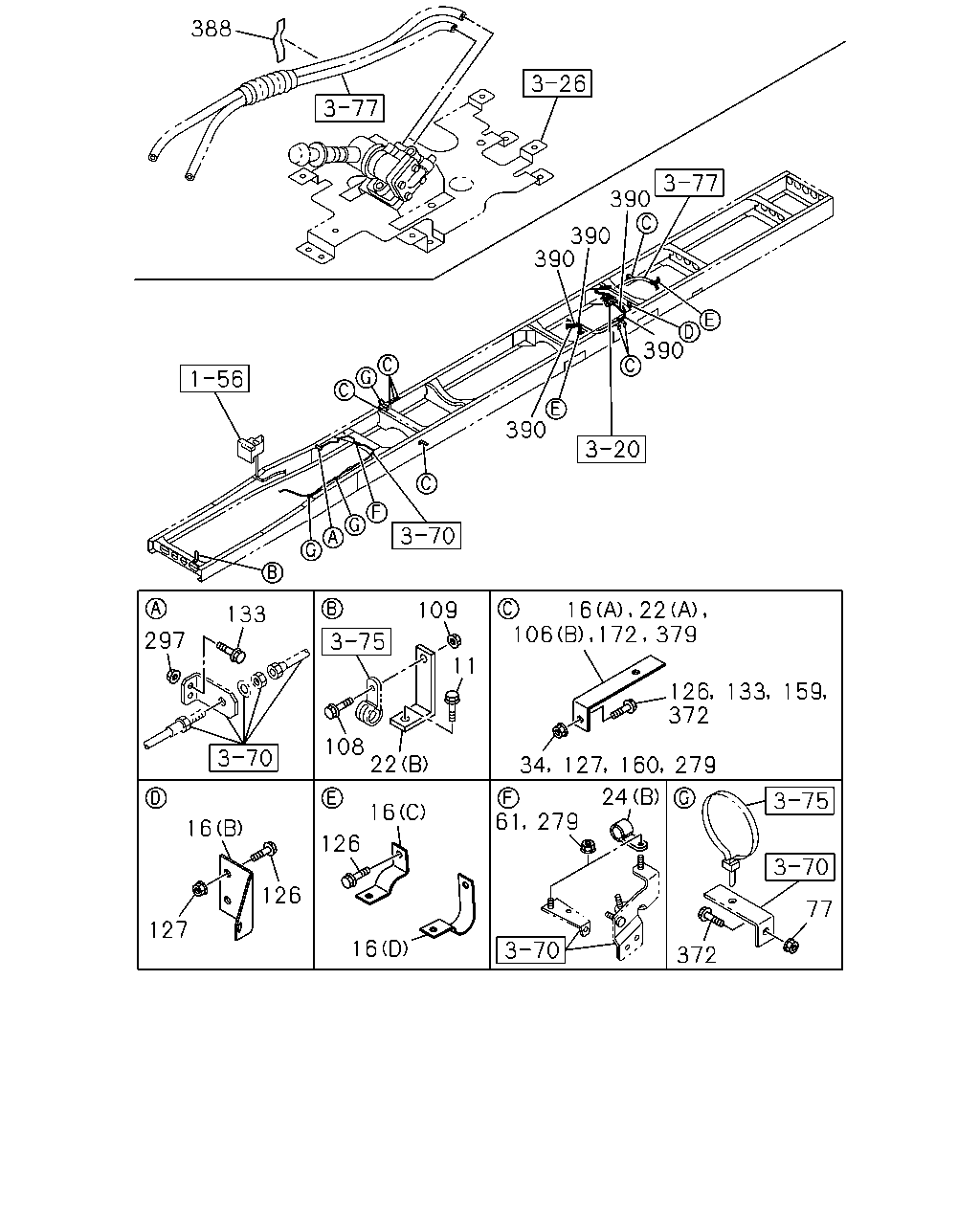

çizim 189807
388 390 390 390 390 390 106 109 133 297 11 126 372 133 159 108 22 34 127 160 279 24 61 16 279 16 126 126 77 127 16 372 172 379 16 22
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 03 1 1009-
16 BRACKET; PIPE CLIP
(B) 		1-47476-699-2 01 1 1009-
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(E) 		8-98199-761-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(E) 		8-98199-761-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(F) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(F) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 1009-1110
16 BRACKET; PIPE CLIP
(F) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(F) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(E) 		8-98212-968-0 01 1 1212-
16 BRACKET; PIPE CLIP
(E) 		8-98212-968-0 01 1 1212-
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1009-
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(C) L=95 		1-82698-557-0 01 1 1009-
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1009-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1009-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1009-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 1009-
106 BRACKET; TUBE CLIP
(D) 		8-98100-335-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1110
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1110
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1009-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1110
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 1111-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-1110
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1009-
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
172 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
379 BRACKET; NYLON TUBE
L=60 H=30 		1-47477-716-1 02 1 1009-
388 SEAL
100X40 		1-72498-022-1 03 1 1009-
390 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
390 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
