3-20 — AIR TANK (#70800) — 272 parça

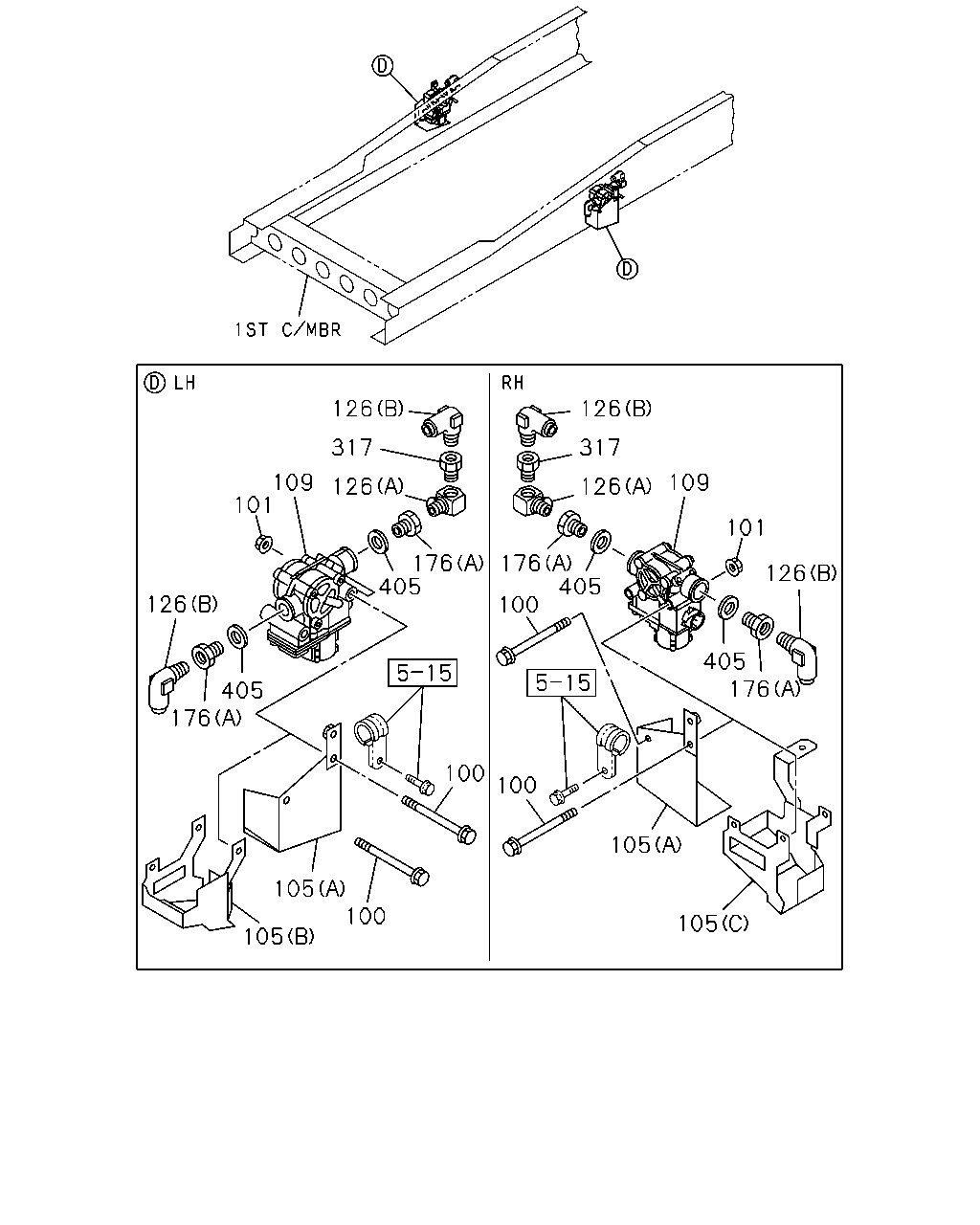

çizim 115478
126 317 109 101 126 176 405 126 405 176 105 100 105 100 100 105 105 100 176 126 317 126 109 101 126 405 176 405
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1009-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1009-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-152-0 01 1 1505-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98164-196-0 01 1 1009-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-155-0 01 1 1505-
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1009-1504
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1009-
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1009-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 1009-

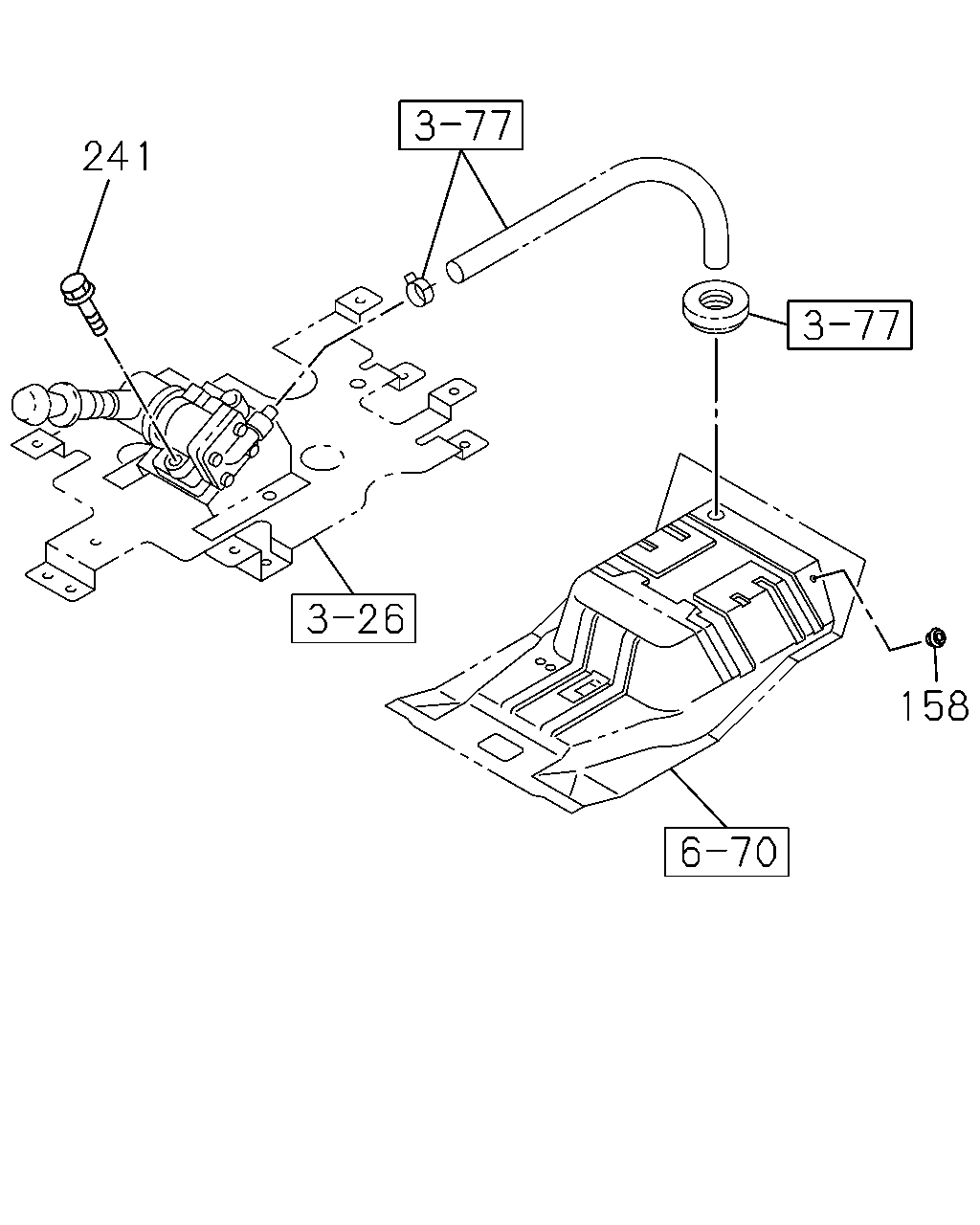

çizim 115666
241 158
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1009-
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1009-

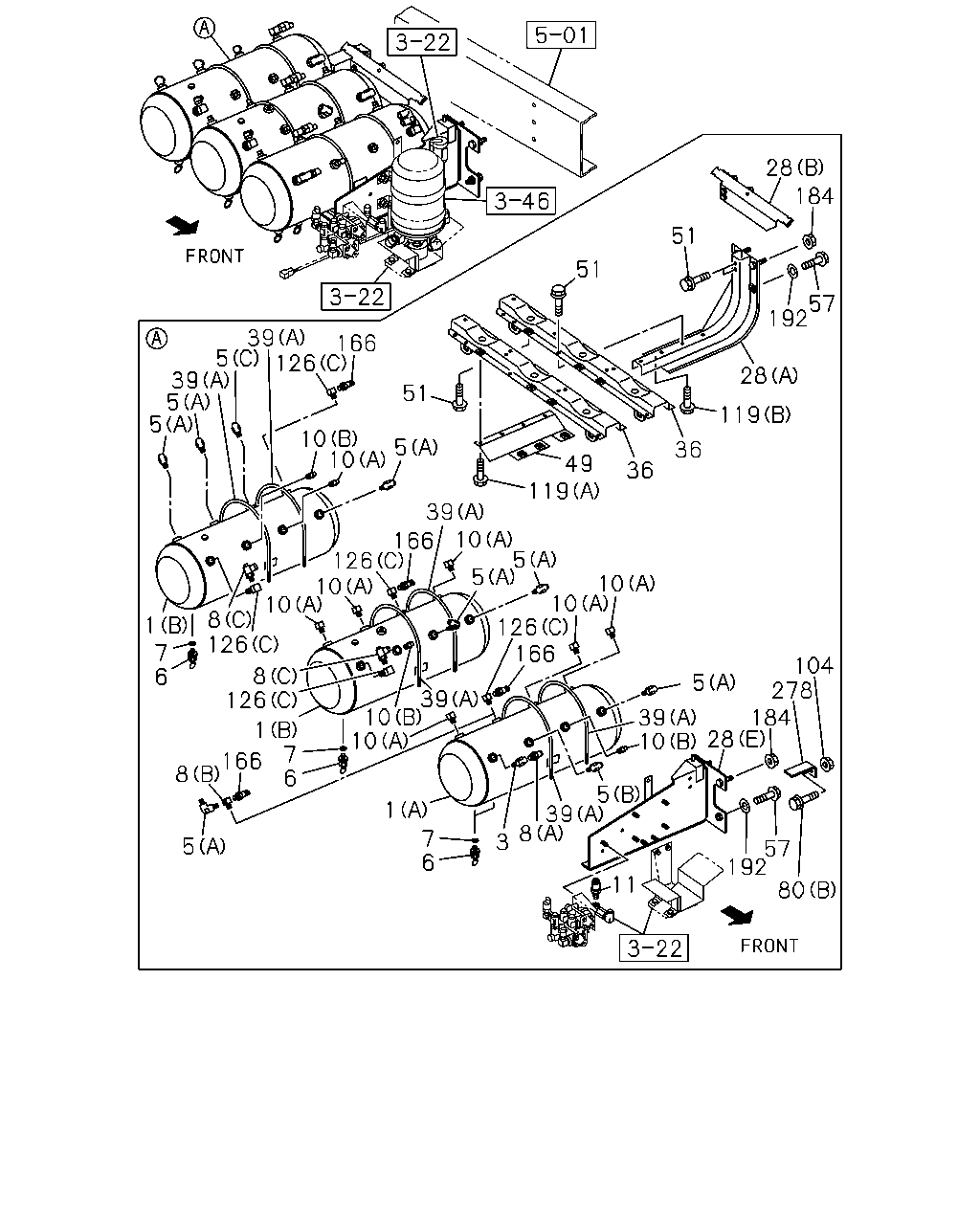

çizim 189793
28 184 51 51 57 192 39 166 5 126 39 5 5 28 51 119 10 10 5 36 49 11 36 39 10 5 166 126 10 5 10 10 126 166 10 8 126 1 7 6 104 278 184 28 8 126 5 39 10 10 39 10 1 7 6 166 8 5 1 39 8 7 6 3 5 57 192 11 80
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1009-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1009-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1009-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1009-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1009-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1009-
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1009-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1009-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1009-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1009-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1009-
36 STAY; MAIN TANK 8-97618-091-1 02 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1009-
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1009-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1009-
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009-
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
104 NUT; BRKT
M10 		0-91110-510-0 04 1 1009-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1009-
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1009-
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1009-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1009-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1009-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1009-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1009-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1009-

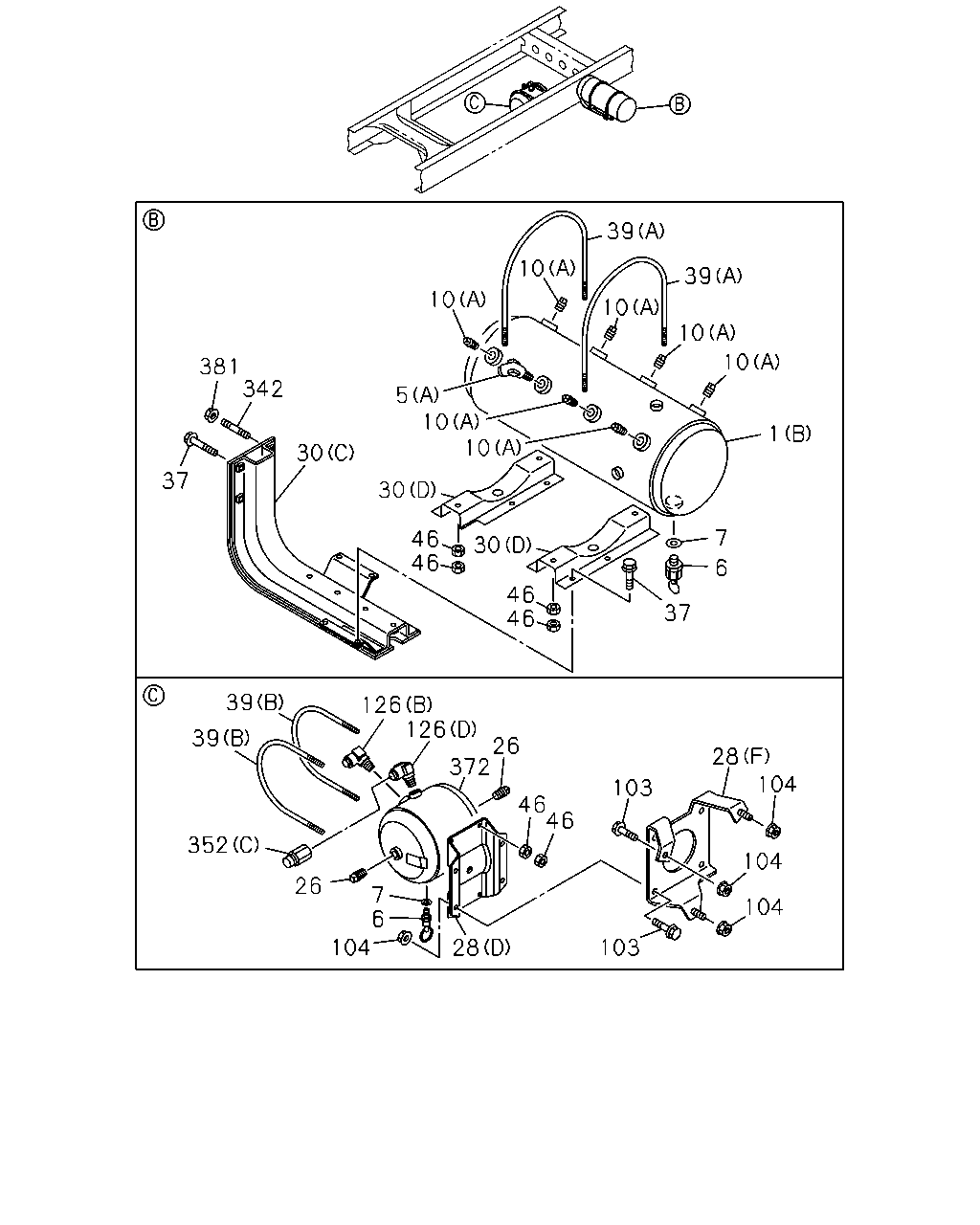

çizim 189799
39 10 39 10 10 10 10 381 342 5 10 10 1 30 37 30 7 46 46 30 6 46 46 37 39 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1009-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1009-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1009-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1009-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1009-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1009-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1009-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 1009-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1009-
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1009-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1009-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1009-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1009-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1009-
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1009-
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1009-
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1009-
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1009-
37 BOLT; AIR TANK
M10X25 FLANGE 		0-28651-025-0 08 1 1009-
37 BOLT; AIR TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1009-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1009-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
104 NUT; BRKT
M10 		0-91110-510-0 04 1 1009-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1009-
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
342 STUD
M10X30 L=45 		8-98035-675-0 02 1 1009-
352 CONNECTOR; STRAIGHT
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1009-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1009-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1009-
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 1009-

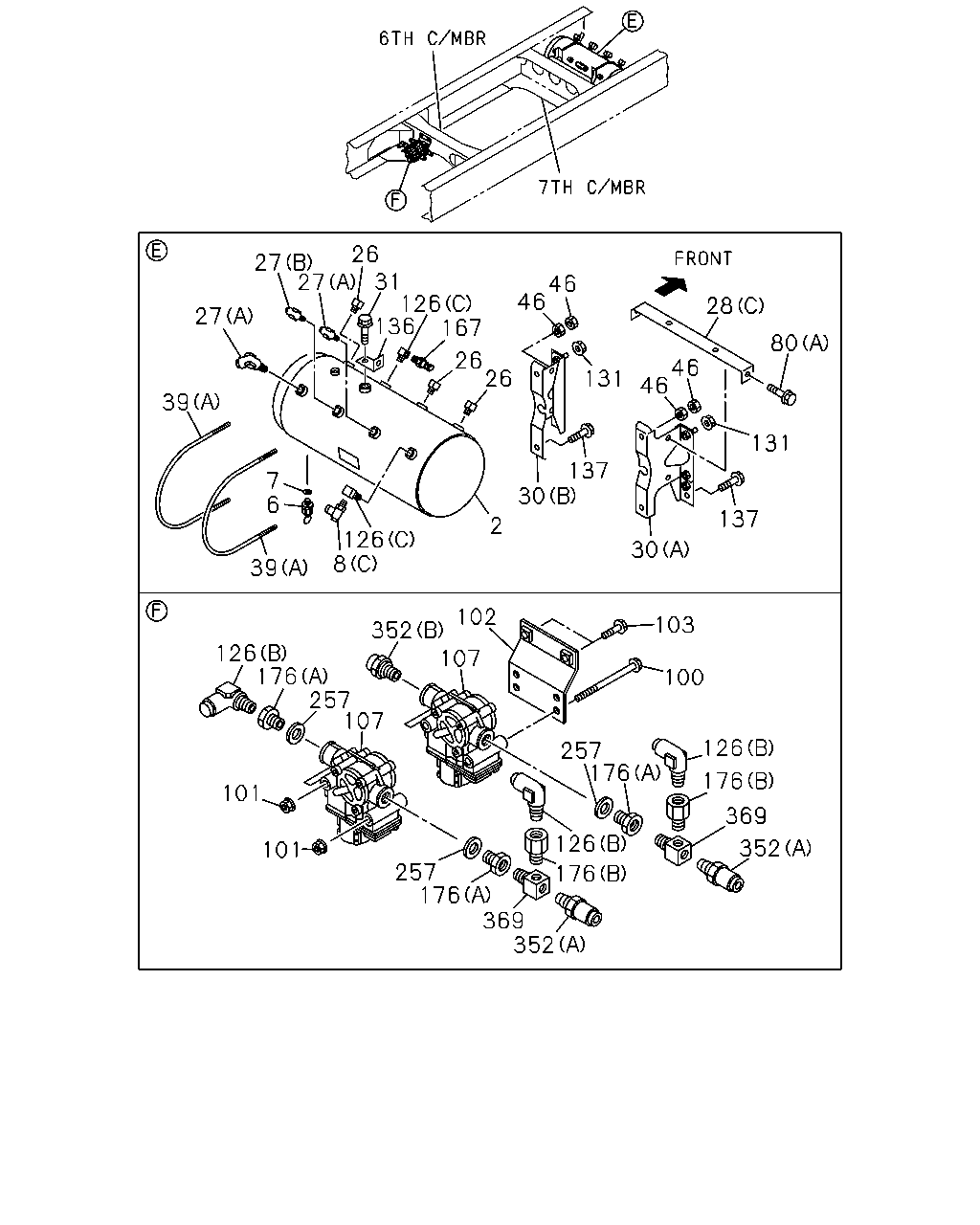

çizim 189802
26 126 136 167 27 27 46 46 28 27 80 26 26 46 46 131 39 131 137 30 7 6 137 2 126 8 30 39 102 103 352 107 126 176 257 107 100 126 257 176 176 101 369 126 352 101 257 176 176 369 352 31
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR 8-97617-855-1 01 1 1009-1106
2 TANK; AIR 8-98187-713-0 01 1 1107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1009-
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1009-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1009-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 1009-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1009-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1009-
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1009-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1009-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1009-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1009-
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1009-
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1009-
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1009-
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1009-
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1009-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-1203
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1204-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1203
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1204-
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009-
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1009-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98034-539-2 01 1 1009-1504
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98272-821-0 01 1 1505-
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1009-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1009-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 1009-1504
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 1009-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1009-
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 1009-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1009-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1009-
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 03 1 1009-
352 CONNECTOR; STRAIGHT
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1009-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1009-
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY 		1-09661-300-0 02 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
