◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#7078) — 117 parça

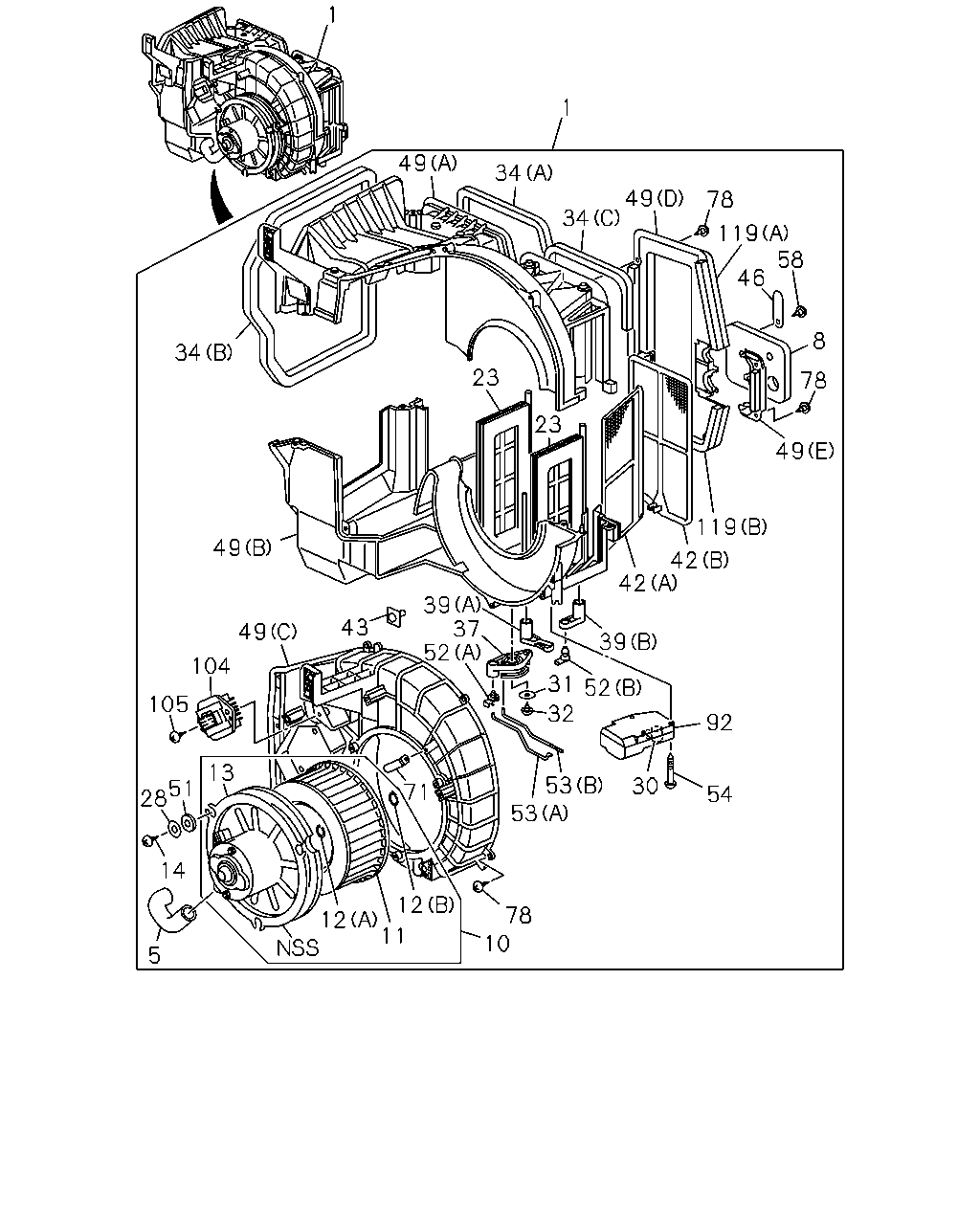

çizim 7579
1 1 49 34 49 34 78 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 52 43 49 39 104 31 52 105 32 92 13 53 53 30 51 28 71 54 14 12 78 10 12 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-155-2 01 1 9908-
1 BLOWER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-110-4 01 1 9908-
5 HOSE; AIR 1-83563-147-0 01 1 9908-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9908-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-801-1 01 1 9908-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-121-0 01 1 9908-0007
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-121-0 01 1 0008-0011
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-164-0 01 1 0008-0011
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0012-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 9908-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9908-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9908-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9908-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 9908-0011
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0012-
14 SCREW; COVER TO CASE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9908-0011
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 9908-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9908-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9908-
31 WASHER; LEVER 1-83579-095-0 01 1 9908-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9908-0011
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0012-
32 SCREW; LEVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9908-0011
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9908-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 9908-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 9908-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 9908-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 9908-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 9908-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-0 01 1 9908-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9908-0011
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0012-
42 FILTER; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-933-0 02 1 9908-0011
43 BOLT; CASE 1-83579-657-2 04 1 9908-
46 PLATE; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-870-1 01 1 9908-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 9908-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 9908-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 9908-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 9908-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 9908-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 9908-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-369-0 01 1 9908-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9908-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 9908-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 9908-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9908-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 9908-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9908-
58 SCREW; PLATE TO CASE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 9908-
71 CLIP; HARNESS 8-97096-145-0 01 1 9908-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 9908-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 9908-
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9908-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9908-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9908-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9908-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 9908-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 9908-

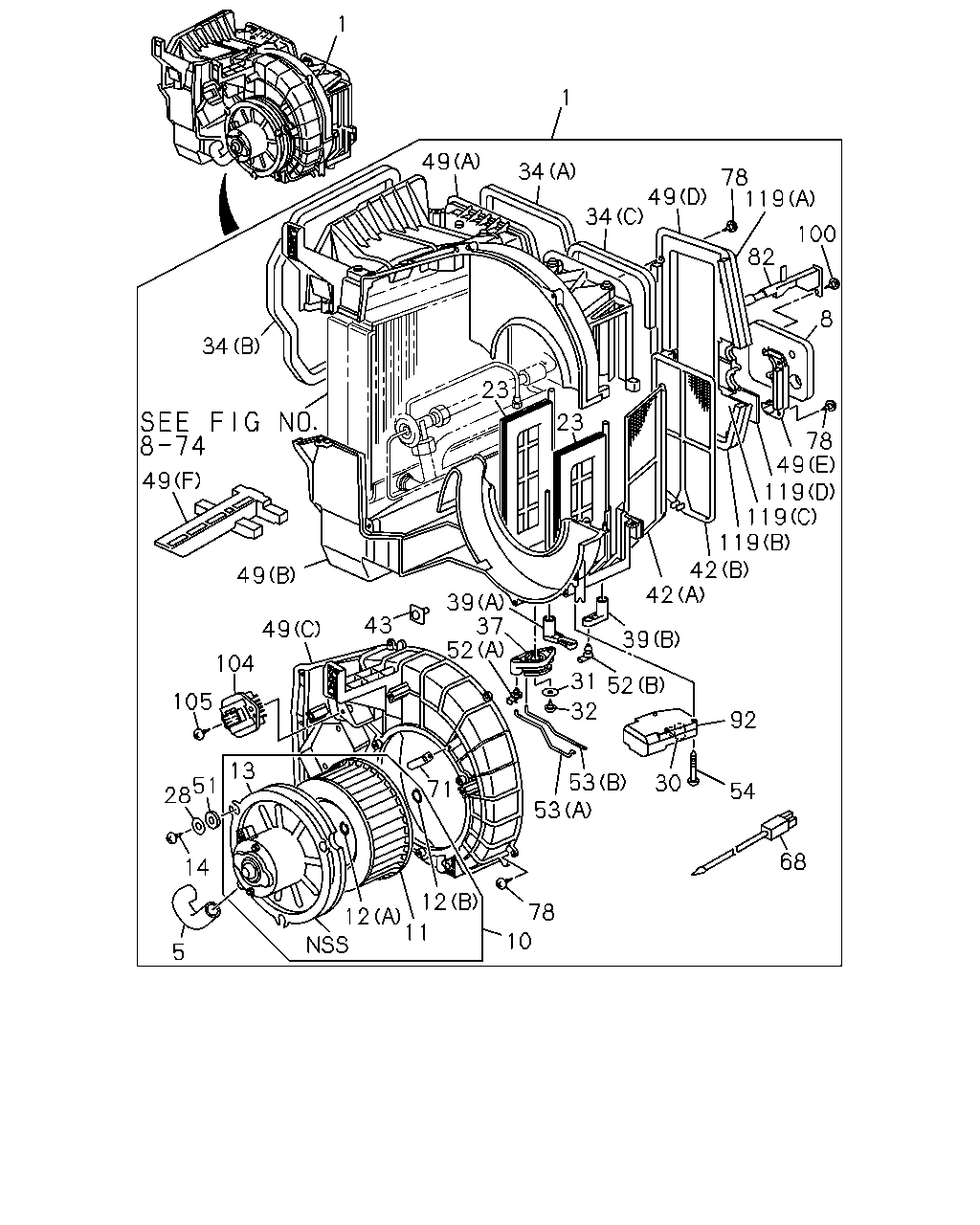

çizim 10104
1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 13 53 53 30 51 28 71 54 68 14 12 78 12 11 10 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-155-2 01 1 9908-
1 BLOWER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-110-4 01 1 9908-
5 HOSE; AIR 1-83563-147-0 01 1 9908-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9908-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-801-1 01 1 9908-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-121-0 01 1 9908-0007
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-121-0 01 1 0008-0011
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-164-0 01 1 0008-0011
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0012-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 9908-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9908-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9908-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9908-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 9908-0011
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0012-
14 SCREW; COVER TO CASE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9908-0011
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 9908-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9908-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9908-
31 WASHER; LEVER 1-83579-095-0 01 1 9908-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9908-0011
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0012-
32 SCREW; LEVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9908-0011
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9908-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 9908-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 9908-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 9908-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 9908-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 9908-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-0 01 1 9908-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9908-0011
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0012-
42 FILTER; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-933-0 02 1 9908-0011
43 BOLT; CASE 1-83579-657-2 04 1 9908-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 9908-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 9908-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 9908-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 9908-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 9908-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 9908-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-369-0 01 1 9908-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9908-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 9908-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 9908-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9908-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 9908-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9908-
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 9908-
71 CLIP; HARNESS 8-97096-145-0 01 1 9908-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 9908-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 9908-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 9908-
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 9908-
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9908-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9908-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9908-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9908-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 9908-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 9908-
