Isuzu WW
▶
TRUCKS
▶
FXM
▶
11316 - FXM(AUST)EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#70775) — 37 parça
◀

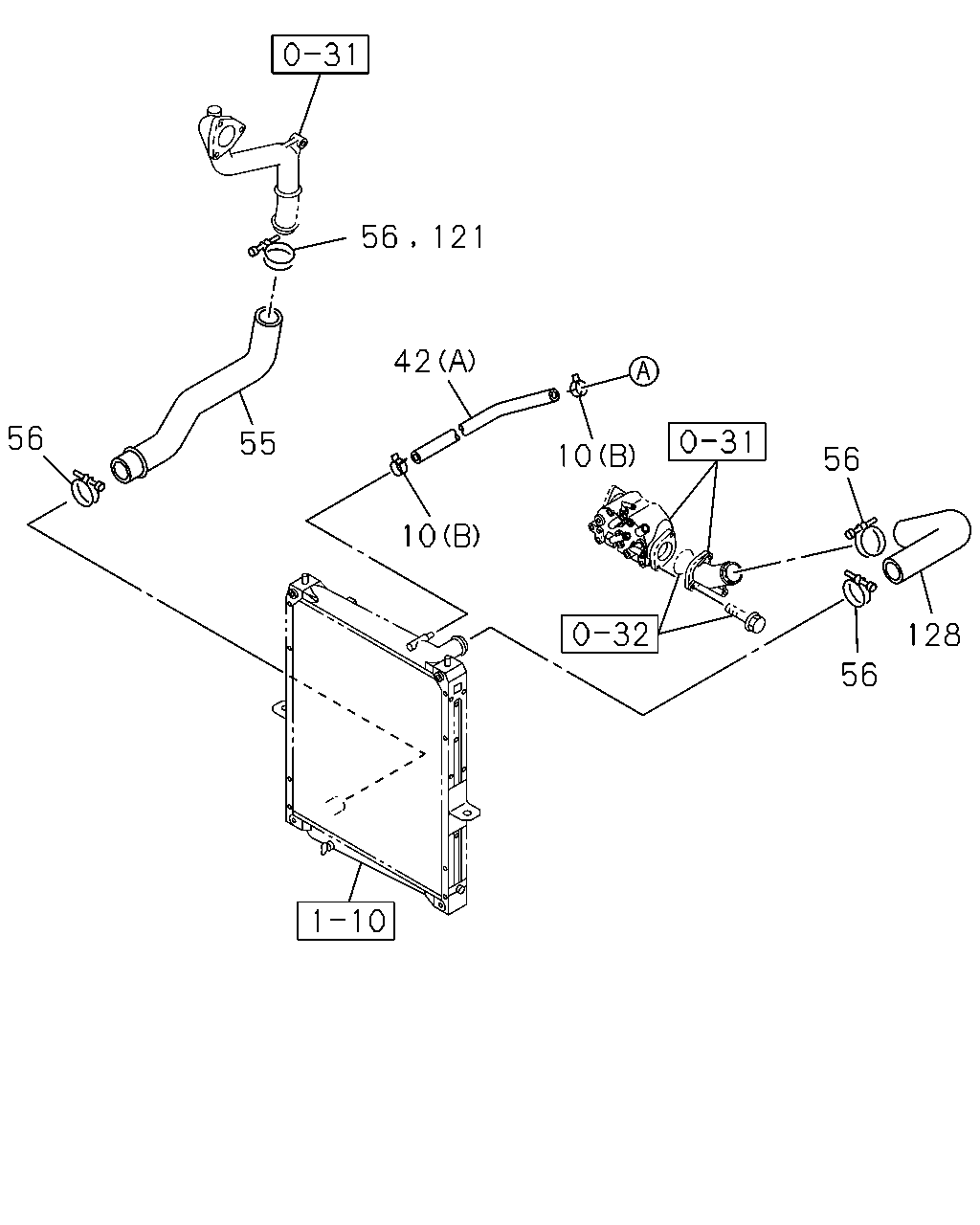

[111A] RADIATOR SIDE (12 parça)

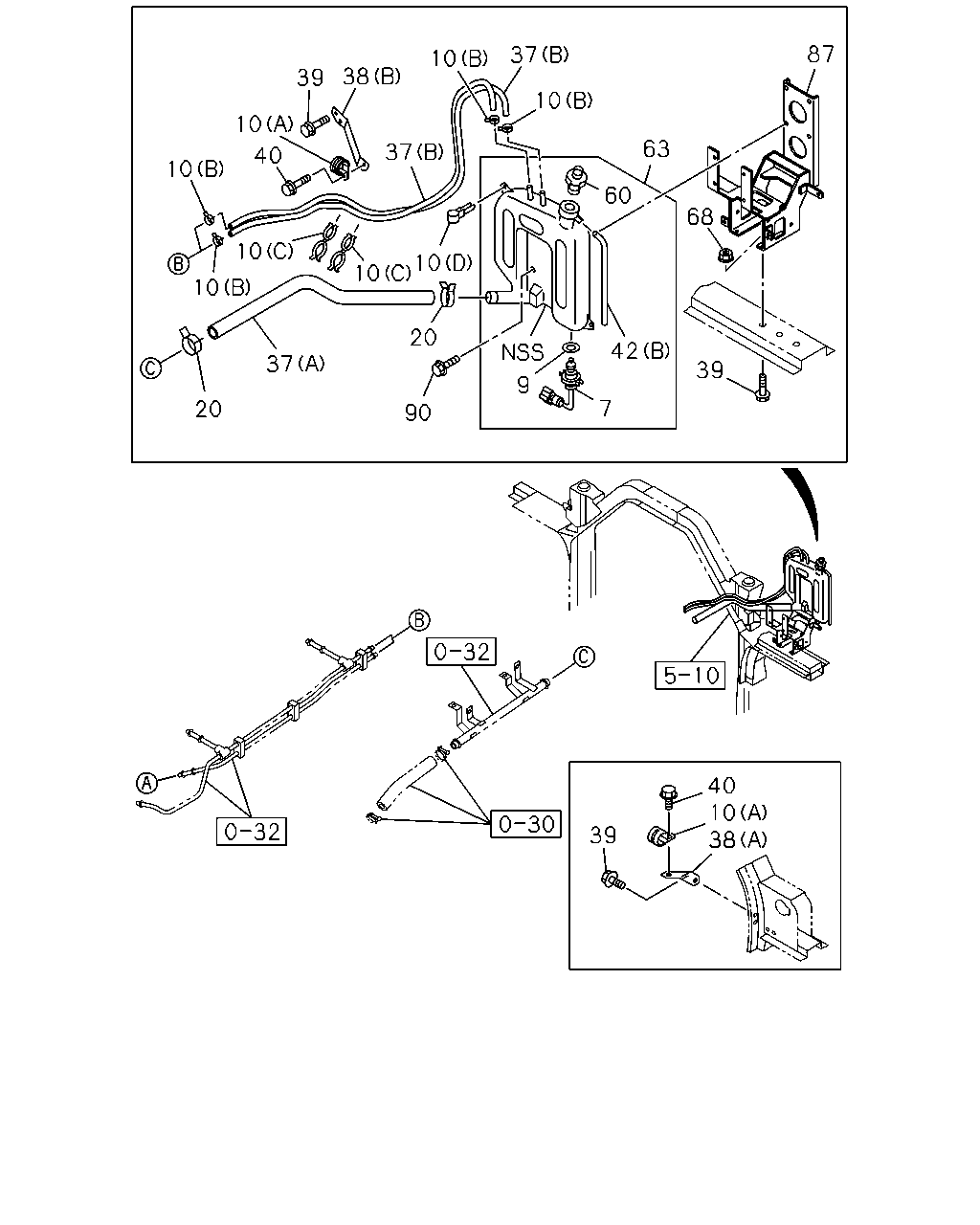

[111A] SUB TANK SIDE (25 parça)
▶
56
55
42
10
10
56
56
128
56
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(A) ID=28 L=58
1-09700-400-0
02
1
1009-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
02
1
1009-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1009-
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
08
1
1009-
42
HOSE; RUBBER
(A) L=480 SERVICED BY L=3000
0-03559-300-0
01
1
1009-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
1009-
55
HOSE; WATER,RAD OUTLET
1-21430-209-1
01
1
1009-1310
55
HOSE; WATER,RAD OUTLET
8-98254-940-0
01
1
1311-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1009-1308
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
03
1
1309-
121
CLAMP; HOSE
ID=75
8-98206-613-0
01
1
1309-
128
HOSE; WATER,RAD INL
1-21437-976-1
01
1
1009-
87
37
10
38
39
10
10
63
37
40
10
60
68
10
10
10
10
20
42
37
39
9
7
20
90
40
10
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
1009-1206
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1207-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1009-
10
CLIP; RUBBER HOSE
(A) ID=28 L=58
1-09700-400-0
02
1
1009-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
02
1
1009-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1009-
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
08
1
1009-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1009-
37
HOSE; RUBBER
(A) L=1350 SERVICED BY L=3000
0-03559-300-0
02
1
1009-
37
HOSE; RUBBER
(B)
8-98055-703-0
01
1
1009-
38
BRACKET; RUBBER HOSE
(A)
8-97608-796-0
01
1
1009-
38
BRACKET; RUBBER HOSE
(B)
8-98055-724-1
01
1
1009-
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
01
1
1009-
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1009-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
1009-
42
HOSE; RUBBER
(A) L=480 SERVICED BY L=3000
0-03559-300-0
01
1
1009-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
1009-
60
CAP; SUB TANK
1-21450-137-0
01
1
1009-
63
TANK ASM; SUB
1-21481-143-2
01
1
1009-
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
1009-
87
BRACKET; SUB TANK
8-98055-722-1
01
1
1009-1308
87
BRACKET; SUB TANK
8-98244-206-0
01
1
1309-
90
BOLT; SUB TANK TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1009-1308
90
BOLT; SUB TANK TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1309-
90
BOLT; SUB TANK TO BRKT
M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1009-
