8-71 — COMPRESSOR; AIR CONDITIONING (#7077) — 30 parça

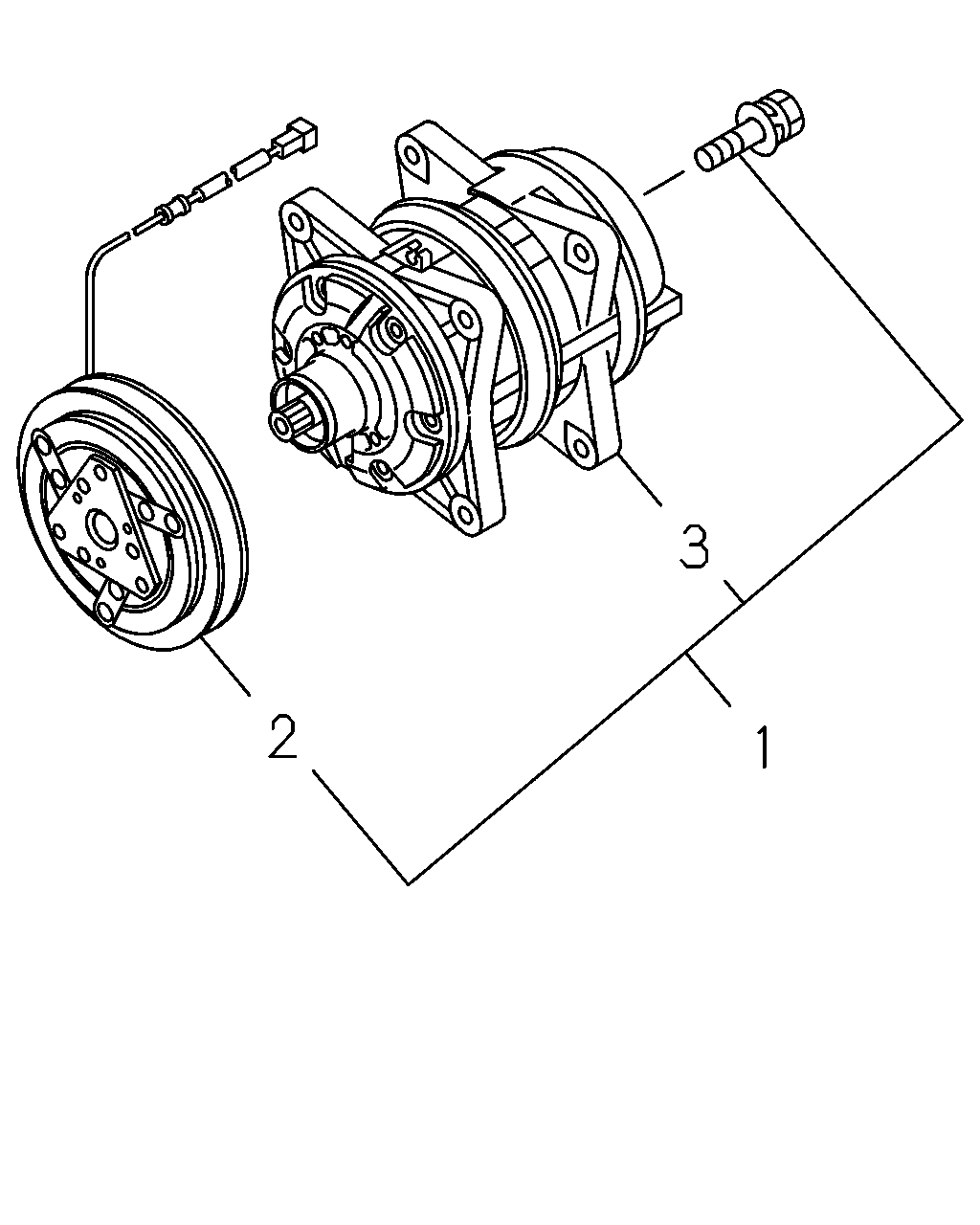

çizim 10103
3 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83532-278-0 01 1 9908-9910
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-278-0 01 1 9911-0209
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-270-2 01 1 0210-
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83533-041-0 01 1 9908-9910
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-041-0 01 1 9911-0209
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-043-0 01 1 0210-
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83532-292-0 01 1 9908-9910
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-292-0 01 1 9911-0209
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-274-0 01 1 0210-

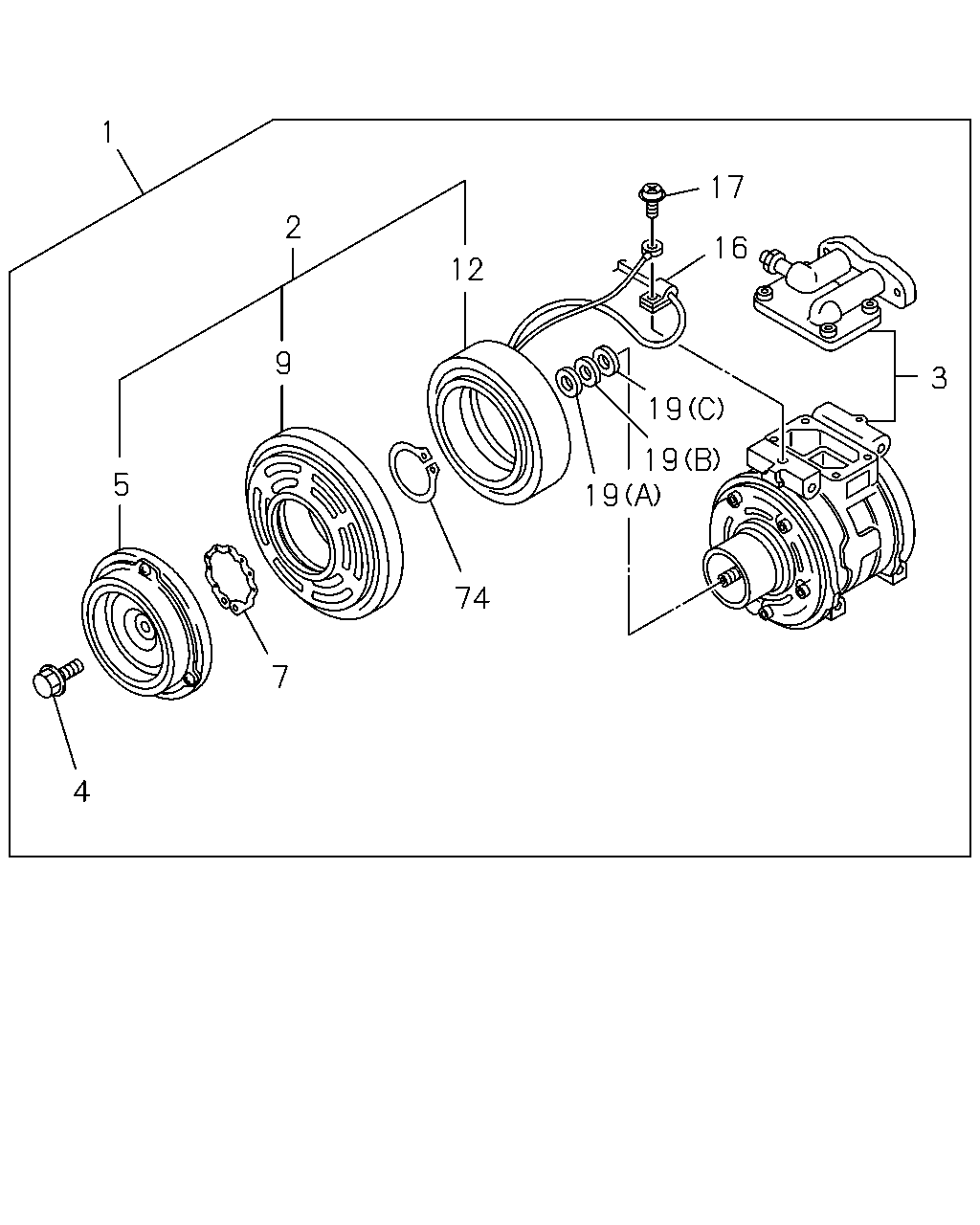

çizim 42097
1 17 2 16 12 9 3 19 19 19 5 74 7 4
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83532-278-0 01 1 9908-9910
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-278-0 01 1 9911-0209
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-270-2 01 1 0210-
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83533-041-0 01 1 9908-9910
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-041-0 01 1 9911-0209
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-043-0 01 1 0210-
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83532-292-0 01 1 9908-9910
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-292-0 01 1 9911-0209
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-274-0 01 1 0210-
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-323-0 01 1 0210-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) PRESS 		1-83579-886-0 01 1 0210-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) FORGING 		1-83579-887-0 01 1 0210-
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-888-0 01 1 0210-
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-885-0 01 1 0210-
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-322-0 01 1 0210-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 0210-
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 0210-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1 		1-83579-890-0 01 1 0210-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3 		1-83579-891-0 01 1 0210-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5 		1-83579-892-0 01 1 0210-
74 RING; SNAP,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-889-0 01 1 0210-
