Isuzu WW
▶
TRUCKS
▶
FXM
▶
11316 - FXM(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

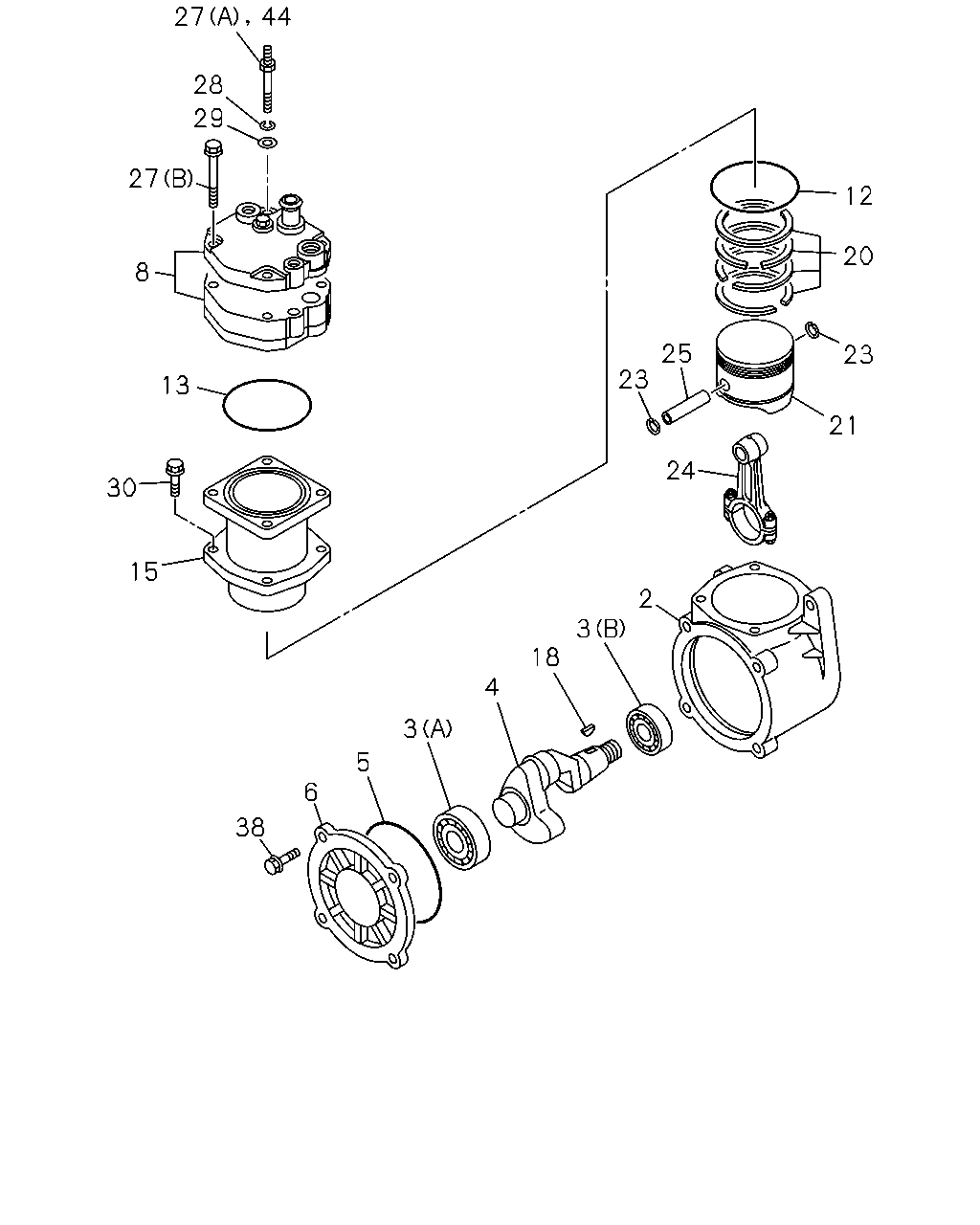

0-39 — AIR COMPRESSOR; BRAKE
(#70761) — 31 parça
27
44
28
29
27
8
13
30
15
38
6
5
3
4
18
3
2
24
25
23
21
23
20
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19171-091-1
01
1
1009-
3
BEARING; AIR CMPR
(B)
1-09800-311-0
01
1
1009-
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
1009-
4
CRANKSHAFT; AIR CMPR
1-19171-092-0
01
1
1009-
5
GASKET; AIR CMPR
1-09623-686-0
01
1
1009-
6
COVER ASM; BRG,AIR CMPR
1-19156-087-0
01
1
1009-
8
HEAD ASM; CYL,AIR CMPR
8-98054-613-0
01
1
1009-1201
8
HEAD ASM; CYL,AIR CMPR
8-98207-934-0
01
1
1202-1301
8
HEAD ASM; CYL,AIR CMPR
8-98233-398-0
01
1
1302-1401
8
HEAD ASM; CYL,AIR CMPR
8-98271-056-0
01
1
1402-
12
GASKET; AIR CMPR
1-09623-651-1
01
1
1009-
13
GASKET; AIR CMPR
1-09623-650-1
01
1
1009-
15
CYLINDER; AIR CMPR
8-98054-612-0
01
1
1009-1301
15
CYLINDER; AIR CMPR
8-98233-399-0
01
1
1302-
18
KEY; AIR CMPR
9-08055-516-0
01
1
1009-
20
RING KIT; PISTON,AIR CMPR
1-19163-064-0
01
1
1009-1209
20
RING KIT; PISTON,AIR CMPR
8-98231-458-0
01
1
1210-
21
PISTON; AIR CMPR
1-19161-023-0
01
1
1009-1209
21
PISTON; AIR CMPR
8-98231-457-0
01
1
1210-1508
21
PISTON; AIR CMPR
8-98302-840-0
01
1
1509-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-001-0
02
1
1009-
24
ROD ASM; CONN,AIR CMPR
1-19171-093-0
01
1
1009-
25
PIN; PISTON,AIR CMPR
1-19167-007-0
01
1
1009-
27
BOLT; HD
(B) M10X80
8-98038-666-0
03
1
1009-1012
27
BOLT; HD
(B) M10X75
8-98167-018-0
03
1
1101-
27
BOLT; HD
(A)
8-98119-751-0
01
1
1009-1203
28
WASHER; LK,HD BOLT
8-97613-694-0
01
1
1009-
29
WASHER; PL,HD BOLT
8-97613-686-0
01
1
1009-
30
BOLT; CYL TO CRANKCASE
M10X30
8-97613-704-0
04
1
1009-
38
BOLT; COVER FIX
M10X30
8-97613-704-0
04
1
1009-
44
STUD; CYL HD,AIR CMPR
8-98119-751-0
01
1
1204-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
