Isuzu WW
▶
TRUCKS
▶
FXM
▶
11316 - FXM(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#70752) — 38 parça
◀

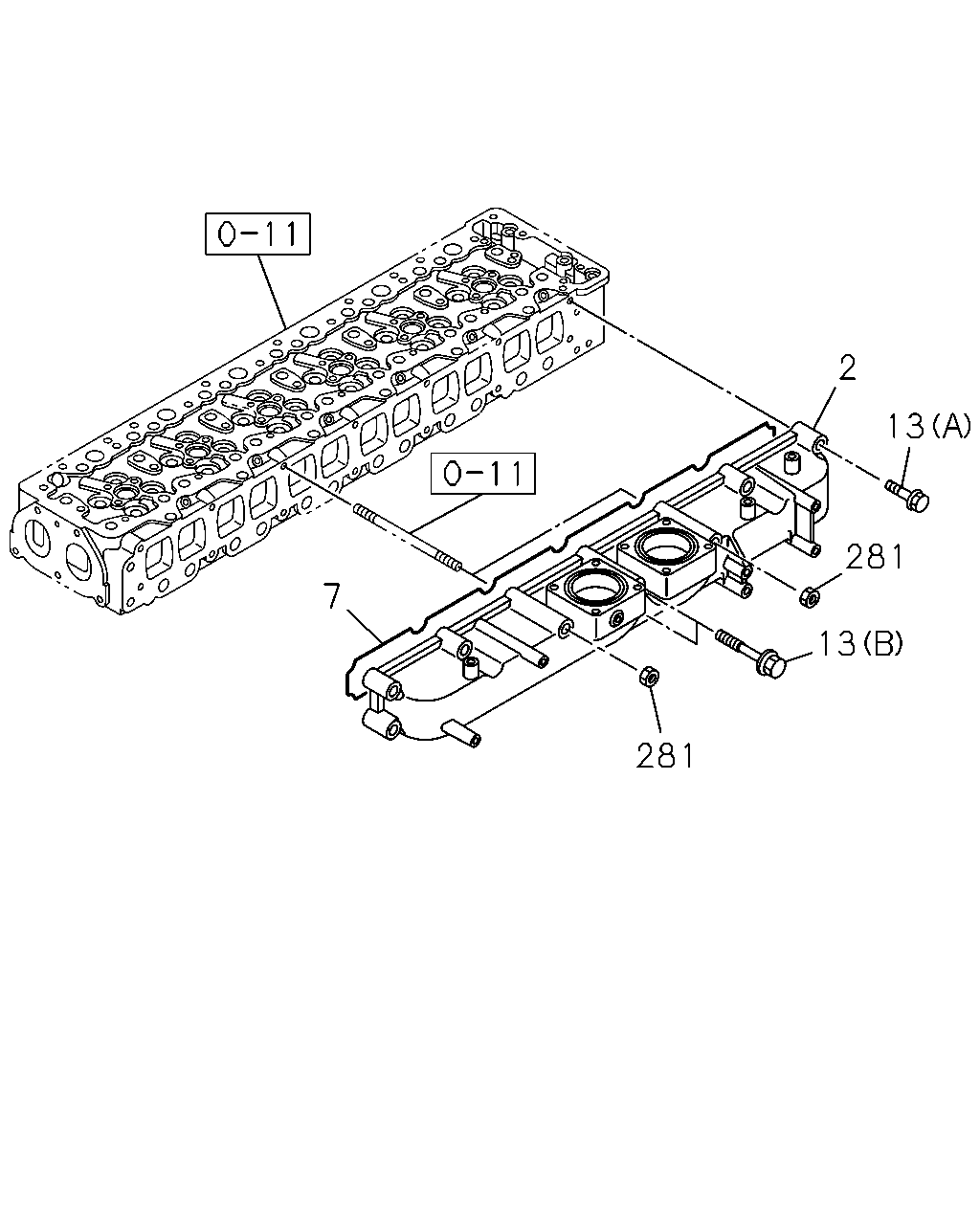

[025A] INLET COVER (5 parça)

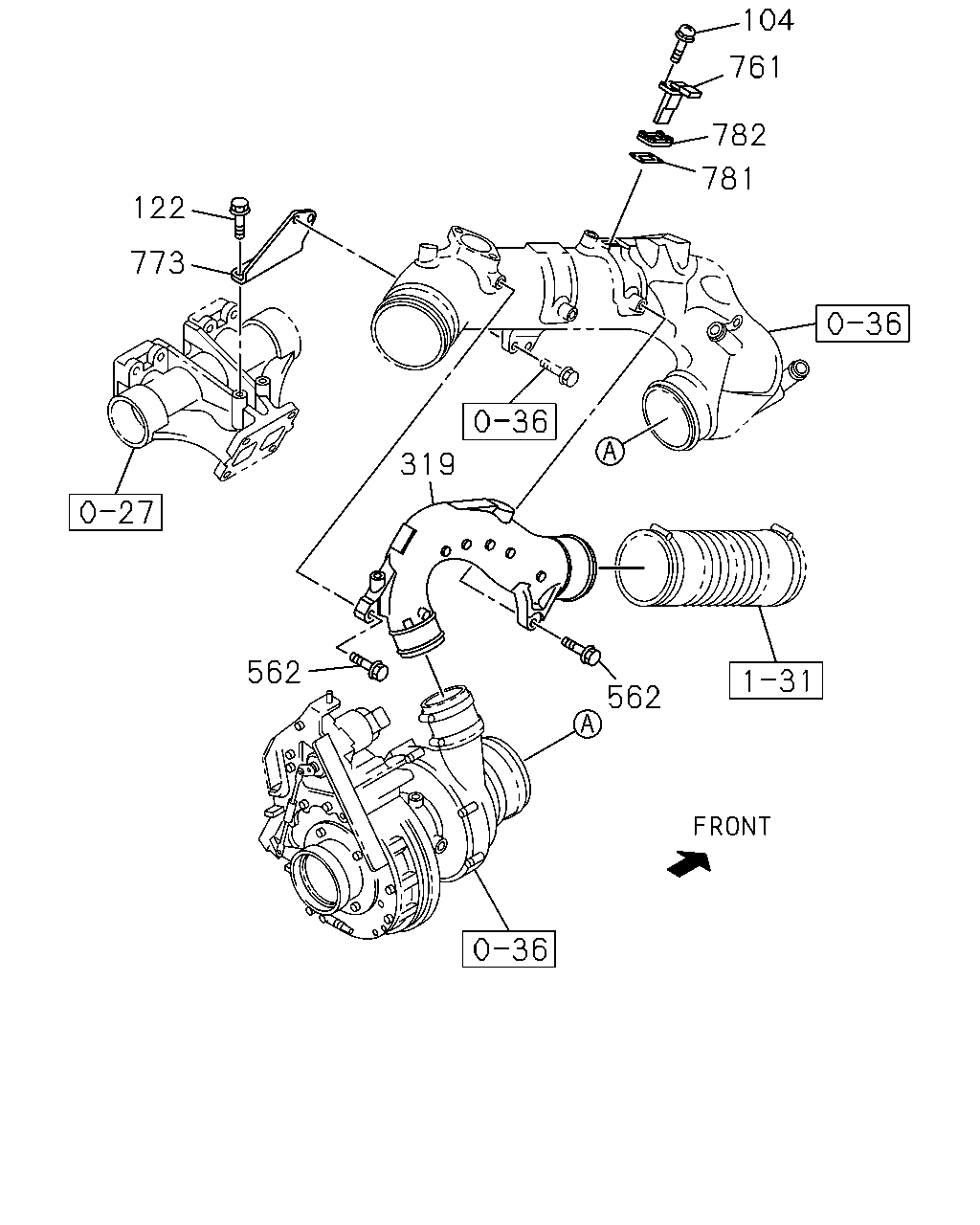

[025A] TURBOCHARGER SIDE (11 parça)

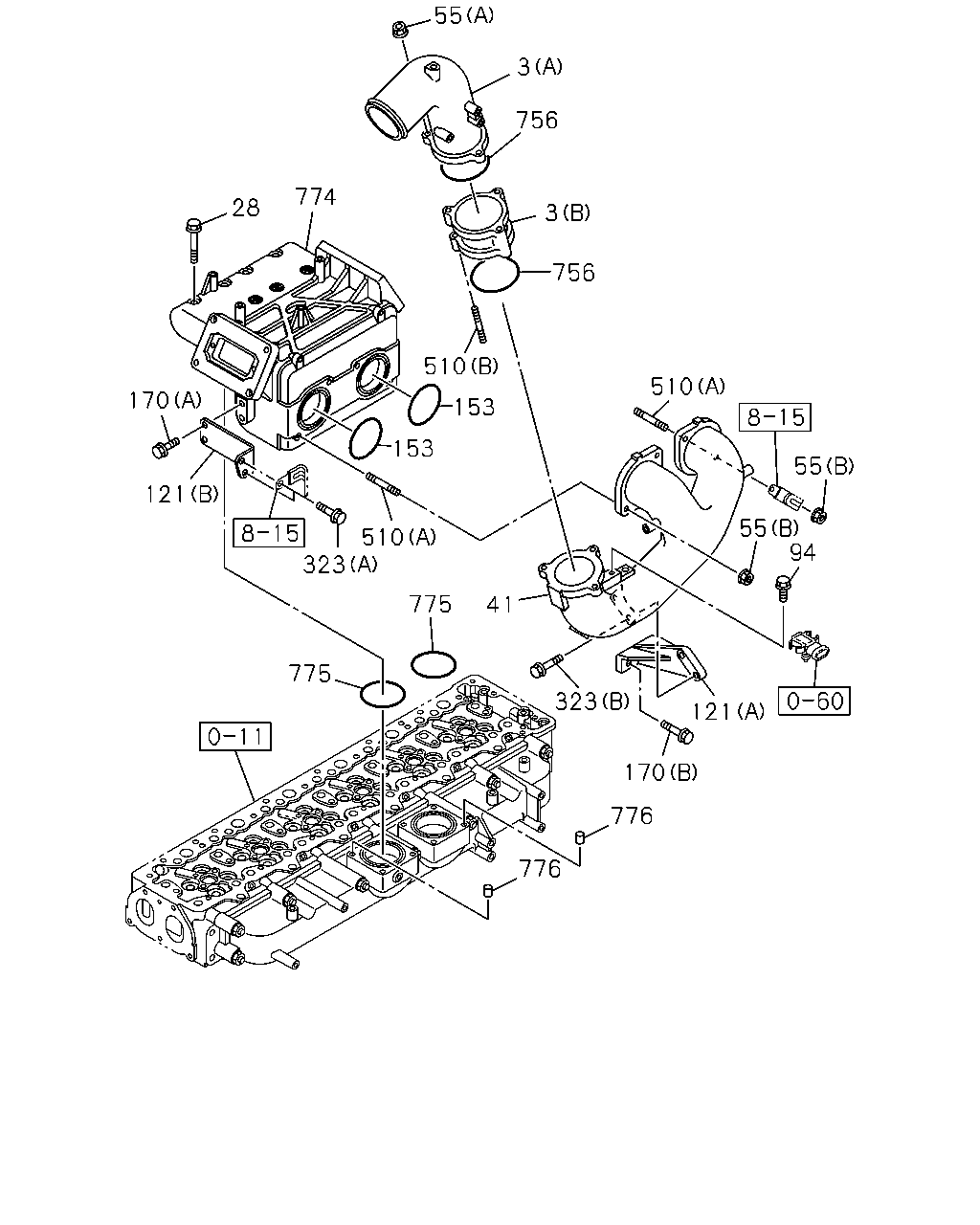

[025A] INLET DUCT (22 parça)
▶
2
13
281
7
13
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-97605-496-0
01
1
1009-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97603-676-0
01
1
1009-
13
BOLT; INL MANIF
(A) M10X110 FLANGE
0-28156-011-0
02
1
1009-
13
BOLT; INL MANIF
(B) M10X55 FLANGE
8-97365-449-0
10
1
1009-
281
NUT; INL COVER
M10 FLANGE
0-91180-110-0
02
1
1009-
104
761
782
781
122
773
319
562
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
SCREW
M4X20 W/LK&PL WASHER
9-03920-420-0
04
1
1009-
122
BOLT; BRKT
M10X20 FLANGE
0-28761-020-0
02
1
1009-
319
DUCT; INL,TURBOCHARGER
8-98121-709-0
01
1
1009-
562
BOLT; INL DUCT
M10X35 FLANGE
0-28751-035-0
02
1
1009-
761
SENSOR; MANIF
8-97601-967-0
01
1
1009-
773
BRACKET; INL DUCT
8-97616-849-0
01
1
1009-
781
GASKET; SENSOR
8-98212-728-0
01
1
1204-
781
GASKET; SENSOR
8-97611-157-2
01
1
1009-1201
781
GASKET; SENSOR
8-98212-728-0
01
1
1202-1203
782
ADAPTER; SENSOR
8-97609-808-4
01
1
1009-1201
782
ADAPTER; SENSOR
8-98169-371-0
01
1
1202-
55
3
756
774
28
3
756
510
510
170
153
153
55
121
55
94
510
323
775
41
775
323
121
170
776
776
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
DUCT; INT
(A)
8-97603-791-0
01
1
1009-
3
DUCT; INT
(B)
8-97606-246-0
01
1
1009-
28
BOLT; CHAMBER
M10X90 FLANGE
0-28151-090-0
08
1
1009-
41
DUCT; INT COVER
8-97611-164-4
01
1
1009-
55
NUT; INL PIPE
(A) M8 FLANGE
0-91180-108-0
03
1
1009-
55
NUT; INL PIPE
(B) M10 FLANGE
0-91180-110-0
04
1
1009-
94
BOLT
M4X10 W/PL WASHER
8-97316-615-0
02
1
1009-
121
BRACKET
(A)
8-97603-875-0
01
1
1009-
121
BRACKET
(B)
8-97604-862-0
01
1
1009-
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=89.6
8-98004-323-0
02
1
1009-1105
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=94.6
1-09623-593-0
02
1
1106-
170
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1009-
170
BOLT; BRKT
(B) M10X30 FLANGE
0-28151-030-0
02
1
1009-
323
BOLT; DUCT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1009-
323
BOLT; DUCT
(B) M10X60 FLANGE
0-28151-060-0
02
1
1009-
510
STUD; INL DUCT
(A) M10X25 L=40
0-44011-025-0
04
1
1009-
510
STUD; INL DUCT
(B) M8X85 L=100
9-09830-177-0
03
1
1009-
756
GASKET; INTAKE,THROTTLE
ID=89.6
8-98004-323-0
02
1
1009-1105
756
GASKET; INTAKE,THROTTLE
ID=94.6
1-09623-593-0
02
1
1106-
774
CHAMBER; MIXING,EGR
8-97603-673-2
01
1
1009-
775
GASKET; MIXING CHAMBER
ID=84.6
1-09623-431-0
02
1
1009-
776
DOWEL; MIXING CHAMBER
OD=14 L=10
9-11319-065-3
02
1
1009-
