◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11316 - FXM(AUST)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#70751) — 28 parça

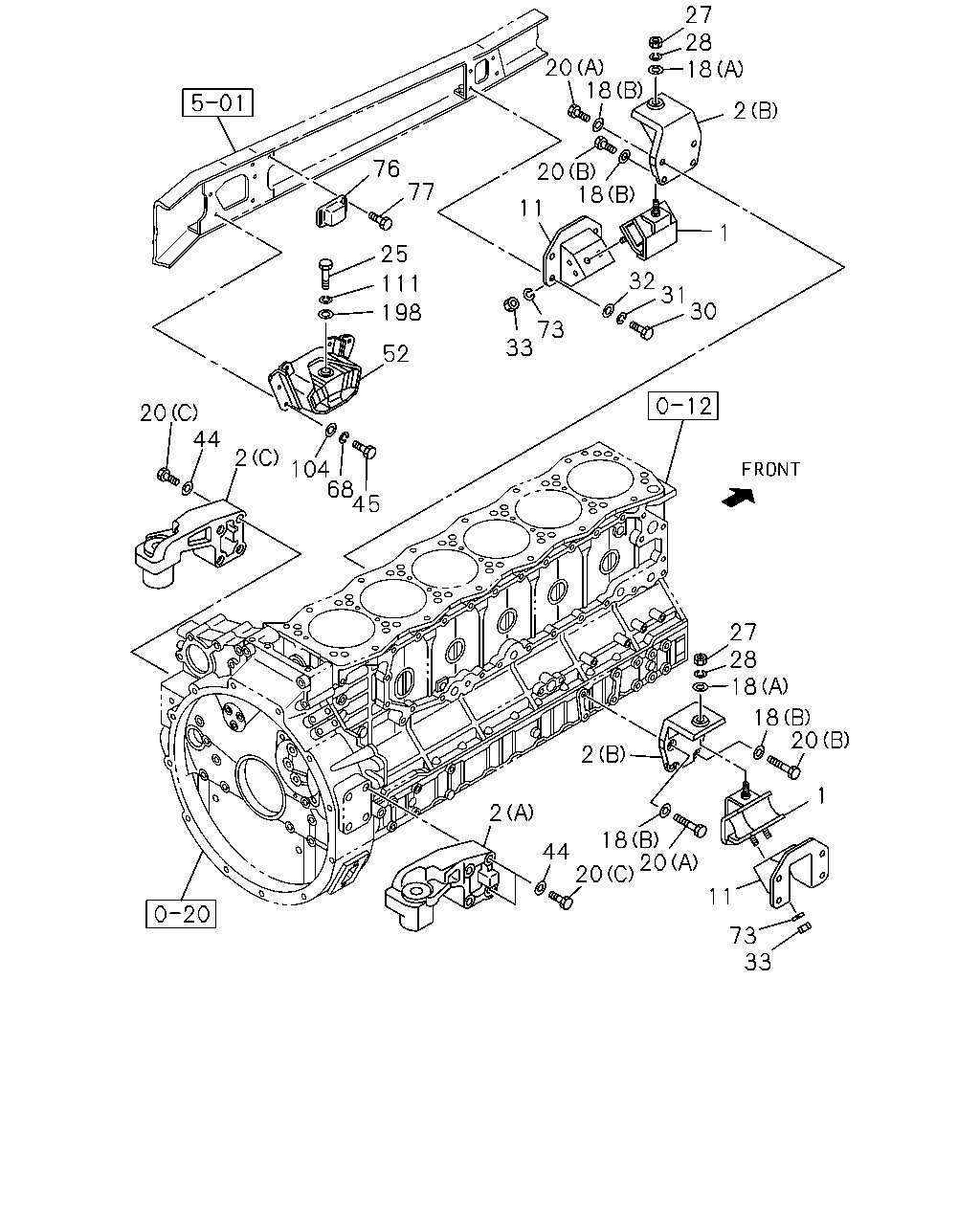

çizim 189759
27 28 18 20 18 2 76 77 20 18 11 1 25 32 31 30 111 198 73 33 52 20 44 2 104 68 45 27 28 18 18 20 2 1 2 18 44 20 20 11 73 33
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 1-53215-227-0 02 1 1009-
2 FOOT; ENG
(B) 		8-97603-754-1 02 1 1009-
2 FOOT; ENG
(C) 		8-97605-933-0 01 1 1009-
2 FOOT; ENG
(A) 		1-11777-179-0 01 1 1009-
11 BRACKET; CUSHION RUBBER,FRT 8-98055-378-1 02 1 1009-
18 WASHER; PL,ENG FOOT
(A) ID=19 OD=36 		0-91614-618-0 02 1 1009-
18 WASHER; PL,ENG FOOT
(B) ID=12.2 		1-09503-008-0 08 1 1009-
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 1009-
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 1009-
20 BOLT; ENG FOOT
(C) M16X78 		1-09020-113-0 08 1 1009-
25 BOLT; CUSHION RUBBER TO BRKT
M20X85 		8-98013-797-0 02 1 1009-
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 1009-
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 1009-
30 BOLT; BRKT TO FRAME
M14X35 		0-20951-435-0 08 1 1009-
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 1009-
32 WASHER; PL,BRKT TO FRAME
ID=15 		8-98010-627-1 08 1 1009-
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 1009-
44 WASHER; LK,ENG FOOT
ID=16.2 		9-09851-672-2 08 1 1009-
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		0-20951-440-0 12 1 1009-
52 RUBBER; CUSHION,ENG MTG,RR 8-98055-380-0 01 1 1009-
52 RUBBER; CUSHION,ENG MTG,RR 8-98055-382-0 01 1 1009-
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-814-0 12 1 1009-
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 04 1 1009-
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 1009-
77 BOLT; STOPPER
M8X16 FLANGE 		0-28050-816-0 04 1 1009-
104 WASHER; PL,CUSHION RUBBER
ID=15 		8-98010-627-1 12 1 1009-
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		0-91510-622-0 02 1 1009-
198 WASHER; PL,CUSHION TO BRKT,RR
ID=22 		0-91614-622-0 02 1 1009-
