◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#7075) — 65 parça

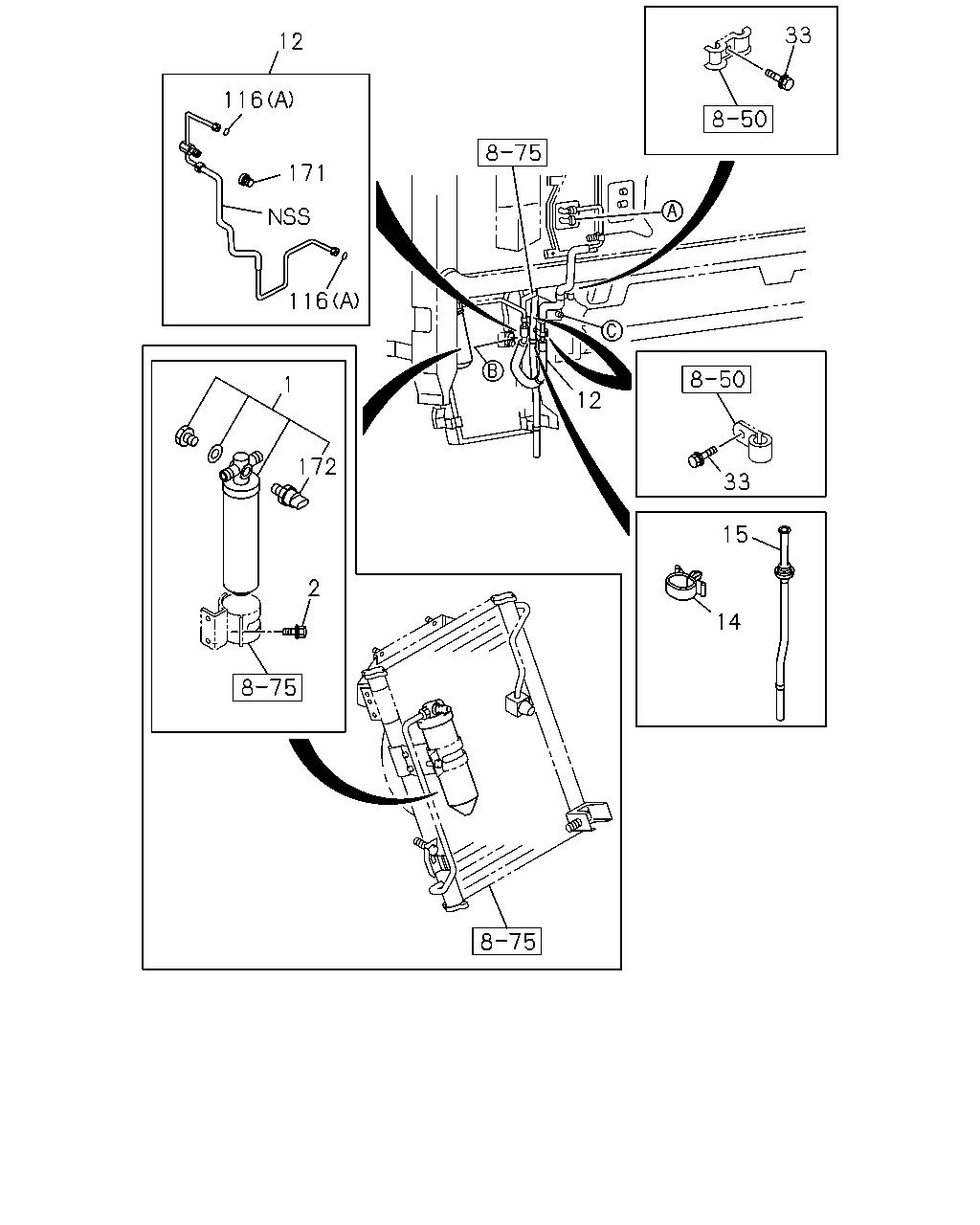

çizim 7661
33 12 116 171 116 1 12 172 33 15 2 14
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-087-0 01 1 9908-
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9908-
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-538-0 01 1 9908-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 9908-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 9908-
15 HOSE; DRAIN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-412-0 01 1 9908-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK&PL WASHER 		8-94279-208-0 03 1 9908-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7 		1-83539-317-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5 		1-83539-324-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97161-776-0 02 1 9908-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97080-101-0 01 1 9908-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9908-

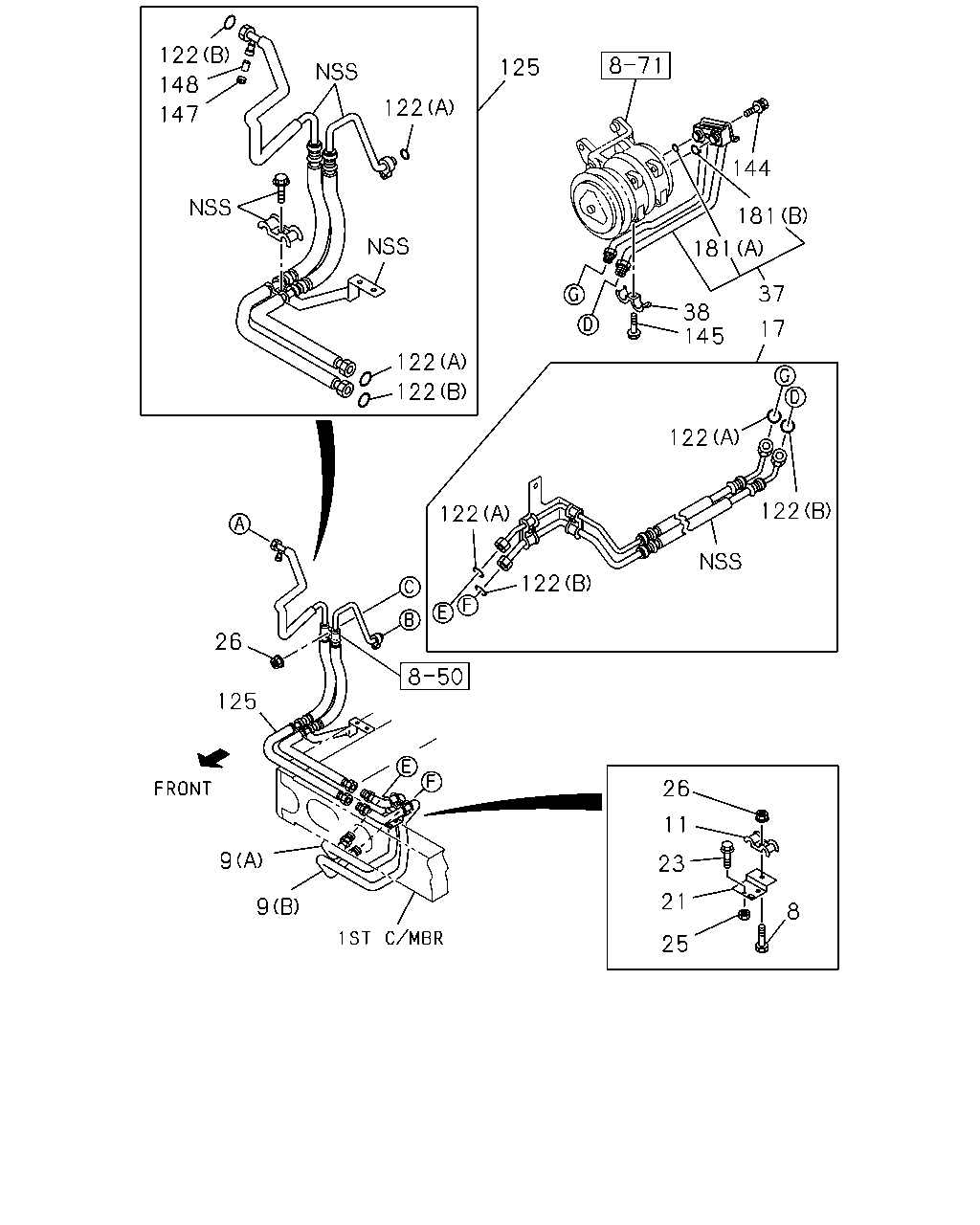

çizim 44113
122 125 148 122 147 144 181 181 37 38 145 17 122 122 122 122 122 122 26 125 26 11 9 23 21 9 8 25
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9908-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9908-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9908-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9908-9908
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-930-1 01 1 9908-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9908-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9908-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9908-
37 CONNECTOR; CMPR TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83563-173-0 01 1 9908-9910
37 CONNECTOR; CMPR TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 9911-0209
38 CLIP; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-83574-177-0 01 1 9908-9910
38 CLIP; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9911-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 04 1 9908-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 04 1 9908-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-545-1 01 1 9908-
144 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X45 		9-01961-045-0 01 1 9908-9910
144 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9911-0209
145 BOLT; CLIP,CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M8X16 W/LK WASHER 		9-01900-816-0 01 1 9908-9910
145 BOLT; CLIP,CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9911-0209
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9908-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9908-
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) ID=15.5 		8-97161-777-0 01 1 9908-9910
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 9911-0209
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) ID=18.3 		8-97161-778-0 01 1 9908-9910
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 9911-0209

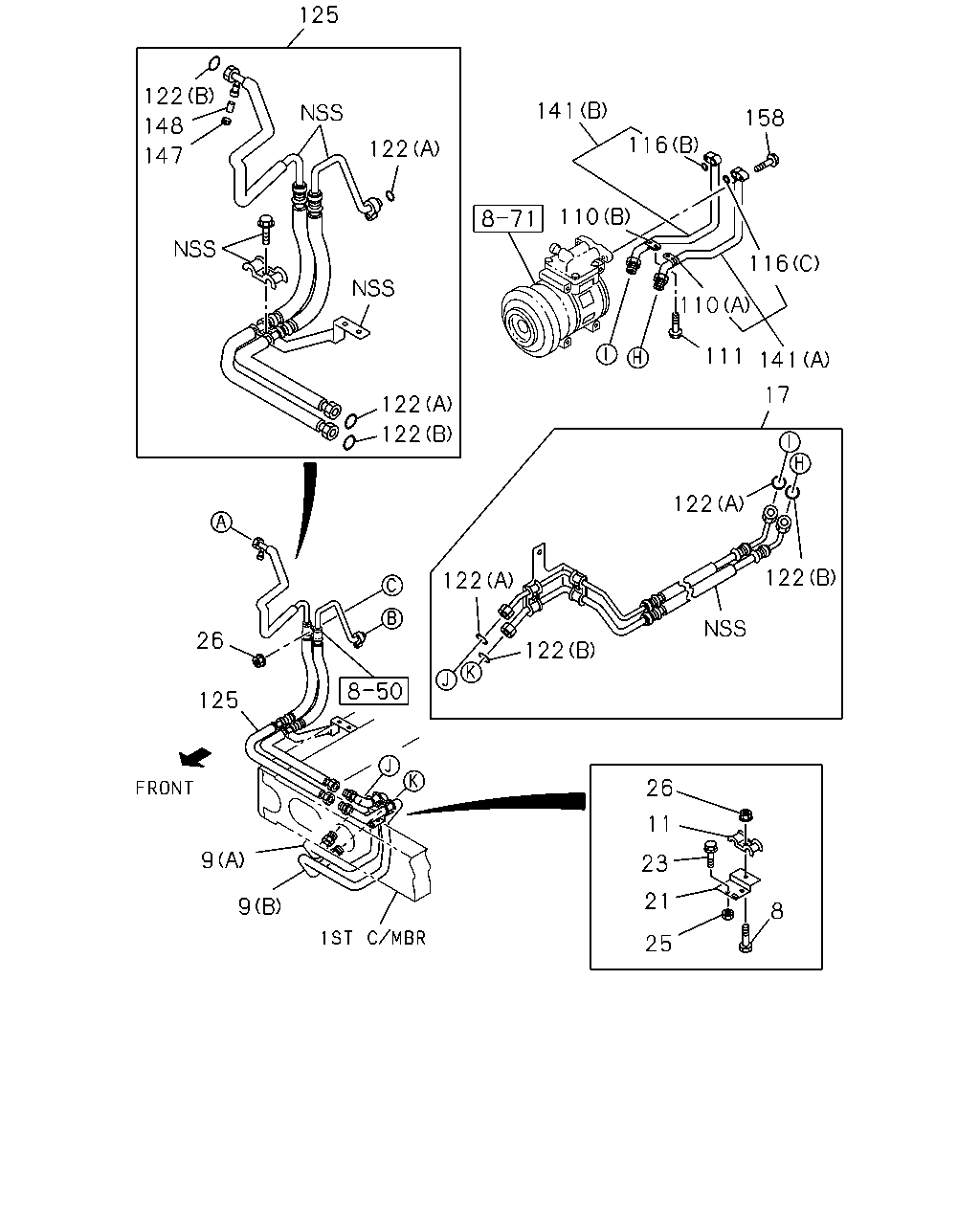

çizim 45153
125 122 141 158 148 116 122 147 110 110 116 111 141 17 122 122 122 122 122 26 122 125 26 11 9 23 21 9 8 25
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9908-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9908-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9908-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9908-9908
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-930-1 01 1 9908-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9908-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9908-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9908-
110 CLAMP; PIPE TO MTG BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-243-0 01 1 0210-
110 CLAMP; PIPE TO MTG BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-244-0 01 1 0210-
111 BOLT; CLAMP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		1-83539-326-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7 		1-83539-317-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5 		1-83539-324-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97161-776-0 02 1 9908-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 04 1 9908-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 04 1 9908-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-545-1 01 1 9908-
141 PIPE; COOLER,CMPR HOSE TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-843-0 01 1 0210-
141 PIPE; COOLER,CMPR HOSE TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-844-0 01 1 0210-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9908-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9908-
158 BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE 		1-83539-325-0 02 1 0210-
