Sayfa 8-50 - Isuzu EPC

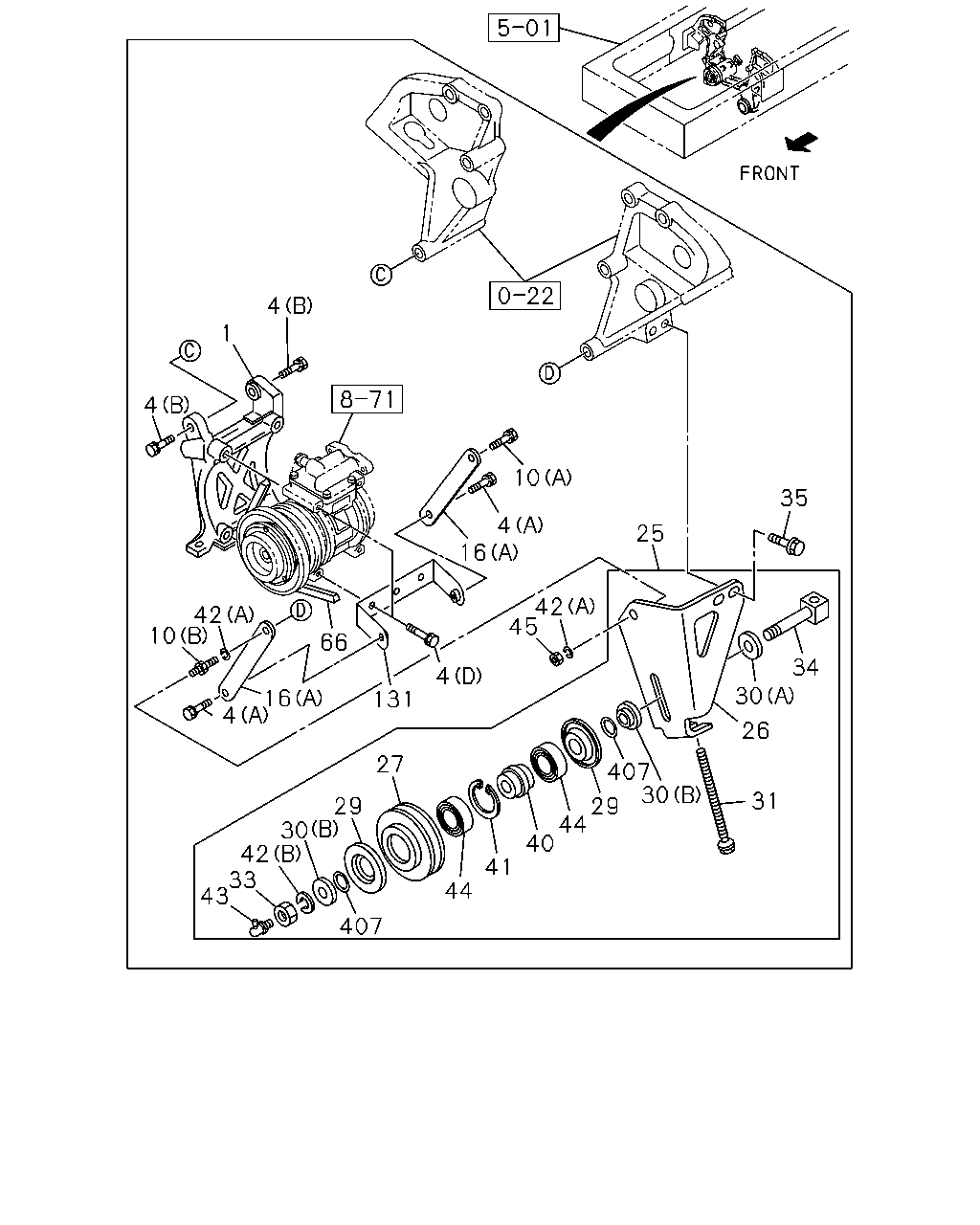

8-50 — AIR CONDITIONING SYSTEM; FRONT (#7074) — 127 parça

4 1 49 49 4 10 4 35 25 4 34 4 42 16 42 45 16 29 66 30 10 26 4 407 30 31 29 44 40 41 44 27 407 33 30 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-83571-590-0	01	1	9908-9910
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9911-0209
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-011-0	01	1	0210-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) M10X20 FLANGE	0-28081-020-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9911-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) M12X40 FLANGE	0-28081-240-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9911-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9911-0209
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X90 WASHER	1-83539-327-0	04	1	0210-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9911-0209
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) M12X25 FLANGE	0-28681-225-0	01	1	9908-9910
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9911-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9908-9910
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9911-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-13674-189-1	01	1	9908-9910
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9911-0209
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	02	1	0210-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-13674-190-1	01	1	9908-9910
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9911-0209
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13660-298-0	01	1	9908-9910
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9911-
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13668-028-0	01	1	9908-9910
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	9911-
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13663-057-0	01	1	9908-9910
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9911-
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-175-0	02	1	9908-9910
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	9911-
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-13666-021-1	01	1	9908-9910
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	9911-
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-13666-040-0	02	1	9908-9910
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	9911-
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X135	1-09009-113-0	01	1	9908-9910
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-0	01	1	9911-
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M18	9-99111-518-0	01	1	9908-9910
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9911-
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13665-026-2	01	1	9908-9910
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9911-
35	BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M12X35 FLANGE	0-28091-235-0	02	1	9908-9910
35	BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	9911-
40	BUSHING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-128-0	01	1	9908-9910
40	BUSHING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9911-
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> OD=56.2	9-09180-152-0	01	1	9908-9910
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9911-
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) ID=12.2	9-09150-512-0	02	1	9908-9910
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9911-
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) ID=18.2	9-09150-818-0	01	1	9908-9910
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9911-
43	NIPPLE; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> PT1/8 ELBOW	9-09031-210-0	01	1	9908-9910
43	NIPPLE; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9911-
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-09800-217-0	02	1	9908-9910
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9911-
45	NUT; BOLT,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M12	9-99110-412-0	01	1	9908-9910
45	NUT; BOLT,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9911-
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-83571-601-0	02	1	9908-9910
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	9911-0209
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-83571-602-0	01	1	9908-9910
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	9911-0209
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=1335	1-13671-404-0	01	1	9908-9910
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9911-
407	RUBBER; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-174-0	02	1	9908-9910
407	RUBBER; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	9911-

4 1 4 10 35 4 16 25 42 45 42 10 66 34 4 30 4 16 131 26 27 407 30 31 29 42 33 43 29 44 40 41 44 407 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-83571-590-0	01	1	9908-9910
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9911-0209
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-011-0	01	1	0210-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) M10X20 FLANGE	0-28081-020-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9911-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) M12X40 FLANGE	0-28081-240-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9911-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9911-0209
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X90 WASHER	1-83539-327-0	04	1	0210-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9908-9910
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9911-0209
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) M12X25 FLANGE	0-28681-225-0	01	1	9908-9910
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9911-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9908-9910
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9911-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-13674-189-1	01	1	9908-9910
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9911-0209
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	02	1	0210-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-13674-190-1	01	1	9908-9910
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9911-0209
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13660-298-0	01	1	9908-9910
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9911-
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13668-028-0	01	1	9908-9910
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	9911-
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13663-057-0	01	1	9908-9910
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9911-
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-175-0	02	1	9908-9910
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	9911-
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-13666-021-1	01	1	9908-9910
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	9911-
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-13666-040-0	02	1	9908-9910
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	9911-
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X135	1-09009-113-0	01	1	9908-9910
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-0	01	1	9911-
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M18	9-99111-518-0	01	1	9908-9910
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9911-
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13665-026-2	01	1	9908-9910
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9911-
35	BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M12X35 FLANGE	0-28091-235-0	02	1	9908-9910
35	BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	9911-
40	BUSHING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-128-0	01	1	9908-9910
40	BUSHING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9911-
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> OD=56.2	9-09180-152-0	01	1	9908-9910
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9911-
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) ID=12.2	9-09150-512-0	02	1	9908-9910
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9911-
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) ID=18.2	9-09150-818-0	01	1	9908-9910
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9911-
43	NIPPLE; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> PT1/8 ELBOW	9-09031-210-0	01	1	9908-9910
43	NIPPLE; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9911-
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-09800-217-0	02	1	9908-9910
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9911-
45	NUT; BOLT,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M12	9-99110-412-0	01	1	9908-9910
45	NUT; BOLT,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9911-
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=1335	1-13671-404-0	01	1	9908-9910
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9911-
131	STAY; CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-012-0	01	1	0210-
407	RUBBER; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13669-174-0	02	1	9908-9910
407	RUBBER; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	9911-

84 84 84 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9908-
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9908-
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	9908-
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9908-
