8-80 — WINDSHIELD WIPER AND WASHER (#70739) — 47 parça

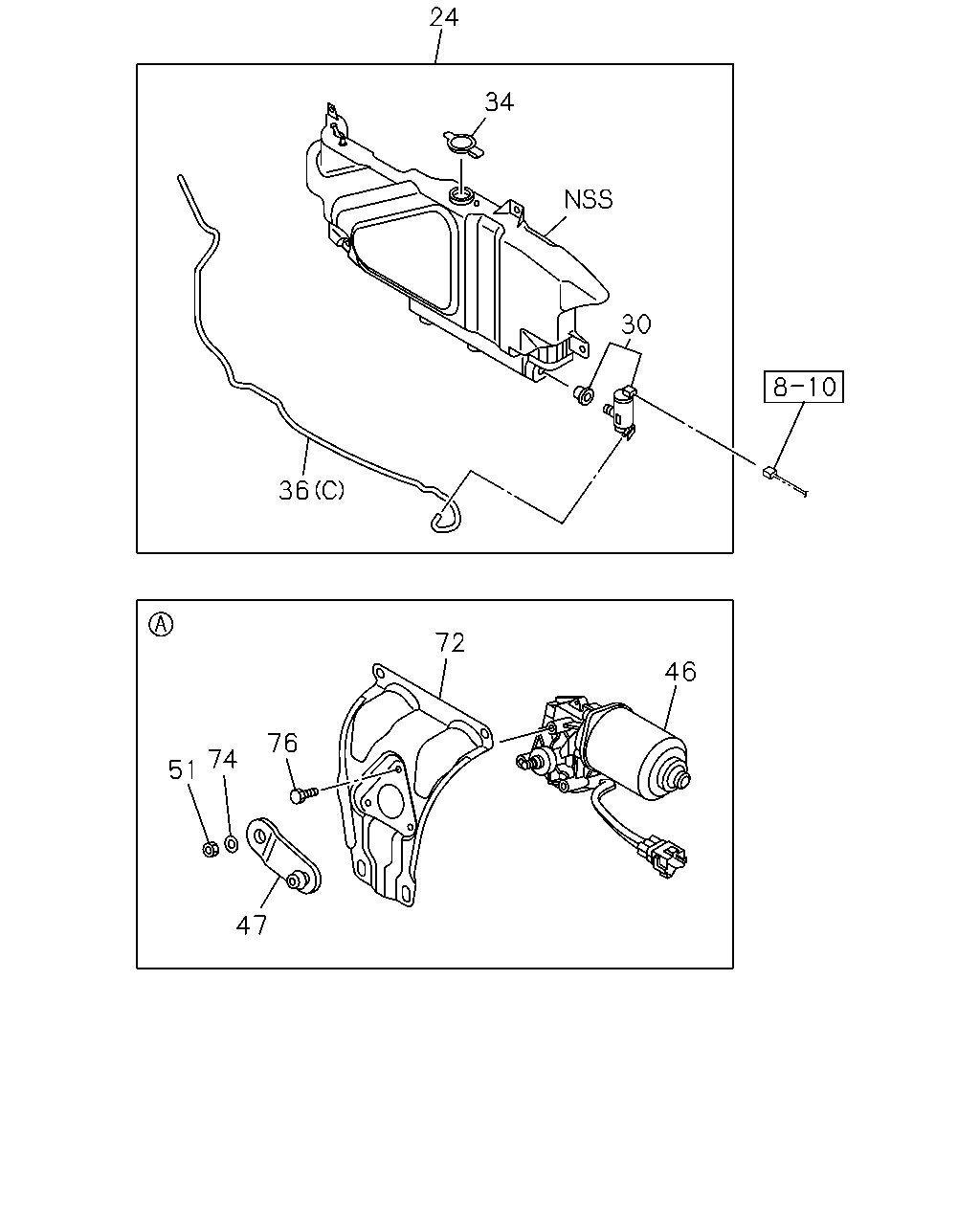

çizim 189679
24 34 30 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date A B C
24 TANK ASM; WASHER 8-98039-661-4 01 1 1009- ● ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1009- ● ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 1009- ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-808-1 01 1 1009- ● ● ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1009- ● ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1009- ● ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1009- ● ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1009- ● ● ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 1009- ● ● ●

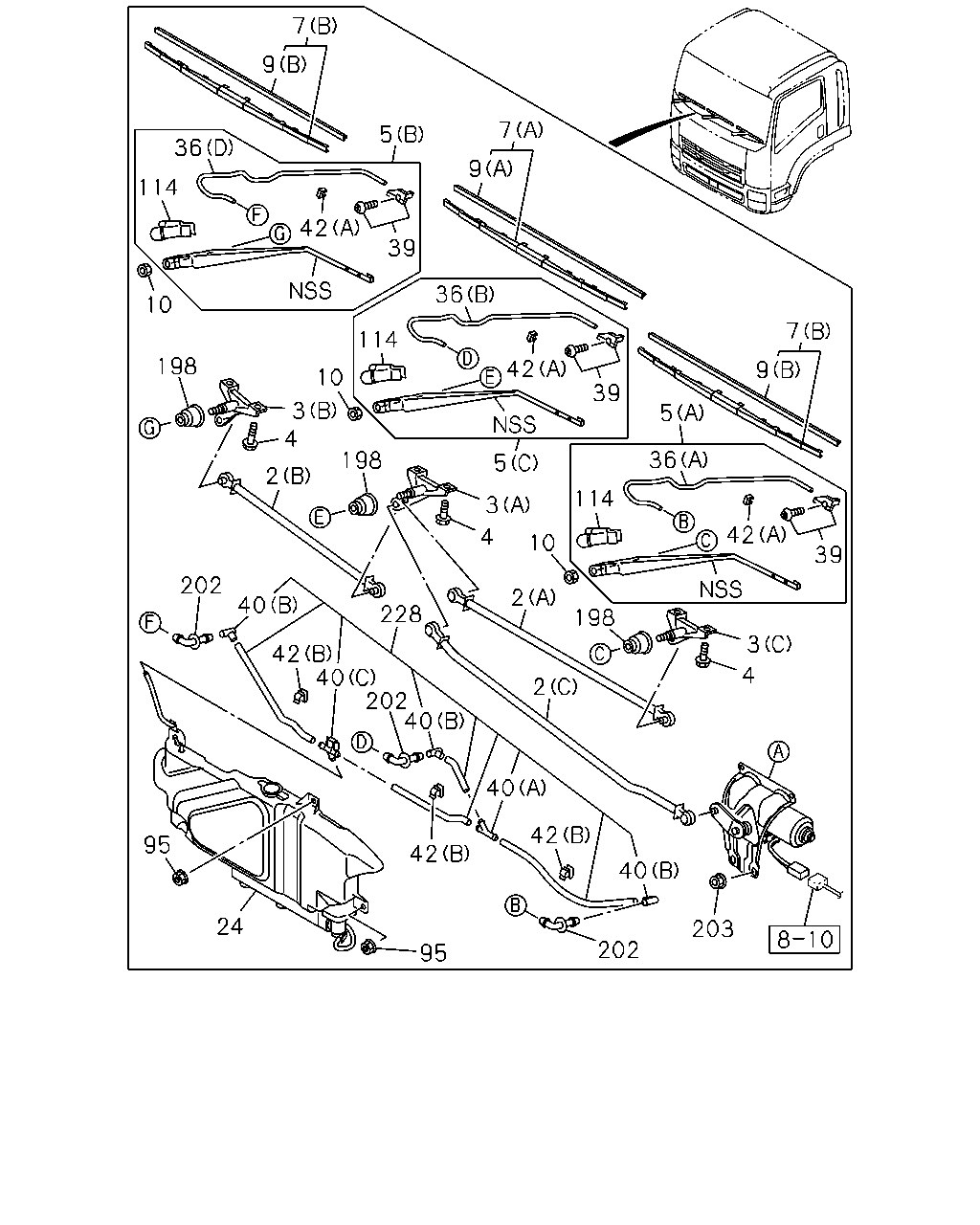

çizim 189687
7 9 7 5 36 9 114 42 39 36 10 7 114 198 42 9 10 39 3 4 5 36 198 5 2 114 3 42 4 10 39 202 2 40 228 198 3 42 40 202 40 4 2 40 42 95 42 40 24 203 202 95
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINK; FRT WIPER
(A) 		8-98078-812-0 01 1 1009- ● ● ●
2 LINK; FRT WIPER
(B) 		8-98078-813-0 01 1 1009- ● ● ●
2 LINK; FRT WIPER
(C) 		8-98078-814-1 01 1 1009- ● ● ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-1 01 1 1009- ● ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-817-1 01 1 1009- ● ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-1 01 1 1009- ● ● ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 1009- ● ● ●
5 ARM; WIPER
(B) 		8-98078-821-1 01 1 1009- ● ● ●
5 ARM; WIPER
(C) 		8-98078-822-1 01 1 1009- ● ● ●
5 ARM; WIPER
(A) 		8-98078-823-1 01 1 1009- ● ● ●
7 BLADE; WIPER
(B) 		1-83315-047-2 02 1 1009- ● ● ●
7 BLADE; WIPER
(A) 		1-83315-048-2 01 1 1009- ● ● ●
7 BLADE; WIPER
(B) BEST VALUE PARTS 		5-87610-034-0 02 1 1009- ● ● ●
9 RUBBER; FRT WIPER BLADE
(B) L=500 		1-83355-015-0 02 1 1009- ● ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=475 		1-83355-016-0 01 1 1009- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1009- ● ● ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1009- ● ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 1009- ● ● ●
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 1009- ● ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 1009- ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 1009- ● ● ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 1009- ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1009- ● ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 1009- ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1009-1511 ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 02 1 1512- ● ● ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ● ●
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 1009- ● ● ●
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 1009- ● ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 1009- ● ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 1009- ● ● ●
228 HOSE ASM; WASHER 8-98039-703-2 01 1 1009- ● ● ●
