8-73 — BLOWER UNIT (#70737) — 83 parça

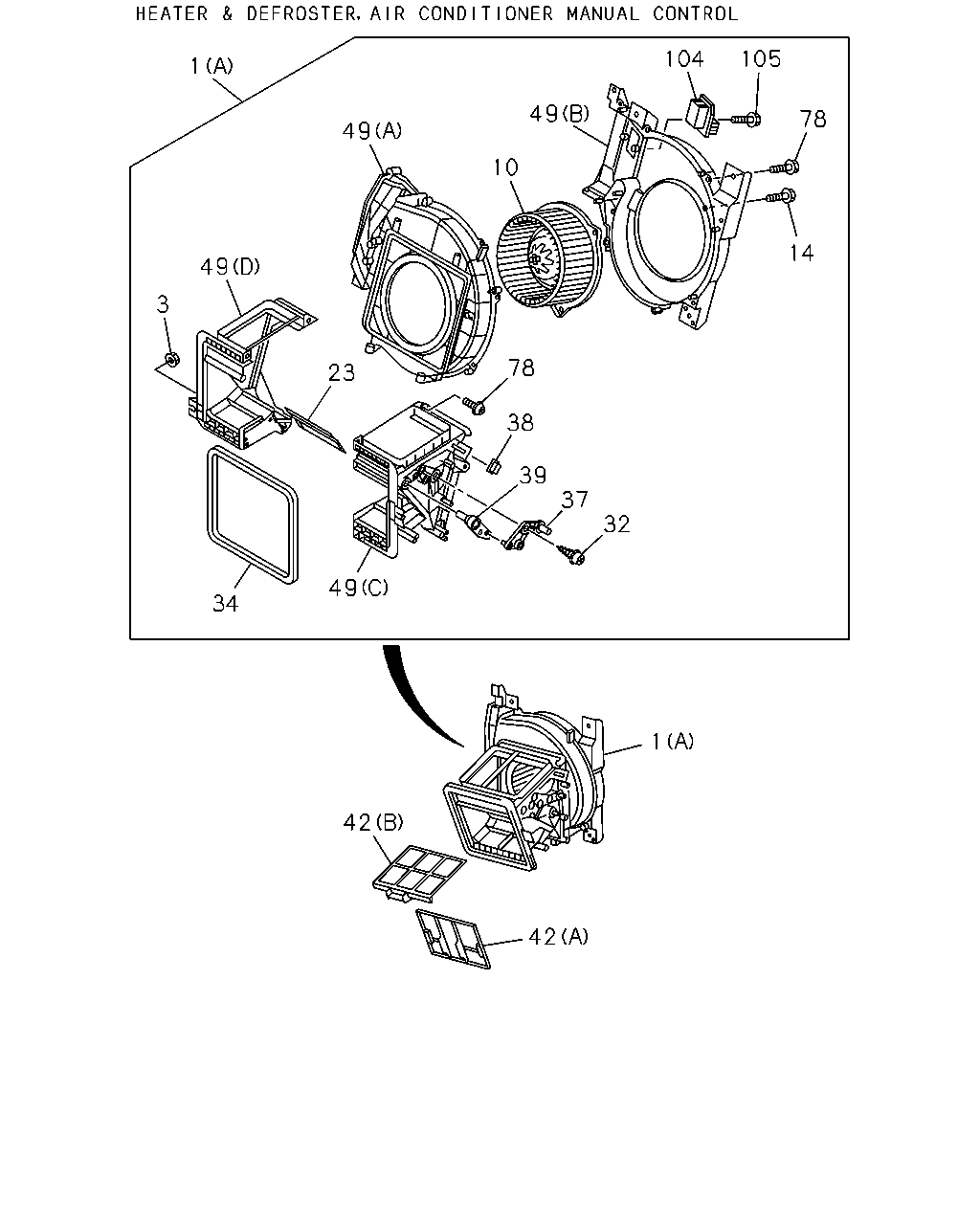

104 105 1 49 78 49 10 14 49 3 78 23 38 39 37 32 49 34 1 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-324-1	01	1	1009-1012	●	●	●
1	BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-597-0	01	1	1101-	●	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98141-430-0	01	1	1009-1012	●	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98183-599-0	01	1	1101-1302	●	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98183-599-0	01	1	1303-	●	●	●
3	NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	02	1	1009-1302	●	●	●
3	NUT; CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	02	1	1303-	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	1009-1012	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-1302	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1303-	●	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	1009-1302	●	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	1303-	●	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	1009-1302	●	●	●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	1303-	●	●	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1009-1302	●	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1303-	●	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98096-453-0	01	1	1009-1302	●	●	●
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98096-453-0	01	1	1303-	●	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	1009-1302	●	●	●
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	1303-	●	●	●
38	CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	01	1	1009-1302	●	●	●
38	CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	01	1	1303-	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	1009-1302	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	1303-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	1009-1302	●	●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	1303-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-327-0	01	1	1009-1302	●	●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-327-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-440-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-440-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-441-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-441-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98077-413-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98077-413-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98077-414-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98077-414-0	01	1	1303-	●	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	15	1	1009-1302	●	●	●
78	SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	15	1	1303-	●	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98131-785-0	01	1	1009-1302	●	●	●
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98131-785-0	01	1	1303-	●	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	02	1	1009-1302	●	●	●
105	SCREW; RESISTOR AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	02	1	1303-	●	●	●

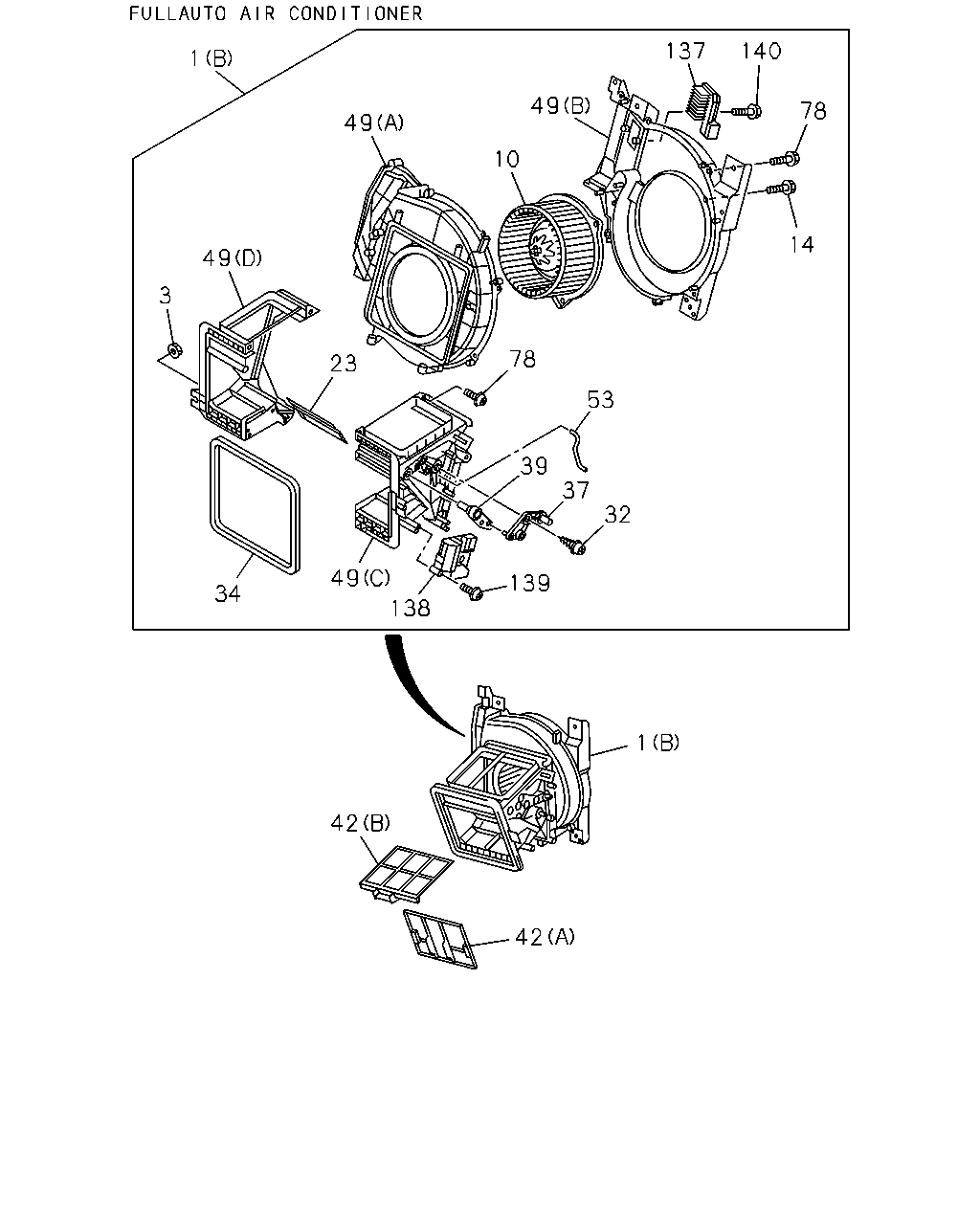

137 140 1 49 78 49 10 14 49 3 78 23 53 39 37 32 49 139 34 138 1 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-324-1	01	1	1009-1012	●	●	●
1	BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-597-0	01	1	1101-	●	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98141-430-0	01	1	1009-1012	●	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98183-599-0	01	1	1101-1302	●	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98183-599-0	01	1	1303-	●	●	●
3	NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	02	1	1009-1302	●	●	●
3	NUT; CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	02	1	1303-	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	1009-1012	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-1302	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1303-	●	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	1009-1302	●	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	1303-	●	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	1009-1302	●	●	●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	1303-	●	●	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1009-1302	●	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1303-	●	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98096-453-0	01	1	1009-1302	●	●	●
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98096-453-0	01	1	1303-	●	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	1009-1302	●	●	●
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	1303-	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	1009-1302	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	1303-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	1009-1302	●	●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	1303-	●	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-327-0	01	1	1009-1302	●	●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-327-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-440-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-440-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-441-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-441-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98077-413-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98077-413-0	01	1	1303-	●	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98077-414-0	01	1	1009-1302	●	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98077-414-0	01	1	1303-	●	●	●
53	ROD; ACTUATOR,BLOWER UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-456-0	01	1	1009-	●	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	15	1	1009-1302	●	●	●
78	SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	15	1	1303-	●	●	●
137	MODULE ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98047-458-0	01	1	1009-	●	●	●
138	SERVO ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98045-383-0	01	1	1009-	●	●	●
139	SCREW; SERVO FULLAUTO AIR CONDITIONER(C68) M4X35	8-98047-455-0	03	1	1009-	●	●	●
140	SCREW; MODULE FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	02	1	1009-	●	●	●
