8-65 — CONTROL LEVER; HEATER AND AIR CON (#70735) — 25 parça

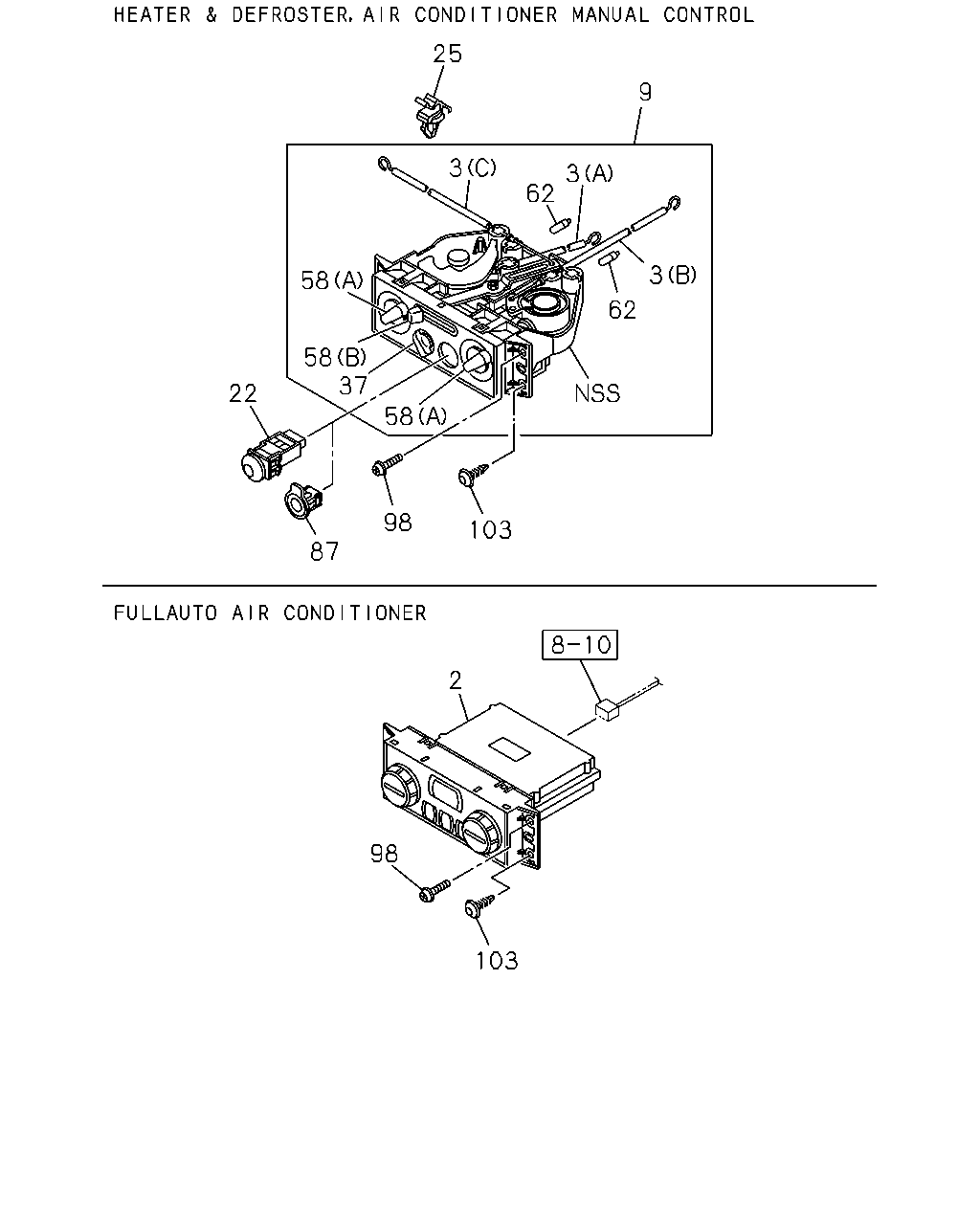

çizim 141223
25 9 3 3 62 3 58 62 58 37 58 22 98 103 87 2 98 103
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL ASM; CONT,ILLUMINATION
FULLAUTO AIR CONDITIONER(C68) 		8-98021-984-0 01 1 1009- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M 		8-98041-502-0 01 1 1009-1302 ● ● ●
3 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M 		8-98041-502-0 01 1 1303- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE 		8-98041-503-1 01 1 1009-1302 ● ● ●
3 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE 		8-98041-503-1 01 1 1303- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F 		8-98041-505-2 01 1 1009-1302 ● ● ●
3 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F 		8-98041-505-2 01 1 1303- ● ● ●
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-319-2 01 1 1009-1302 ● ● ●
9 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-319-2 01 1 1303- ● ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98021-982-0 01 1 1009- ● ● ●
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8 		8-94128-483-0 03 1 1009-1302 ● ● ●
25 CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8 		8-94128-483-0 03 1 1303- ● ● ●
37 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98037-368-0 01 1 1009-1302 ● ● ●
37 KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98037-368-0 01 1 1303- ● ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98037-369-0 02 1 1009-1302 ● ● ●
58 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98037-369-0 02 1 1303- ● ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98037-370-0 01 1 1009-1302 ● ● ●
58 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98037-370-0 01 1 1303- ● ● ●
62 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W 		8-98037-371-0 02 1 1009-1302 ● ● ●
62 BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W 		8-98037-371-0 02 1 1303- ● ● ●
87 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1009-1302 ● ● ●
98 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1009-1302 ● ● ●
98 SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1303- ● ● ●
103 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1009-1302 ● ● ●
103 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1303- ● ● ●
