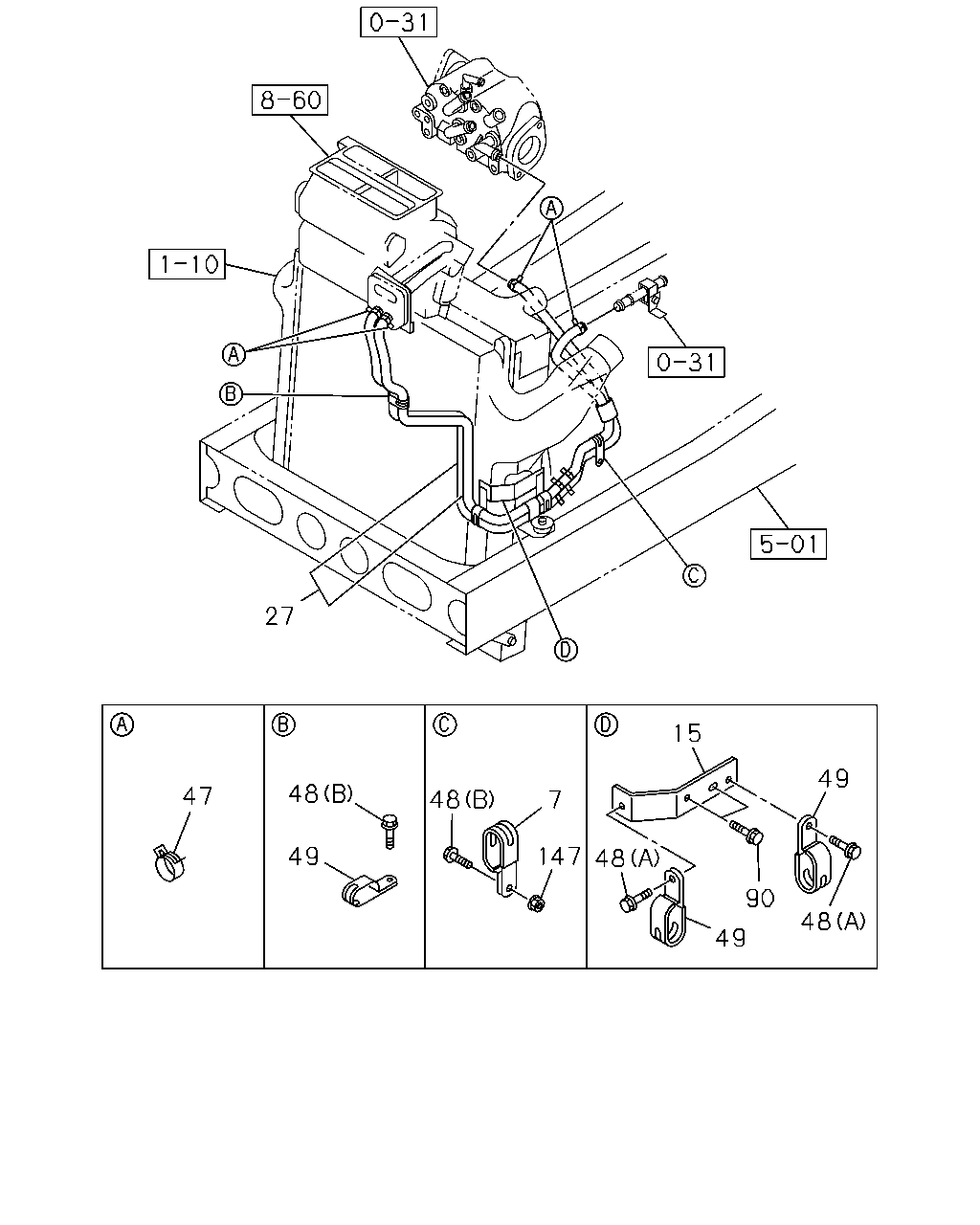

8-45 — HEATER PIPING (#70731) — 32 parça

27 63 63 56 103 63 56 63 56 103 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98155-346-0	01	1	1009-1302	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98155-346-0	01	1	1303-	●	●	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-94382-401-0	04	1	1009-1302	●	●	●
56	CLAMP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-94382-401-0	04	1	1303-	●	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) INLET	8-98109-177-0	01	1	1009-1302	●	●	●
63	HOSE; WATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) INLET	8-98109-177-0	01	1	1303-	●	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) OUTLET	8-98109-179-0	01	1	1009-1302	●	●	●
63	HOSE; WATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) OUTLET	8-98109-179-0	01	1	1303-	●	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) INLET	8-98161-156-0	01	1	1009-1302	●	●	●
63	HOSE; WATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) INLET	8-98161-156-0	01	1	1303-	●	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) OUTLET	8-98161-157-0	01	1	1009-1302	●	●	●
63	HOSE; WATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) OUTLET	8-98161-157-0	01	1	1303-	●	●	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	1009-1302	●	●	●
103	CONNECTOR; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	1303-	●	●	●

15 49 48 47 48 7 49 147 48 90 48 49 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=24X2 L=25	1-09700-710-0	01	1	1009-1302	●	●	●
7	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=24X2 L=25	1-09700-710-0	01	1	1303-	●	●	●
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98093-606-0	01	1	1009-1302	●	●	●
15	BRACKET; WATER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98093-606-0	01	1	1303-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98155-346-0	01	1	1009-1302	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98155-346-0	01	1	1303-	●	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	1009-1302	●	●	●
47	CLAMP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	1303-	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●	●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●	●	●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=24X2 L=25	1-09700-710-0	03	1	1009-1302	●	●	●
49	CLIP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=24X2 L=25	1-09700-710-0	03	1	1303-	●	●	●
90	BOLT; STAY HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●	●
90	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●	●	●
147	NUT; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●	●
147	NUT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1303-	●	●	●
