8-40 — HEATER SYSTEM (#70730) — 59 parça

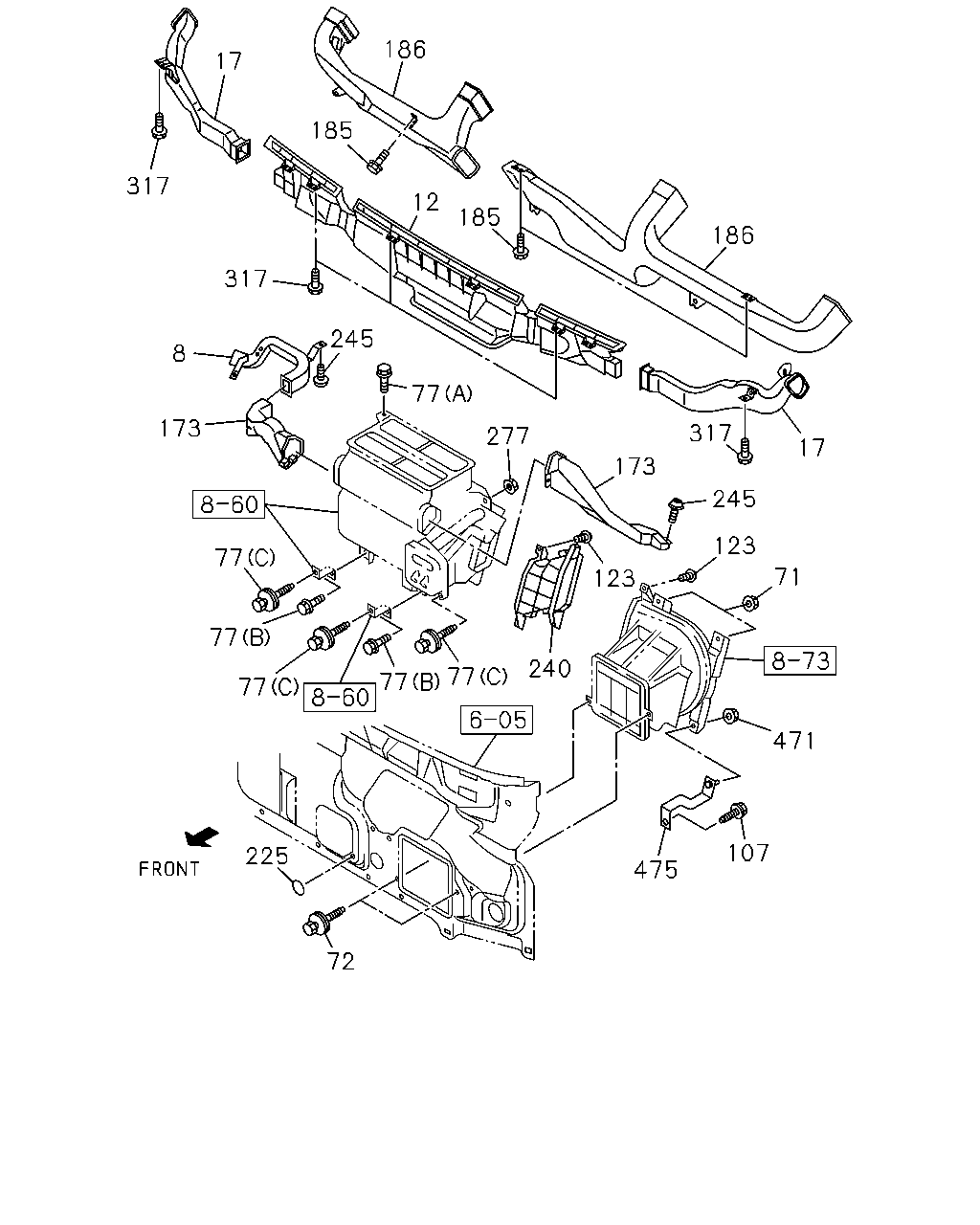

çizim 144014
186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 225 475 72 107
BalonParca AdiParca NoAdetTipApplied Date A B C
8 DUCT; HTR AIR,DRIVER FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-499-1 01 1 1009-1302 ● ● ●
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-499-1 01 1 1303-1410 ● ● ●
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98290-098-0 01 1 1411- ● ● ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1009- ● ● ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-018-1 01 1 1009-1301 ● ● ●
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-018-1 01 1 1302- ● ● ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-013-1 01 1 1009-1301 ● ● ●
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-013-1 01 1 1302- ● ● ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 02 1 1009-1302 ● ● ●
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 02 1 1303- ● ● ●
72 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1009-1302 ● ● ●
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1303- ● ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE 		0-28650-616-0 01 1 1009-1302 ● ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE 		0-28650-616-0 01 1 1303- ● ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE 		0-28650-620-0 02 1 1009-1302 ● ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE 		0-28650-620-0 02 1 1303- ● ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1009-1302 ● ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1303- ● ● ●
107 BOLT; STAY,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1009-1302 ● ● ●
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1303- ● ● ●
123 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1302 ● ● ●
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1303- ● ● ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-506-2 01 1 1009-1301 ● ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-506-2 01 1 1302- ● ● ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98036-922-2 01 1 1009-1302 ● ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98036-922-2 01 1 1303-1410 ● ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98290-097-0 01 1 1411- ● ● ●
185 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 1009-1009 ● ● ●
185 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1301 ● ● ●
185 SCREW; VENT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302- ● ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98174-737-0 01 1 1009-1301 ● ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98174-737-0 01 1 1302-1410 ● ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98285-571-0 01 1 1411- ● ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-489-4 01 1 1009-1301 ● ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-489-4 01 1 1302-1410 ● ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98285-574-0 01 1 1411- ● ● ●
225 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK 		1-76798-019-0 01 1 1009-1211 ● ● ●
240 DUCT; AIR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-402-1 01 1 1009-1302 ● ● ●
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-402-1 01 1 1303- ● ● ●
245 CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 03 1 1009-1301 ● ● ●
245 CLIP; FOOT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 03 1 1302-1410 ● ● ●
245 CLIP; FOOT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 04 1 1411- ● ● ●
277 NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 01 1 1009-1302 ● ● ●
277 NUT; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 01 1 1303- ● ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1009- ● ● ●
317 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009-1301 ● ● ●
317 SCREW; DEFROSTER NOZZLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302- ● ● ●
471 NUT; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 01 1 1009-1302 ● ● ●
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE 		0-91180-106-0 01 1 1303- ● ● ●
475 BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-500-1 01 1 1009-1302 ● ● ●
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-500-1 01 1 1303- ● ● ●
çizim 147960
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date A B C
50 VALVE ASM; HTR 8-98080-998-1 01 1 1009- ● ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1009- ● ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1009- ● ● ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 1009- ● ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1009- ● ● ●

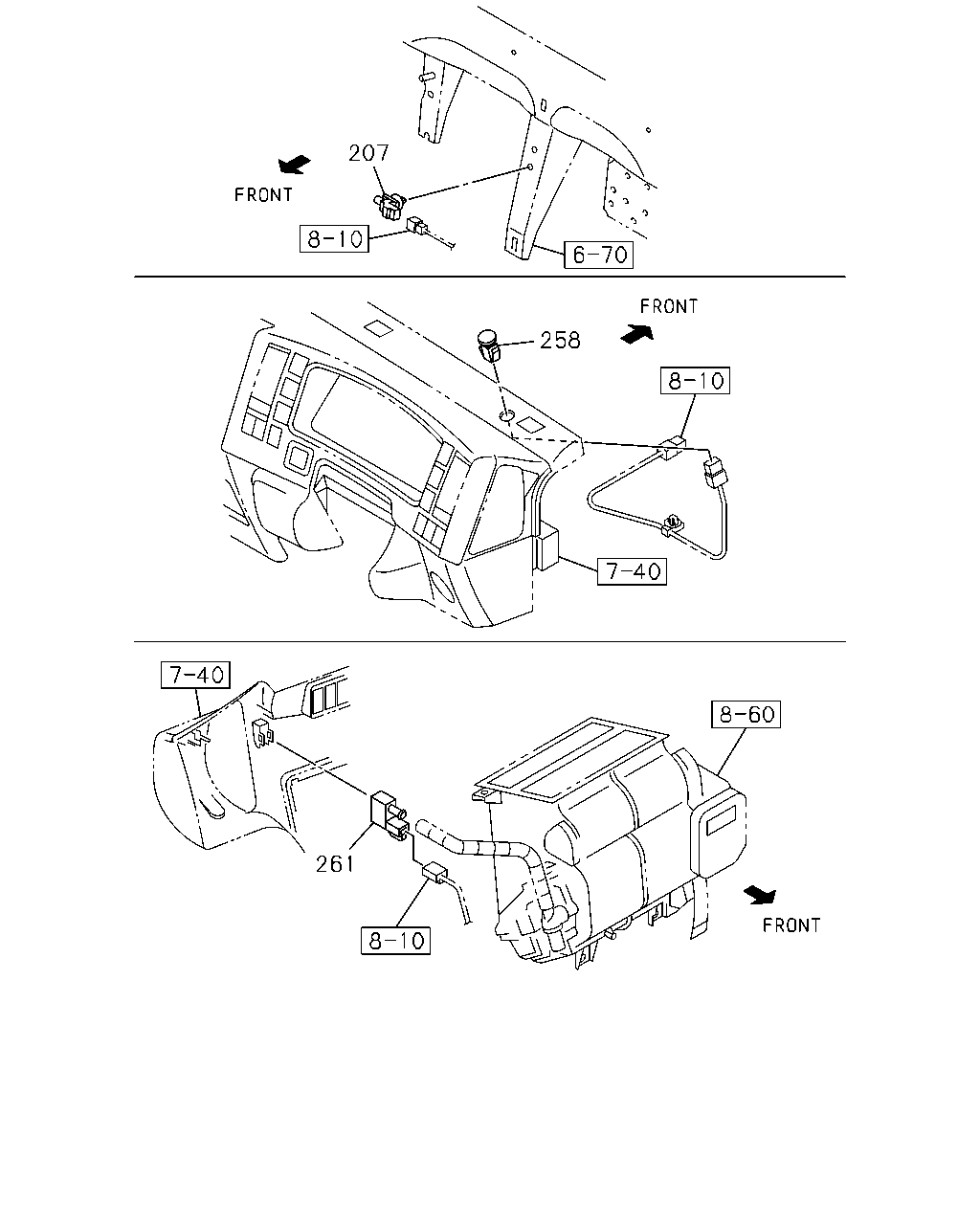

çizim 189680
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B C
207 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 		8-98008-687-0 01 1 1009- ● ● ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 1009- ● ● ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 1009- ● ● ●
