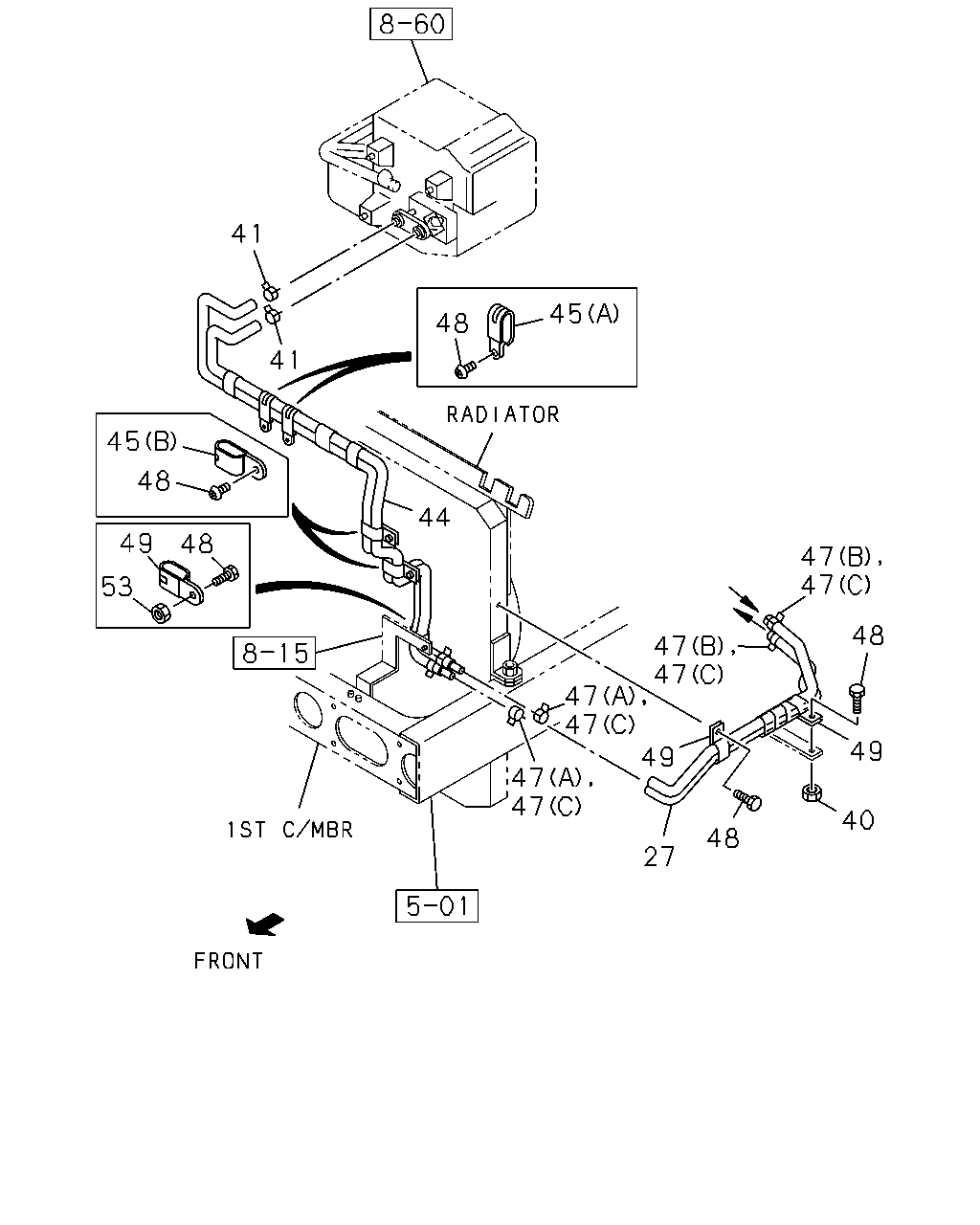

8-45 — HEATER PIPING
(#7073) — 13 parça
41
45
48
41
45
48
44
49
48
47
47
53
48
47
47
47
47
49
49
47
47
40
48
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-598-1
01
1
9908-
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
9908-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
9908-
44
HOSE; WATER,HTR,INL
1-83565-663-0
01
1
9908-
45
CLIP; WATER PIPE
(A) WO/SCREW
1-09701-143-1
02
1
9908-
45
CLIP; WATER PIPE
(B)
1-09701-238-0
02
1
9908-
47
CLAMP; WATER HOSE,HTR
(A)
1-09707-181-0
02
1
9908-0108
47
CLAMP; WATER HOSE,HTR
(B) ID=22
8-94382-401-0
02
1
9908-0108
47
CLAMP; WATER HOSE,HTR
(C) ID=22
8-94382-401-0
04
1
0109-
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
03
1
9908-
48
BOLT; CLIP FIX
M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
9908-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
9908-
53
NUT; HOSE CLIP
M8 FLANGE
0-91150-108-0
01
1
9908-
