◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#70729) — 69 parça
çizim 143587
22 753 462 754 770 684 684 754
BalonParca AdiParca NoAdetTipApplied Date A B C
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ● ●
462 RELAY; INFORMATION,ABS
24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1511 ●
462 RELAY; INFORMATION,ABS
24V 10A PANASONIC 		8-97173-035-1 01 1 1512- ●
684 RELAY; BRAKE
24V 10A PANASONIC 		8-97173-035-1 02 1 1009-1511 ● ● ●
684 RELAY; BRAKE
24V 10A PANASONIC 		8-97173-035-1 02 1 1512- ● ● ●
753 RELAY; TRAILER FLASHER
24V 10A PANASONIC 		8-97173-035-1 02 1 1009- ●
754 RELAY; TRAILER STOP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ●
754 RELAY; TRAILER STOP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1203 ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●

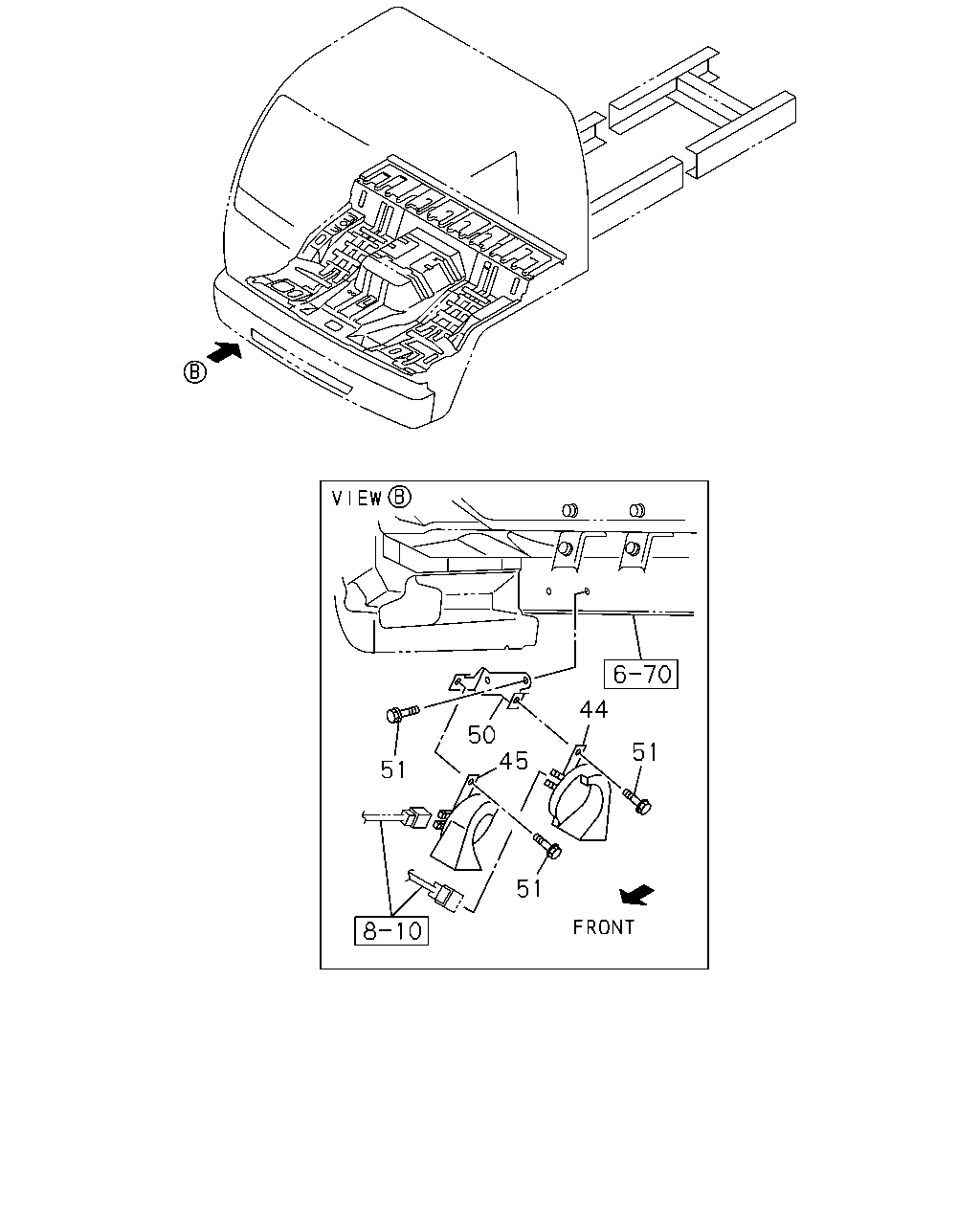

çizim 143655
44 50 45 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1009- ● ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1009- ● ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1009- ● ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1009- ● ● ●

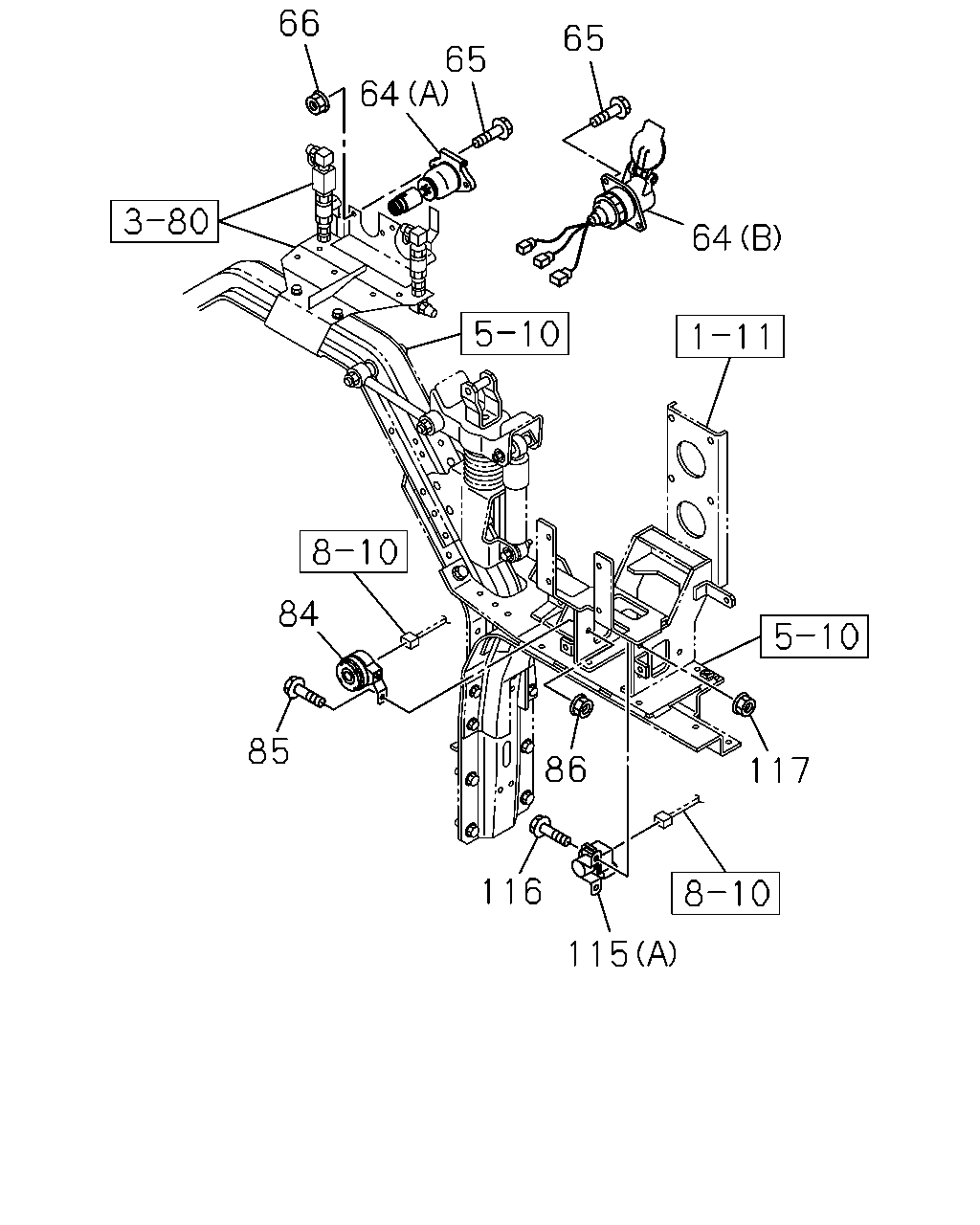

çizim 143744
66 65 65 64 64 84 85 86 117 116 115
BalonParca AdiParca NoAdetTipApplied Date A B C
64 SOCKET; TRAILER
(A) 7P 		1-82523-014-0 01 1 1009- ●
64 SOCKET; TRAILER
(B) L=860 		1-82699-449-2 01 1 1009-1009 ●
64 SOCKET; TRAILER
(B) L=860 		8-98172-008-0 01 1 1009- ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
65 BOLT; SOCKET FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1009- ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1009- ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1009- ● ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1009- ● ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1308 ● ● ●
116 BOLT; RELAY FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●

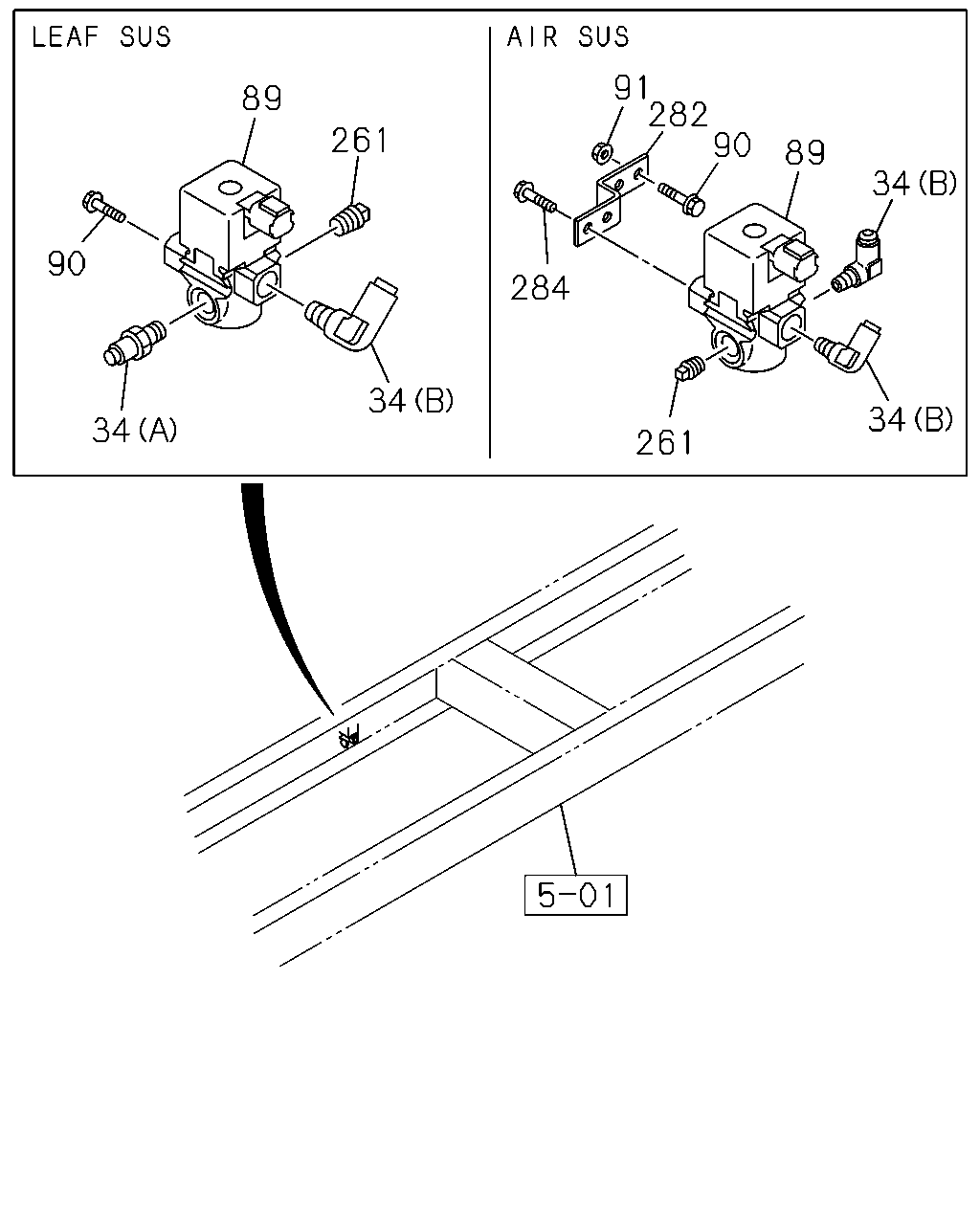

çizim 143747
91 282 90 89 261 89 34 90 284 34 34 34 261
BalonParca AdiParca NoAdetTipApplied Date A B C
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1009- ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 1009-1205 ● ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ● ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1009- ● ● ●
282 BRACKET; MAG VLV 1-82569-278-0 01 1 1009- ● ●
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●

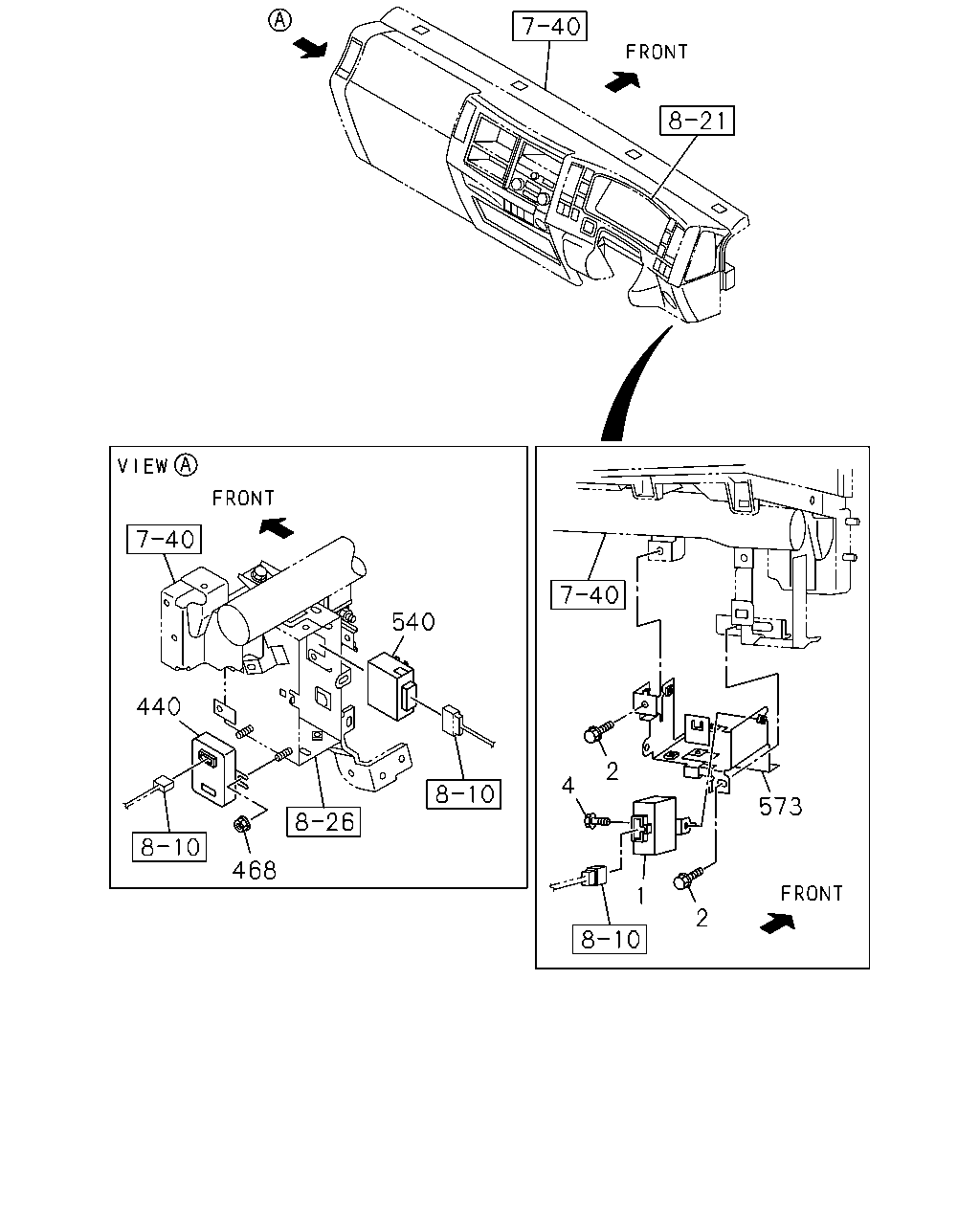

çizim 143807
540 440 2 4 573 468 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98025-533-1 01 1 1009- ● ●
1 UNIT; FLASHER 8-97613-970-1 01 1 1009- ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1009- ● ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ● ●
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 1009- ●
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 1009- ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1009-1308 ● ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1009- ● ● ●

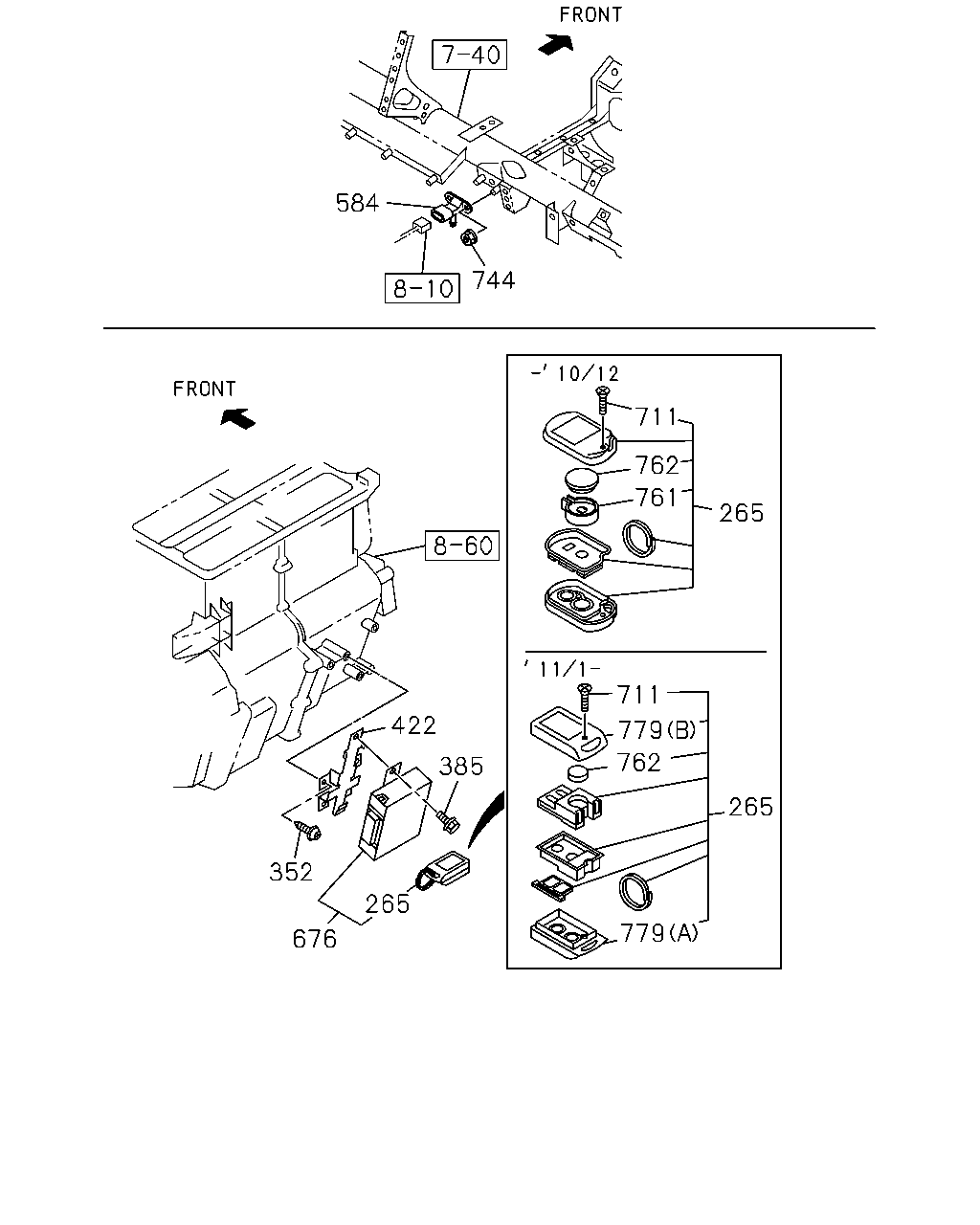

çizim 143969
584 744 711 762 761 265 711 779 762 265 779 385 422 352 676 265
BalonParca AdiParca NoAdetTipApplied Date A B C
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1009-1012 ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009- ● ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1009- ● ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1009- ● ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1009- ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 1009-1012 ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1009-1205 ● ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1009- ● ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 1009-1012 ● ● ●
762 BATTERY 8-98078-061-0 02 1 1009- ● ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1206- ● ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1206- ● ● ●
çizim 189674
531 115
BalonParca AdiParca NoAdetTipApplied Date A B C
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1009- ● ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1009-1402 ● ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
