◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#70727) — 66 parça

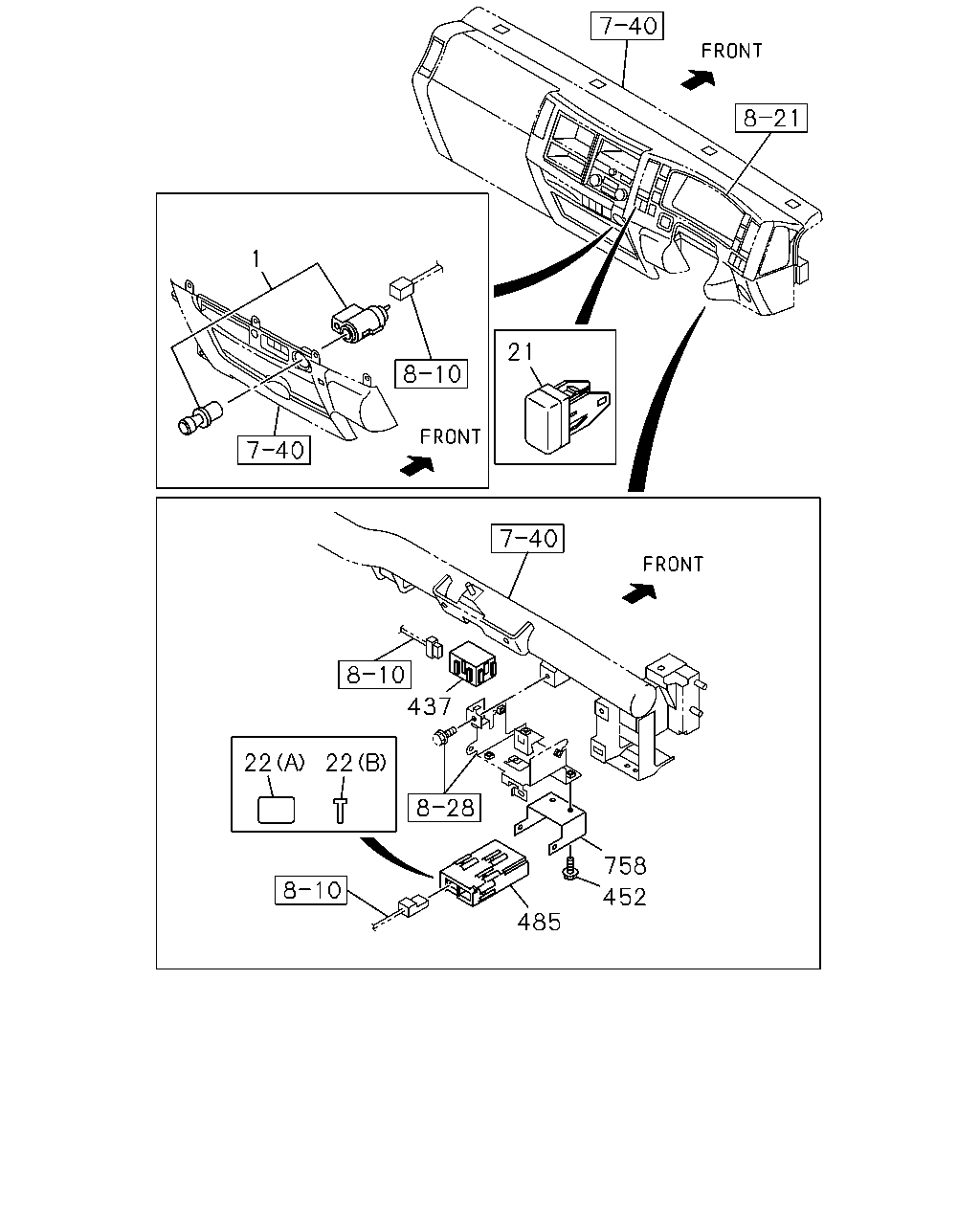

çizim 138166
1 21 437 22 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009- ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1009- ● ● ●
22 SEAL; TAPE
(A) 		1-80199-006-0 01 1 1009-1203 ● ● ●
22 SEAL; TAPE
(A) 		8-98166-639-0 01 1 1204- ● ● ●
22 SEAL; TAPE
(B) 		8-98083-174-0 01 1 1009- ● ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1009- ● ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1009- ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1009- ● ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1009- ● ● ●

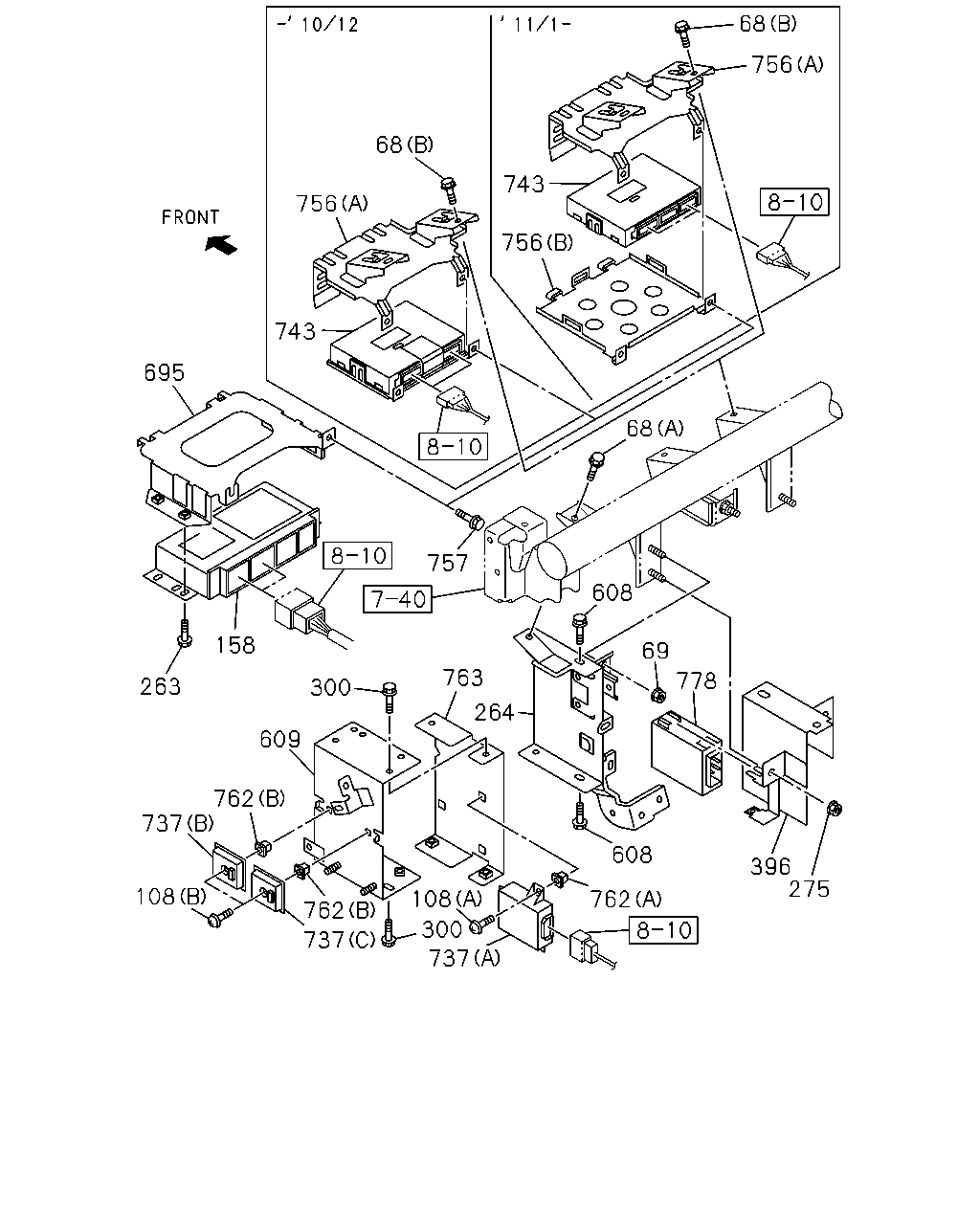

çizim 138174
68 756 68 743 756 756 743 695 68 757 608 158 69 763 778 263 300 264 609 762 737 608 396 275 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511 ● ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511 ● ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1512- ● ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1009- ● ● ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009- ● ● ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 1009- ● ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 1009-1201 ● ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202-1203 ● ● ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1204-1205 ● ● ●
158 CONTROLLER; ABS 8-98220-159-0 01 1 1206- ● ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1009- ● ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 1009-1511 ● ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ● ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ● ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 1009-1511 ● ● ●
396 BRACKET 8-98084-467-4 01 1 1512- ● ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1009-1203 ● ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1009-1203 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1204-1211 ● ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1212-1511 ● ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1212-1511 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1512- ● ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1009-1203 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1009-1203 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1204-1211 ● ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1212-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309-1511 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-1 01 1 1309-1511 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1512- ● ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1009- ● ● ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 1009- ● ● ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 1009- ● ● ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 1009- ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1009-1012 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511 ● ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511 ● ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1512- ● ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511 ● ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511 ● ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1512- ● ● ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1009- ● ● ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1009- ● ● ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 1009- ● ● ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 1009- ● ● ●

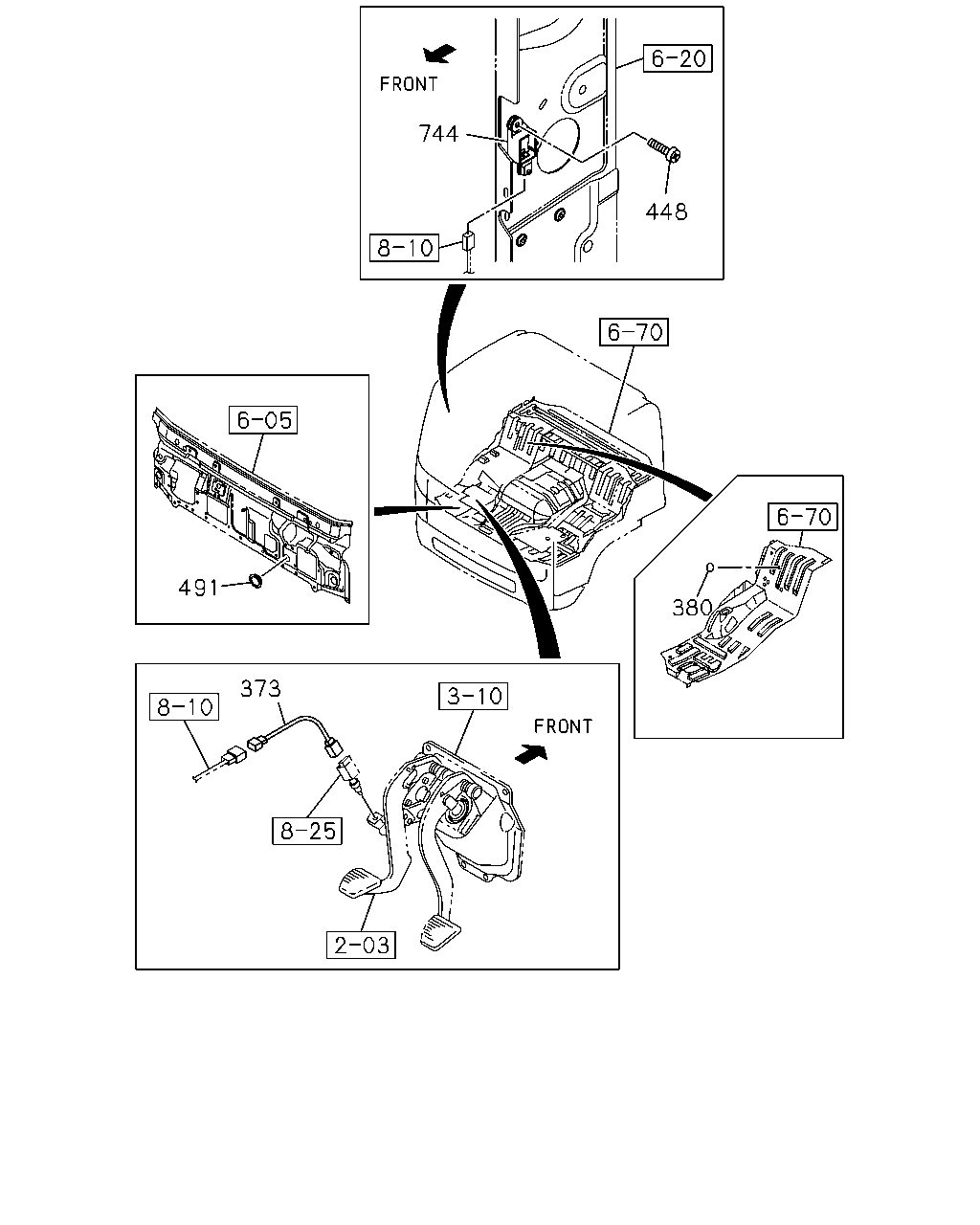

çizim 138360
744 448 491 380 373
BalonParca AdiParca NoAdetTipApplied Date A B C
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1009- ● ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009- ● ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009- ● ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 1009- ● ● ●

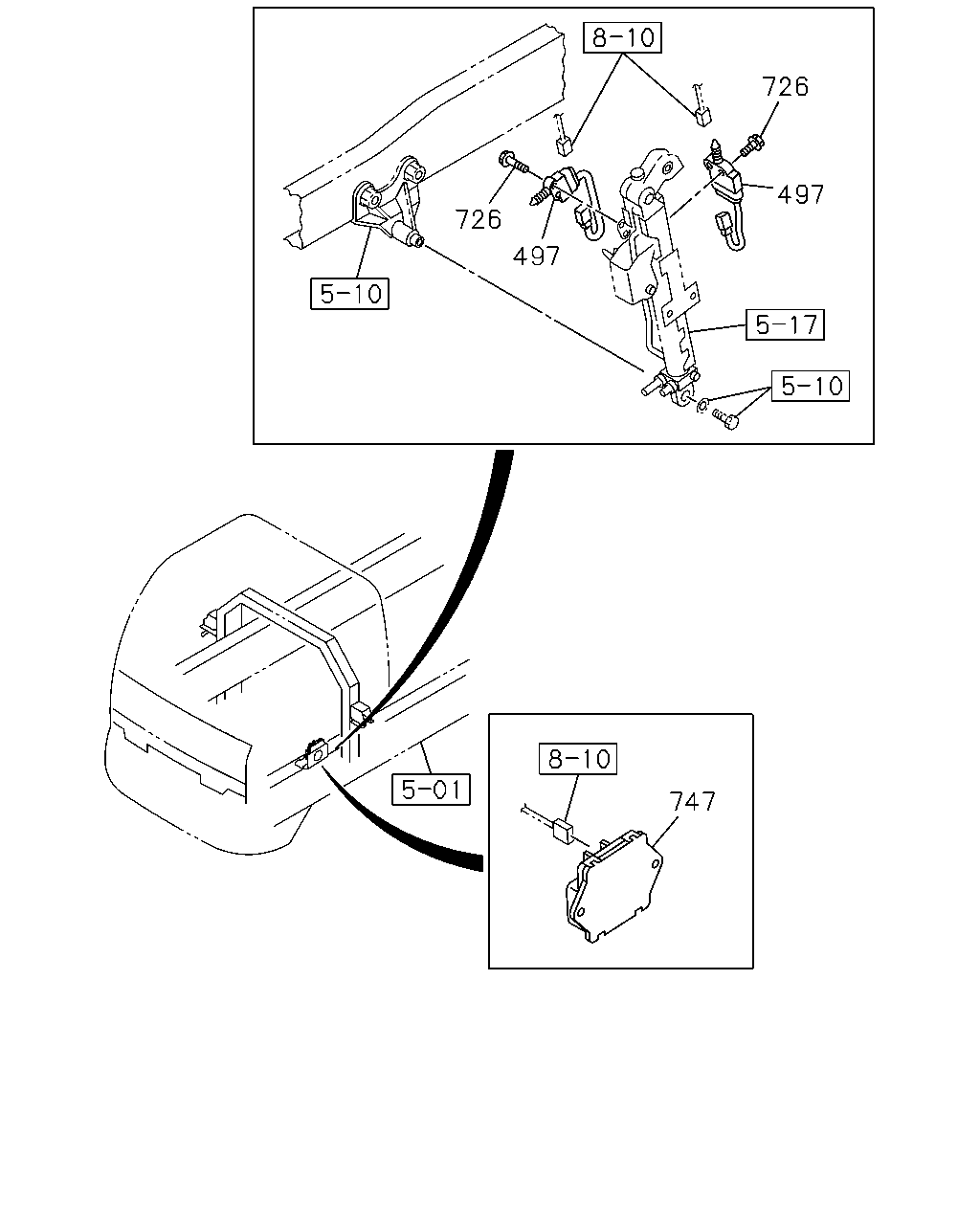

çizim 138368
726 497 726 497 747
BalonParca AdiParca NoAdetTipApplied Date A B C
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009- ● ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009- ● ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009- ● ● ●
