8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#70726) — 77 parça

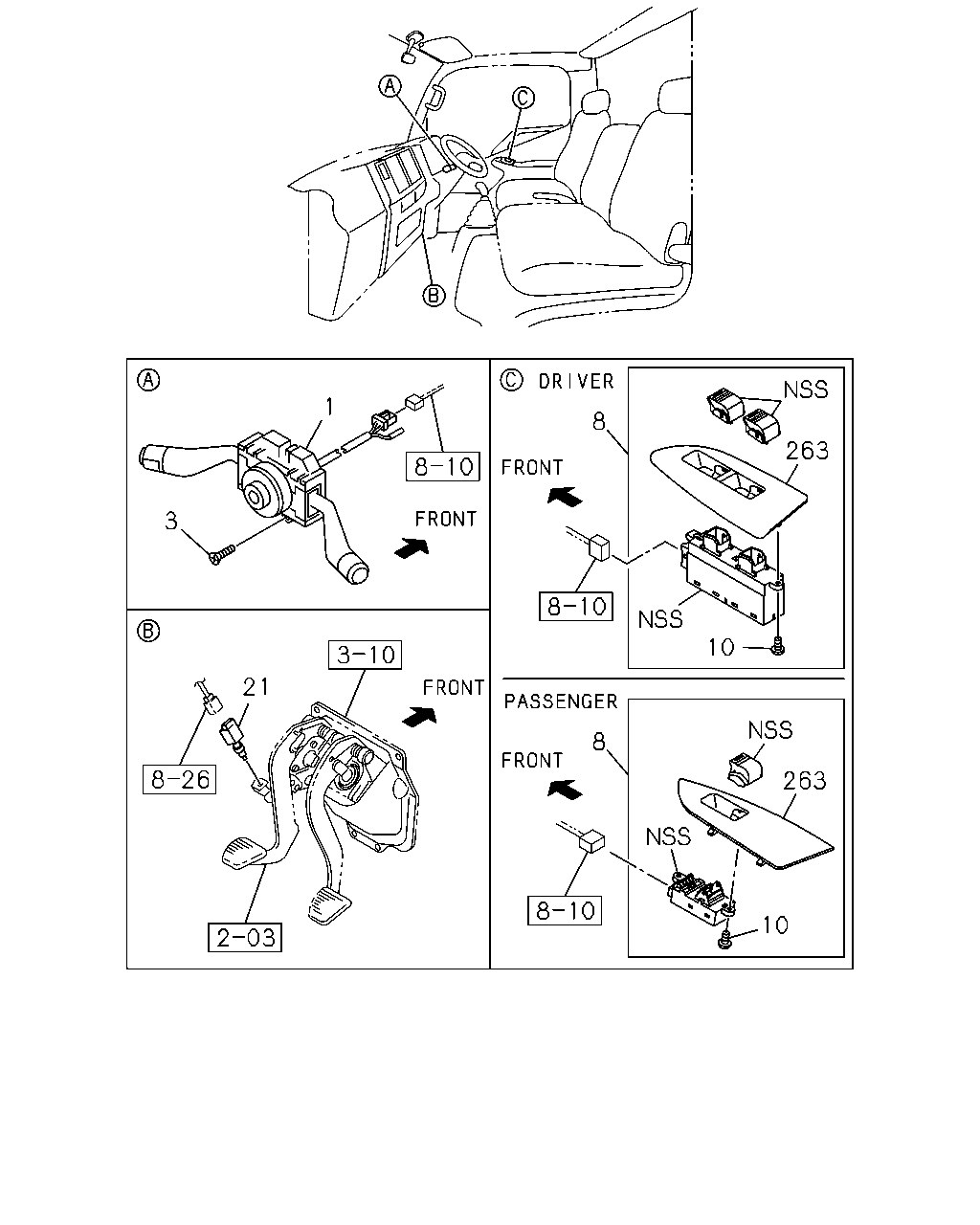

çizim 137283
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98146-619-0 01 1 1009-1210 ● ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ● ●
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 1009-1203 ● ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1009-1203 ● ● ●
3 SCREW; COMB SW
AUTO CRUISE<K30> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1204-1511 ● ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1512- ● ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 1009-1207 ● ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98227-828-0 01 1 1208-1509 ● ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-754-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1009-1207 ● ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98227-829-0 01 1 1208-1509 ● ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-423-0 01 1 1510- ● ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 02 1 1512- ● ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1009-1511 ● ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 01 1 1512- ● ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 1009- ● ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1009- ● ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1009- ● ● ●

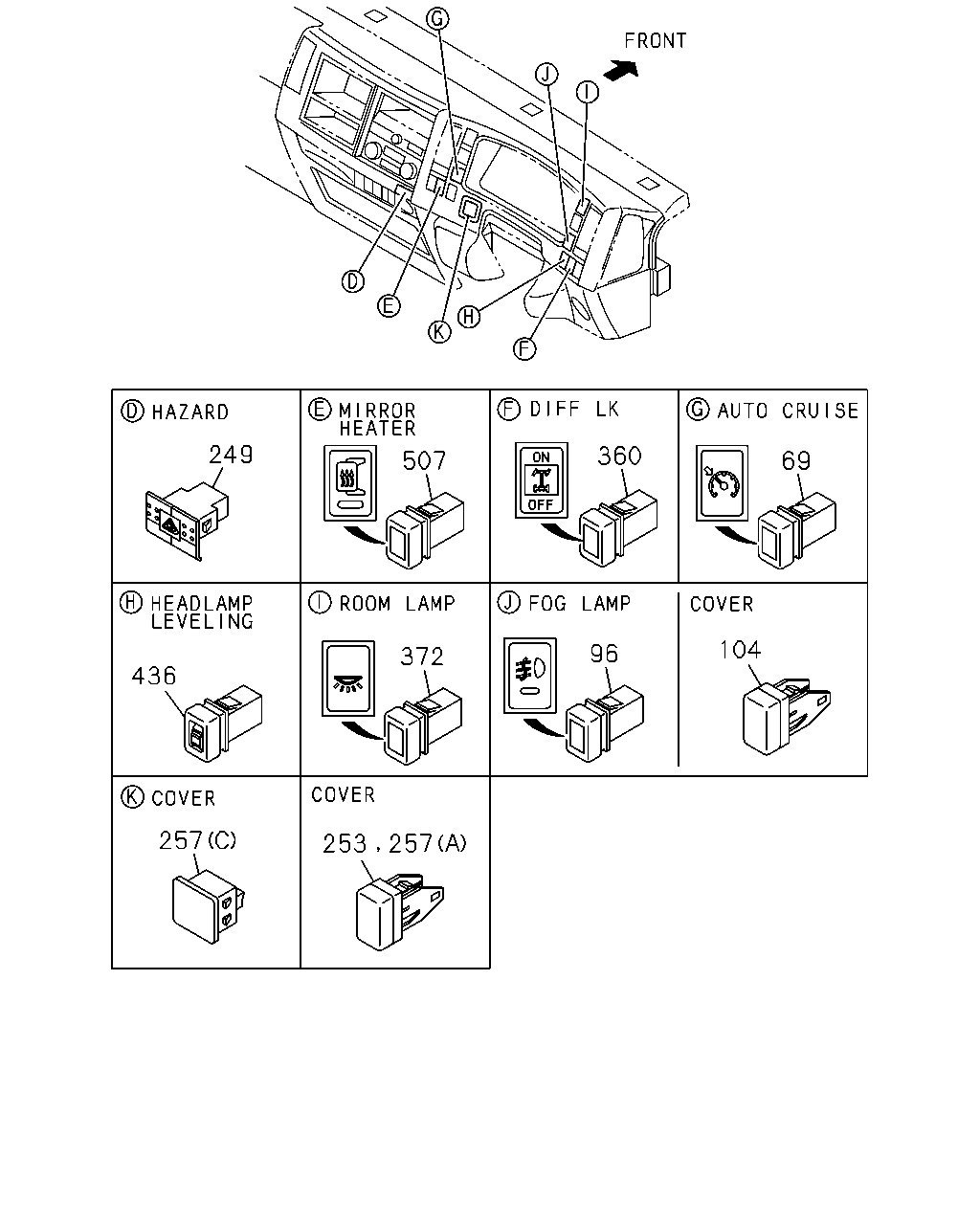

çizim 137776
249 360 507 69 104 96 372 436 257 253 257
BalonParca AdiParca NoAdetTipApplied Date A B C
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1009- ● ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1009- ● ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1009-1203 ● ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1009- ● ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1009- ● ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1009-1203 ● ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1009-1203 ● ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1204- ● ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 1009- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1204- ● ● ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1009- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1204- ● ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 01 1 1009- ●
360 SWITCH ASM; DIFF LK 8-97613-963-2 01 1 1009- ● ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1009-1511 ● ● ●
372 SWITCH; ROOM LAMP
ANTILOCK BRAKE SYSTEM(BFA) 		8-97386-917-2 01 1 1512- ● ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1009- ● ● ●
507 SWITCH; MIRROR HEATER
HEATER 		8-97386-924-3 01 1 1009- ● ● ●
çizim 138154
317 610 99 12 164 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1302 ● ● ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1303- ● ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ● ●
çizim 138511
237 236 667 397 666
BalonParca AdiParca NoAdetTipApplied Date A B C
236 BRACKET; AXLE HARNESS,RR 1-82698-614-0 01 1 1009- ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009- ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1204- ● ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=16 		0-95325-025-0 01 1 1009- ● ● ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
çizim 189668
164
BalonParca AdiParca NoAdetTipApplied Date A B C
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ● ●

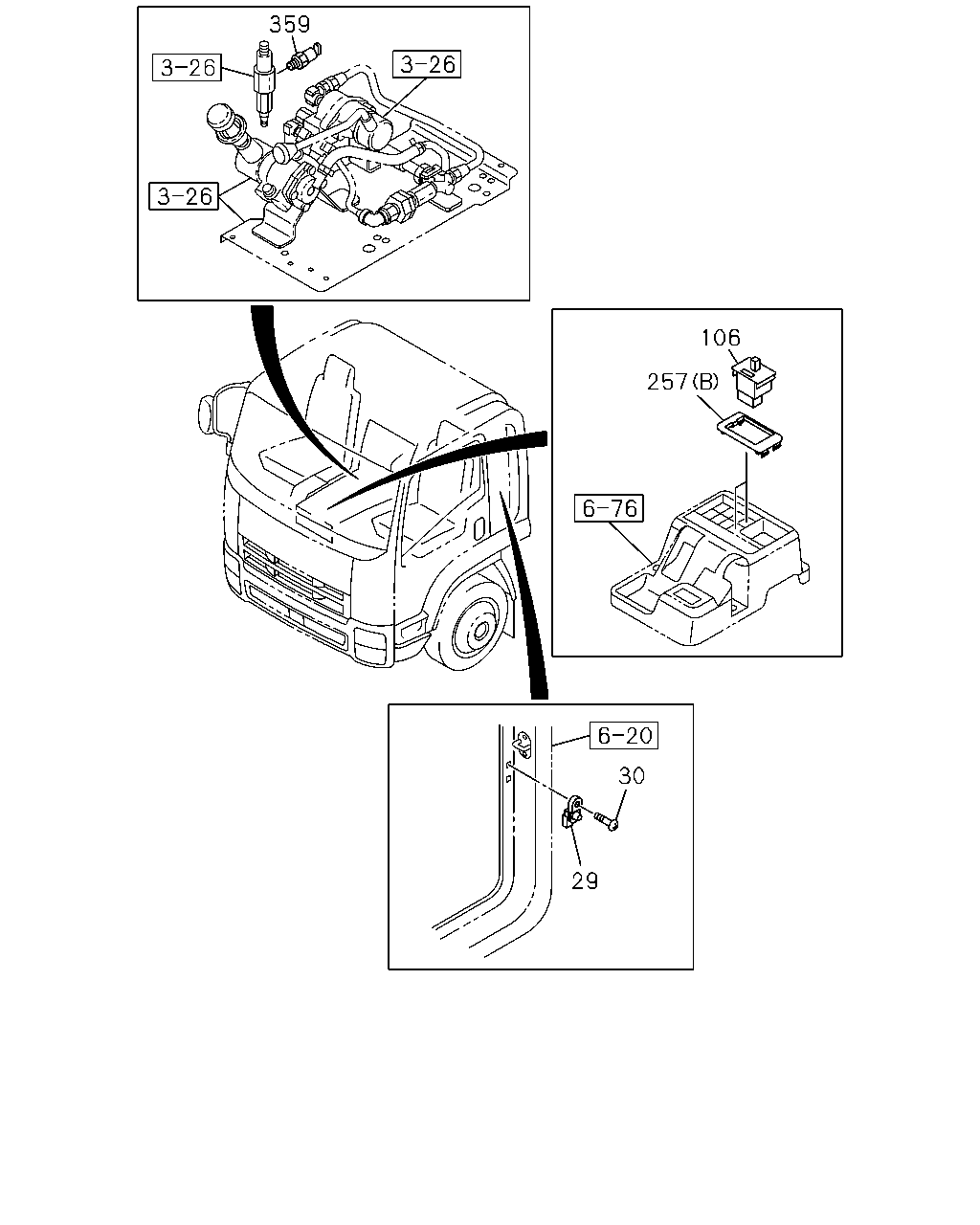

çizim 189670
359 106 257 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009-1203 ● ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009-1203 ● ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 02 1 1204- ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1009-1203 ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1009-1203 ● ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1204- ● ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 1009- ● ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 1009- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1204- ● ● ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1009- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1203 ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1204- ● ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 01 1 1009- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1009- ●

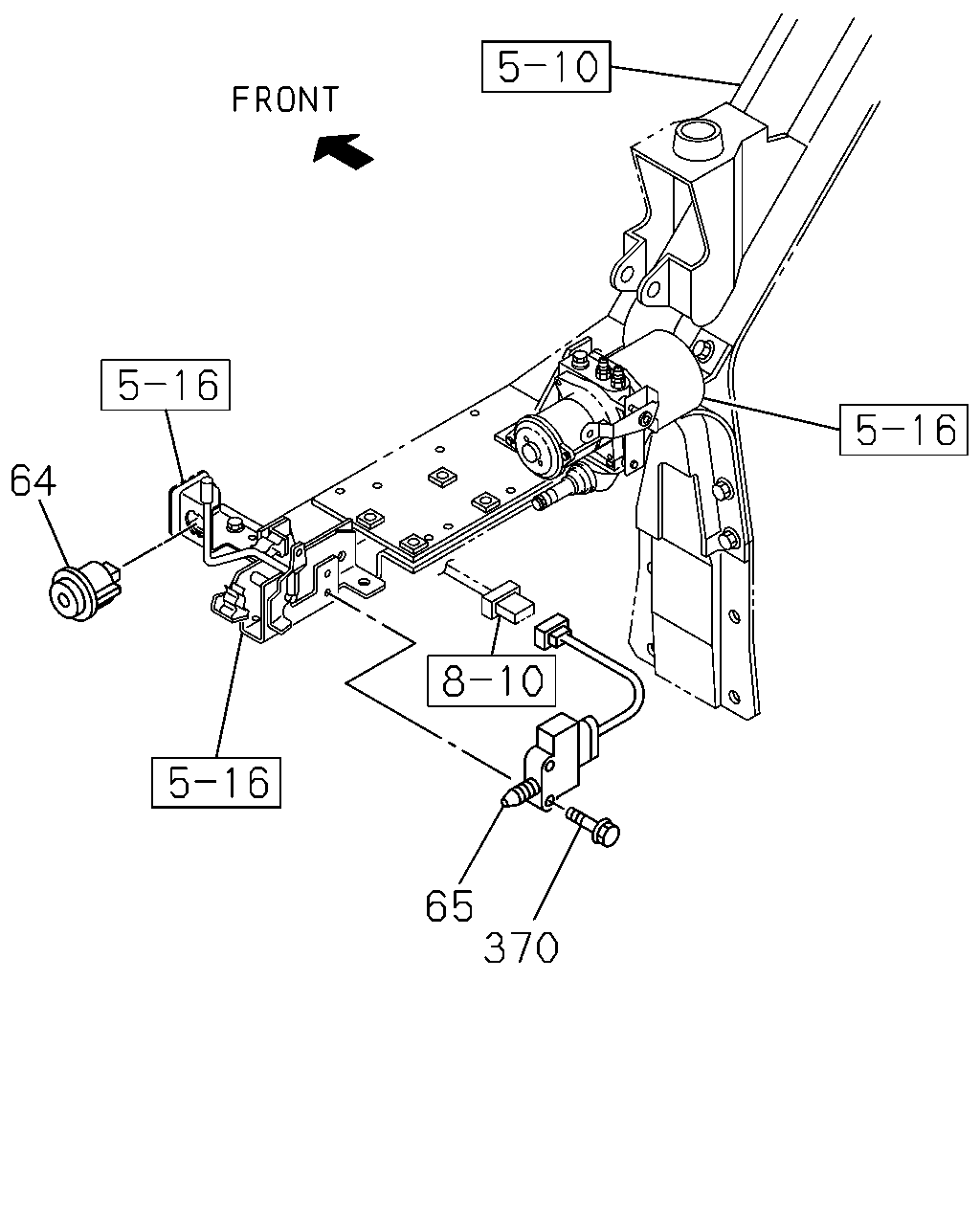

çizim 189676
64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B C
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1009- ● ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1009- ● ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1009- ● ● ●
